Simpson Anchors | SKU:
STB2-50700MGR25

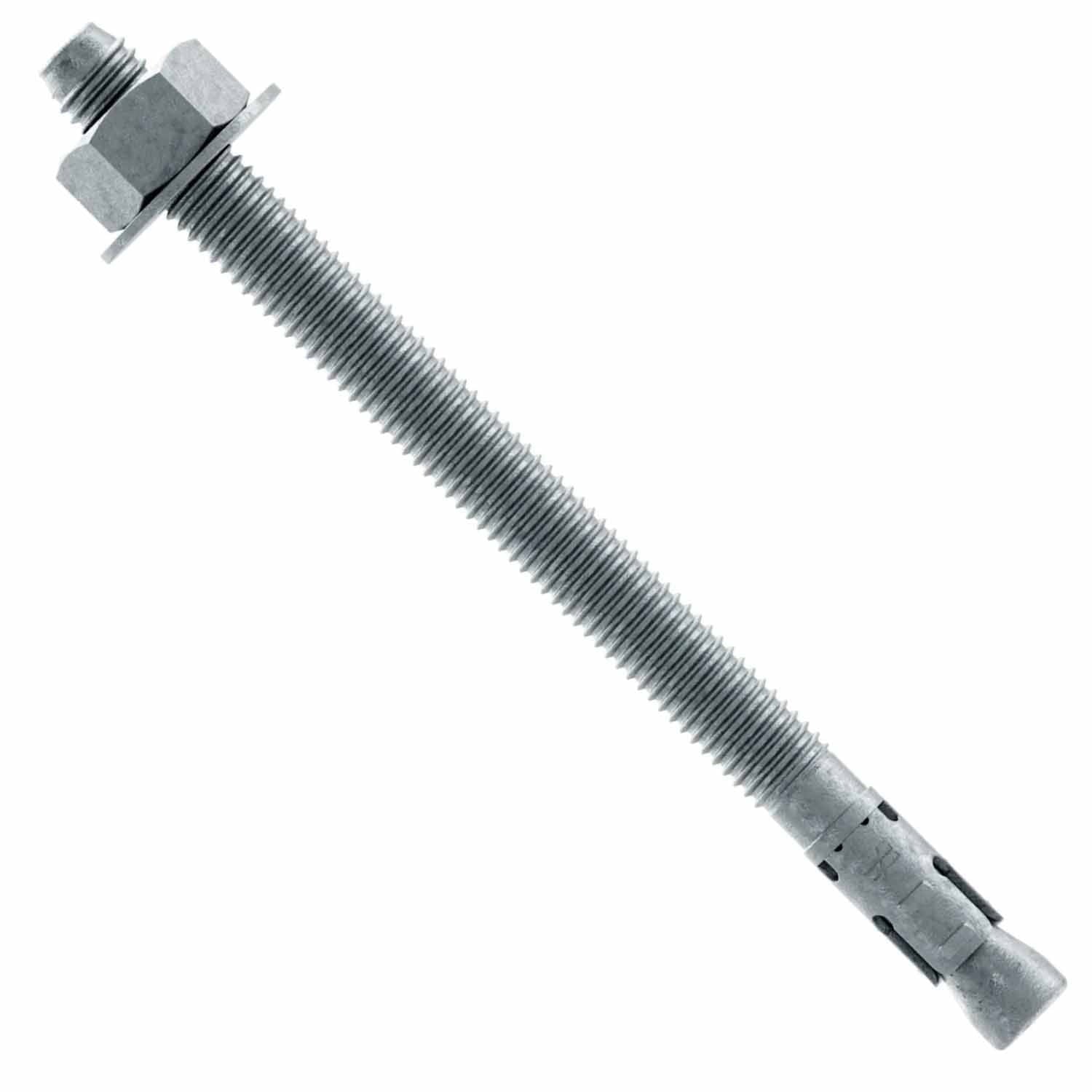

Simpson Strong-Tie STB2-50700MGR25 Strong-Bolt (2 1/2" x 7") Mechanically Galvanized Wedge Anchor (25 Pack)
$61.36
Unit price
/
Unavailable
Description
Description
Simpson STB2-50700MGR25 Description
The Strong-Bolt 2 Wedge Anchor is a reliable solution for anchoring in cracked or uncracked concrete, featuring a mechanically galvanized finish and a robust design for static and seismic loads.
Simpson STB2-50700MGR25 Includes
- (25) 1/2 in. x 7 in. Mechanically Galvanized Wedge Anchor
Simpson STB2-50700MGR25 Features
- Chamfered top prevents mushrooming during installation
- Suitable for horizontal, vertical, and overhead applications
- Tested for minimum concrete thickness of 3 1/4"
- Fits standard fixtures and installs with common drill bit sizes
- Qualified for static and seismic loading
Simpson STB2-50700MGR25 Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic load applications
- Horizontal, vertical, and overhead installations
Simpson STB2-50700MGR25 Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter.
- Clean the hole using compressed air or ensure it accommodates embedment depth.
- Assemble the anchor with nut and washer, flush with the anchor top.
- Insert the anchor into the fixture and drive it into the hole.
- Tighten the nut to the specified installation torque.
Simpson STB2-50700MGR25 Specifications
| Diameter | 1/2" |
| Length | 7" |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill Bit Size | 1/2" |
| Fixture Hole Size | 9/16" |
| Installation Torque | 45 ft. lbf. |
| Thread Length | 5-5/16" |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
