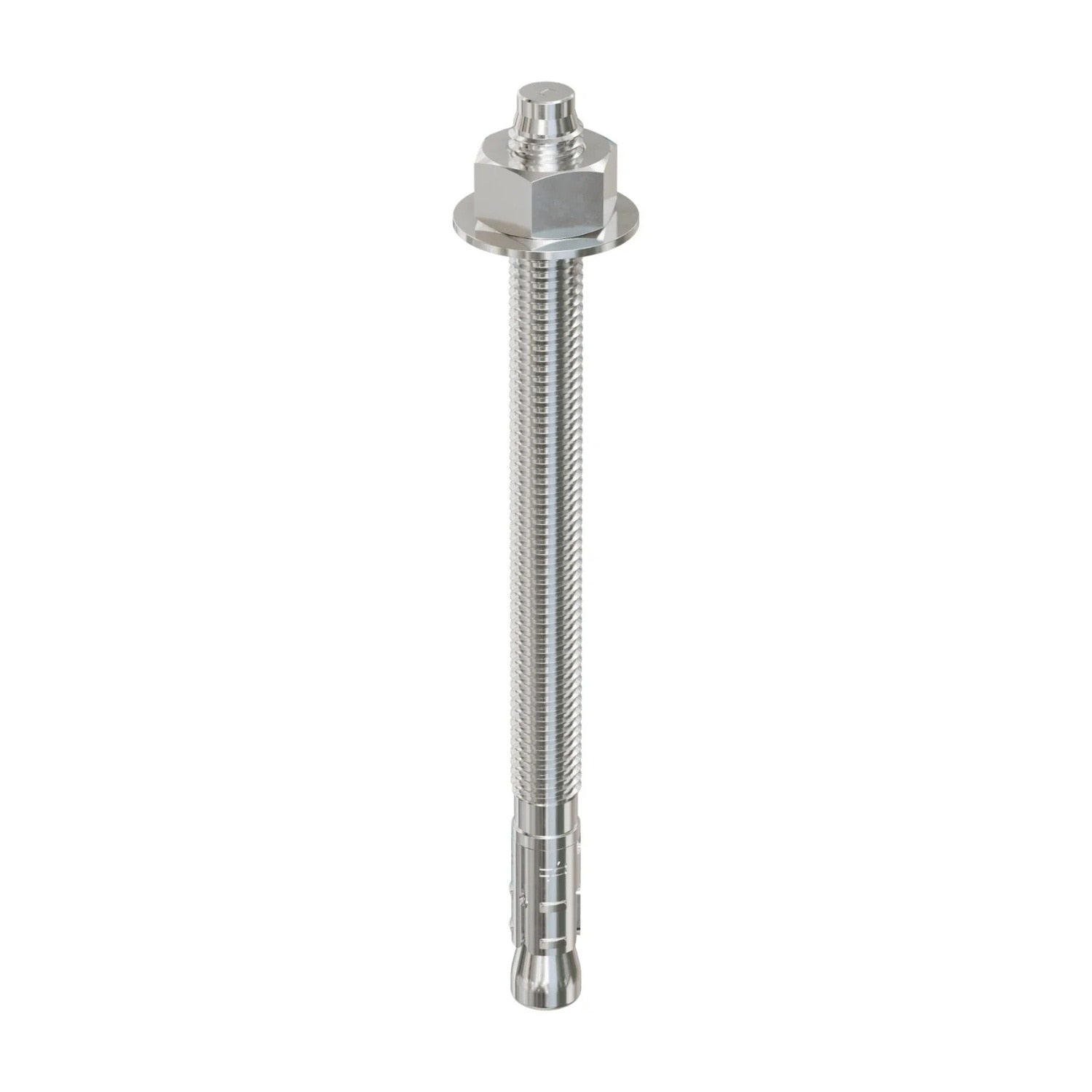

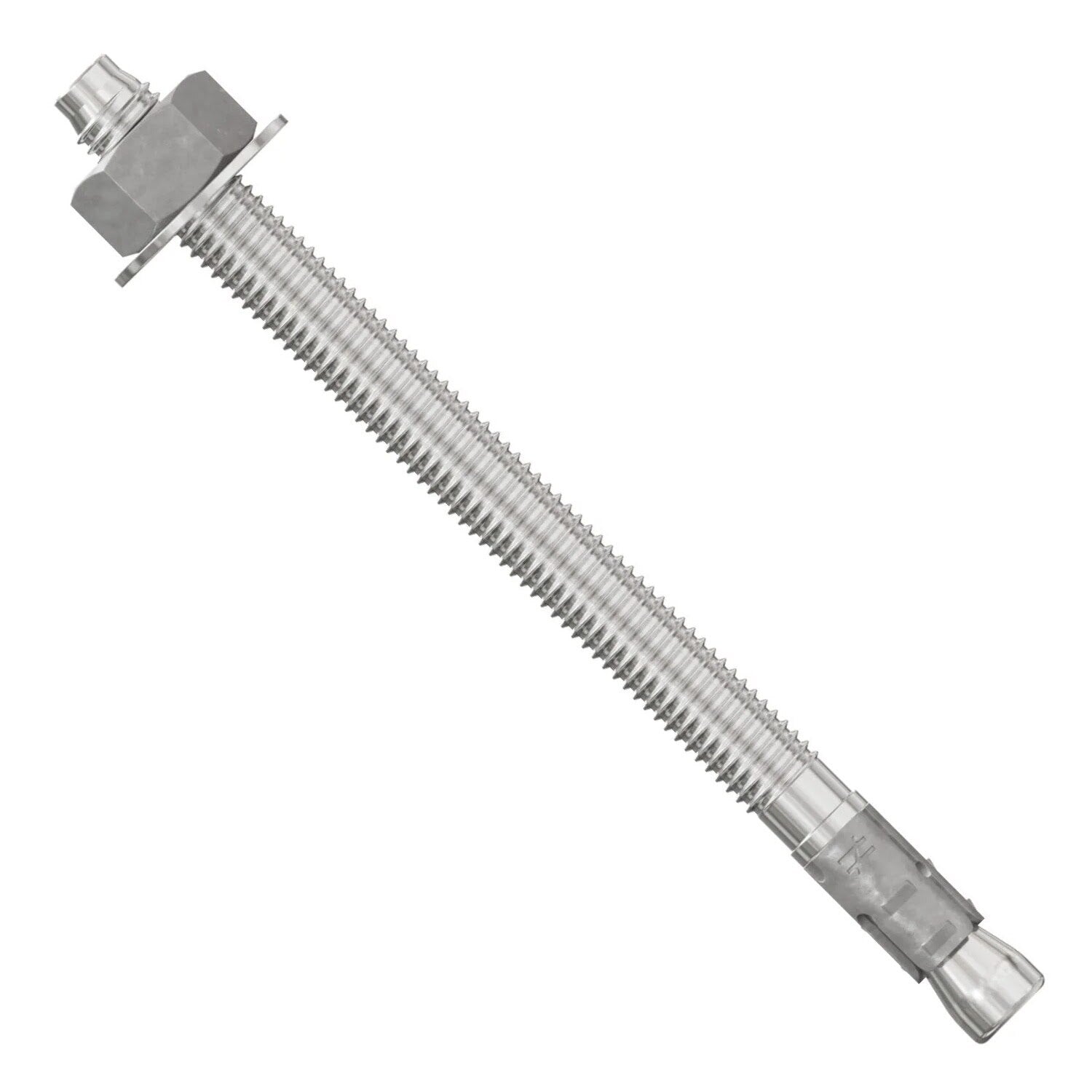

Simpson Strong-Tie STB2-50700S4F25 Strong Bolt (1/2" x 7") Stainless-Steel Wedge Anchor - Fully Assembled (25 Pack)

Simpson Strong-Tie STB2-50700S4F25 Features

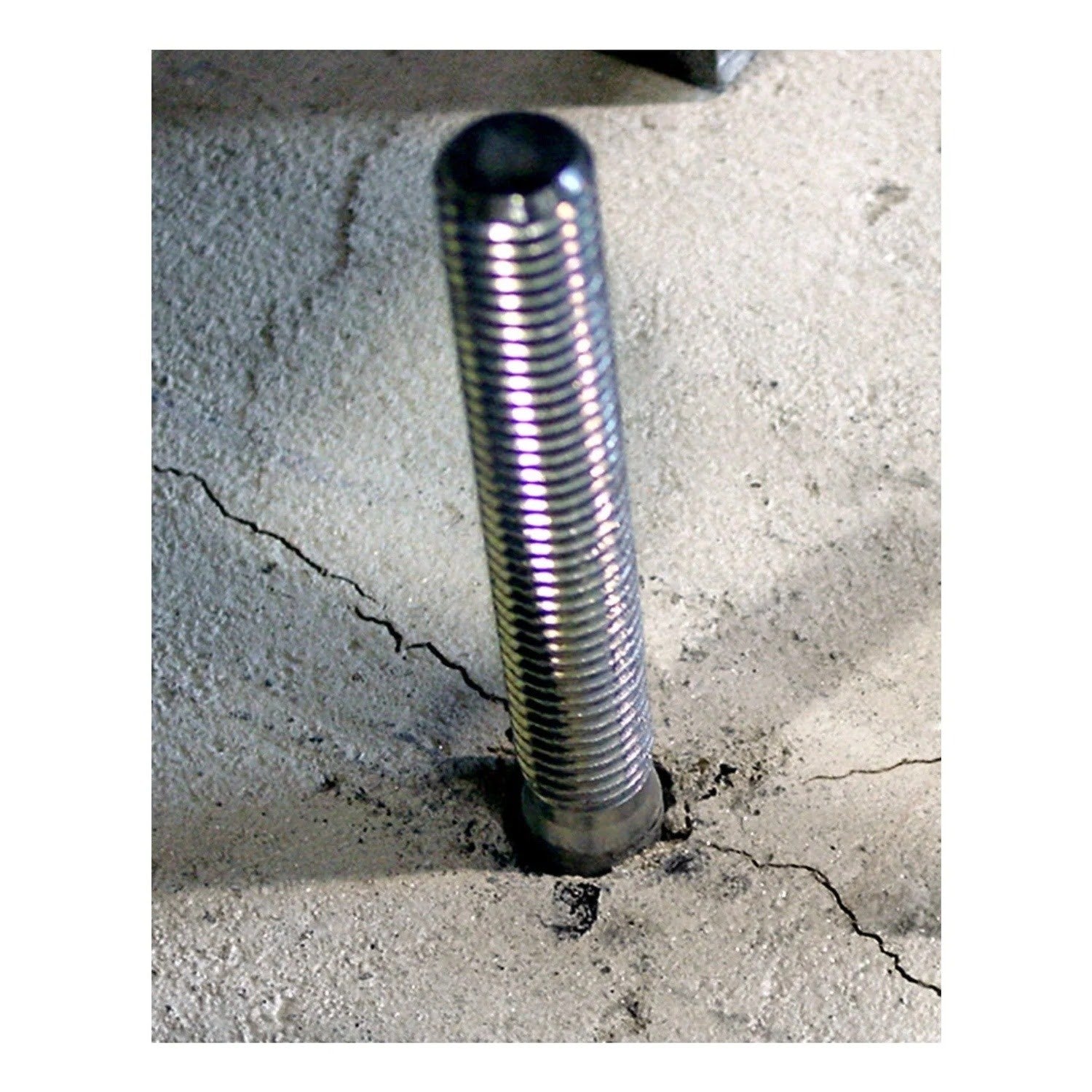

• Chamfered top designed to prevent mushrooming during installation
• Qualified for static and seismic loading conditions (seismic design categories A through F)
• Suitable for horizontal, vertical and overhead applications
• Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck
• Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
• Tested per ACI355.2 and AC193

Simpson Strong-Tie STB2-50700S4F25 Applications

• Structural steel anchoring
• Machinery anchoring
• Racking systems
• Ledger attachments
• Post bases

Simpson Strong-Tie STB2-50700S4F25 Installation Overview

1. Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
2. Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.

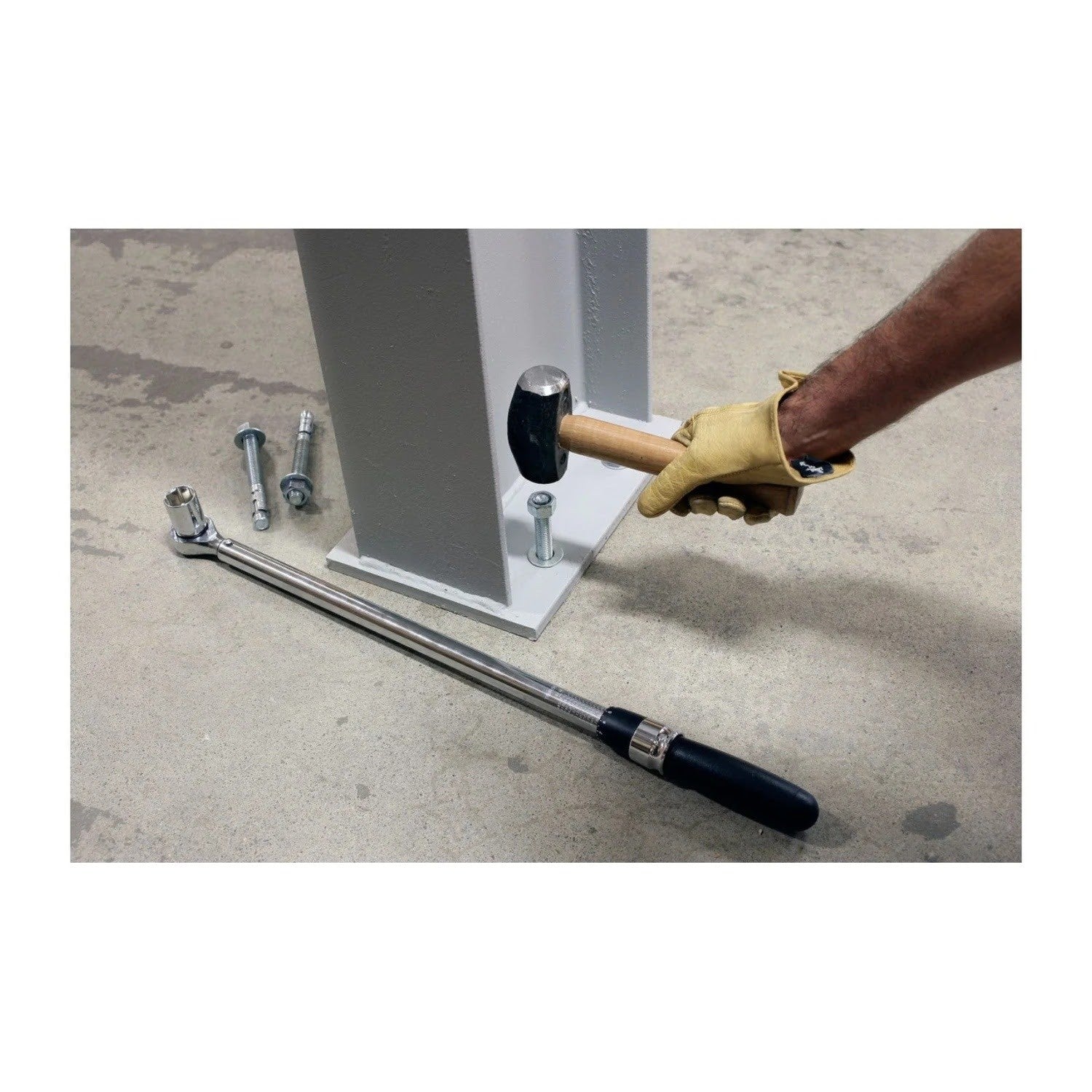

3. Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.

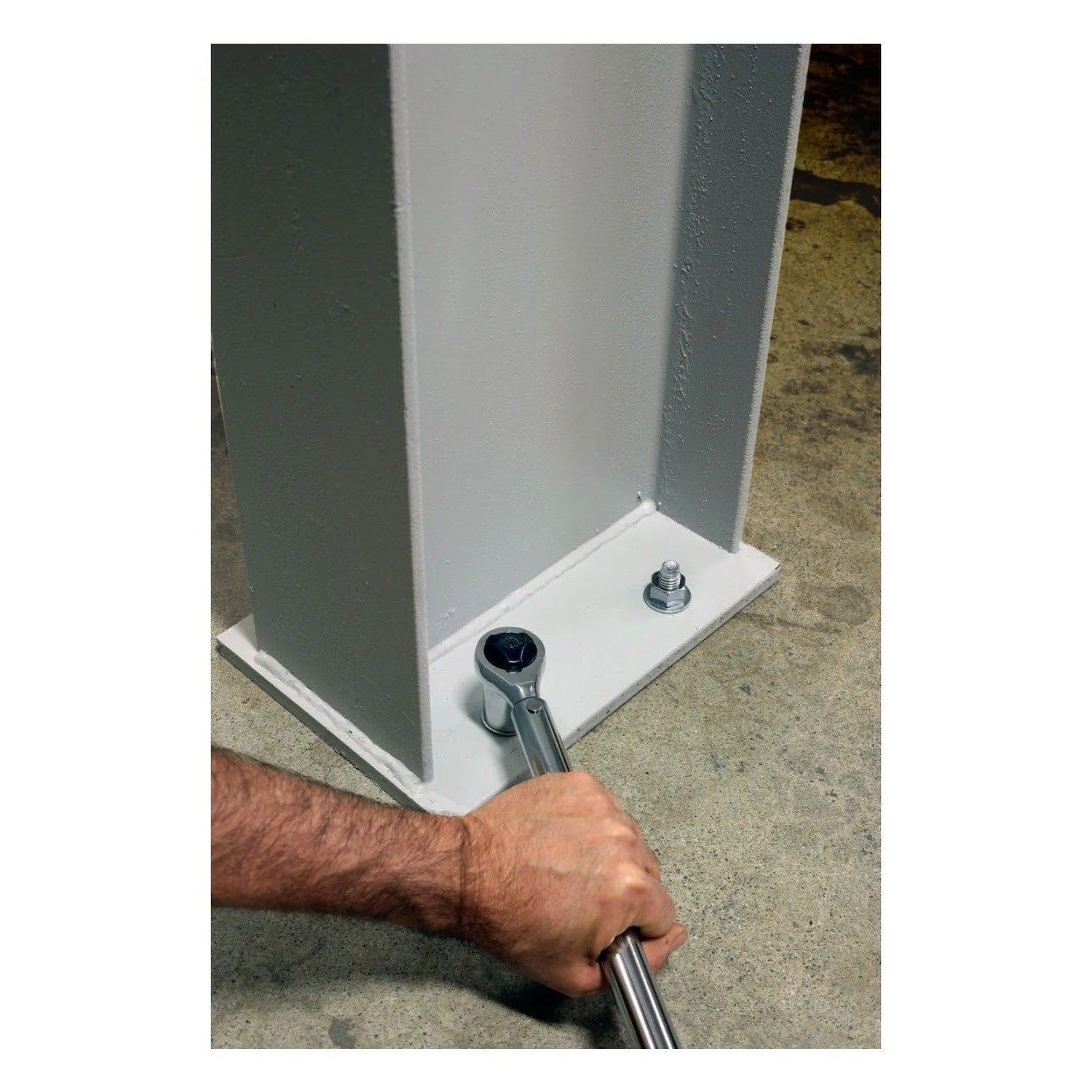

4. Tighten to the required installation torque.
