Simpson Anchors | SKU:
STB2-50700S6F25

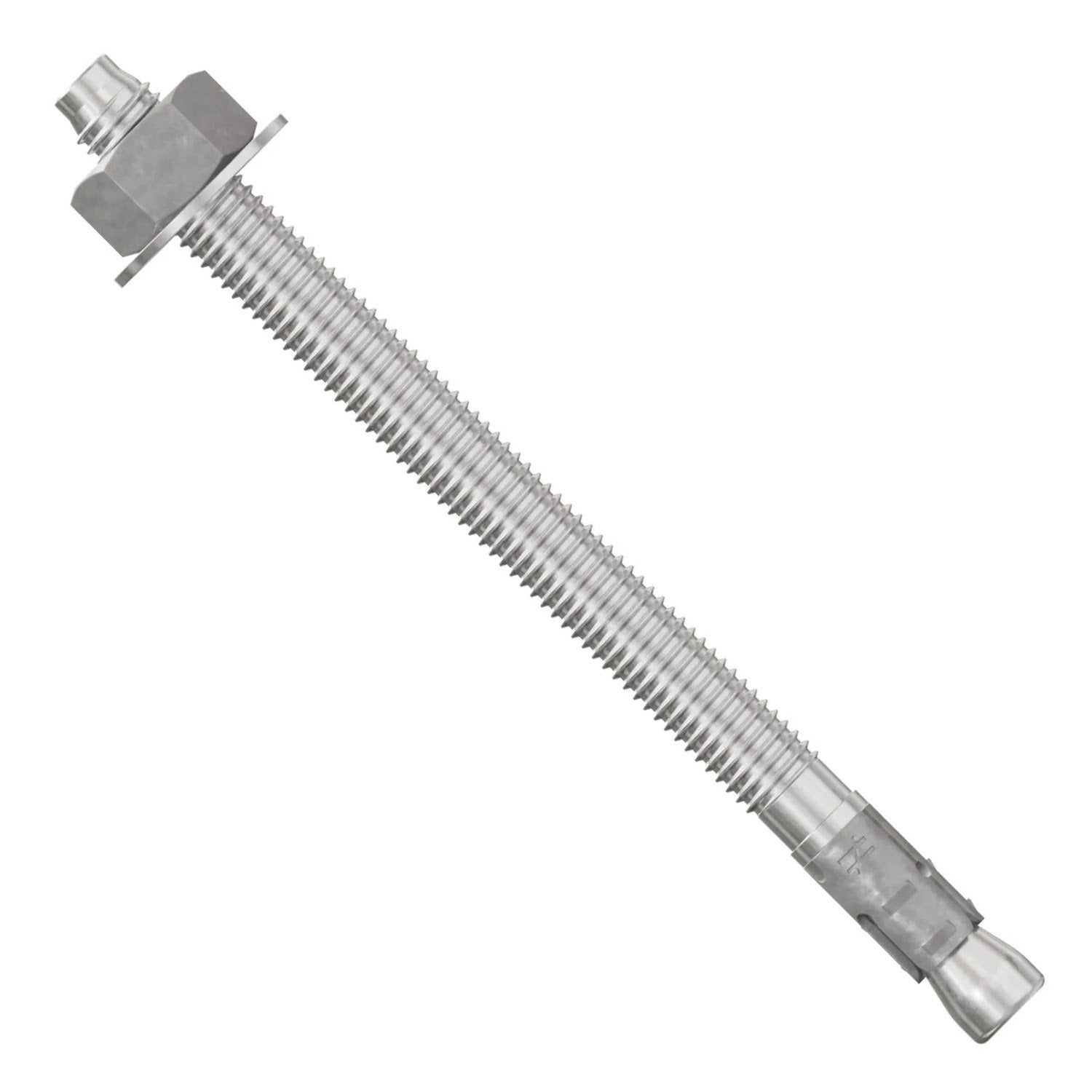

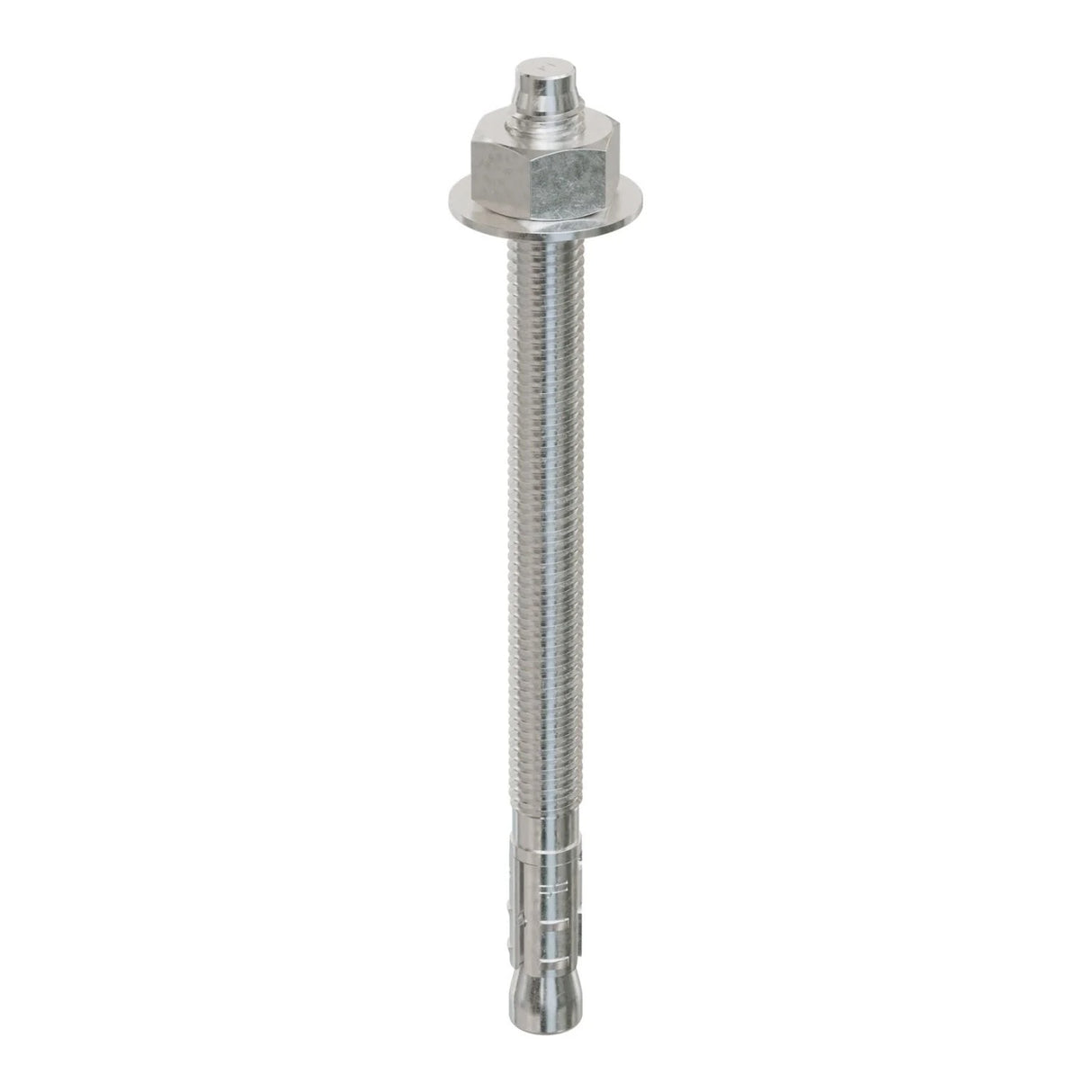

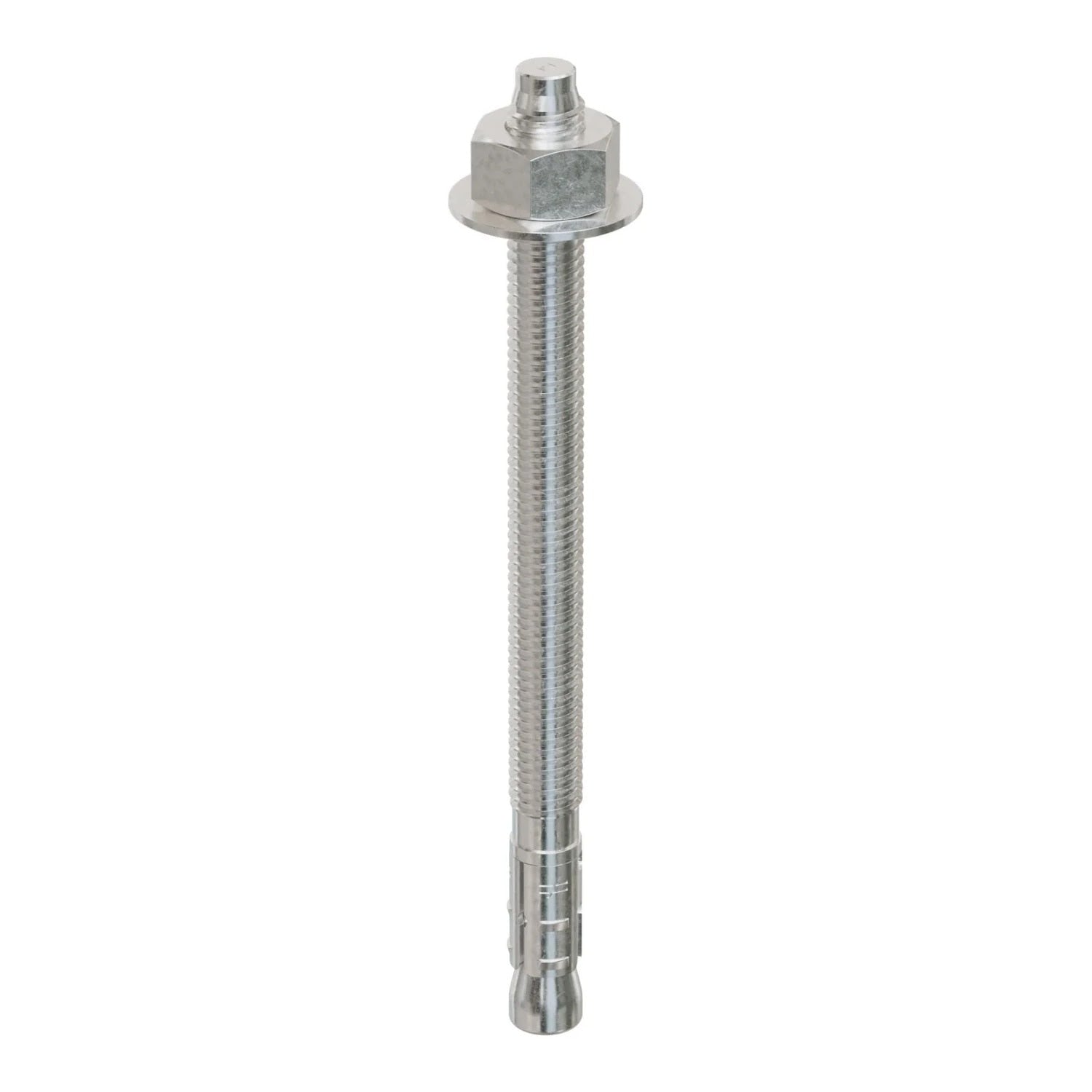

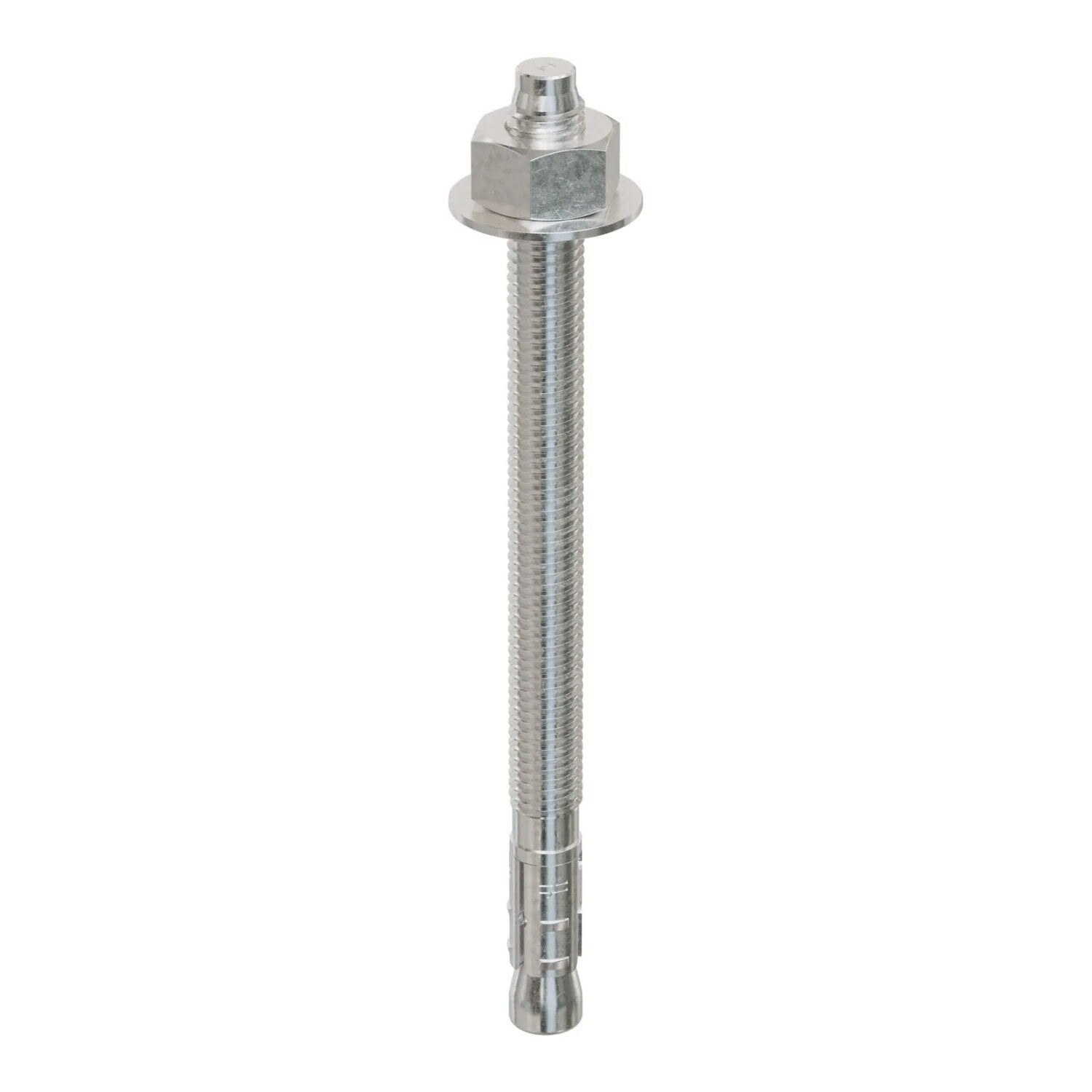

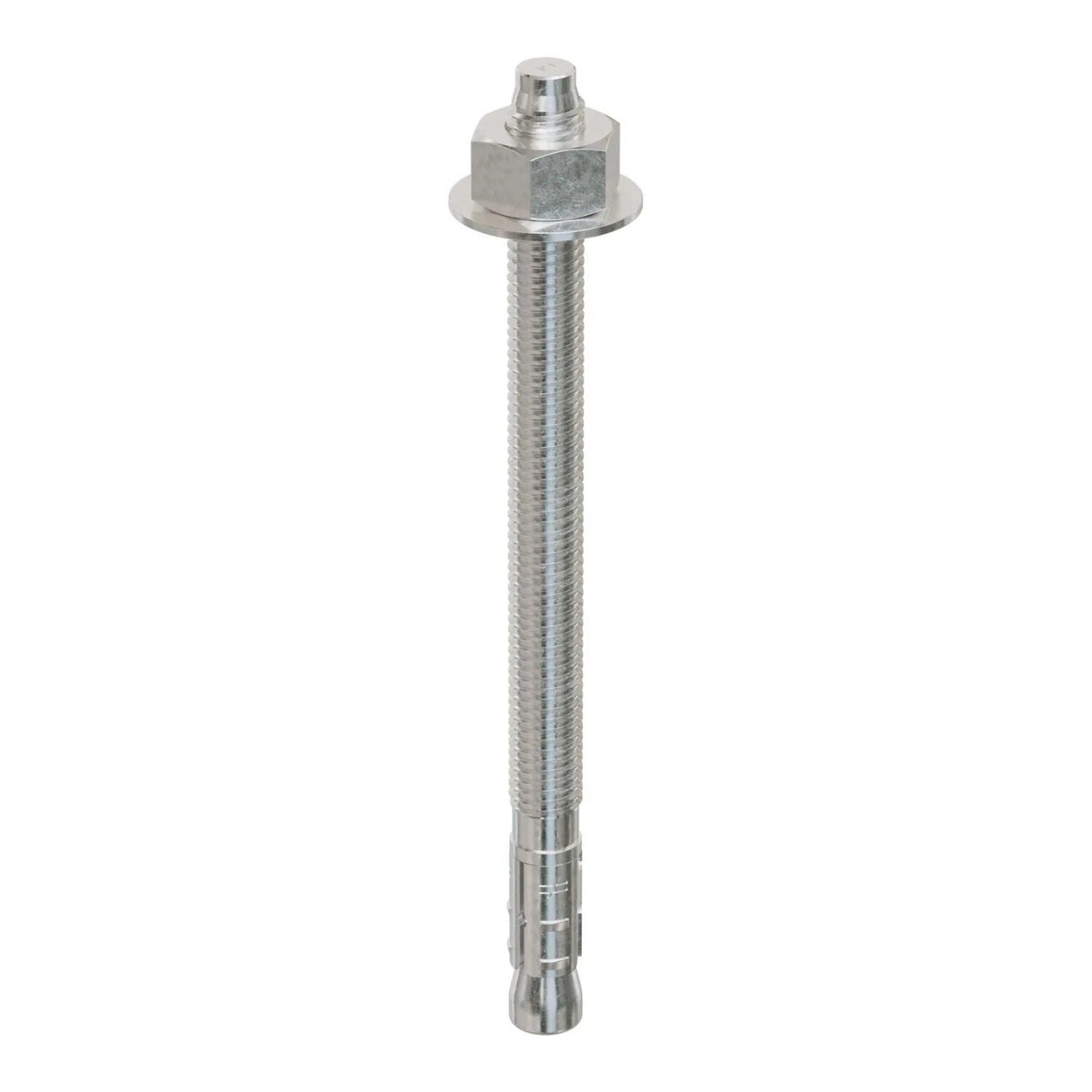

Simpson Strong-Tie STB2-50700S6F25 Strong Bolt (1/2" x 7") Stainless-Steel Wedge Anchor - Fully Assembled (25 Pack)
Free Shipping
$261.65
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-50700S6F25 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are designed for maximum performance in corrosive environments, featuring 316 stainless steel for durability and preassembled components for ease of installation.
Simpson Strong-Tie STB2-50700S6F25 Includes
- (25) 1/2 in. x 7 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-50700S6F25 Features
- 316 Stainless Steel Construction for corrosion resistance
- Fully Assembled with nut and washer for easy installation

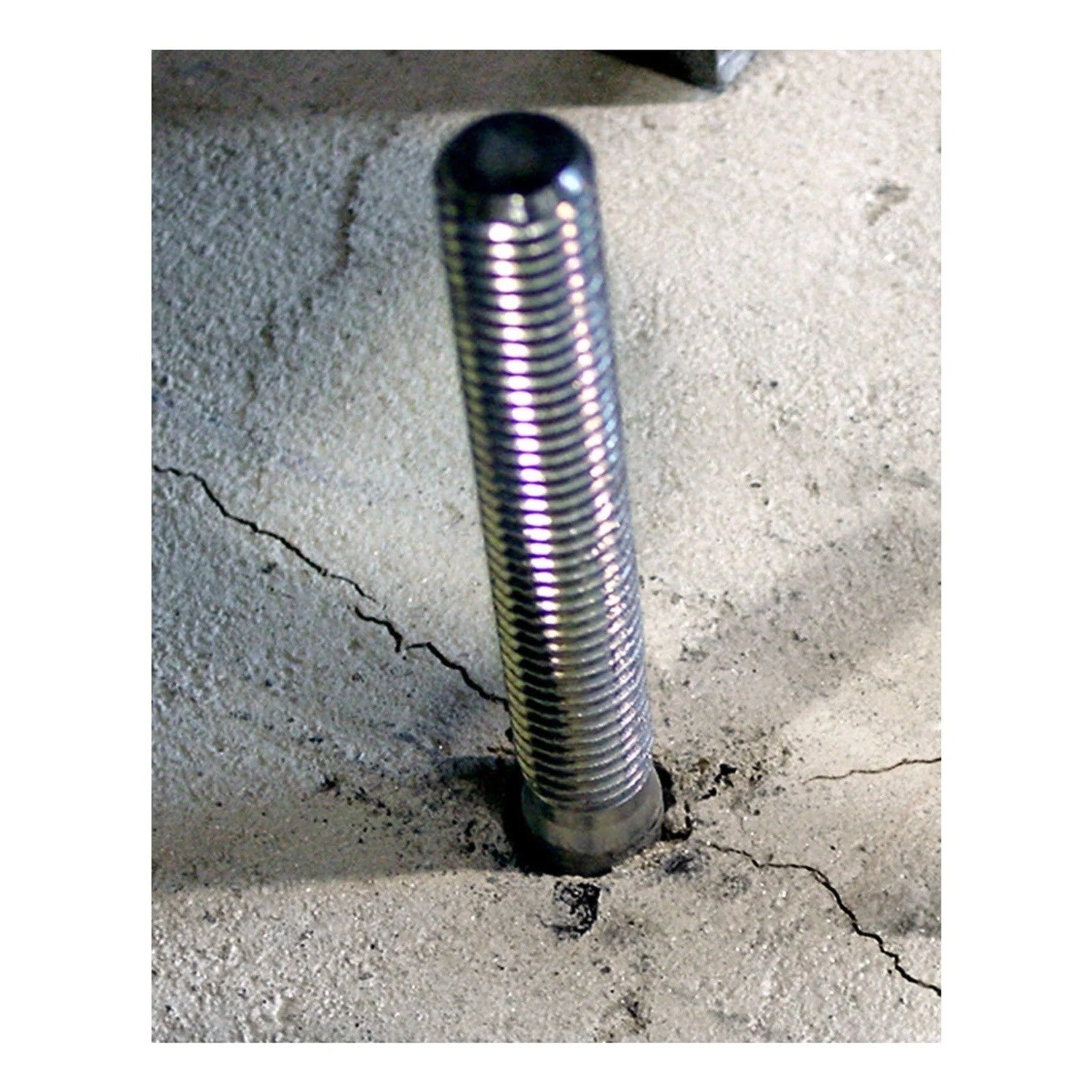

- Code-Compliant Performance for cracked and uncracked concrete
- Versatile Use for structural supports, machinery, and railings
- Variety of Sizes Available for different applications
Simpson Strong-Tie STB2-50700S6F25 Applications
- Anchoring structural supports in corrosive environments
- Securing machinery and equipment
- Installing railing systems in residential and commercial settings
- Reinforcing connections in coastal or marine constructions

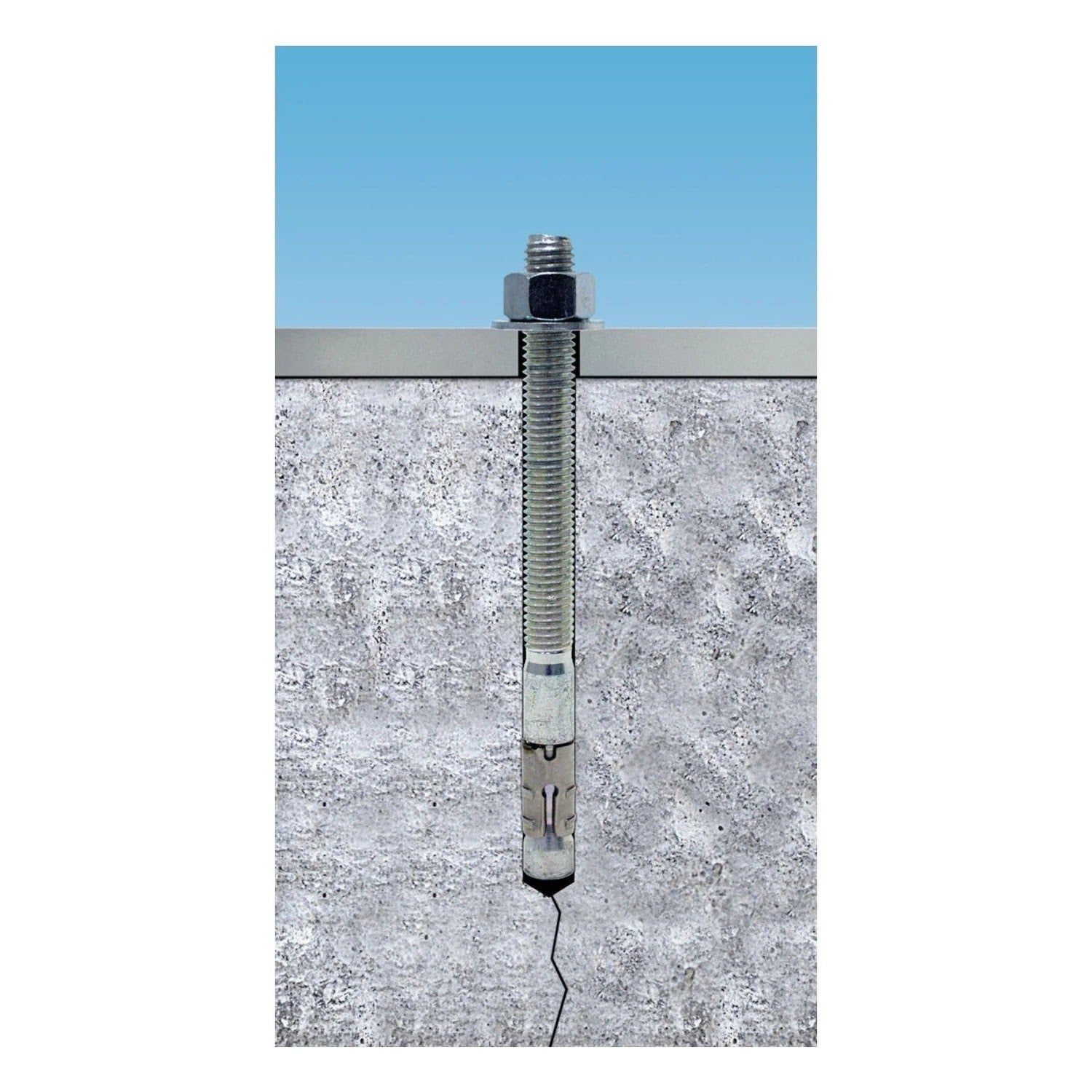

Simpson Strong-Tie STB2-50700S6F25 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth.
- Assemble the anchor with the nut and washer, ensuring the nut is flush with the anchor top.

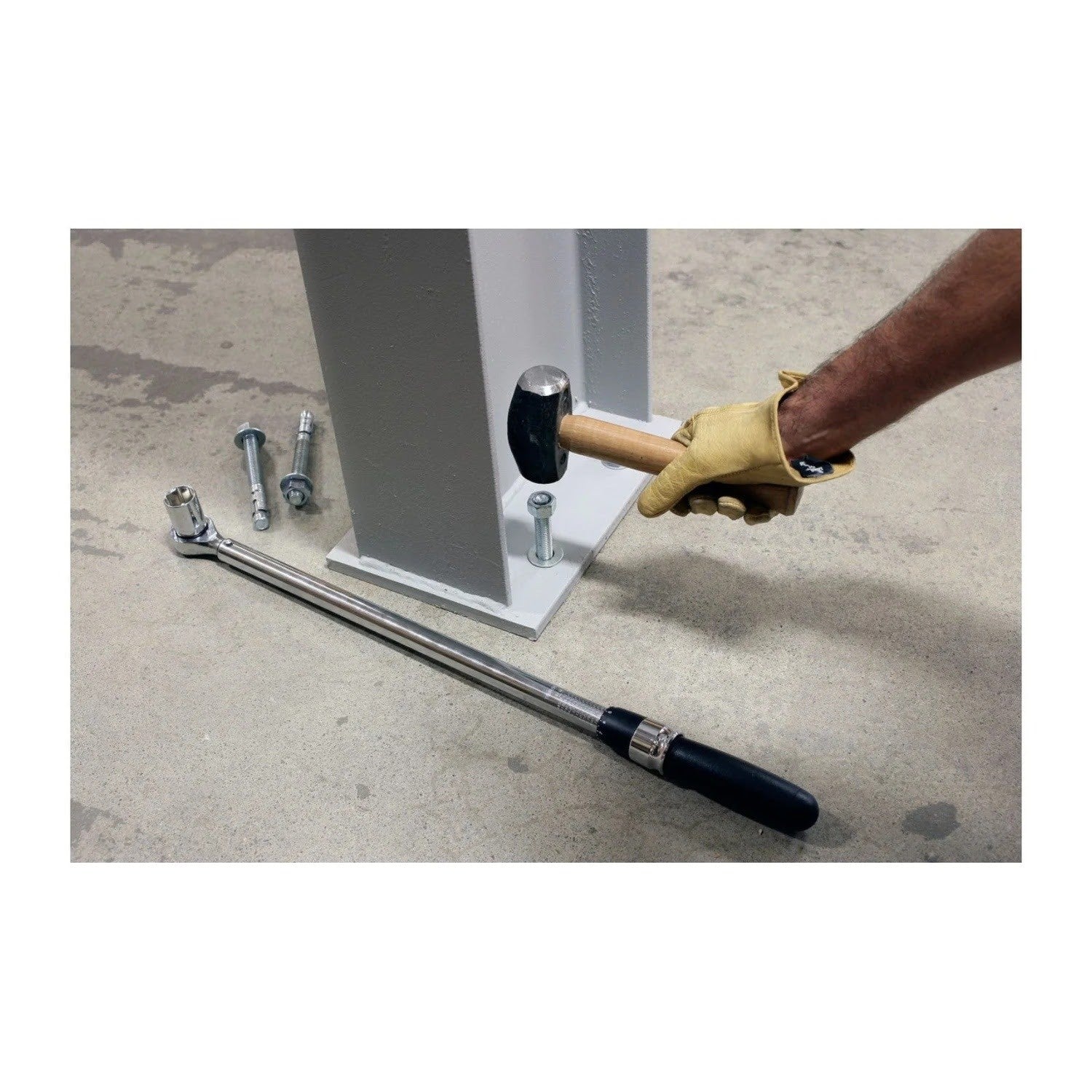

- Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.

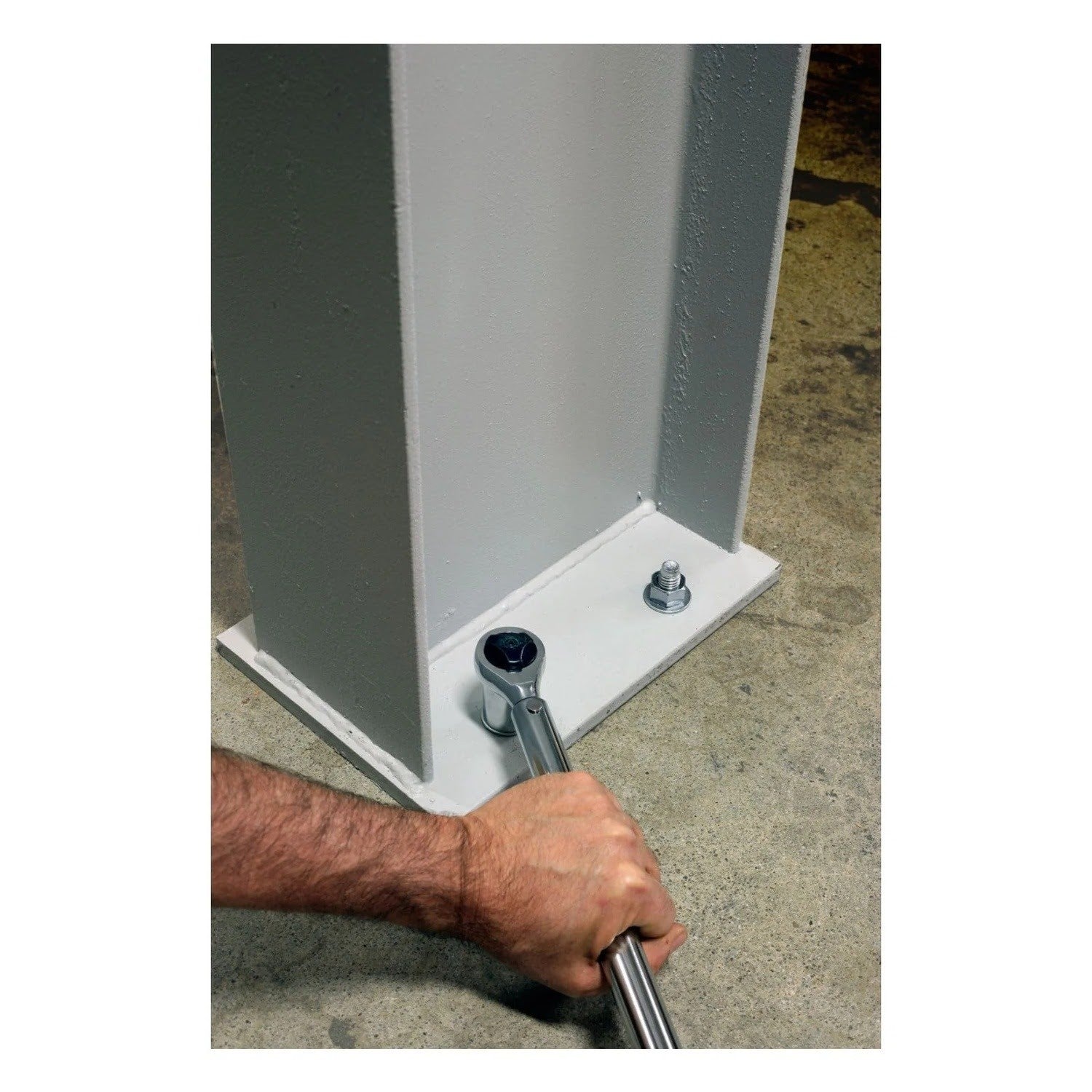

- Tighten the nut to the required installation torque.
Simpson Strong-Tie STB2-50700S6F25 Specifications
| Diameter | 1/2 in. |
| Length | 7 in. |
| Material | 316 Stainless Steel |
| Drill bit size | 1/2 in. |
| Fixture hole size | 9/16 in. |
| Installation torque | 45 ft. lbf. |
| Thread length | 5-5/16 in. |
| Wrench size | 3/4 in. |
