Simpson Anchors | SKU:
STB2-621004SS

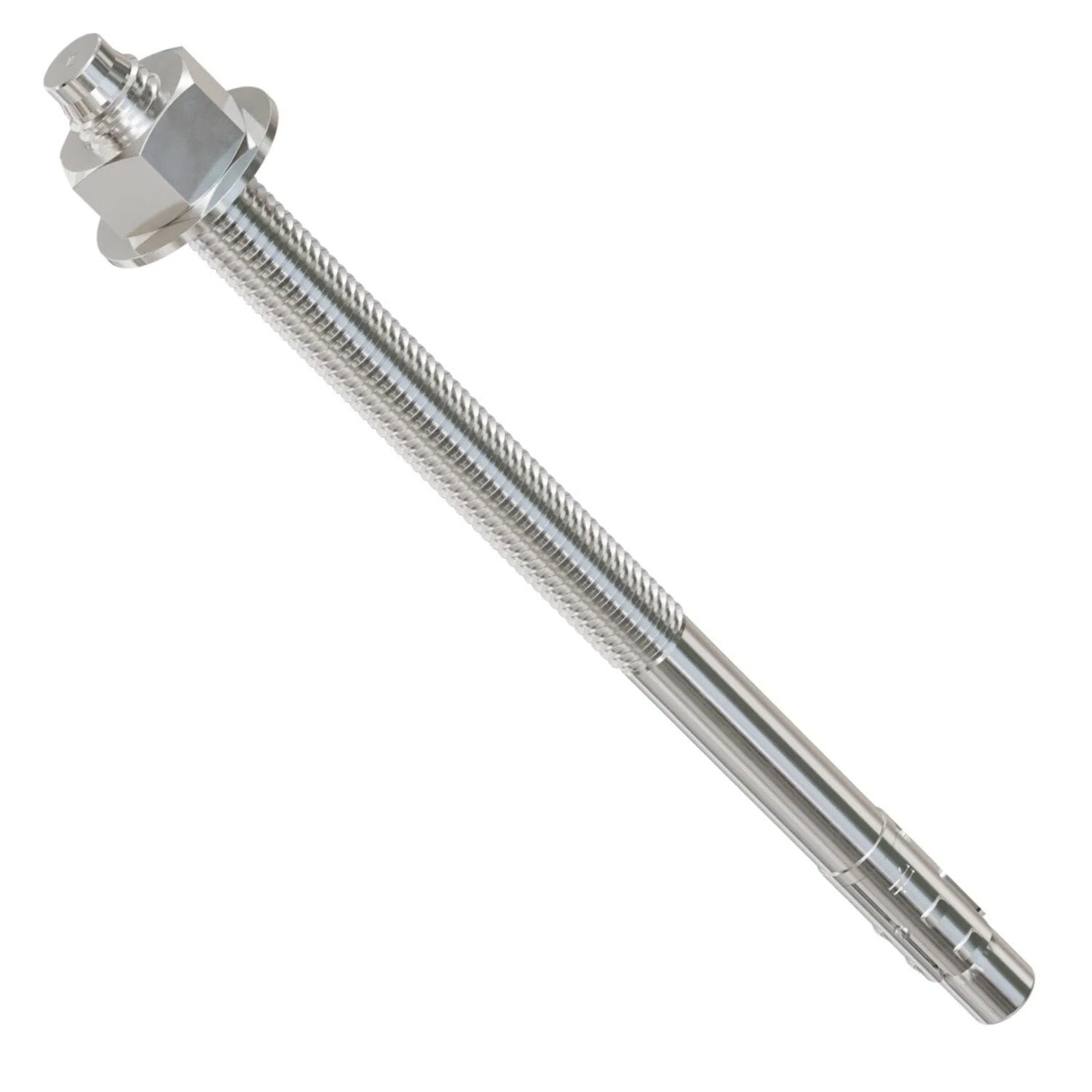

Simpson Strong-Tie STB2-621004SS Strong-Bolt (5/8" x 10") Stainless-Steel Wedge Anchor - Unassembled (10 Pack)
$153.01
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-621004SS Description
The Strong-Bolt 2 Wedge Anchor is a reliable and durable solution for anchoring in concrete, featuring a chamfered top to prevent mushrooming and compatibility with seismic loading conditions.
Simpson Strong-Tie STB2-621004SS Includes
- (10) Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-621004SS Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-621004SS Applications
- Concrete anchoring in static and seismic conditions
- Horizontal, vertical, and overhead applications
- Use in lightweight concrete-over-steel deck
Simpson Strong-Tie STB2-621004SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten the anchor to the required installation torque.
Simpson Strong-Tie STB2-621004SS Specifications
| Material | Type 304 Stainless Steel |
| Size | 5/8 x 10 |
| Drill Bit Diameter | 8-May |
| Thread Length | 6 |
| Packaging Quantity | 10 |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
