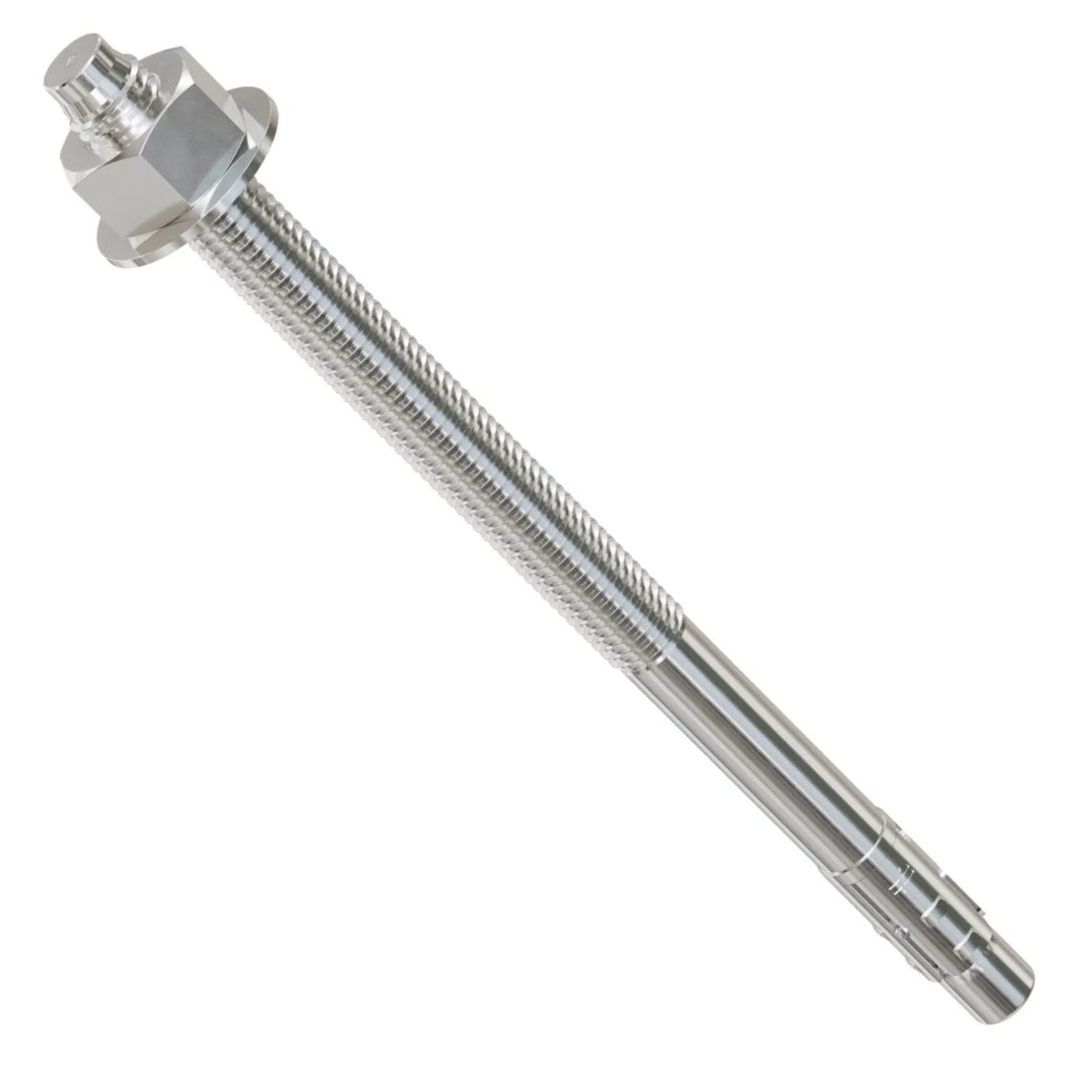

Simpson Strong-Tie STB2-621006SS Description
Simpson Strong-Bolt 2 anchors are non-bottom-bearing, ICC-ES code compliant anchors made to be installed in cracked or uncracked concrete. They are qualified for both static and seismic loading and suitable for horizontal, vertical, and overhead applications.
Simpson Strong-Tie STB2-621006SS Includes
- (10) Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-621006SS Features
- Non-bottom-bearing design
- ICC-ES code compliant
- Qualified for static and seismic loading
- Suitable for horizontal, vertical, and overhead applications
Simpson Strong-Tie STB2-621006SS Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-621006SS Installation Overview
- Drill a hole using a 5/8" drill bit.
- Insert the anchor into the hole.
- Tighten the anchor using a torque wrench to 80 ft. lbs.
- Ensure the anchor is securely set.
Simpson Strong-Tie STB2-621006SS Specifications
| Diameter | 5/8" |
| Length | 10" |
| Drill bit size | 5/8" |
| Installation torque | 80 ft. lbs |
| Thread length | 6" |
| Material | 316 Stainless Steel |
NOTE: Do not use an impact wrench to set or tighten anchors. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
