Simpson Anchors | SKU:
STB2-62100MGR10

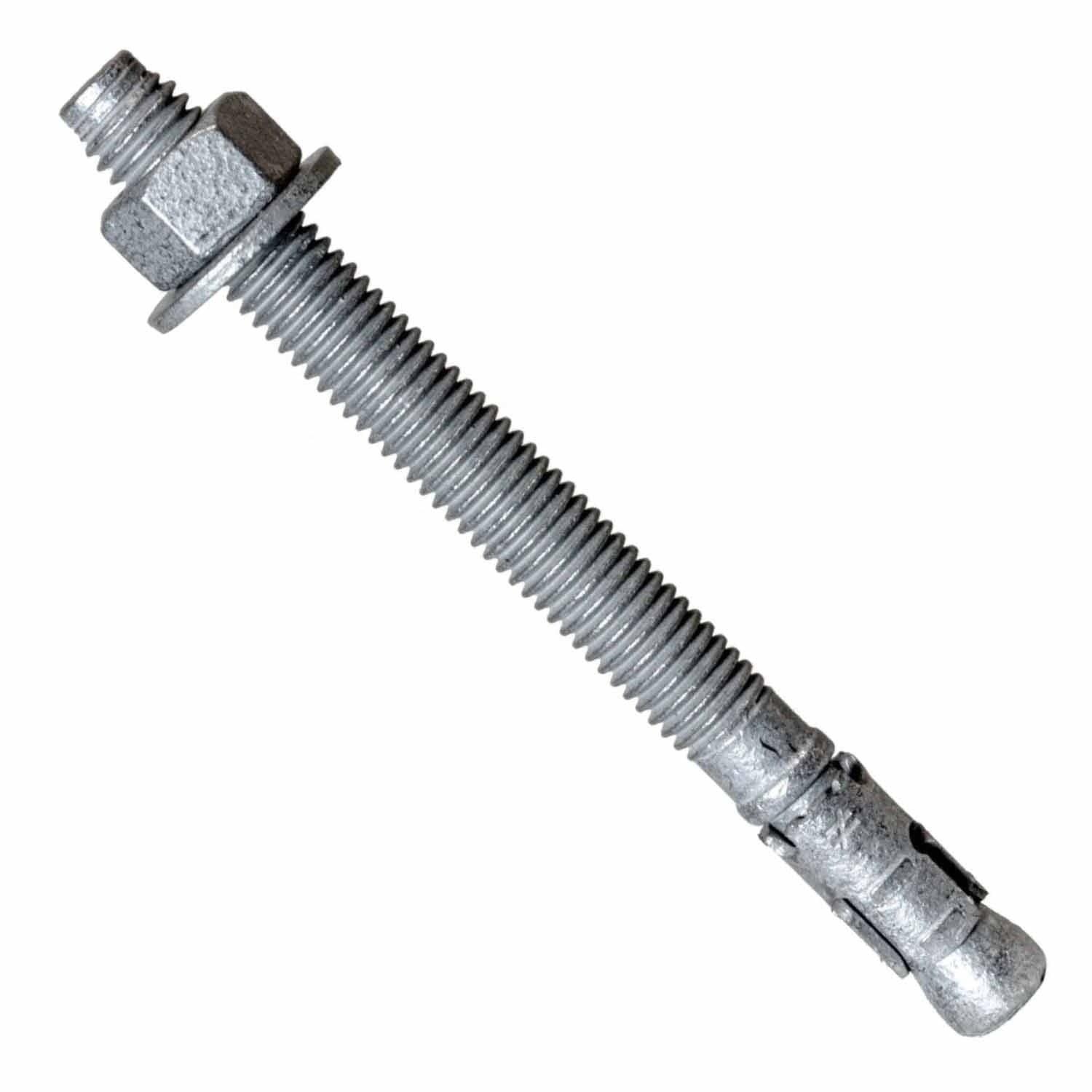

Simpson Strong-Tie STB2-62100MGR10 (2 5/8" x 10") Strong-Bolt 2 Mechanically Galvanized Wedge Anchor (10 Pack)
$74.61
Unit price
/
Unavailable
Description
Description
Simpson STB2-62100MGR10 Description
The Strong-Bolt 2 Wedge Anchor is a mechanically galvanized anchor designed for reliable performance in cracked or uncracked concrete. It is suitable for static and seismic loading and can be used in horizontal, vertical, and overhead applications.
Simpson STB2-62100MGR10 Includes
- (10) 5/8 in. x 10 in. Mechanically Galvanized Wedge Anchor
Simpson STB2-62100MGR10 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical, and overhead applications
- Tested for minimum concrete thickness of 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson STB2-62100MGR10 Applications
- Concrete anchoring for static and seismic loading
- Horizontal, vertical, and overhead applications
- Installation in cracked or uncracked concrete
Simpson STB2-62100MGR10 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten the anchor to the required installation torque.
Simpson STB2-62100MGR10 Specifications
| Diameter | 5/8" |
| Length | 10" |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill Bit Size | 5/8" |
| Fixture Hole Size | 11/16" |
| Installation Torque | 60 ft. lbf. |
| Thread Length | 6" |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity
