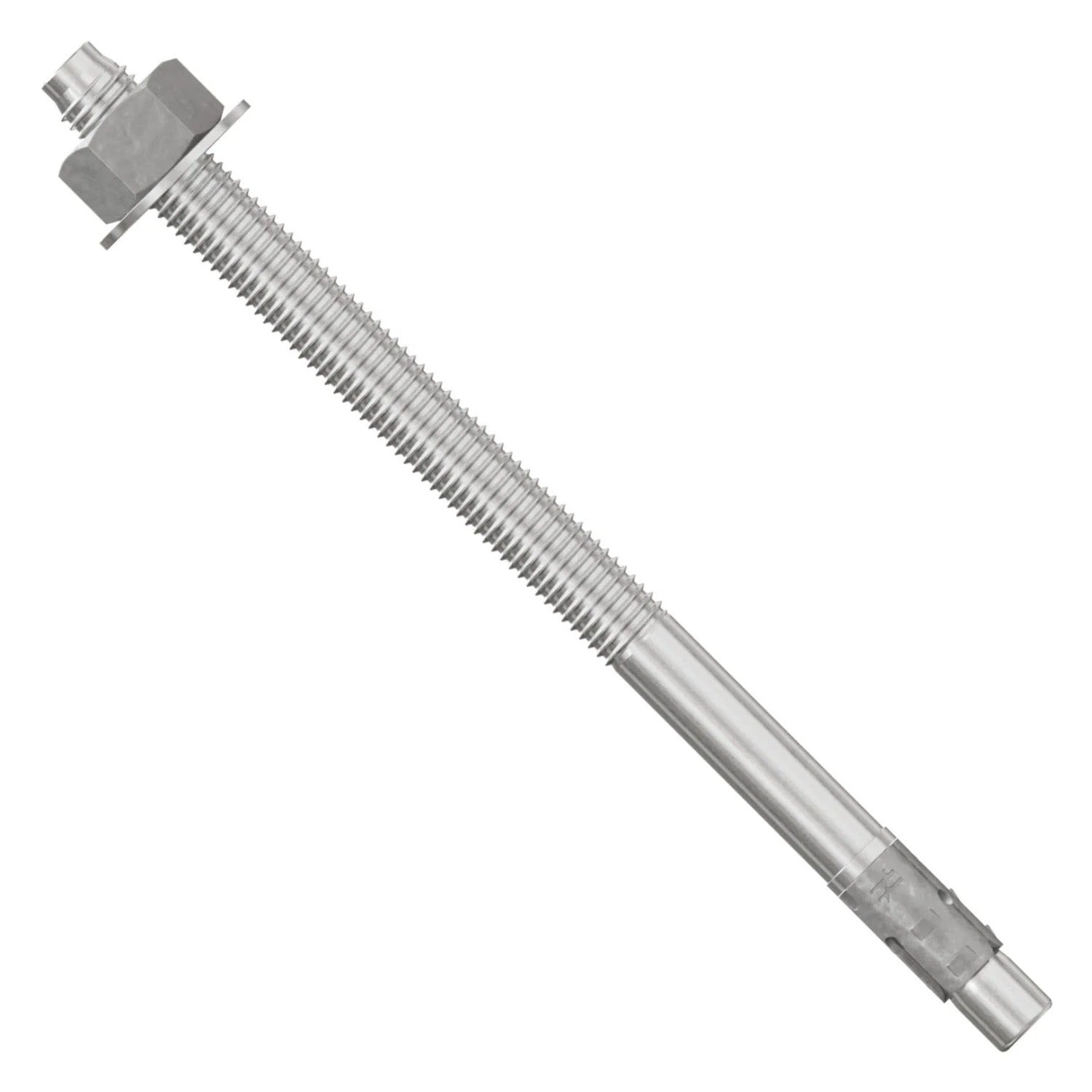

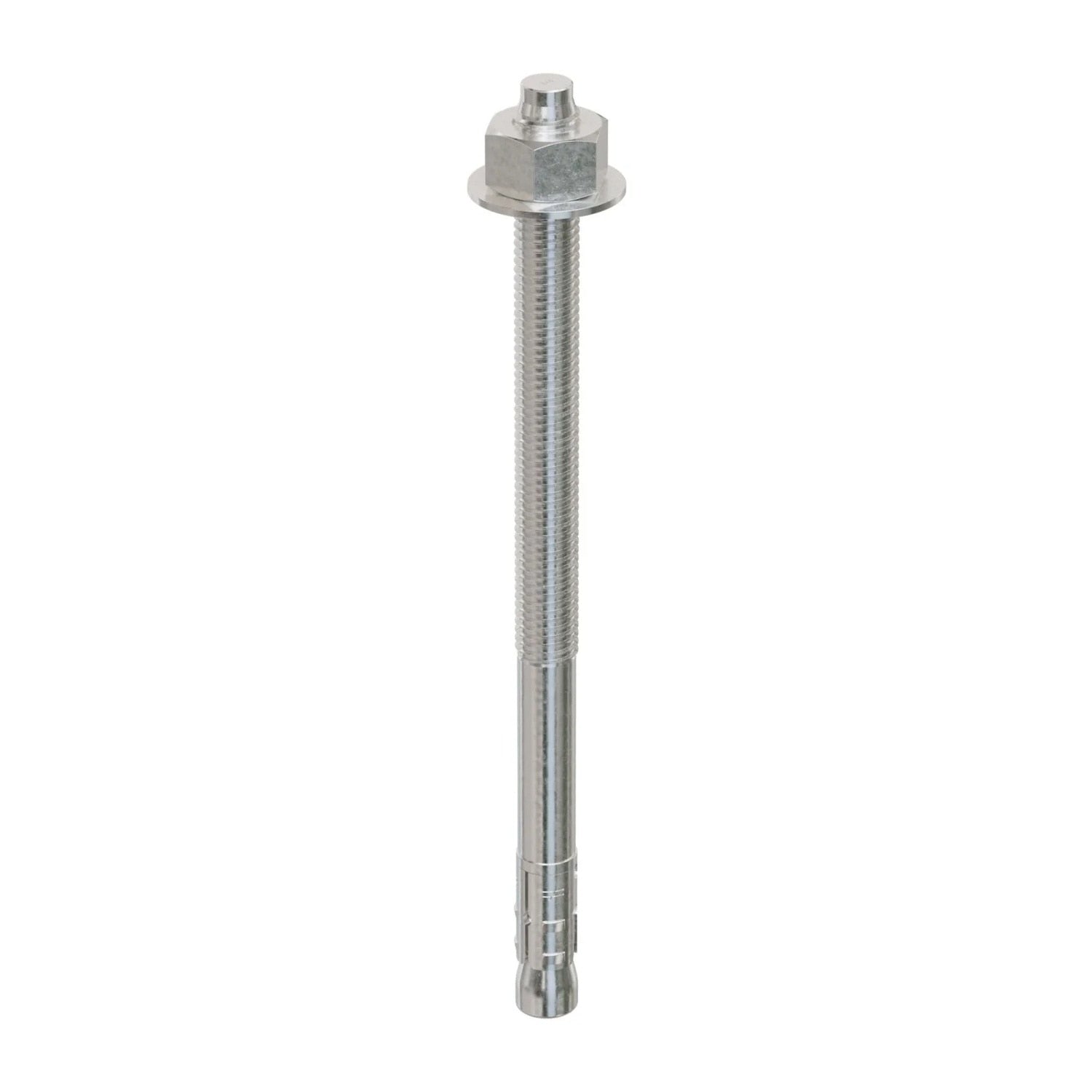

Simpson Strong-Tie STB2-62100S6F10 Strong-Bolt (5/8" x 10") Fully Assembled Wedge Anchor - Type 316 (10 Pack)

Free Shipping
$362.61
POWERED BY

We've got you covered.

Package Protection gives you peace of mind while saving you time and money.

  • Package Protection

    Coverage in case your package is damaged in transit, stolen, or doesn't arrive.

  • Instant Issue Resolution

    Get a refund or replacement in just a few clicks.

  • 24/7 Claim Support

    Route is here for you whenever an issue arises — with an average response time of under an hour.

Route Package Protection extends coverage for online purchases that are lost or damaged in transit, or stolen immediately after the carrier's proof of delivery where Route traces the transportation. Route App, Inc. (Route) is the named insured on the package insurance policy ("Policy"); Route Insurance Solutions ("RIS"), Route's licensed producer entity, procures the Policy from SEG Insurance Ltd. Route, through RIS, may receive compensation for its services.

Description

Simpson Strong-Tie STB2-62100S6F10 Description

The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are engineered for maximum performance in corrosive environments, ideal for heavy-duty fastening into cracked or uncracked concrete.

Simpson Strong-Tie STB2-62100S6F10 Includes

  • (10) 5/8 in. x 10 in. Type 316 Stainless-Steel Wedge Anchor

Simpson Strong-Tie STB2-62100S6F10 Features

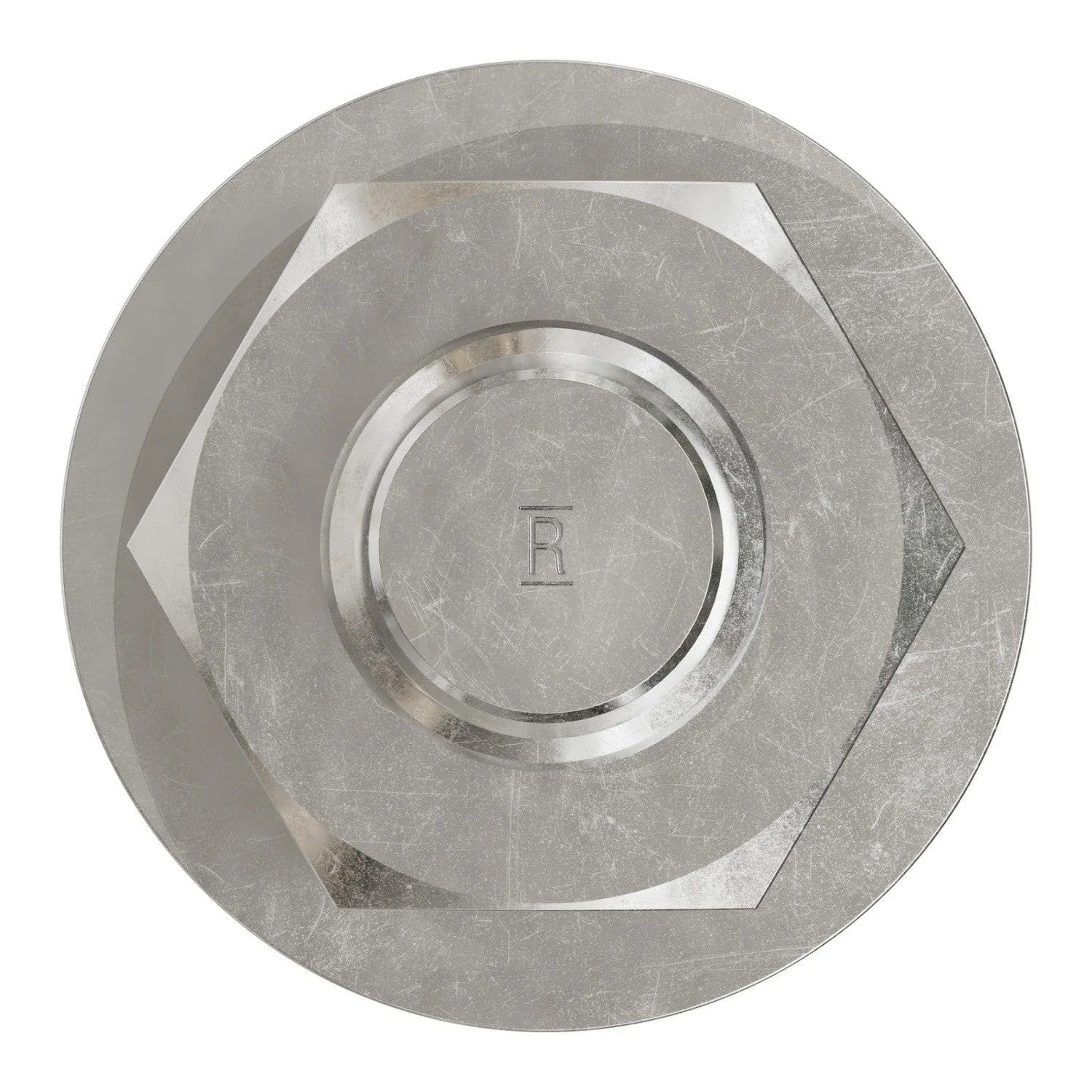

  • Chamfered top designed to prevent mushrooming during installation
  • Qualified for static and seismic loading conditions
  • Suitable for horizontal, vertical and overhead applications
  • Qualified for minimum concrete thickness of 3 1/4 in.
  • Standard fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
  • Tested per ACI355.2 and AC193

Simpson Strong-Tie STB2-62100S6F10 Applications

  • Heavy-duty fastening into cracked or uncracked concrete
  • Reinforcing structural connections in coastal commercial builds
  • Anchoring handrails in residential garages
  • Marine, wastewater, and chemical exposure environments

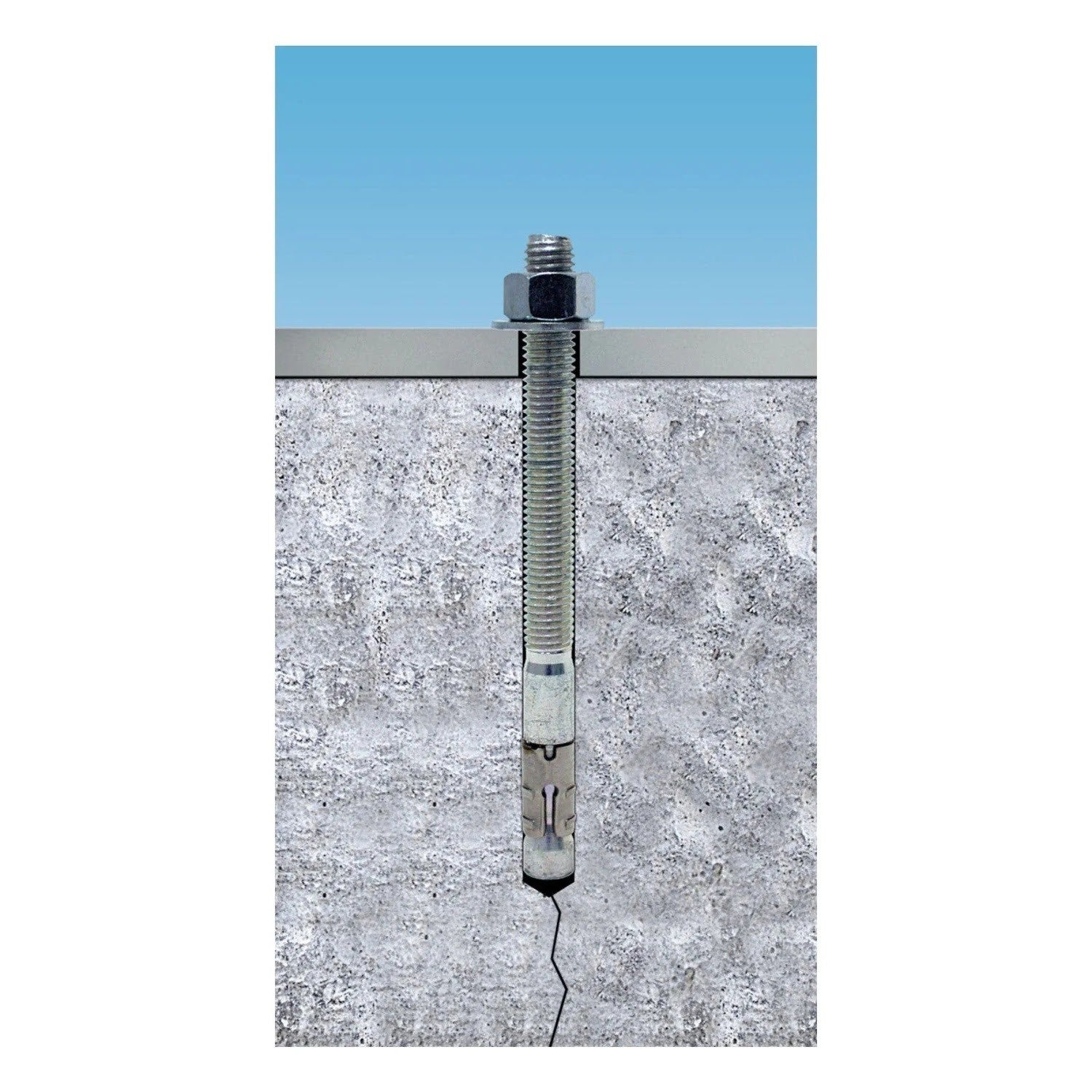

Simpson Strong-Tie STB2-62100S6F10 Installation Overview

  1. Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
  2. Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
  3. Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
  4. Tighten to the required installation torque.

Simpson Strong-Tie STB2-62100S6F10 Specifications

Diameter 5/8 in.
Length 10 in.
Material 316 Stainless Steel
Drill bit size 5/8 in.
Fixture hole size 11/16 in.
Installation torque 60 ft. lbf.
Thread length 6 in.
Wrench size 15/16 in.

NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.

Toolup Part # : 822404
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

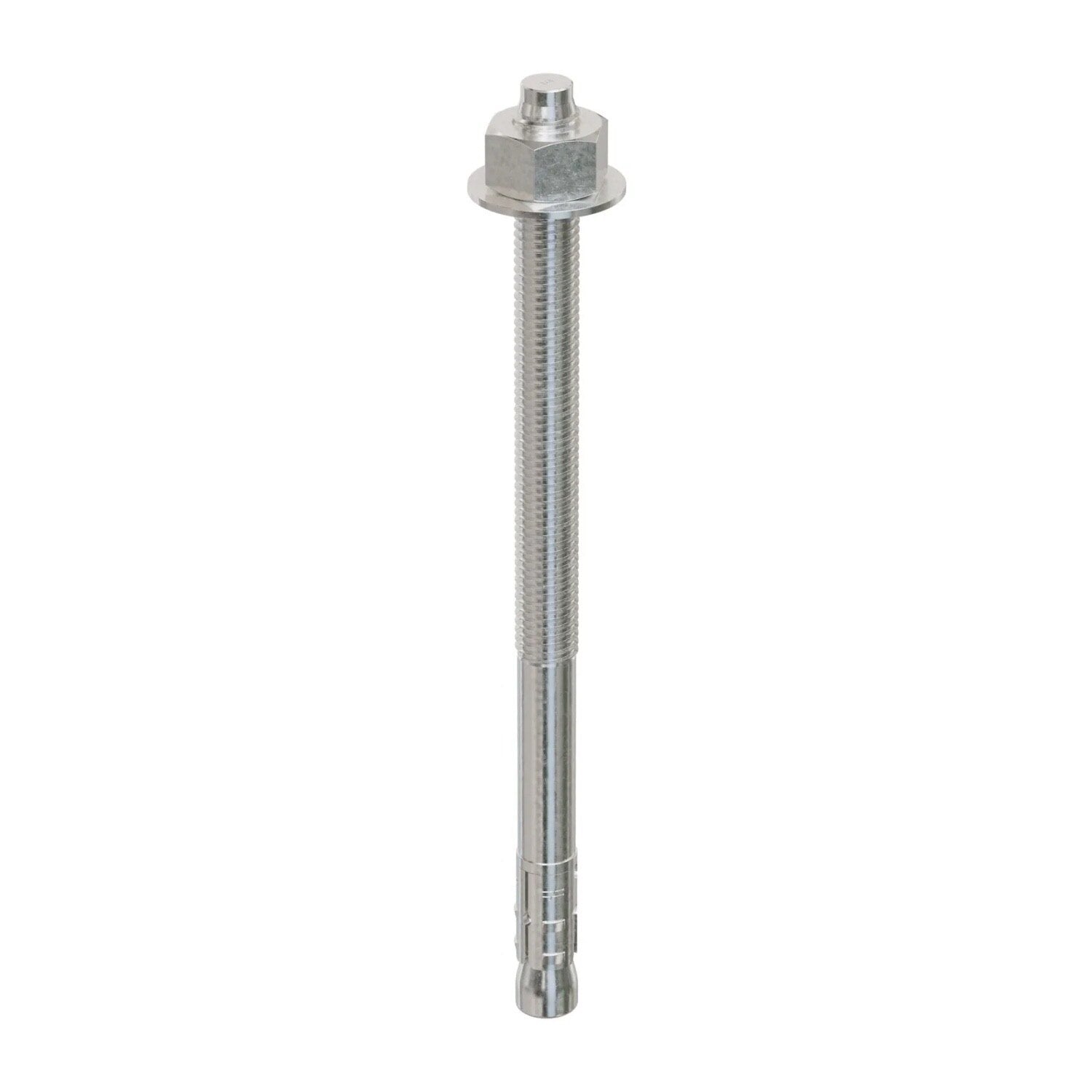

Simpson Strong-Tie STB2-62100S6F10 Strong-Bolt (5/8" x 10") Fully Assembled Wedge Anchor - Type 316 (10 Pack)
