Simpson Anchors | SKU:
STB2-62120MGF10

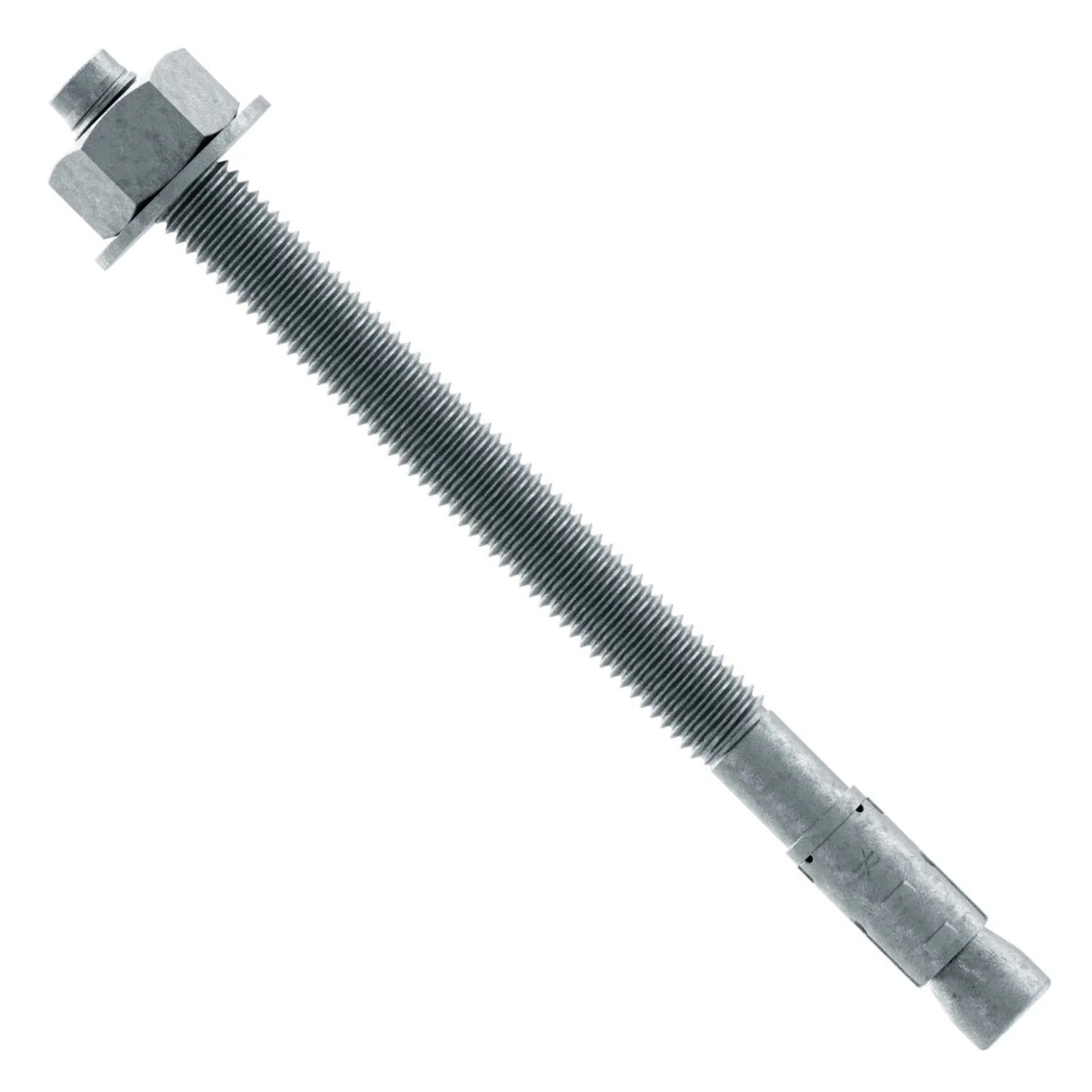

Simpson Strong-Tie STB2-62120MGF10 Strong-Bolt (5/8" x 12") Mechanically Galvanized Wedge Anchor (10 Pack)
$107.57
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-62120MGF10 Description
The Strong-Bolt 2 Wedge Anchor is a fully assembled, mechanically galvanized anchor designed for reliable tension and shear loads in cracked and uncracked concrete.
Simpson Strong-Tie STB2-62120MGF10 Includes
- (10) 5/8 in. x 12 in. Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-62120MGF10 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical, and overhead applications
- Tested for minimum concrete thickness of 3 1/4 in.
- Standard ANSI fractional sizes for compatibility with common tools
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-62120MGF10 Applications
- Anchoring structural columns
- Securing racking systems
- Installing machinery
- Fastening heavy-duty fixtures
Simpson Strong-Tie STB2-62120MGF10 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-62120MGF10 Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Diameter | 5/8 in. |
| Length | 12 in. |
| Thread Length | 6 in. |
| Drill Bit Size | 5/8 in. |
| Fixture Hole Size | 11/16 in. |
| Installation Torque | 60 ft. lbf. |
| Wrench Size | 15/16 in. |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
