Simpson Anchors | SKU:
STB2-623126SSR20

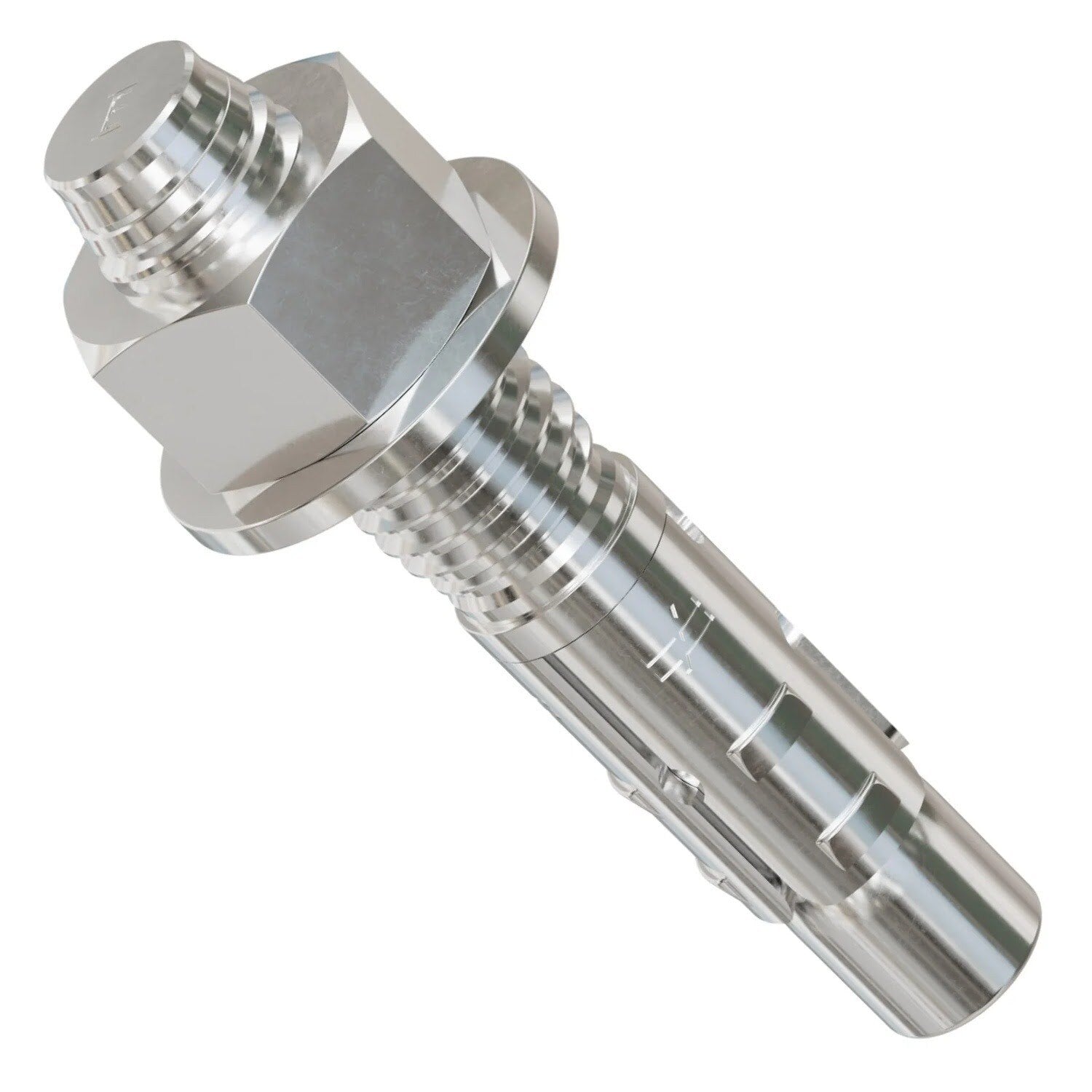

Simpson Strong-Tie STB2-623126SSR20 (5/8" x 3-1/2") Strong-Bolt 2 Type 316 Stainless-Steel Wedge Anchor (20 Pack)
$191.90
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-623126SSR20 Description
The Strong-Bolt 2 Wedge Anchor is a reliable solution for anchoring in cracked or uncracked concrete, suitable for static and seismic loading.
Simpson Strong-Tie STB2-623126SSR20 Includes
- (20) Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-623126SSR20 Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Designed for minimum concrete thickness of 3 1/4"
- Fits standard fixtures and installs with common drill bit sizes
- Made from Type 316 Stainless Steel
Simpson Strong-Tie STB2-623126SSR20 Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-623126SSR20 Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Insert the anchor into the hole and tighten to specified torque
Simpson Strong-Tie STB2-623126SSR20 Specifications
| Material | Type 316 Stainless Steel |
| Length | 3-1/2" |
| Drill Bit Size | 5/8" |
| Fixture Hole Size | 11/16" |
| Installation Torque | 80 ft. lbf. |
| Thread Length | 1-5/8" |
NOTE: Ensure proper installation torque and avoid oversized holes to maintain load capacity.
