Simpson Anchors | SKU:
STB2-62312MGF20

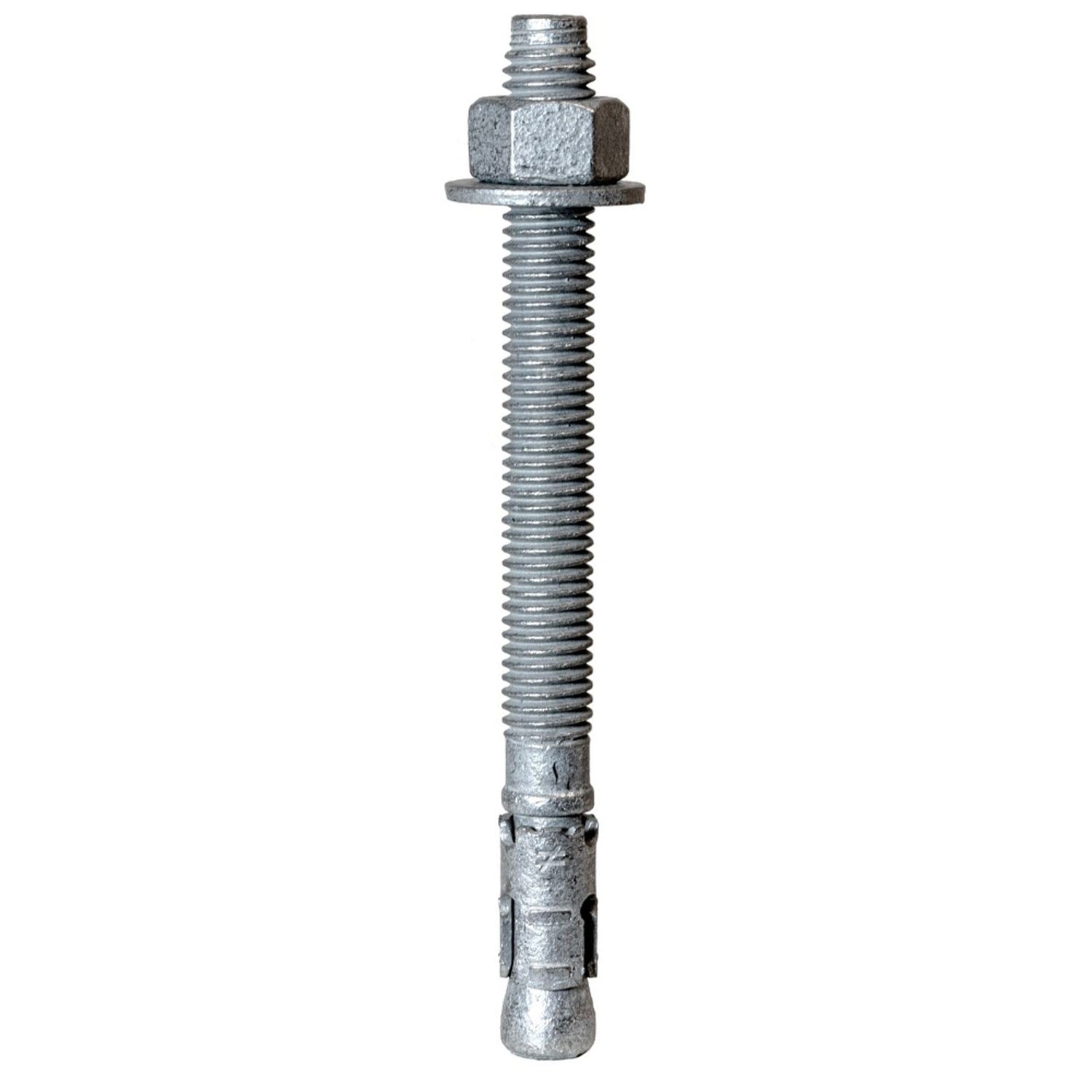

Simpson Strong-Tie STB2-62312MGF20 (5/8" x 3-1/2") Strong-Bolt 2 Mechanically Galvanized Wedge Anchor (20 Pack)
$52.84
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-62312MGF20 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors (Mechanically Galvanized) are engineered for reliable tension and shear loads in cracked and uncracked concrete.
Simpson Strong-Tie STB2-62312MGF20 Includes
- (20) 5/8 in. x 3-1/2 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-62312MGF20 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical and overhead applications
- Tested for minimum concrete thickness of 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-62312MGF20 Applications
- Anchoring structural columns
- Securing racking systems
- Fixing machinery
- Attaching heavy-duty fixtures
Simpson Strong-Tie STB2-62312MGF20 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-62312MGF20 Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Diameter | 5/8 in. |
| Length | 3-1/2 in. |
| Drill Bit Size | 5/8 in. |
| Fixture Hole Size | 11/16 in. |
| Installation Torque | 60 ft. lbf. |
| Thread Length | 1-5/8 in. |
| Wrench Size | 15/16 in. |
NOTE: Models STB2-50234MG, STB2-62312MG and STB2-75434MG do not meet minimum embedment listed in TEB-A-STB2.
