Simpson Anchors | SKU:
STB2-62412MGF20

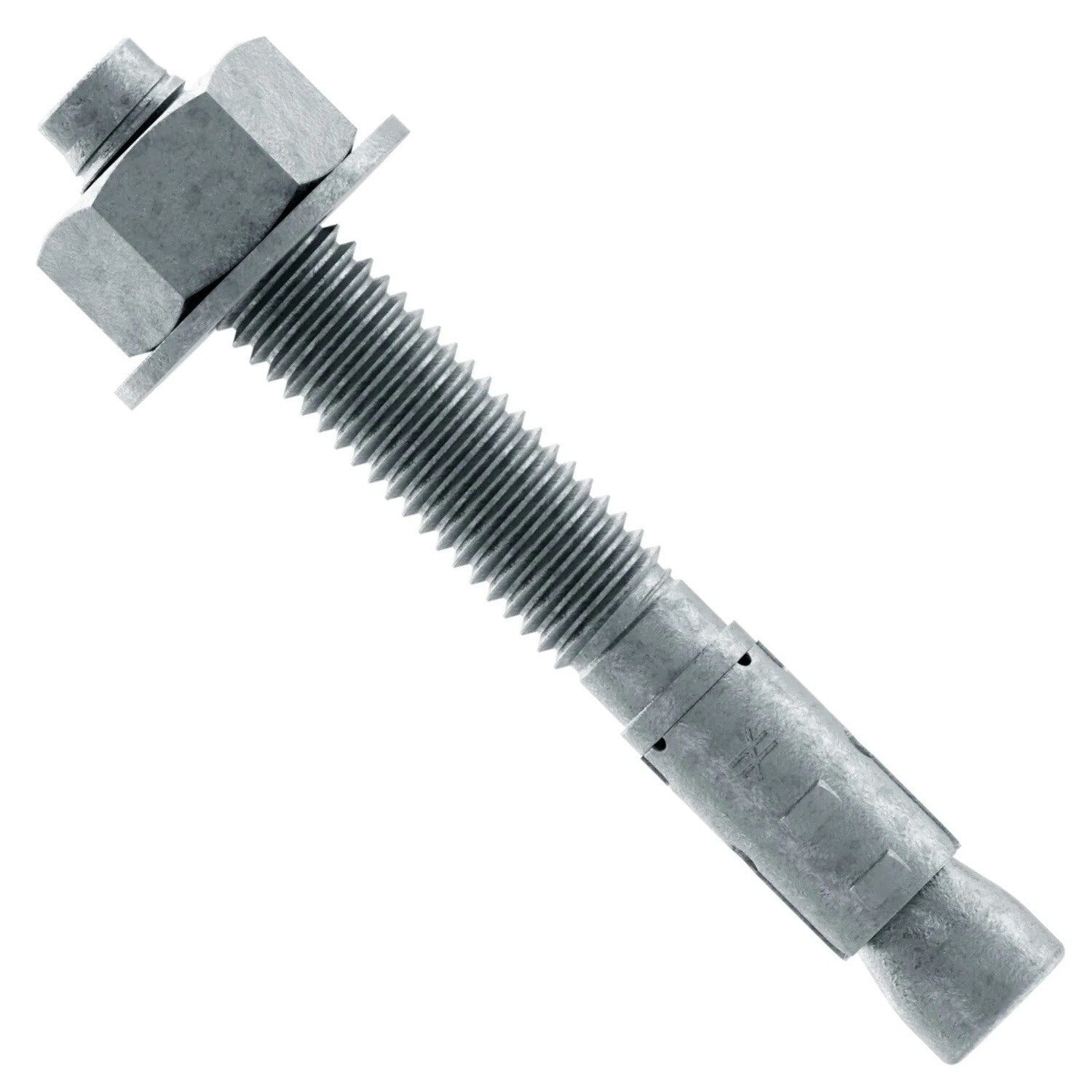

Simpson Strong-Tie STB2-62412MGF20 Strong-Bolt (5/8" x 4-1/2") Mechanically Galvanized Wedge Anchor, Fully Assembled (20 Pack)
$61.93
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-62412MGF20 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are designed for reliable tension and shear loads in cracked and uncracked concrete, featuring a mechanically galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie STB2-62412MGF20 Includes
- (20) 5/8 in. x 4-1/2 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-62412MGF20 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical, and overhead applications
- Tested for minimum concrete thickness of 3 1/4"
- Standard fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-62412MGF20 Applications
- Anchoring structural columns
- Securing racking systems
- Installing machinery
- Fastening heavy-duty fixtures
Simpson Strong-Tie STB2-62412MGF20 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-62412MGF20 Specifications
| Diameter | 5/8 in. |
| Length | 4-1/2 in. |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill Bit Size | 5/8 in. |
| Fixture Hole Size | 11/16 in. |
| Installation Torque | 60 ft. lbf. |
| Thread Length | 2-7/16 in. |
| Wrench Size | 15/16 in. |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
