Simpson Anchors | SKU:
STB2-62500C10

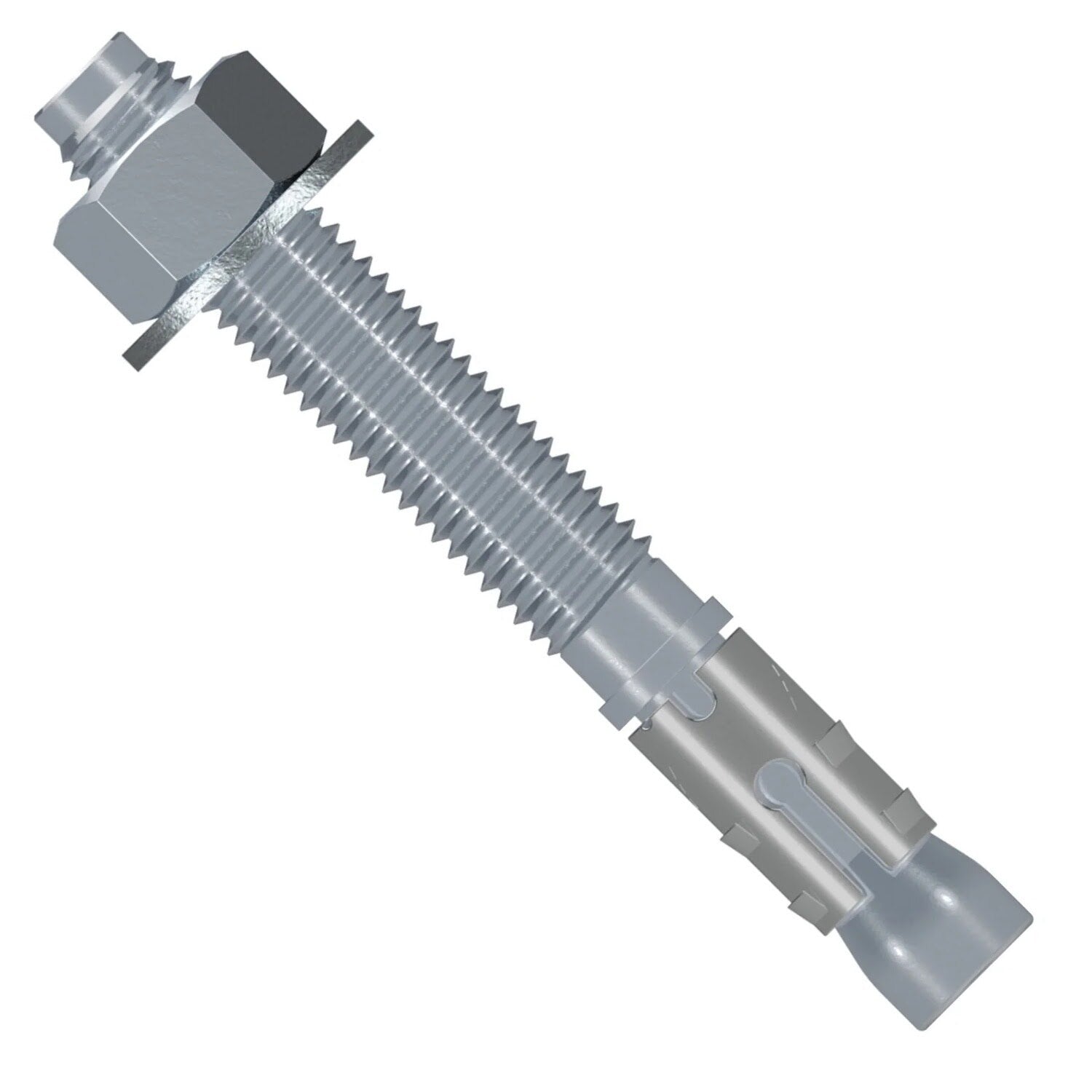

Simpson Strong-Tie STB2-62500C10 Strong Bolt (5/8" x 5") 2 Wedge Anchor - Zinc Plated (10 Pack)
$23.78
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-62500C10 Description
Simpson Strong-Bolt 2 anchors are non-bottom-bearing, ICC-ES code compliant anchors made to be installed in cracked or uncracked concrete. Strong-Bolt 2 Wedge anchors are qualified for both static and seismic loading and suitable for horizontal, vertical and overhead applications.
Simpson Strong-Tie STB2-62500C10 Includes
- (10) 5/8" x 5" Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-62500C10 Features
- Non-bottom-bearing design
- ICC-ES code compliant
- Suitable for cracked and uncracked concrete
- Qualified for static and seismic loading
- Applicable for horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-62500C10 Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic and static load applications
- Horizontal, vertical, and overhead anchoring
Simpson Strong-Tie STB2-62500C10 Installation Overview
- Drill a hole using a 5/8" drill bit
- Insert the anchor into the hole
- Tighten the anchor using a torque wrench to 90 ft. lbs
Simpson Strong-Tie STB2-62500C10 Specifications
| Diameter | 5/8" |
| Finish | Zinc Plated |
| Length | 5" |
| Material | Carbon Steel |
| Drill bit size | 5/8" |
| Installation torque | 90 ft. lbs |
| Quantity | 10 |
NOTE: Do not use an impact wrench to set or tighten anchors. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
