Simpson Anchors | SKU:
STB2-62500S6F20

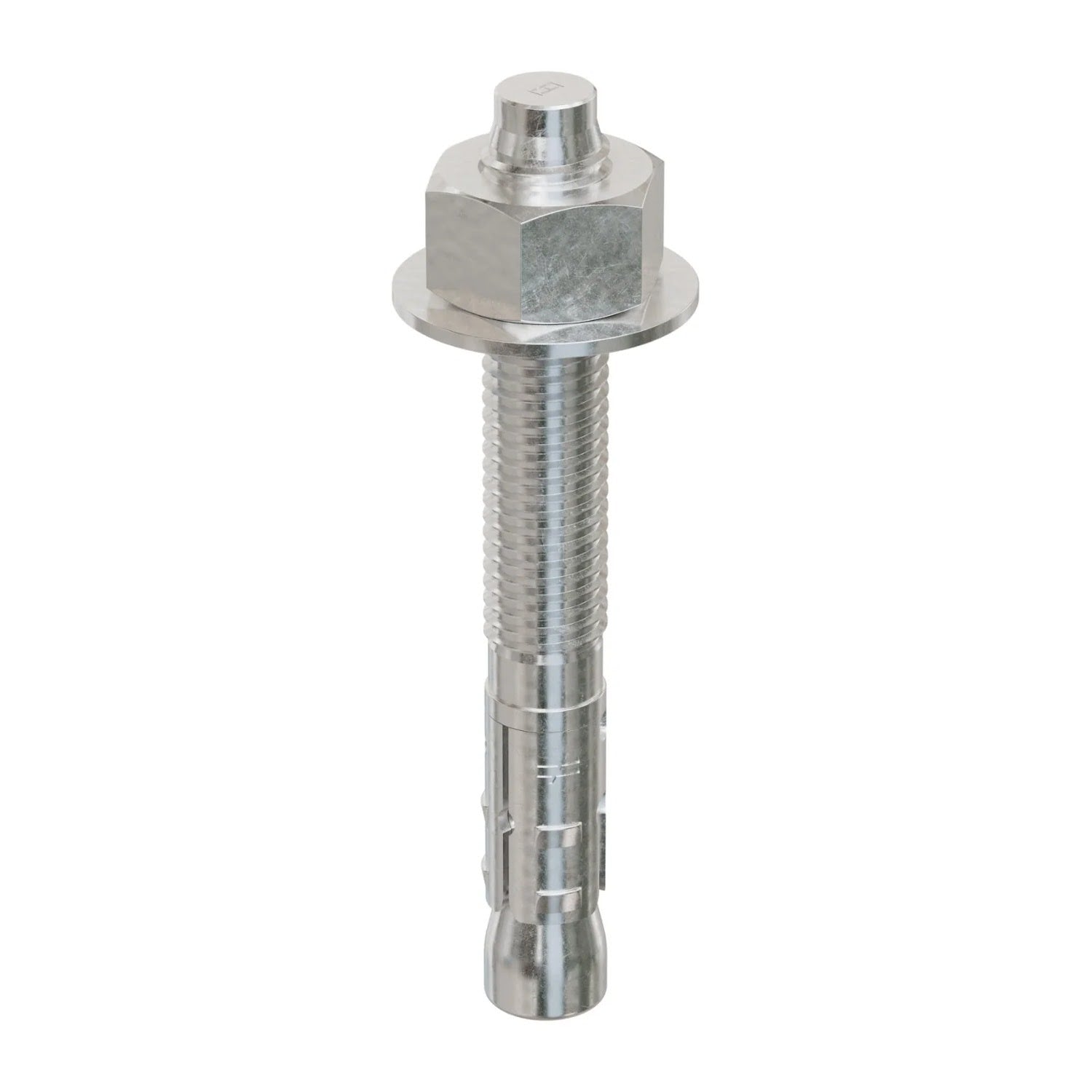

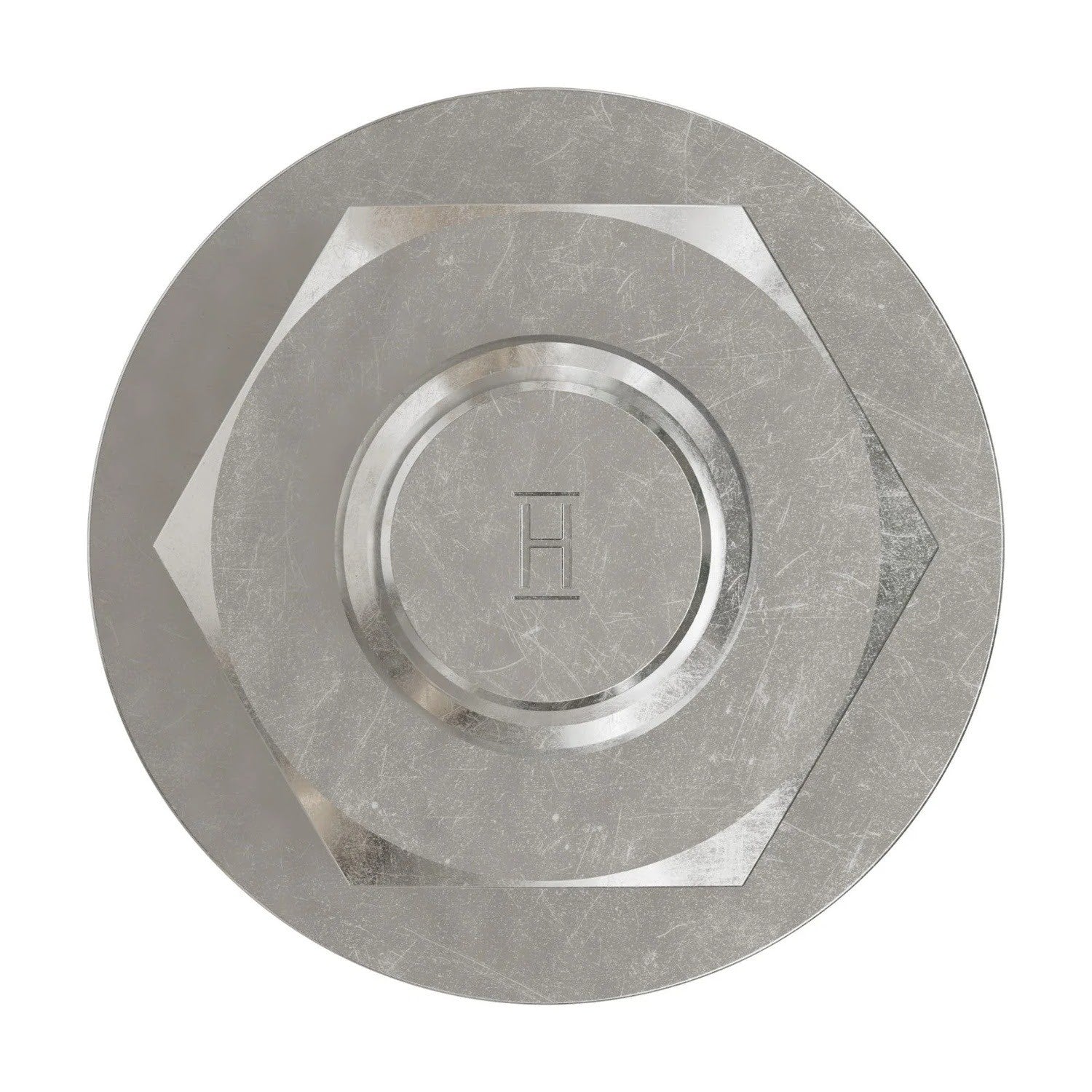

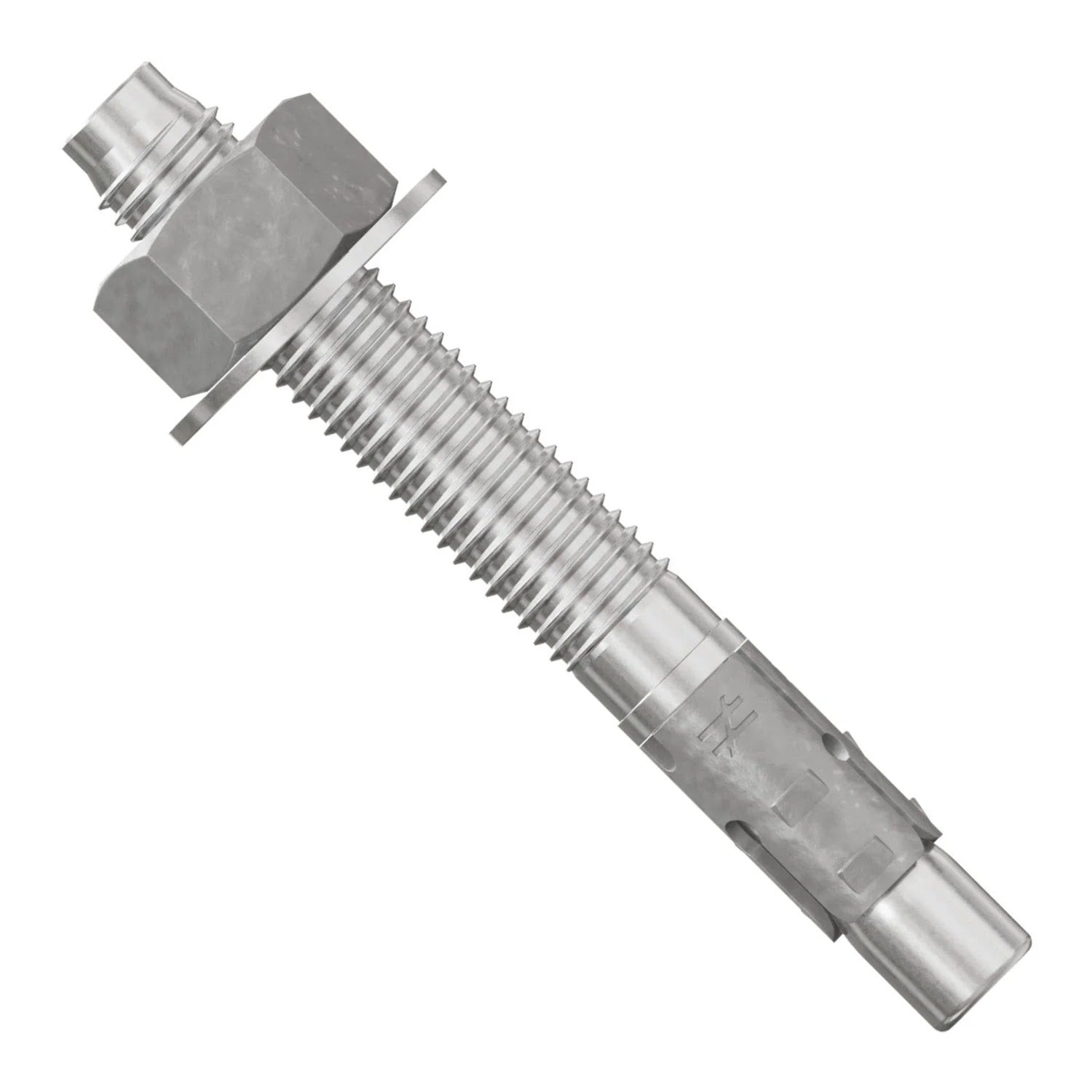

Simpson Strong-Tie STB2-62500S6F20 Strong Bolt (5/8" x 5") Fully Assembled Wedge Anchor - Type 316 (20 Pack)
Free Shipping
$268.21
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-62500S6F20 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are engineered for maximum performance in corrosive environments, ideal for heavy-duty fastening into cracked or uncracked concrete.
Simpson Strong-Tie STB2-62500S6F20 Includes
- (20) 5/8 in. x 5 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-62500S6F20 Features
- 316 Stainless Steel Construction: Exceptional corrosion resistance for long-lasting durability in harsh environments.
- Fully Assembled: Includes nut and washer for faster, easier installation out of the box.
- Code-Compliant Performance: ICC-ES ESR-3037 code listed for cracked and uncracked concrete applications.
- Versatile Use: Suitable for anchoring structural supports, machinery, railing systems, and more.
- Variety of Sizes Available: Multiple diameter and length options help you get the right fit for any job.
Simpson Strong-Tie STB2-62500S6F20 Applications
- Heavy-duty fastening into cracked or uncracked concrete.
- Reinforcing structural connections in coastal commercial builds.
- Anchoring handrails in residential garages.
- Marine, wastewater, and chemical exposure environments.

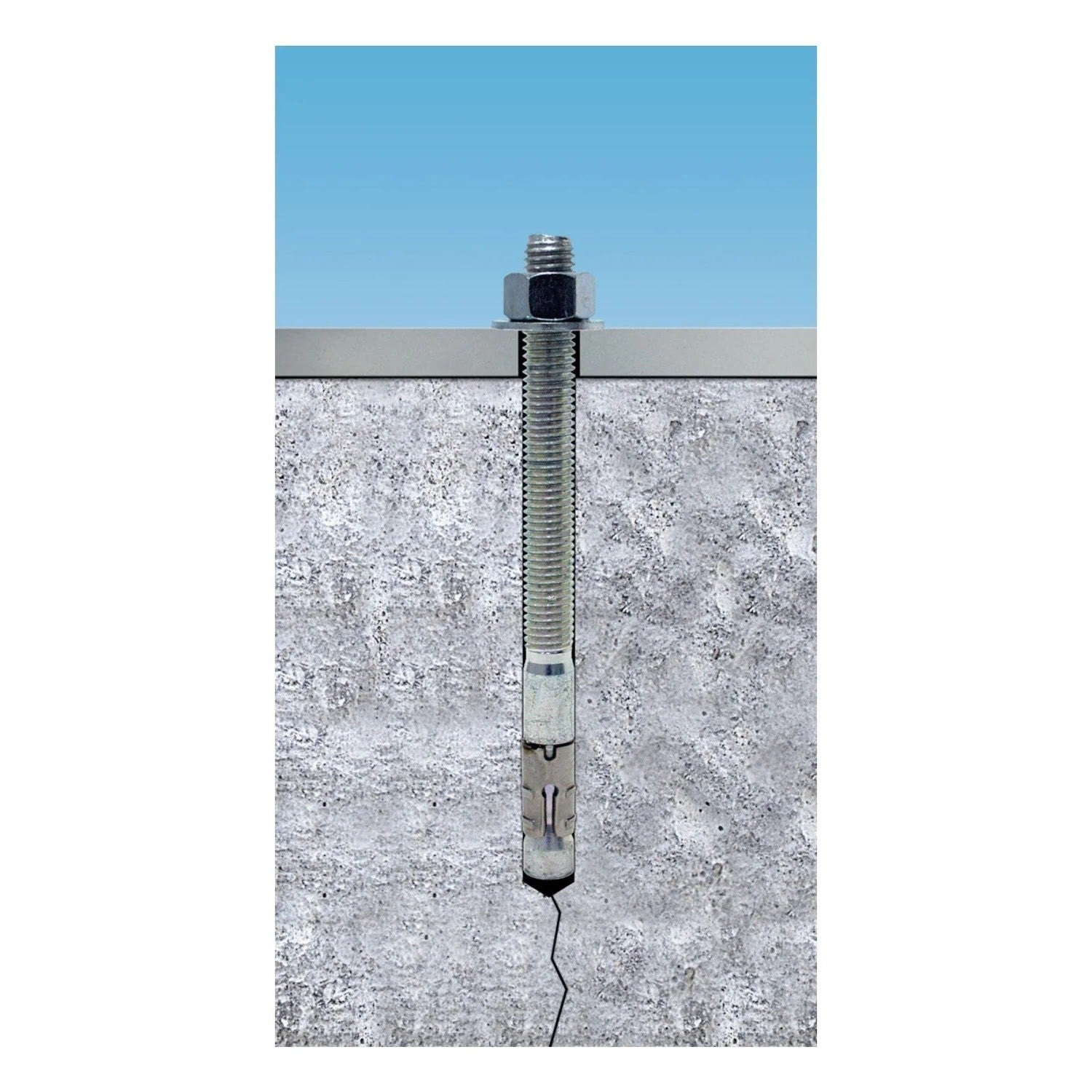

Simpson Strong-Tie STB2-62500S6F20 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-62500S6F20 Specifications
| Diameter | 5/8" |
| Length | 5" |
| Material | 316 Stainless Steel |
| Drill bit size | 5/8" |
| Fixture hole size | 11/16" |
| Installation torque | 60 ft. lbf. |
| Thread length | 2-15/16" |
| Wrench size | 15/16" |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
