Simpson Anchors | SKU:
STB2-62600S4F20

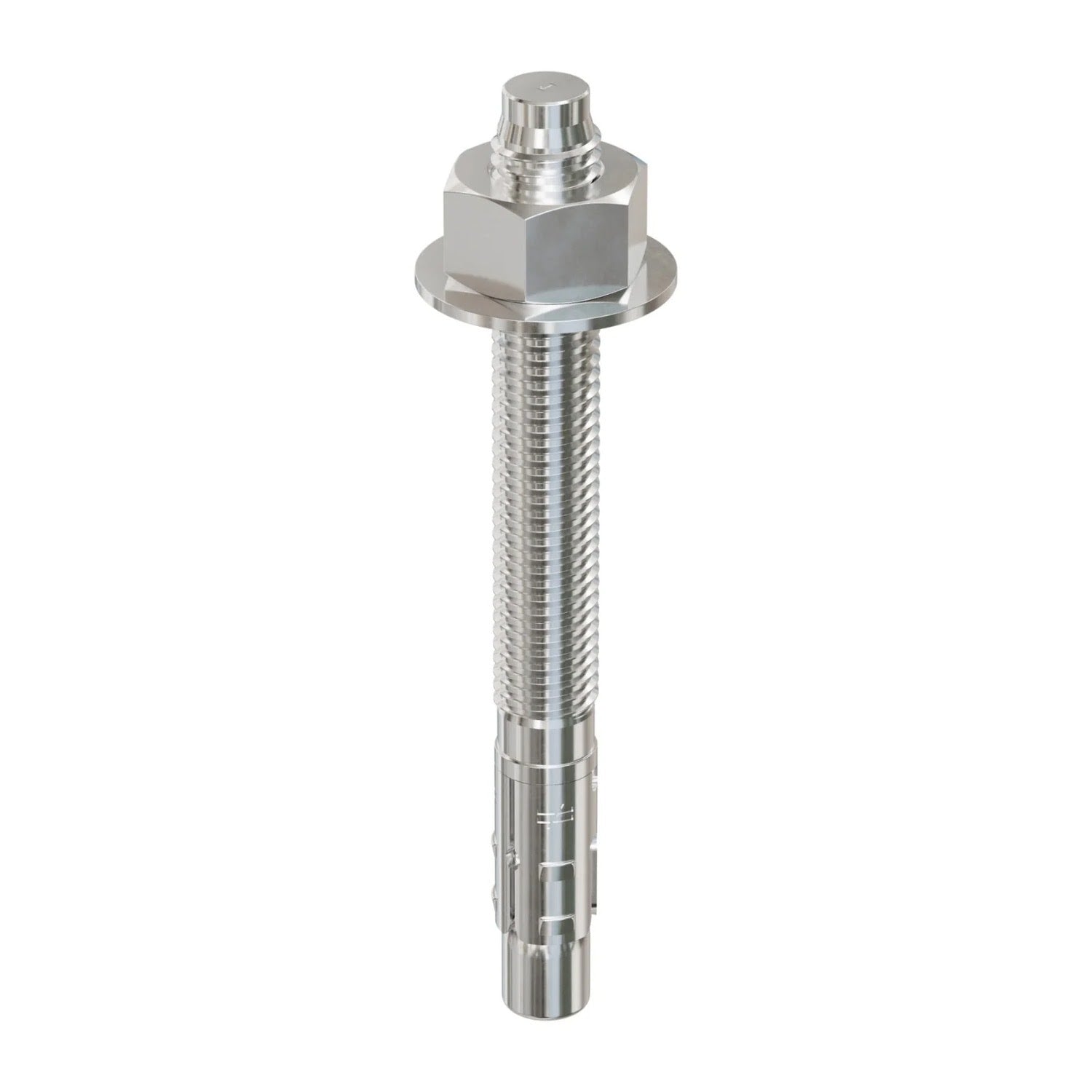

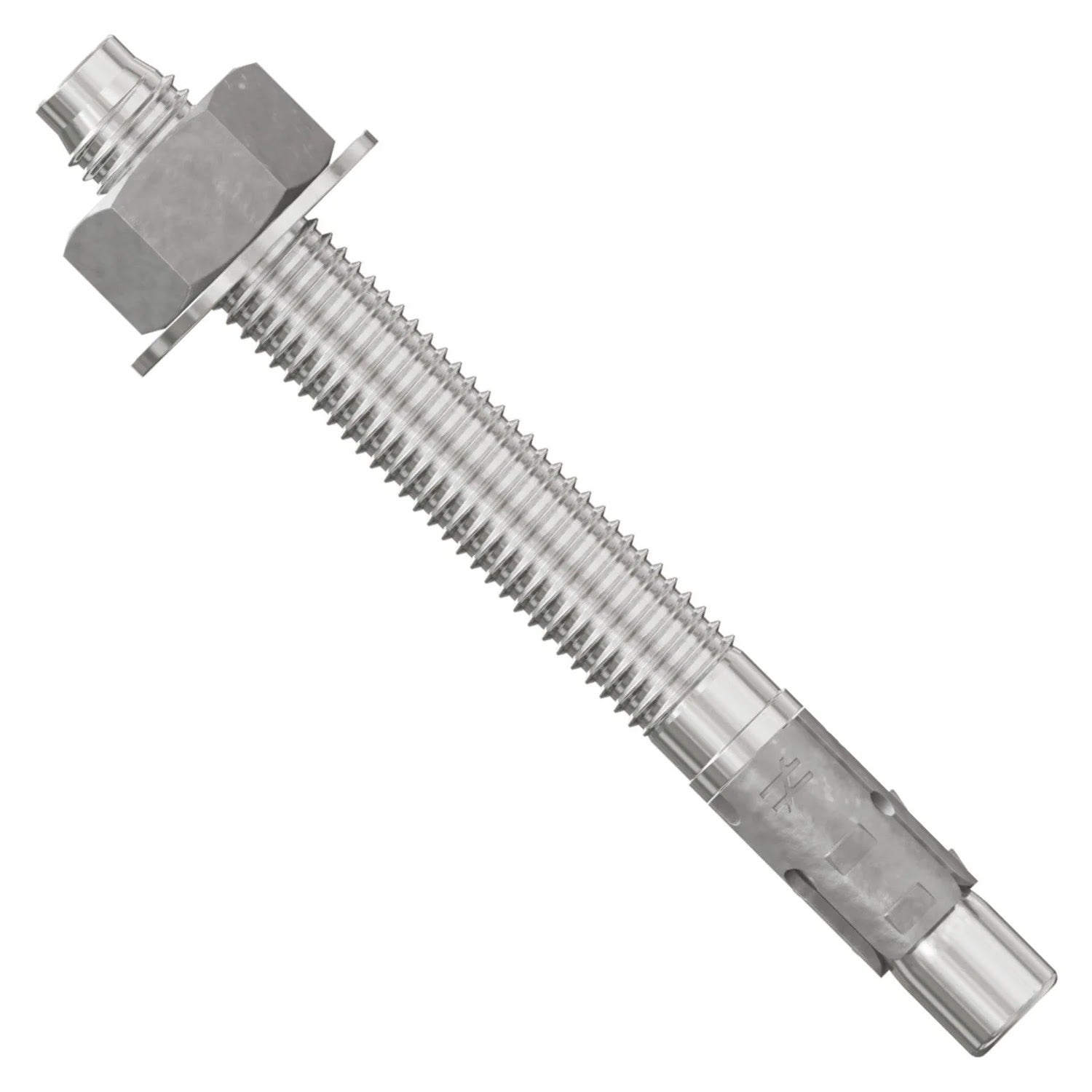

Simpson Strong-Tie STB2-62600S4F20 Strong-Bolt (5/8" x 6") Type 304 Stainless-Steel Wedge Anchor - Fully Assembled (20 Pack)
$154.83
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-62600S4F20 Description
The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors in 304 stainless steel deliver powerful performance and dependable holding strength for concrete anchoring projects.
Simpson Strong-Tie STB2-62600S4F20 Includes
- (20) 5/8 in. x 6 in. Type 304 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-62600S4F20 Features

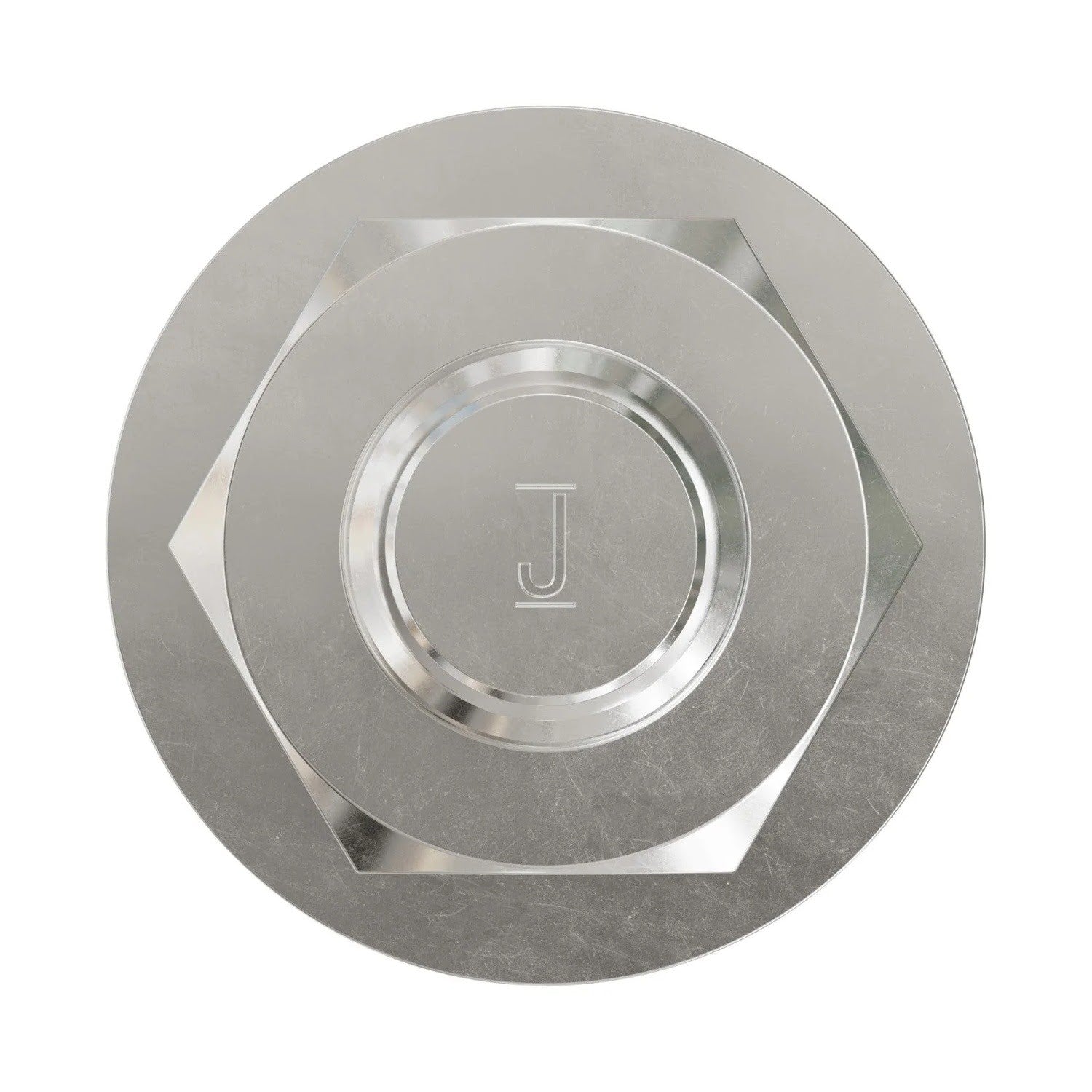

- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-62600S4F20 Applications
- Concrete anchoring for structural steel, machinery, and racking systems
- Securing post bases and ledger attachments
- Ideal for both interior and exterior applications

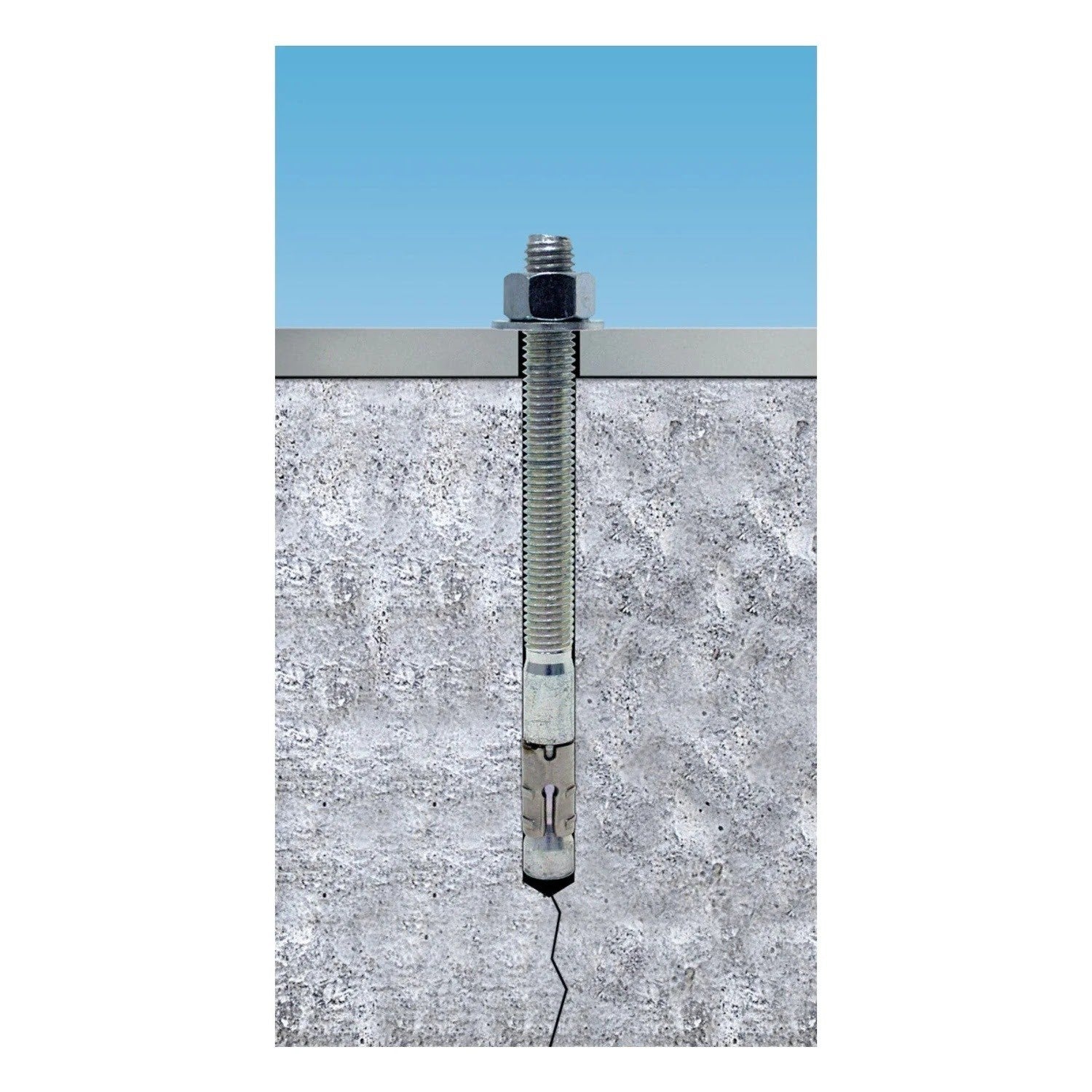

Simpson Strong-Tie STB2-62600S4F20 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-62600S4F20 Specifications
| Diameter | 5/8" |
| Length | 6" |
| Material | 304 Stainless Steel |
| Drill bit size | 5/8" |
| Fixture hole size | 11/16" |
| Installation torque | 60 ft. lbf. |
| Thread length | 3-15/16" |
| Wrench size | 15/16" |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
