Simpson Anchors | SKU:
STB2-62600S6F20

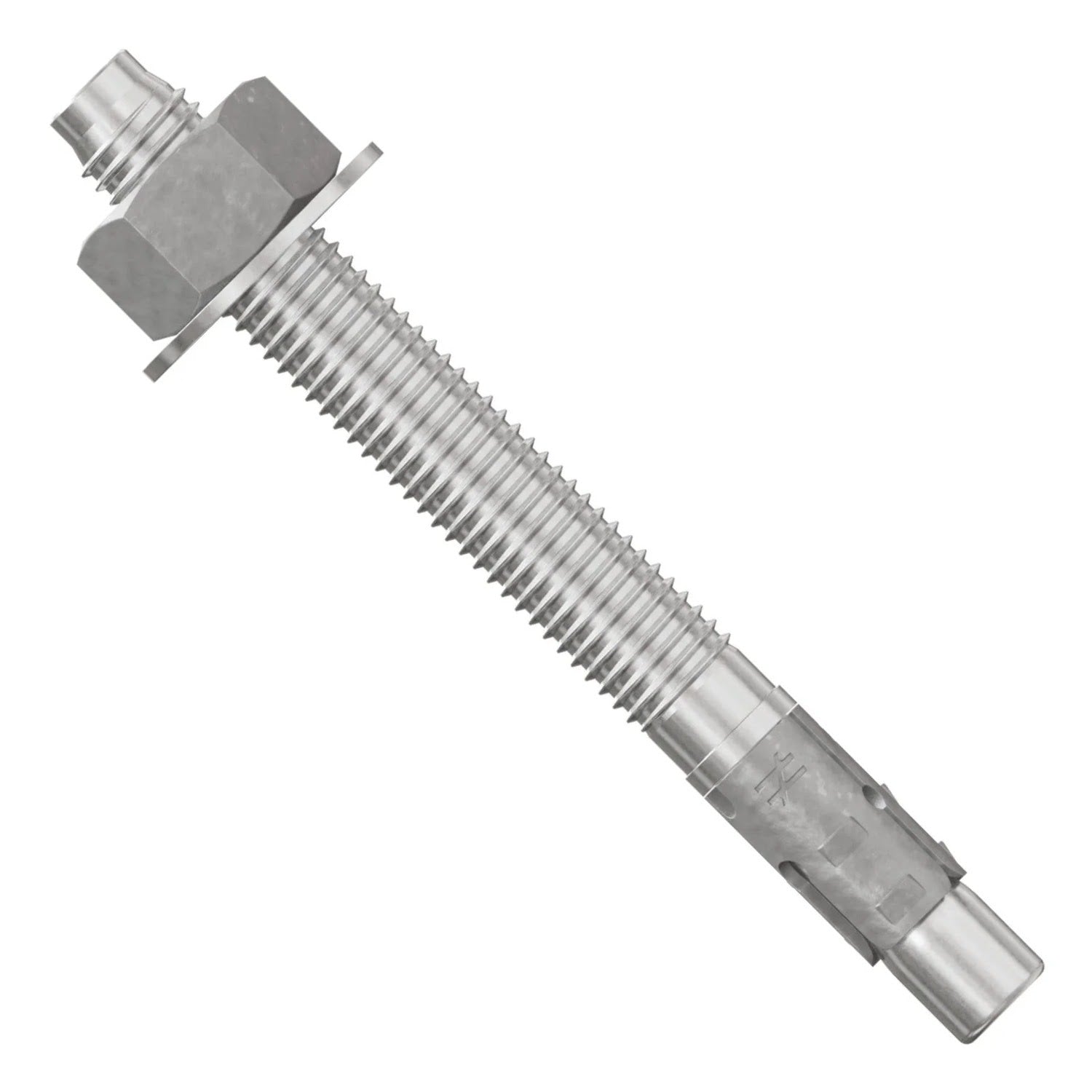

Simpson Strong-Tie STB2-62600S6F20 Strong Bolt (5/8" x 6") Type 316 Stainless-Steel Wedge Anchor - Fully Assembled (20 Pack)
Free Shipping
$298.18
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-62600S6F20 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are engineered for maximum performance in corrosive environments, ideal for heavy-duty fastening into cracked or uncracked concrete.
Simpson Strong-Tie STB2-62600S6F20 Includes
- (20) 5/8 in. x 6 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-62600S6F20 Features
- 316 Stainless Steel Construction for exceptional corrosion resistance
- Fully assembled with nut and washer for ease of installation
- ICC-ES ESR-3037 code listed for cracked and uncracked concrete applications
- Suitable for anchoring structural supports, machinery, and railing systems
- Available in multiple diameter and length options
Simpson Strong-Tie STB2-62600S6F20 Applications
- Marine environments: Ideal for coastal and offshore applications
- Wastewater facilities: Reliable in chemical exposure conditions
- Structural connections: Reinforcing heavy-duty builds
- Residential and commercial projects: Anchoring handrails and machinery

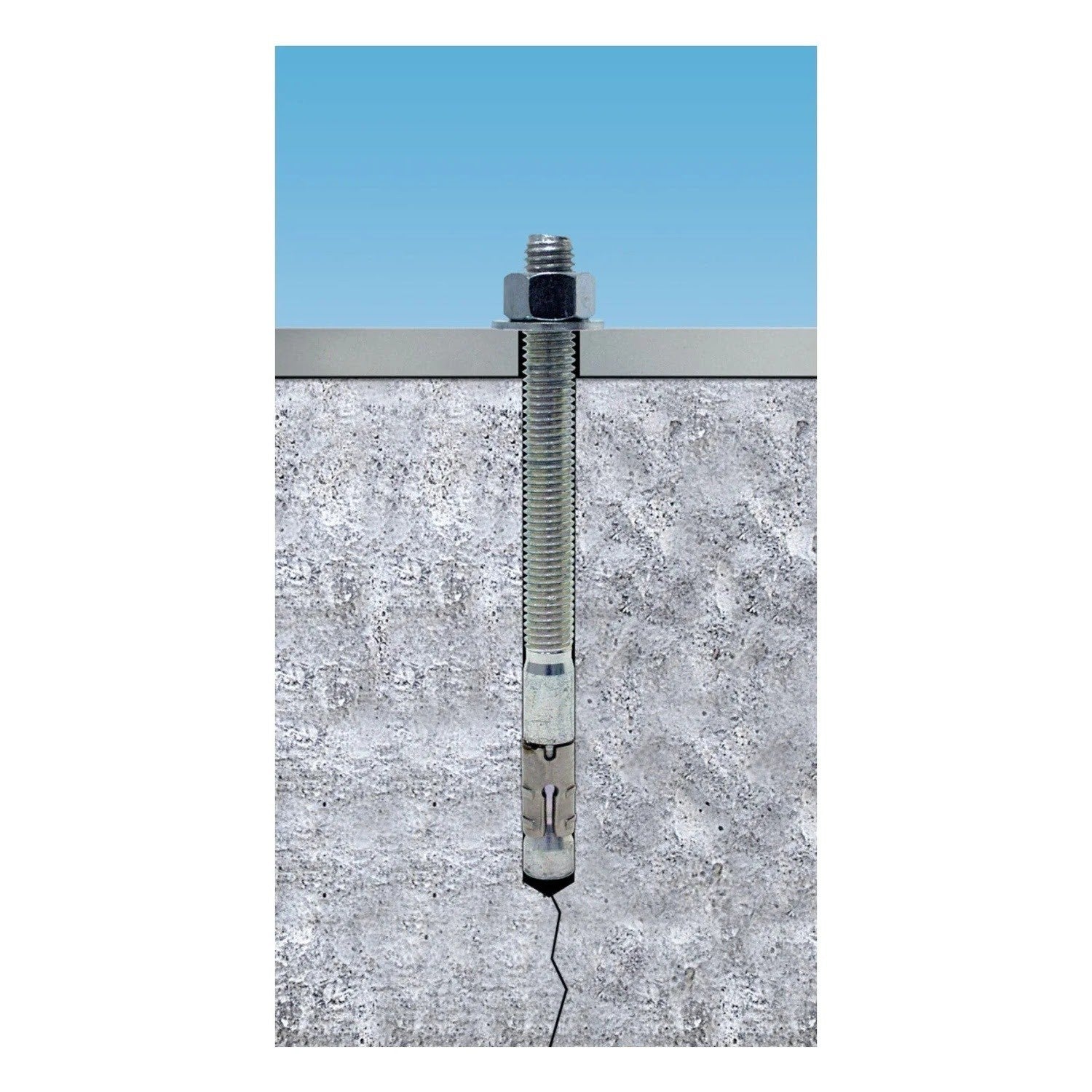

Simpson Strong-Tie STB2-62600S6F20 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.

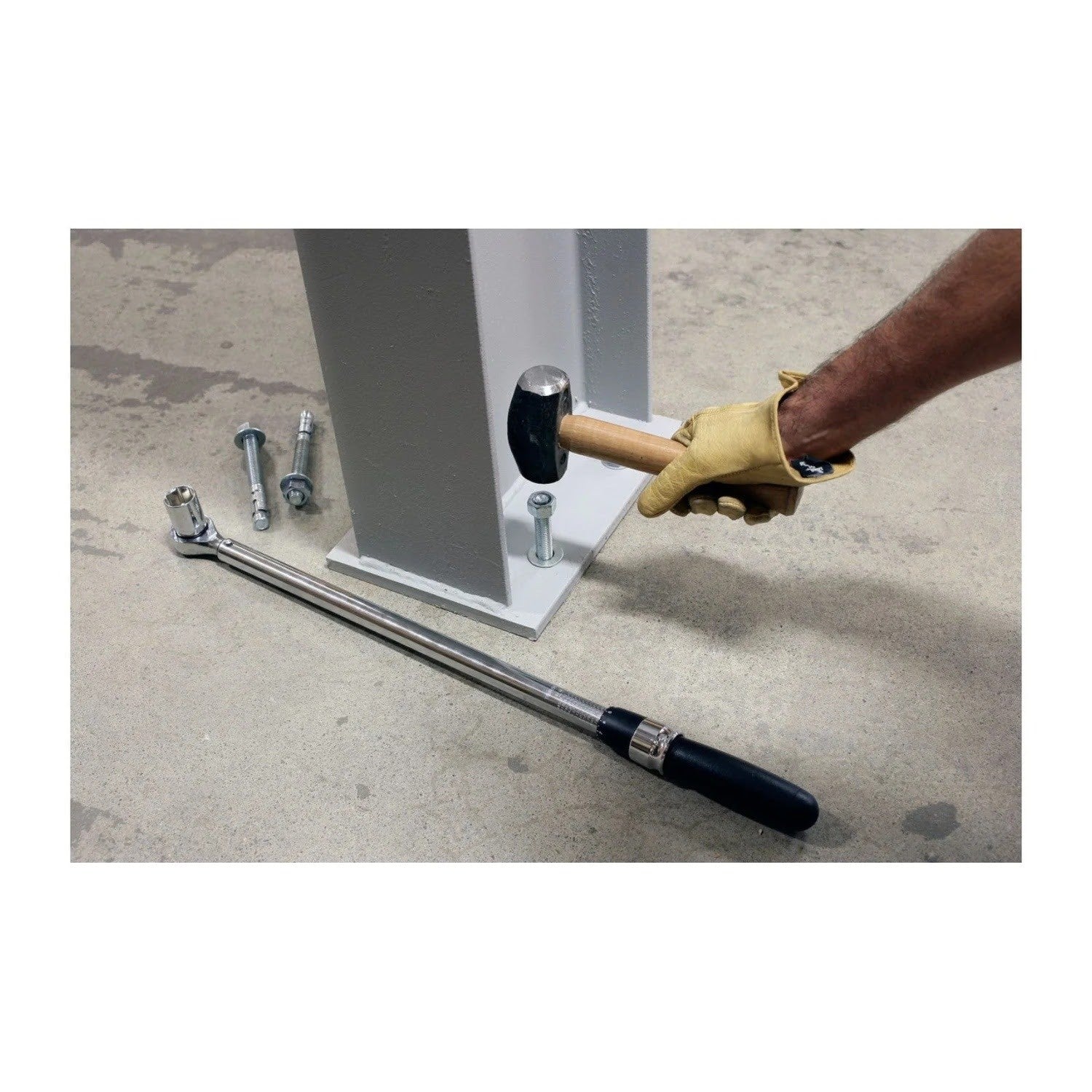

- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.

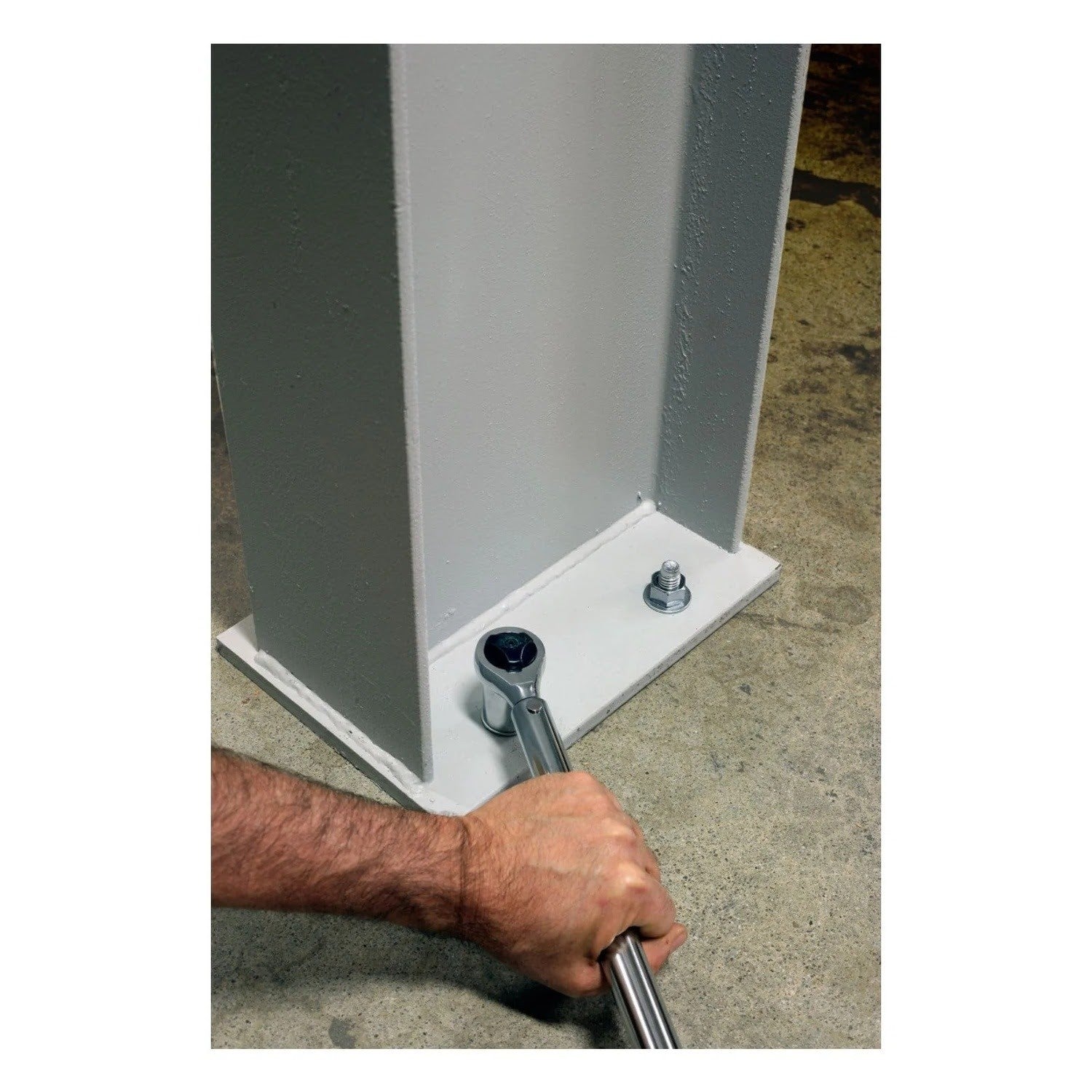

- Tighten the nut to the required installation torque.
Simpson Strong-Tie STB2-62600S6F20 Specifications
| Diameter | 5/8 in. |
| Length | 6 in. |
| Material | 316 Stainless Steel |
| Drill bit size | 5/8 in. |
| Fixture hole size | 11/16 in. |
| Installation torque | 60 ft. lbf. |
| Thread length | 3-15/16 in. |
| Wrench size | 15/16 in. |
