Simpson Anchors | SKU:
STB2-62700MGF20

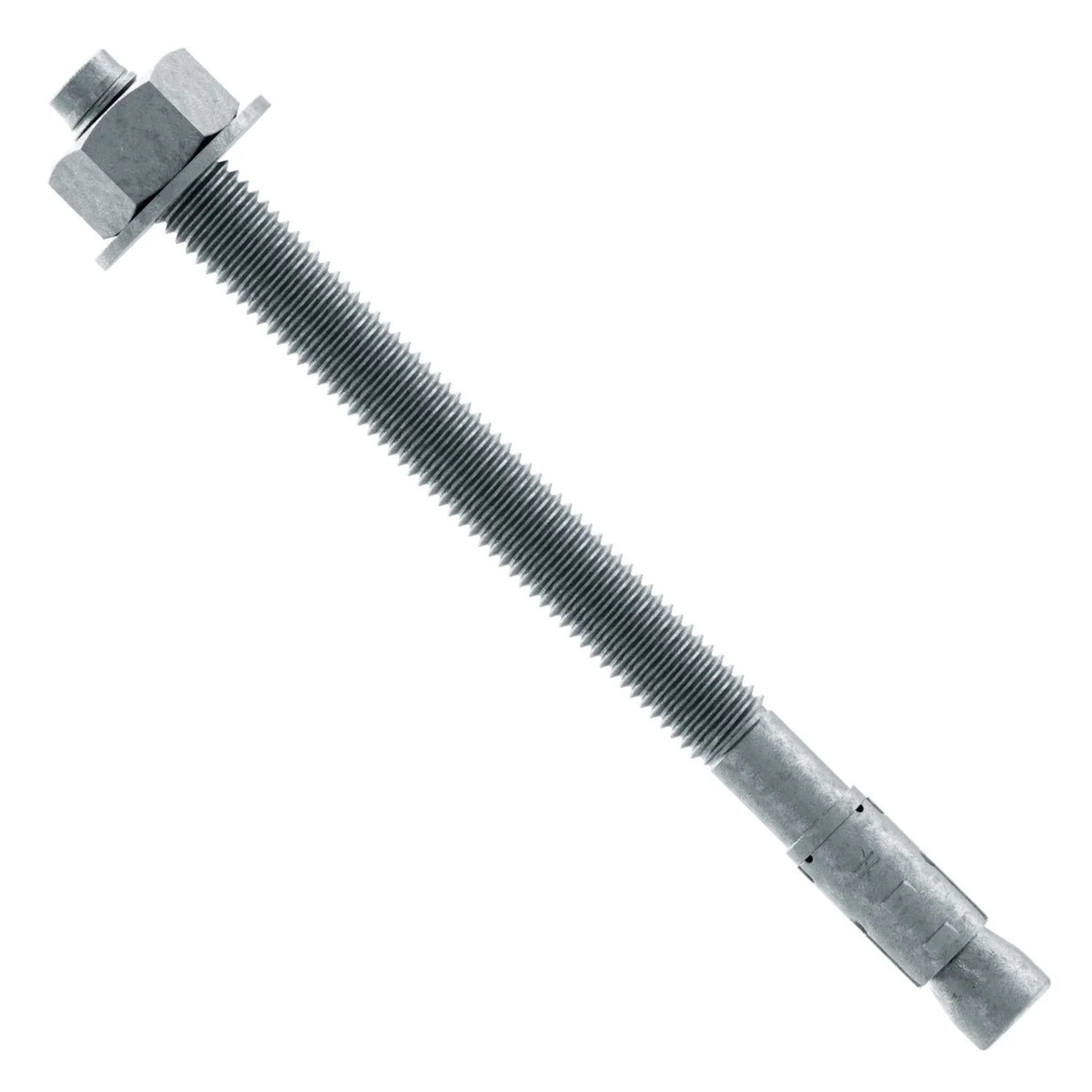

Simpson Strong-Tie STB2-62700MGF20 Strong-Bolt (5/8" x 7") Strong-Bolt 2 Mechanically Galvanized Wedge Anchor (20 Pack)
$85.99
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-62700MGF20 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are engineered for reliable tension and shear loads in cracked and uncracked concrete.
Simpson Strong-Tie STB2-62700MGF20 Includes
- (20) 5/8 in. x 7 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-62700MGF20 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical and overhead applications
- Tested for minimum concrete thickness of 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-62700MGF20 Applications
- Anchoring structural columns
- Securing racking systems
- Fixing machinery
- Installing heavy-duty fixtures

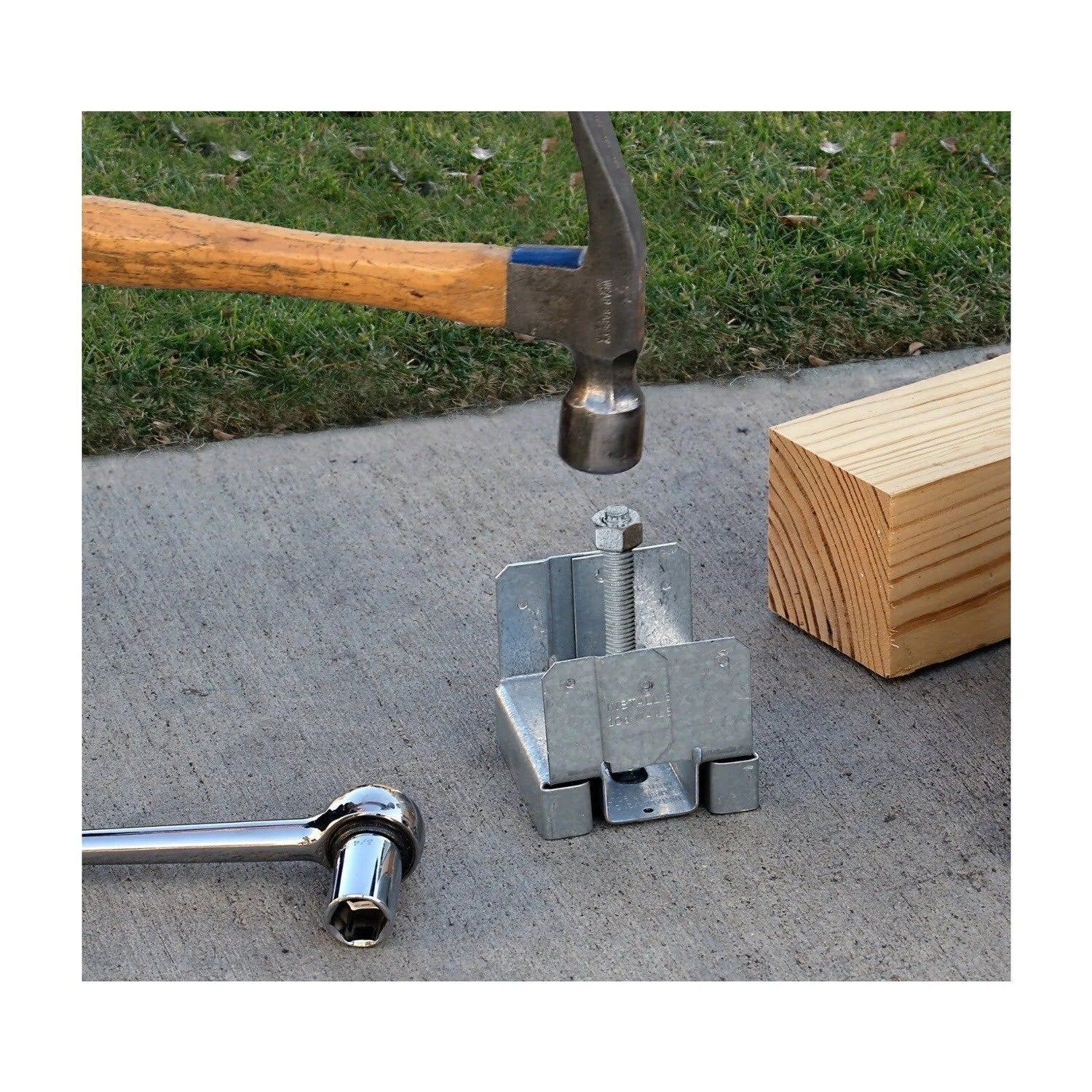

Simpson Strong-Tie STB2-62700MGF20 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-62700MGF20 Specifications
| Diameter | 5/8" |
| Finish | Mechanically Galvanized |
| Length | 7" |
| Material | Carbon Steel |
| Drill bit size | 5/8" |
| Fixture hole size | 11/16" |
| Installation torque | 60 ft. lbf. |
| Thread length | 4-15/16" |
| Wrench size | 15/16" |
NOTE: Models STB2-50234MG, STB2-62312MG and STB2-75434MG do not meet minimum embedment listed in TEB-A-STB2.
