Simpson Anchors | SKU:
STB2-62700S4F20

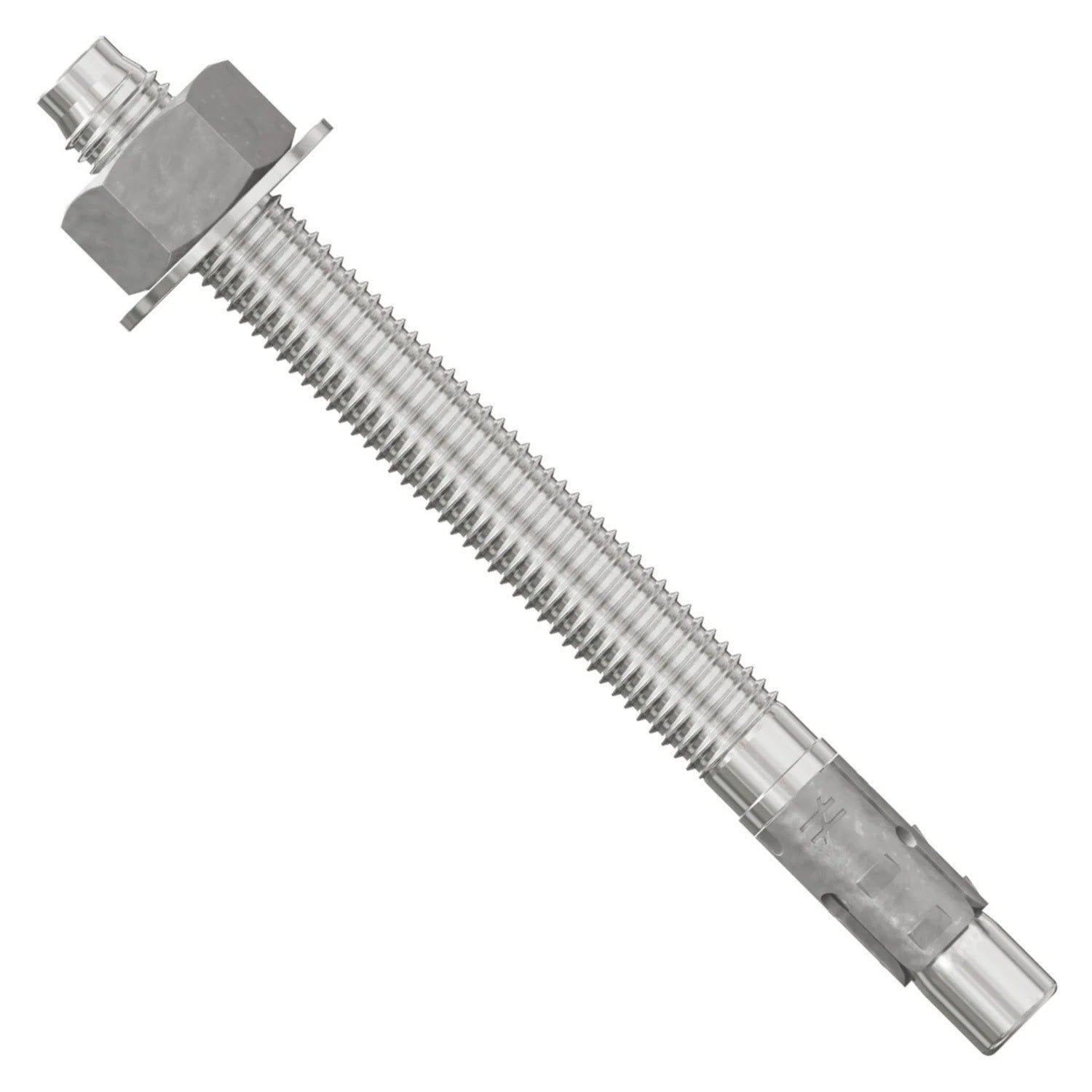

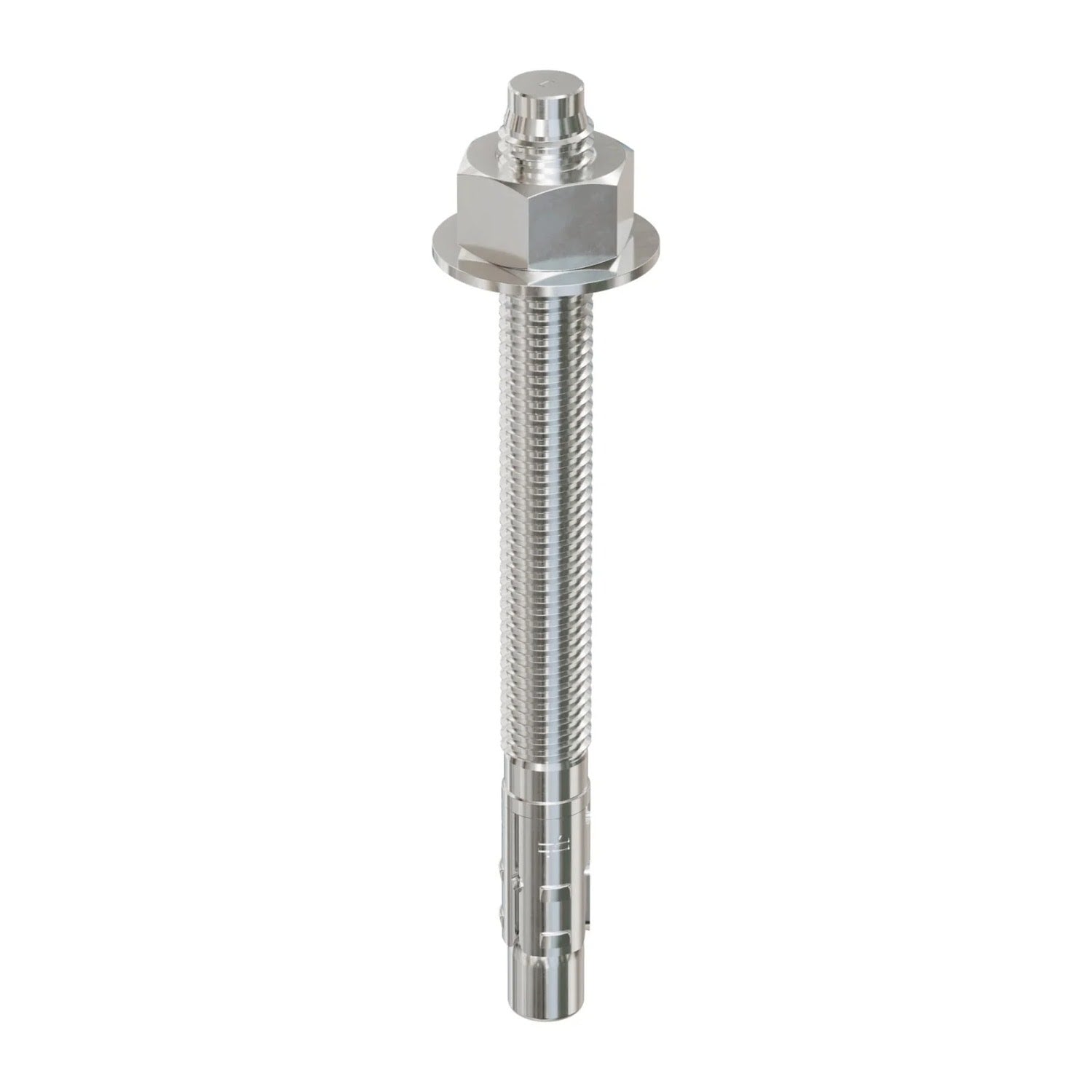

Simpson Strong-Tie STB2-62700S4F20 Strong Bolt (5/8" x 7") 2 Wedge Anchor - Type 304 Fully Assembled (20 Pack)
$194.39
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-62700S4F20 Description
The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors in 304 stainless steel deliver powerful performance and dependable holding strength for concrete anchoring projects.
Simpson Strong-Tie STB2-62700S4F20 Includes
- (20) 5/8 in. x 7 in. Type 304 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-62700S4F20 Features

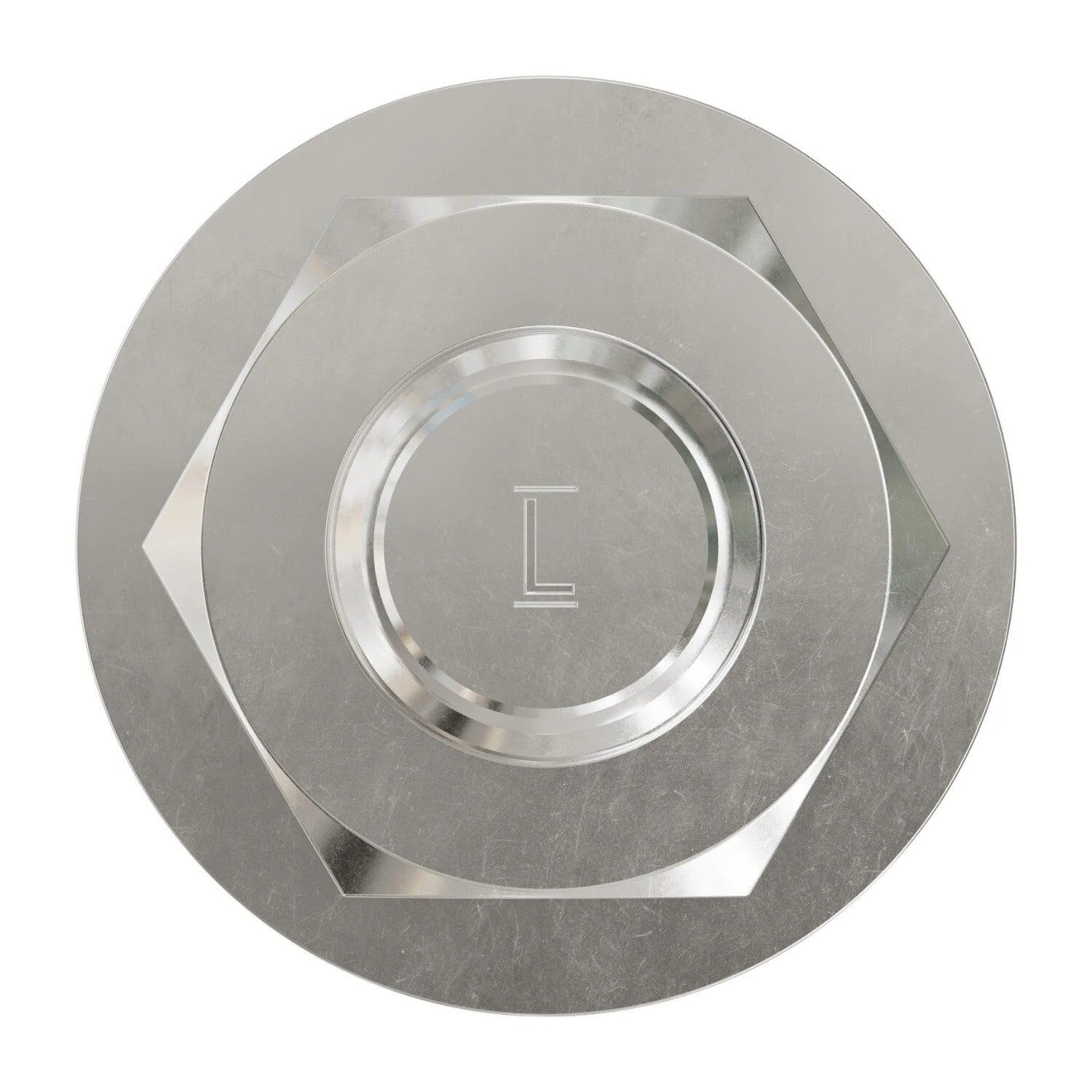

- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4 in.
- Standard fractional sizes for easy installation
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-62700S4F20 Applications
- Concrete anchoring for structural steel
- Machinery and racking systems
- Post bases and ledger attachments
- Residential and industrial installations

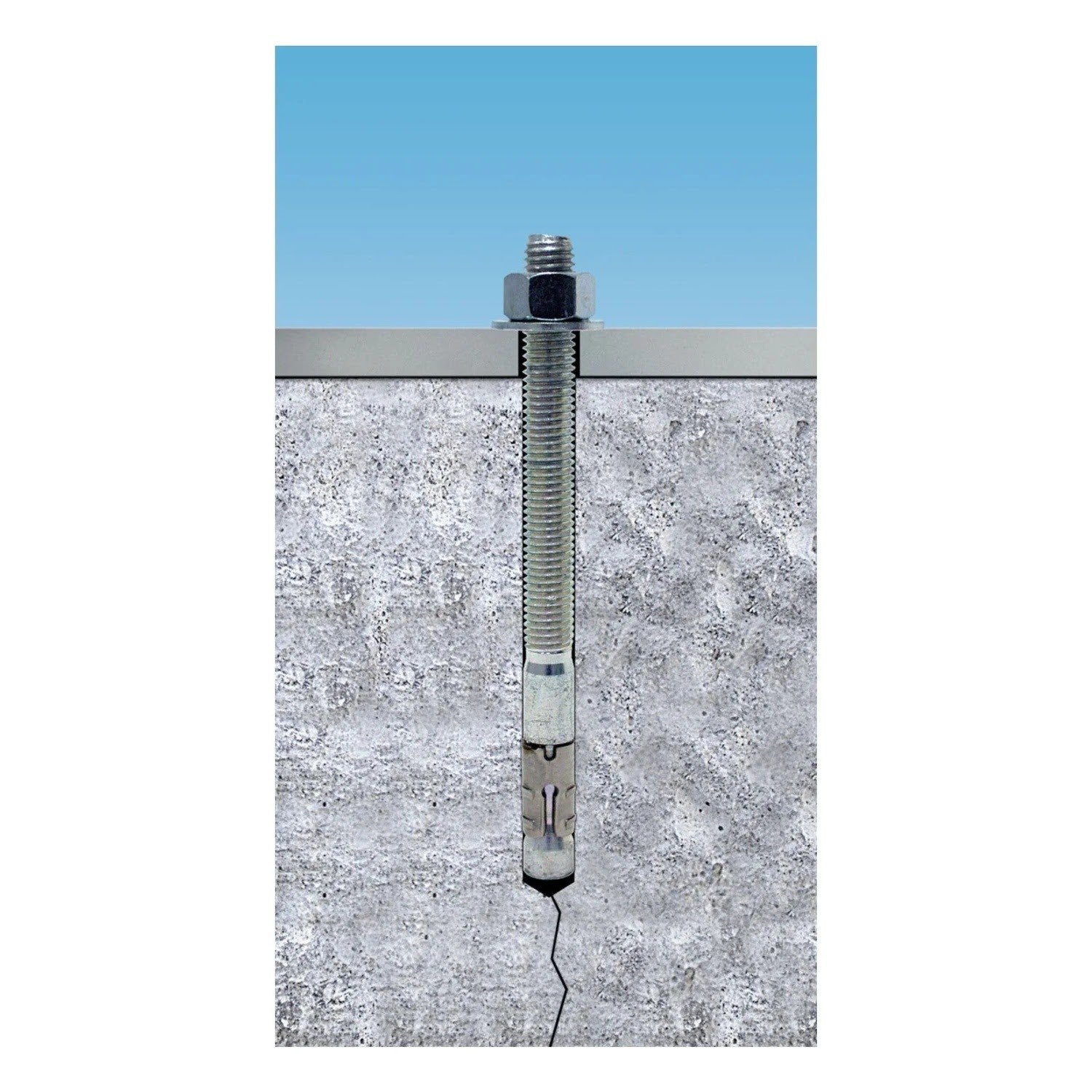

Simpson Strong-Tie STB2-62700S4F20 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the anchor top.
- Place the anchor in the fixture and drive it into the hole.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-62700S4F20 Specifications
| Diameter | 5/8 in. |
| Length | 7 in. |
| Material | 304 Stainless Steel |
| Drill bit size | 5/8 in. |
| Fixture hole size | 11/16 in. |
| Installation torque | 60 ft. lbf. |
| Thread length | 4-15/16 in. |
| Wrench size | 15/16 in. |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
