Simpson Anchors | SKU:
STB2-75100

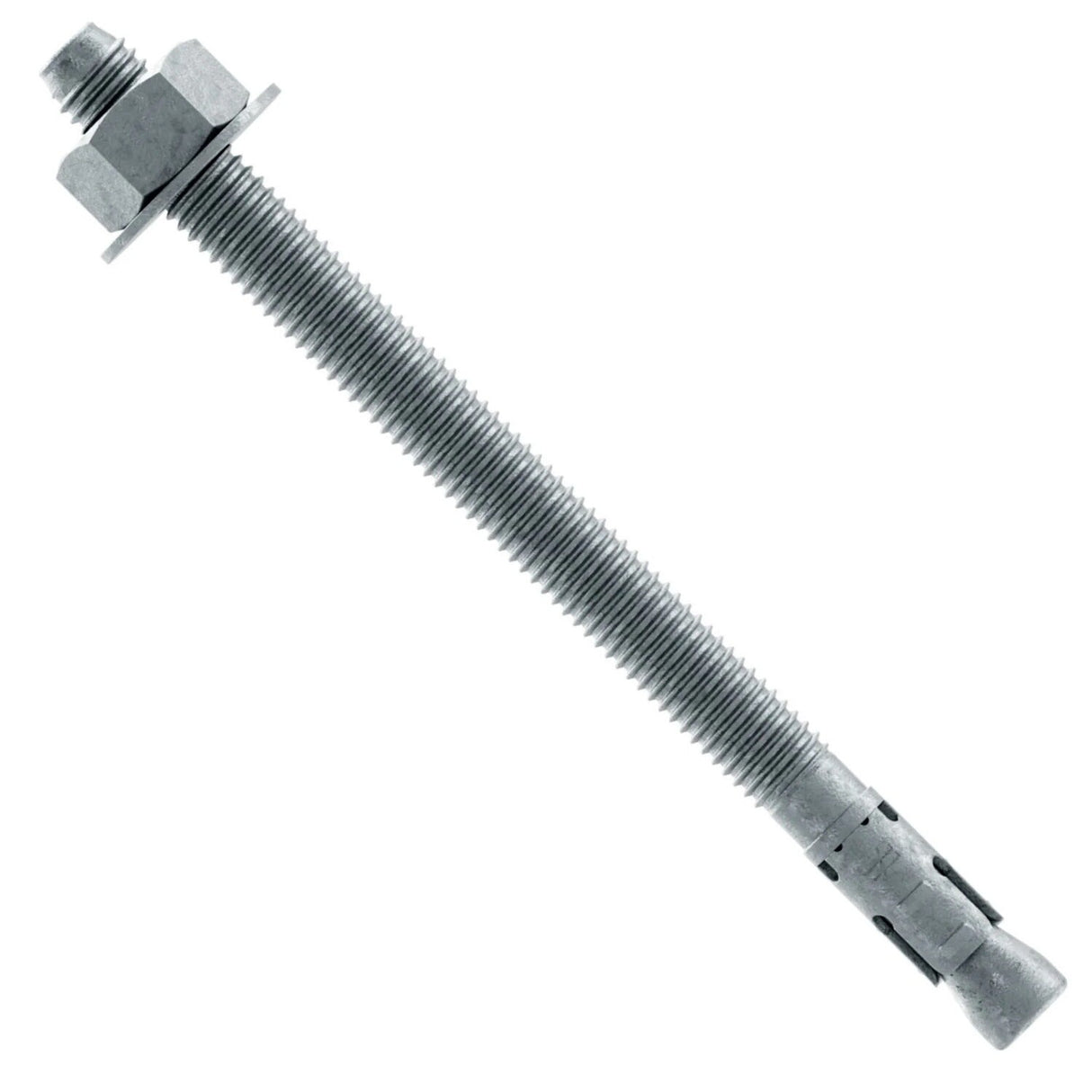

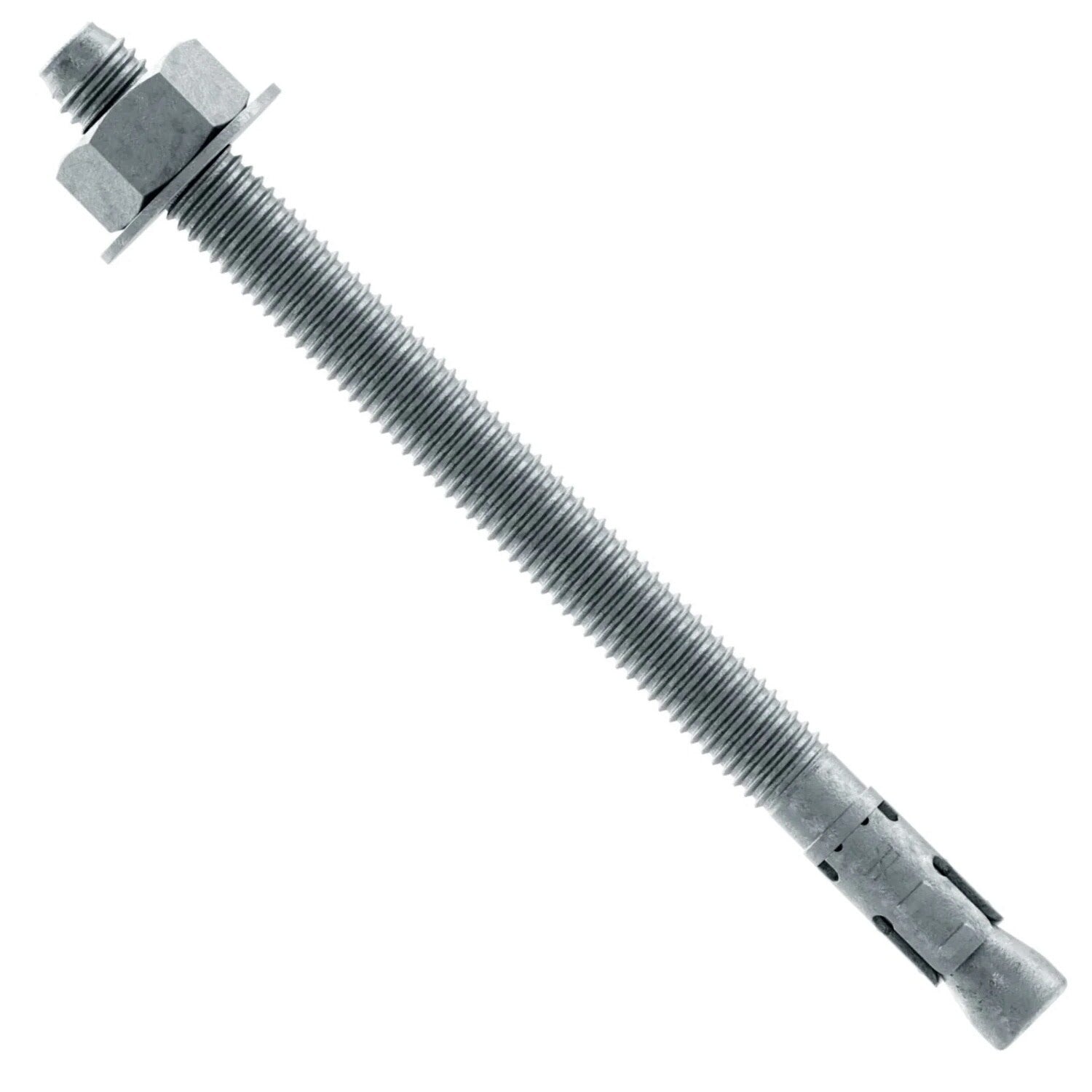

Simpson Strong-Tie STB2-75100 Strong-Bolt (3/4" x 10") 2 Wedge Anchor - Fully Assembled (10 Pack)
$48.55
$52.37
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson Strong-Tie STB2-75100 Description
The Strong-Bolt 2 Wedge Anchor is a reliable and durable solution for anchoring in cracked or uncracked concrete, suitable for static and seismic loading conditions.
Simpson Strong-Tie STB2-75100 Includes
- (10) Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-75100 Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-75100 Applications
- Anchoring in cracked or uncracked concrete
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-75100 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the anchor top.
- Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-75100 Specifications
| Material | Zinc-plated carbon steel |
| Diameter | 3/4 in. |
| Length | 10 in. |
| Drill Bit Size | 3/4 in. |
| Fixture Hole Size | 7/8 in. |
| Installation Torque | 90 ft. lbf. |
| Thread Length | 6 in. |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
