Simpson Anchors | SKU:
STB2-751200MGR5

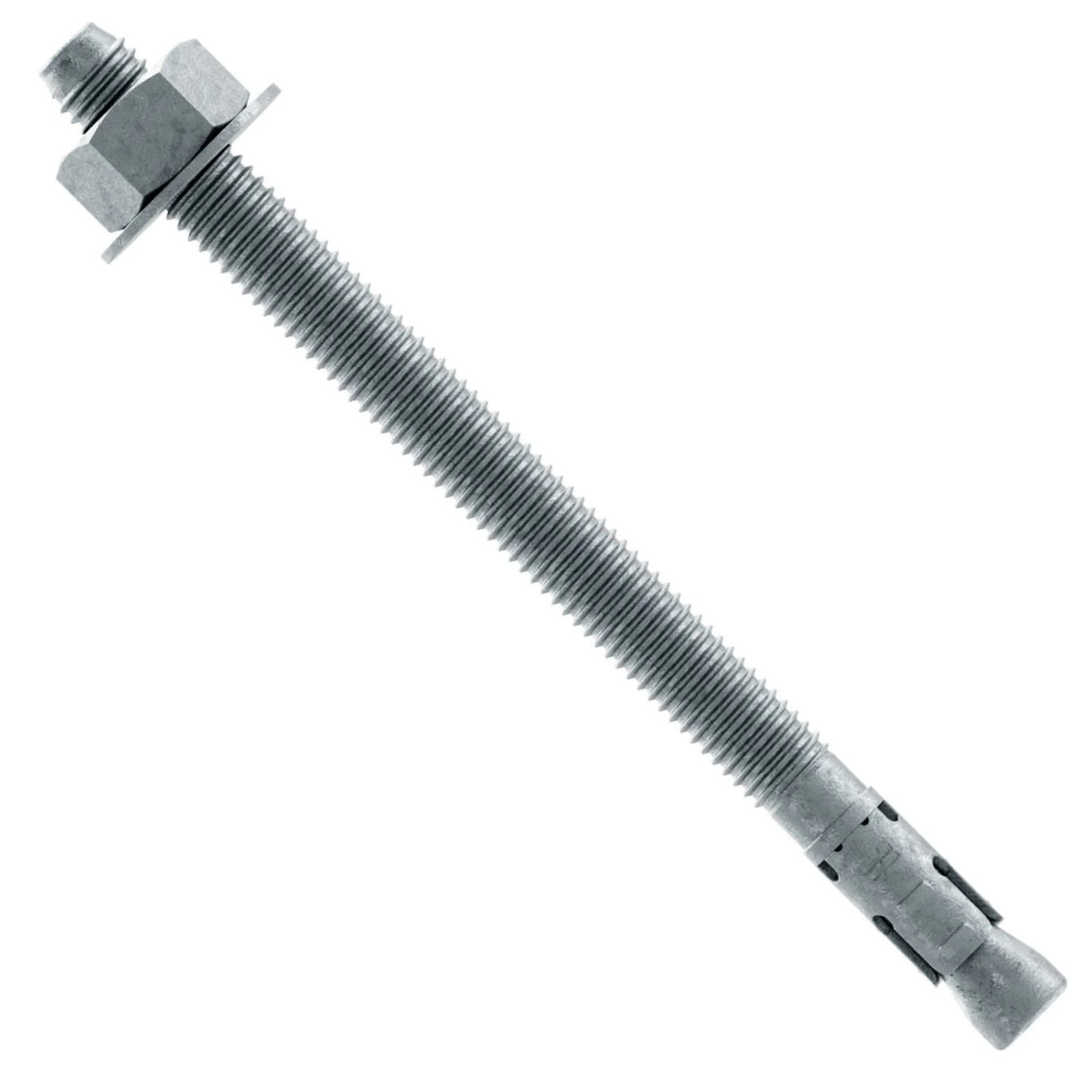

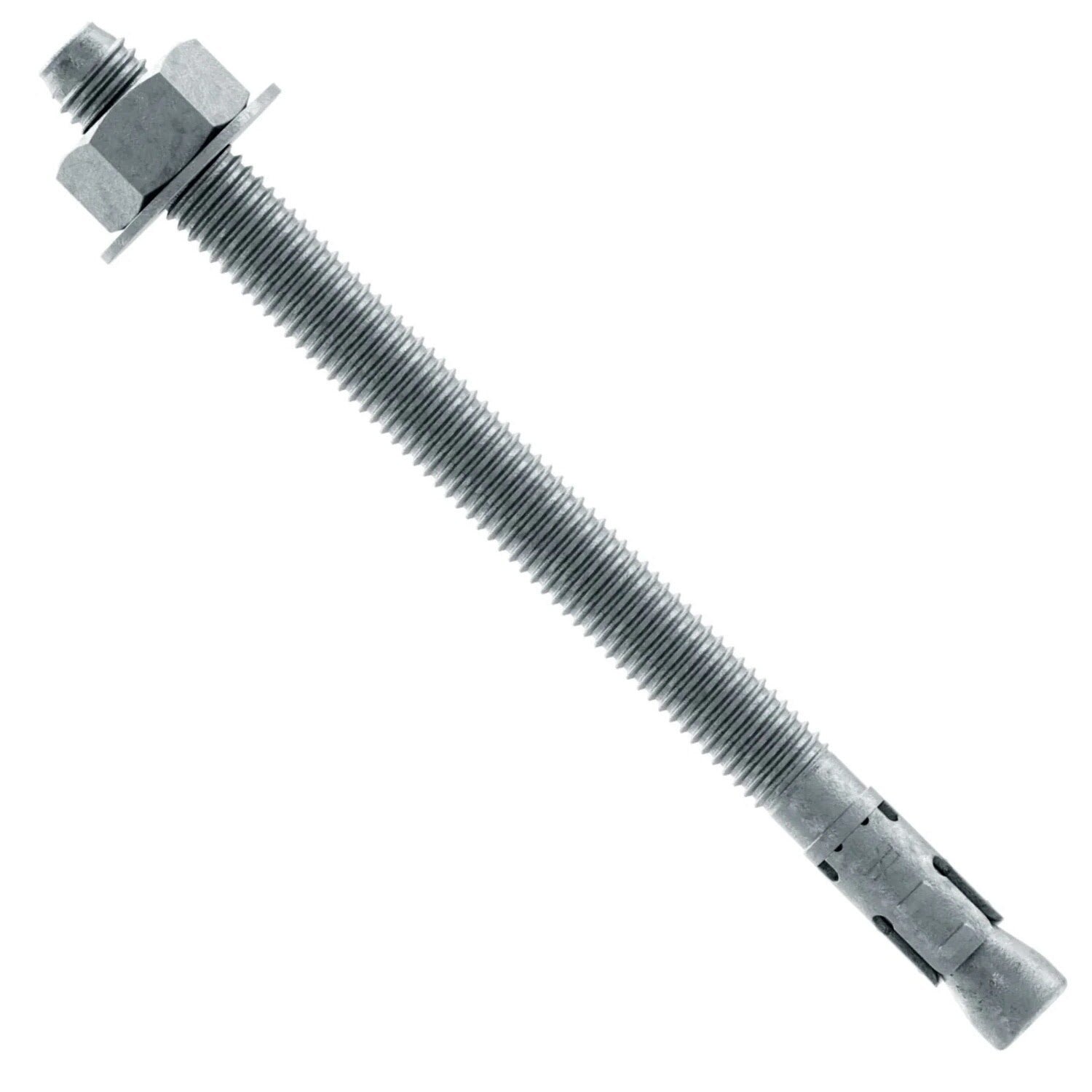

Simpson Strong-Tie STB2-751200MGR5 Strong-Bolt (3/4" x 12") Mechanically Galvanized 2 Wedge Anchor (5 Pack)
$68.12
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-751200MGR5 Description
Simpson Strong-Bolt 2 anchors are non-bottom-bearing, ICC-ES code compliant anchors made to be installed in cracked or uncracked concrete. Strong-Bolt 2 Wedge anchors are qualified for both static and seismic loading and suitable for horizontal, vertical and overhead applications.
Simpson Strong-Tie STB2-751200MGR5 Includes
- (5) Strong-Bolt 2 3/4 in. x 12 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-751200MGR5 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical and overhead applications
- Tested for minimum concrete thickness of 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-751200MGR5 Applications
- Concrete anchoring in cracked or uncracked concrete
- Static and seismic loading applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-751200MGR5 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust from drilling.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
- Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-751200MGR5 Specifications
| Diameter | 3/4" |
| Length | 12" |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill bit size | 3/4" |
| Fixture hole size | 7/8" |
| Installation torque | 90 ft. lbf. |
| Thread length | 6" |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
