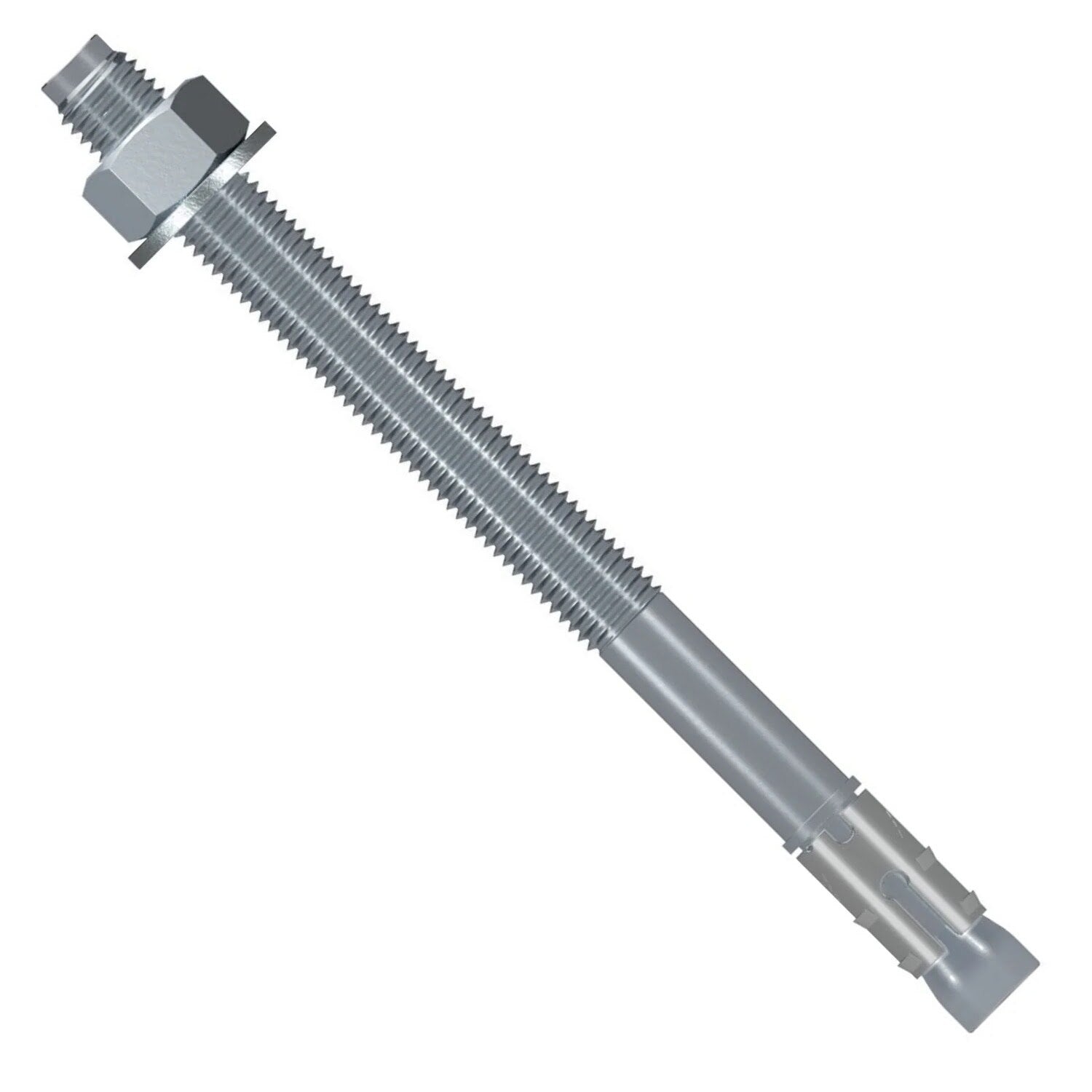

Simpson Strong-Tie STB2-751200R5 Strong-Bolt (3/4" x 12") 2 Wedge Anchor - Zinc-Plated Carbon Steel (5 Pack)

Simpson Strong-Tie STB2-751200R5 Features

• Chamfered top designed to prevent mushrooming during installation
• Qualified for static and seismic loading conditions (seismic design categories A through F)
• Suitable for horizontal, vertical and overhead applications
• Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4"
• Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
• Tested per ACI355.2 and AC193

Simpson Strong-Tie STB2-751200R5 Applications

• Anchoring in cracked or uncracked concrete
• Seismic and static load applications
• Horizontal, vertical, and overhead installations

Simpson Strong-Tie STB2-751200R5 Installation Overview

1. Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
2. Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.
3. Assemble the anchor with nut and washer, ensuring the nut is flush with the top of the anchor.
4. Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.
5. Tighten to the required installation torque.
