Simpson Anchors | SKU:
STB2-75512P1

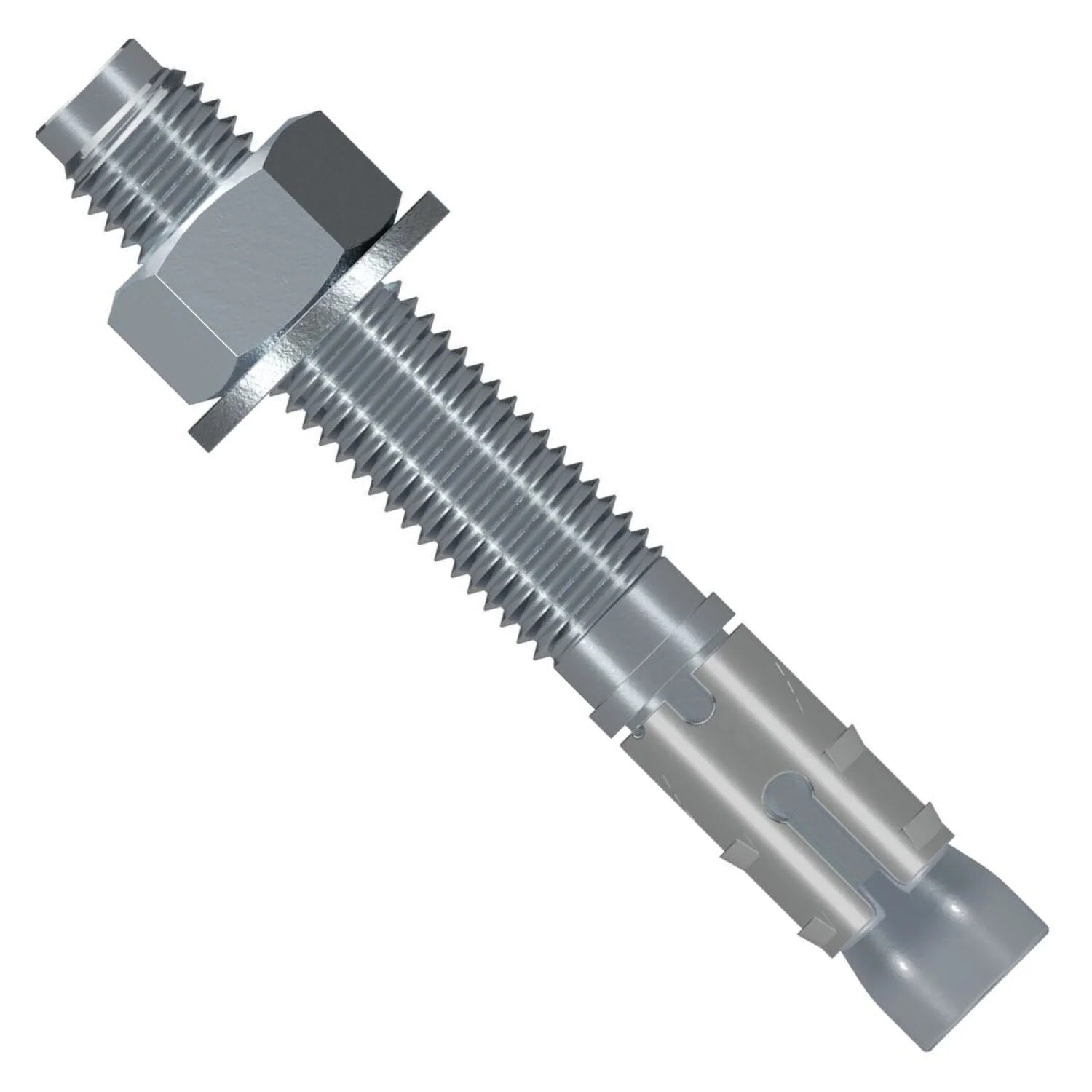

Simpson Strong-Tie STB2-75512P1 Strong Bolt (3/4" x 5-1/2") Zinc-Plated Carbon Steel Wedge Anchor (1 Piece)
$4.67
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-75512P1 Description
The Strong-Bolt 2 Wedge Anchor is a zinc-plated, high-performance anchor designed for cracked and uncracked concrete. It is suitable for static and seismic loading conditions.
Simpson Strong-Tie STB2-75512P1 Includes
- (1) Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-75512P1 Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Tested per ACI355.2 and AC193
- Zinc-plated carbon steel for durability
Simpson Strong-Tie STB2-75512P1 Applications
- Cracked and uncracked concrete anchoring
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-75512P1 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with the nut and washer, ensuring the nut is flush with the top of the anchor.
- Insert the anchor into the hole and tighten to the required torque.
Simpson Strong-Tie STB2-75512P1 Specifications
| Diameter | 3/4 in. |
| Length | 5-1/2 in. |
| Material | Zinc-plated carbon steel |
| Installation Torque | 150 ft. lbs |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
