Simpson Anchors | SKU:
STB2-75512S6F10

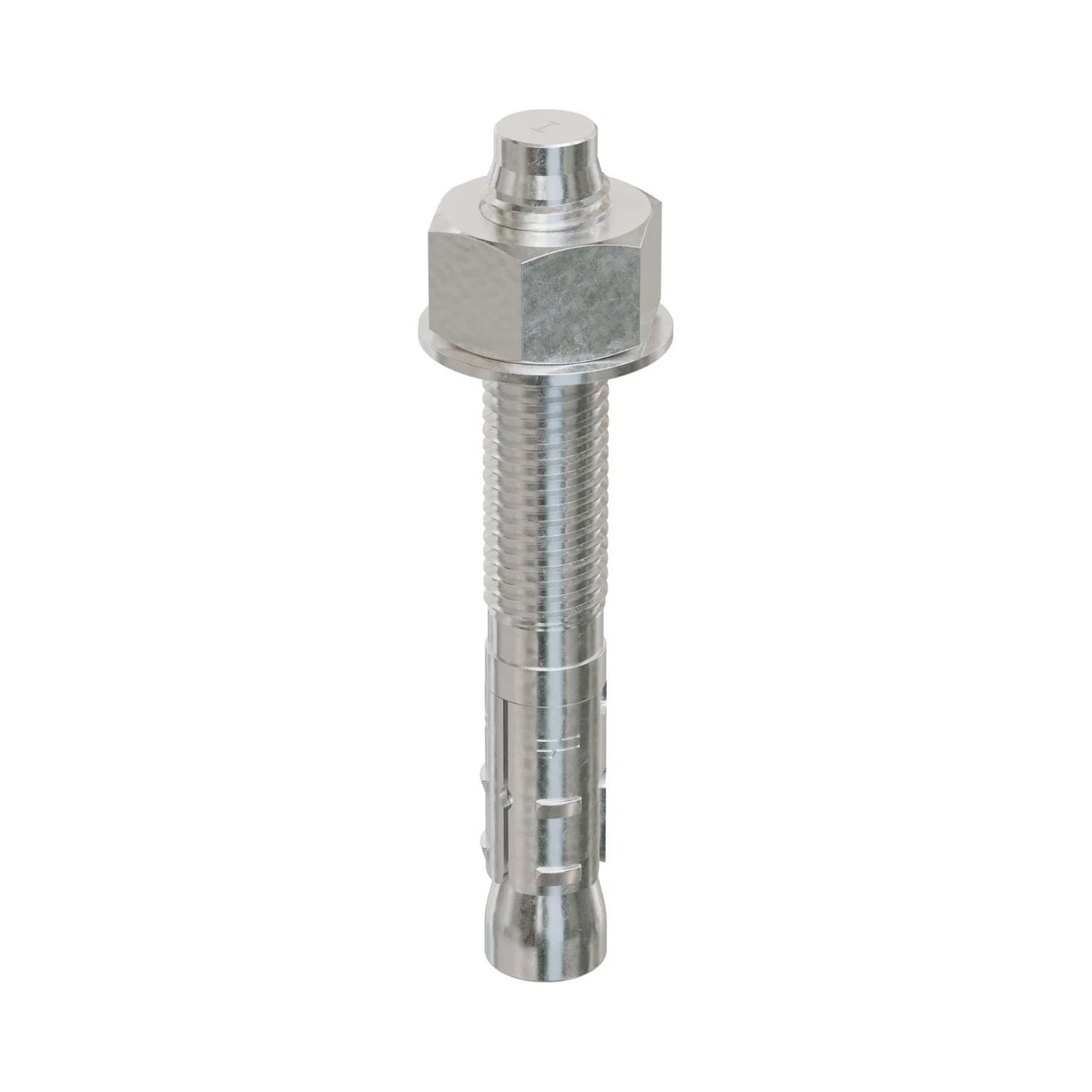

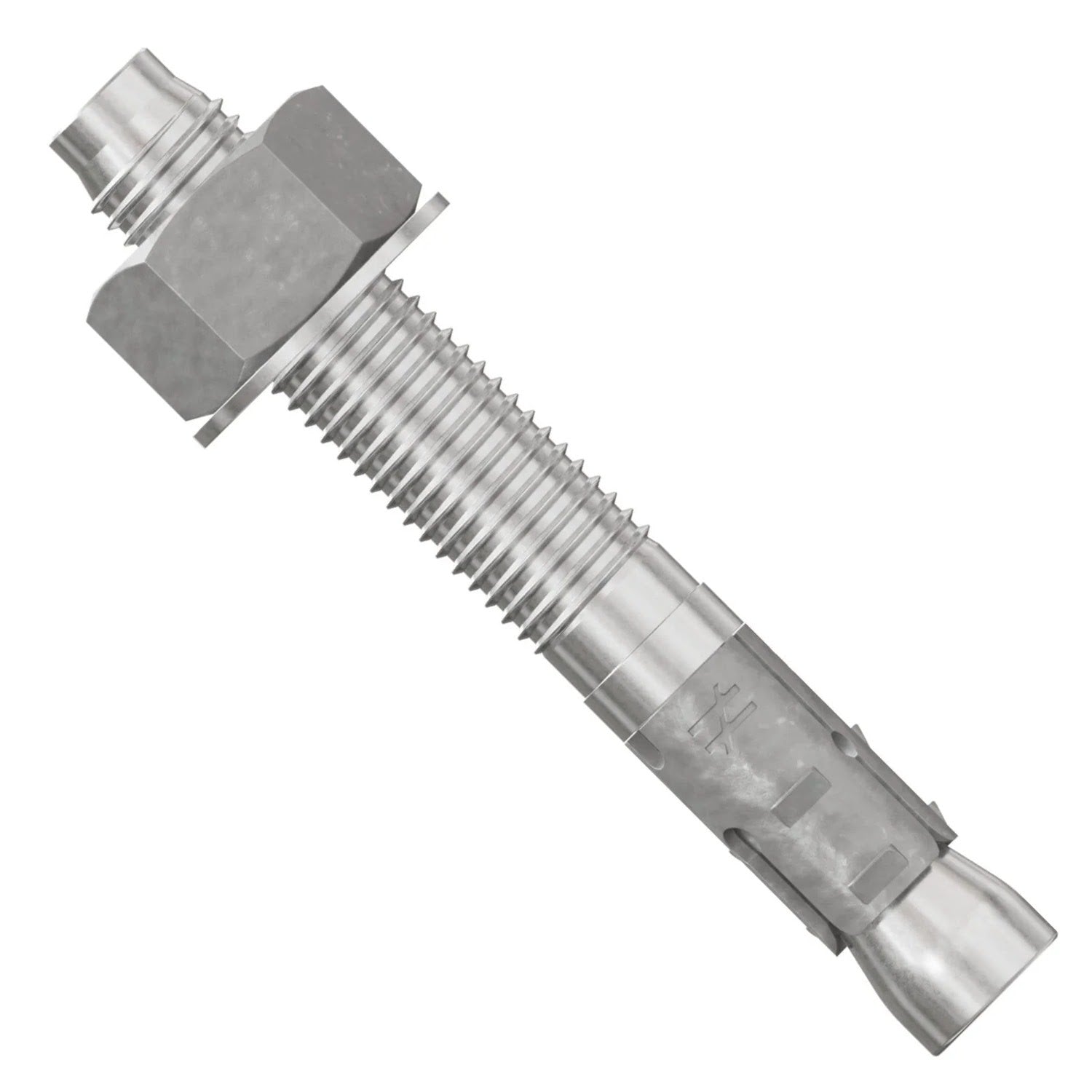

Simpson Strong-Tie STB2-75512S6F10 Strong Bolt (3/4" x 5-1/2") Type 316 Stainless-Steel Wedge Anchor, Fully Assembled (10 Pack)
Free Shipping
$226.68
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-75512S6F10 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are designed for maximum performance in corrosive environments, offering high-strength fastening for cracked or uncracked concrete.
Simpson Strong-Tie STB2-75512S6F10 Includes
- (10) 3/4 in. x 5-1/2 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-75512S6F10 Features
- 316 Stainless Steel Construction for corrosion resistance
- Fully assembled with nut and washer for ease of installation
- ICC-ES ESR-3037 code listed for cracked and uncracked concrete
- Suitable for structural supports, machinery, and railing systems
- Available in multiple sizes for various applications
Simpson Strong-Tie STB2-75512S6F10 Applications
- Marine environments: Ideal for coastal construction and marine applications
- Wastewater facilities: Suitable for environments with chemical exposure
- Residential and commercial construction: Anchoring handrails, machinery, and structural supports
Simpson Strong-Tie STB2-75512S6F10 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor
- Blow the hole clean using compressed air

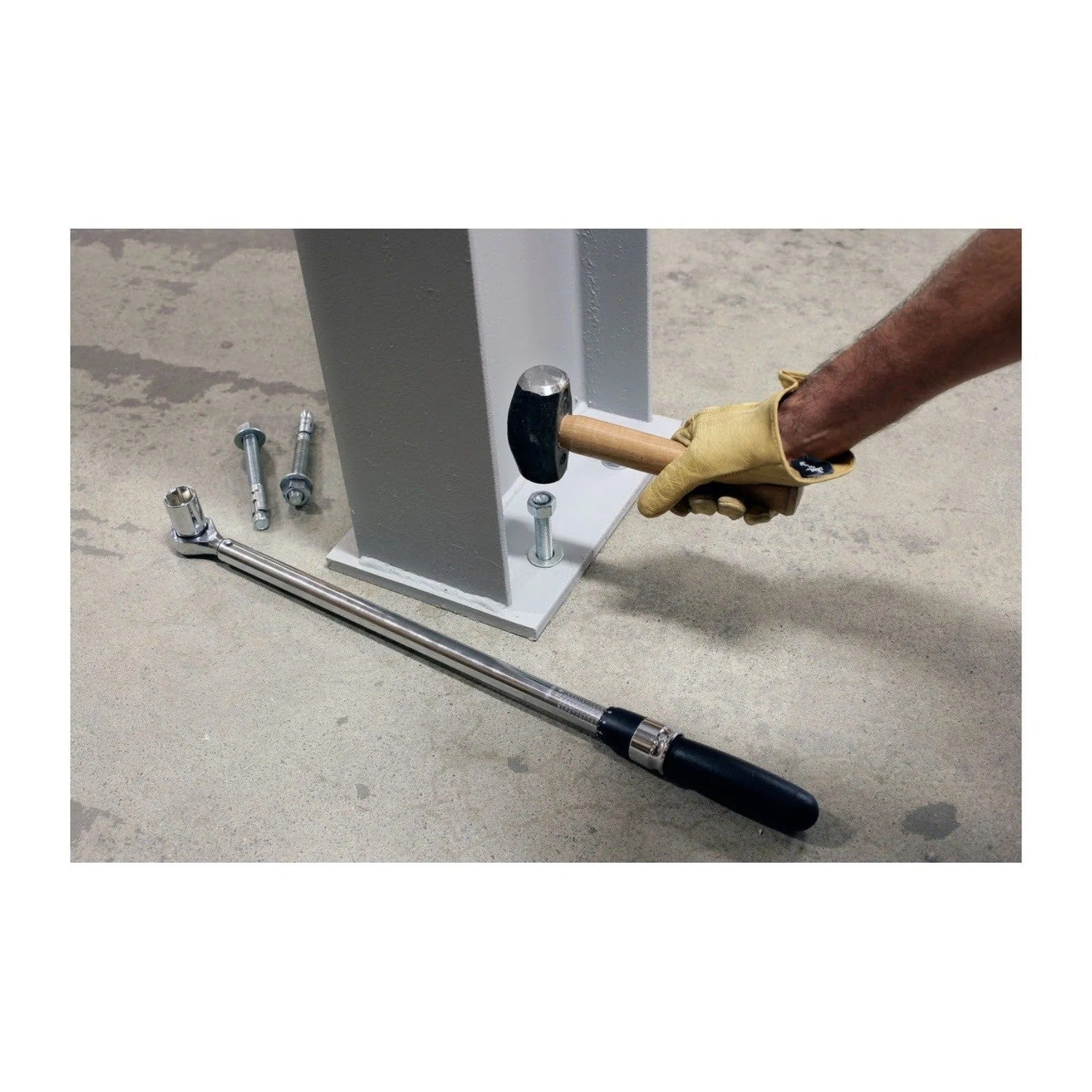

- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole

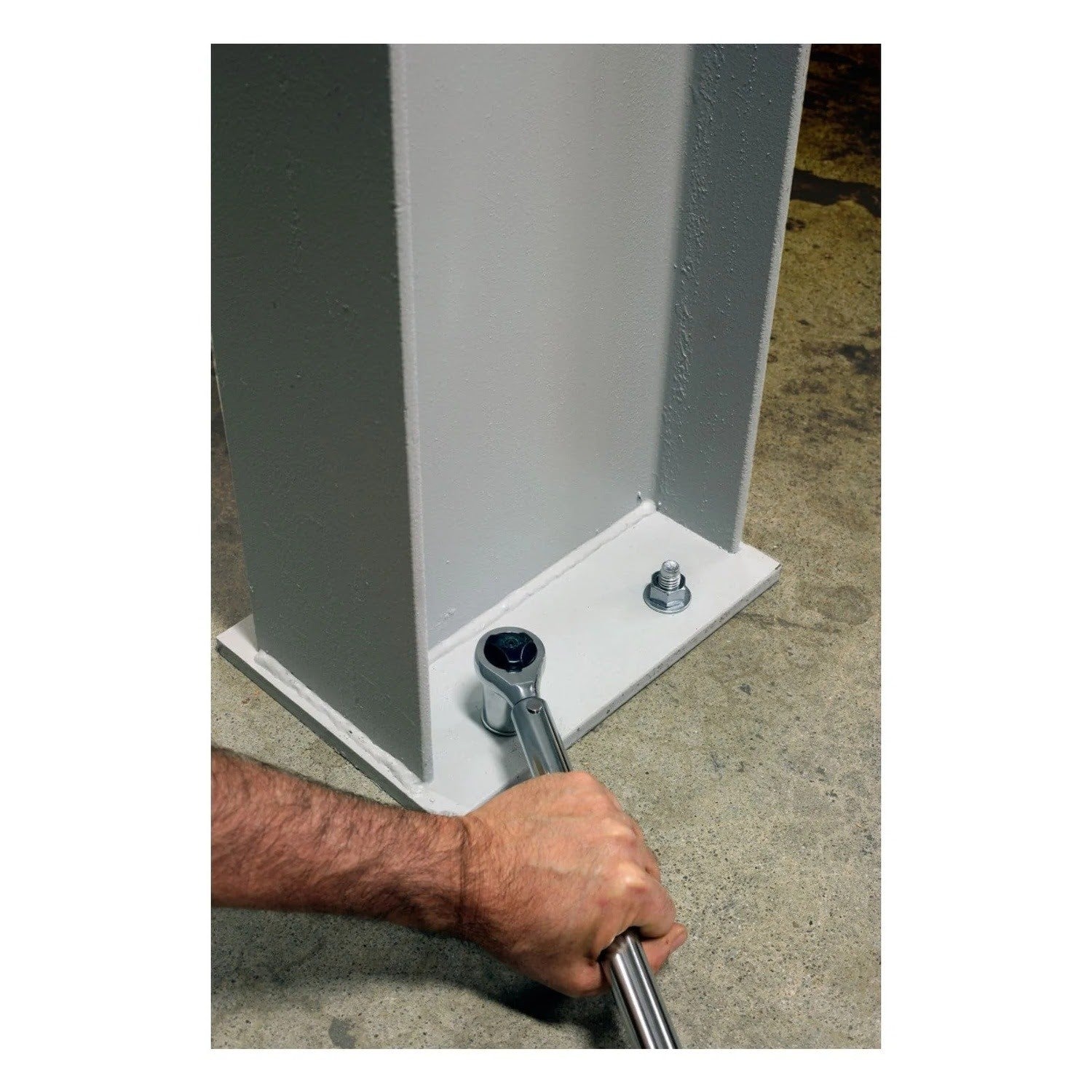

- Tighten the nut to the required installation torque
Simpson Strong-Tie STB2-75512S6F10 Specifications
| Diameter | 3/4 in. |
| Length | 5-1/2 in. |
| Material | 316 Stainless Steel |
| Drill bit size | 3/4 in. |
| Fixture hole size | 7/8 in. |
| Installation torque | 90 ft. lbf. |
| Thread length | 3-3/16 in. |
| Wrench size | 1-1/8 in. |
