Simpson Anchors | SKU:
STB2-75614MGF10

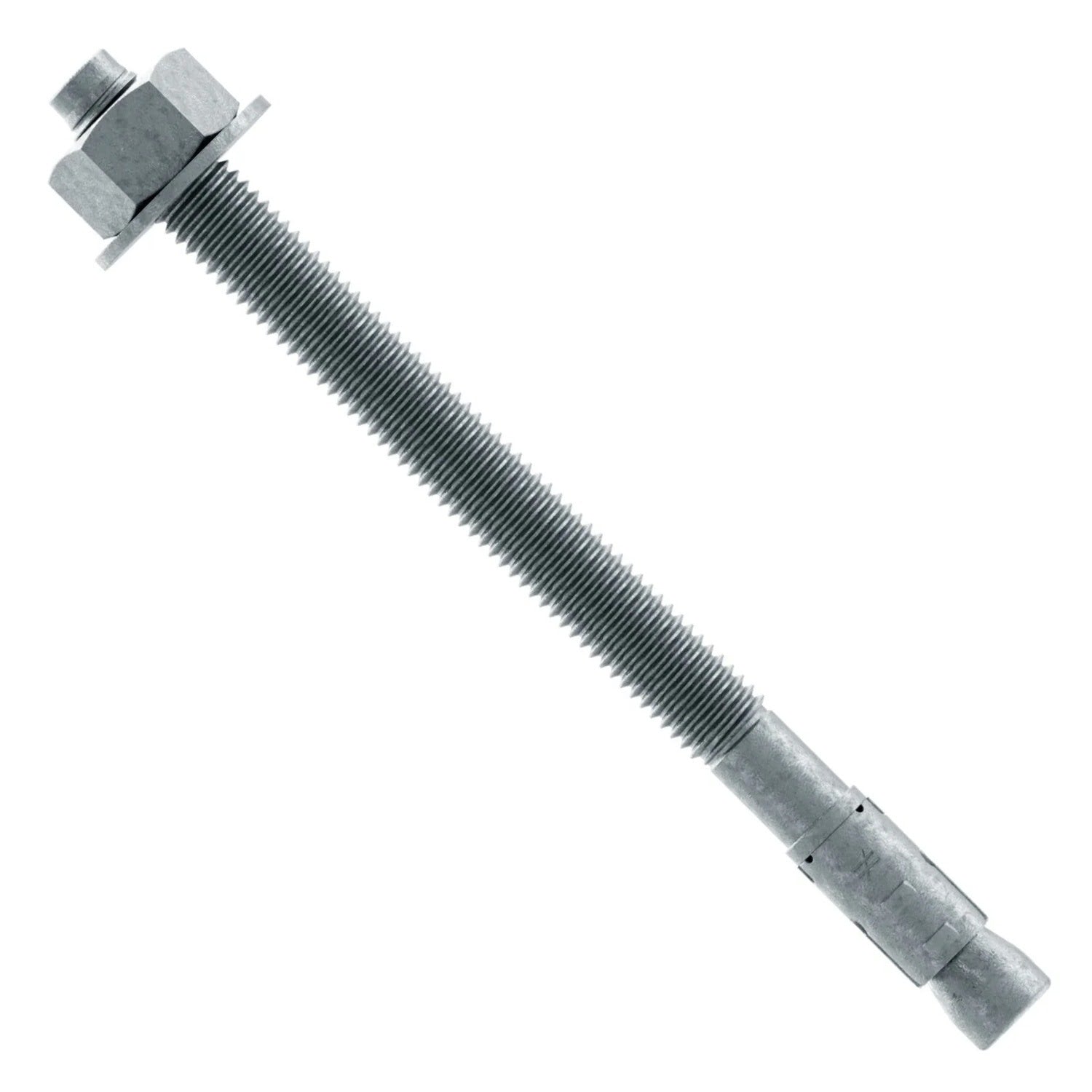

Simpson Strong-Tie STB2-75614MGF10 Strong-Bolt (3/4" x 6-1/4") Mechanically Galvanized Wedge Anchor (10 Pack)
$50.08
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-75614MGF10 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are designed for reliable tension and shear loads in cracked and uncracked concrete, offering high-performance anchoring solutions.
Simpson Strong-Tie STB2-75614MGF10 Includes
- (10) 3/4 in. x 6-1/4 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-75614MGF10 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical, and overhead applications
- Tested for minimum concrete thickness of 3-1/4 in.
- Standard fractional sizes fit standard fixtures and install with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-75614MGF10 Applications
- Anchoring structural columns
- Securing racking systems
- Installing machinery
- Fastening heavy-duty fixtures
Simpson Strong-Tie STB2-75614MGF10 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-75614MGF10 Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Diameter | 3/4 in. |
| Length | 6-1/4 in. |
| Drill Bit Size | 3/4 in. |
| Fixture Hole Size | 7/8 in. |
| Installation Torque | 90 ft. lbf. |
| Thread Length | 3-15/16 in. |
| Wrench Size | 1-1/8 in. |
