Simpson Anchors | SKU:
STB2-75614S4F10
Simpson Strong-Tie STB2-75614S4F10 Strong Bolt (3/4" x 6-1/4") 2 Wedge Anchor, Fully Assembled - Type 304 (10 Pack)
$112.69
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-75614S4F10 Description
The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors in 304 stainless steel deliver powerful performance and dependable holding strength for concrete anchoring projects.
Simpson Strong-Tie STB2-75614S4F10 Includes

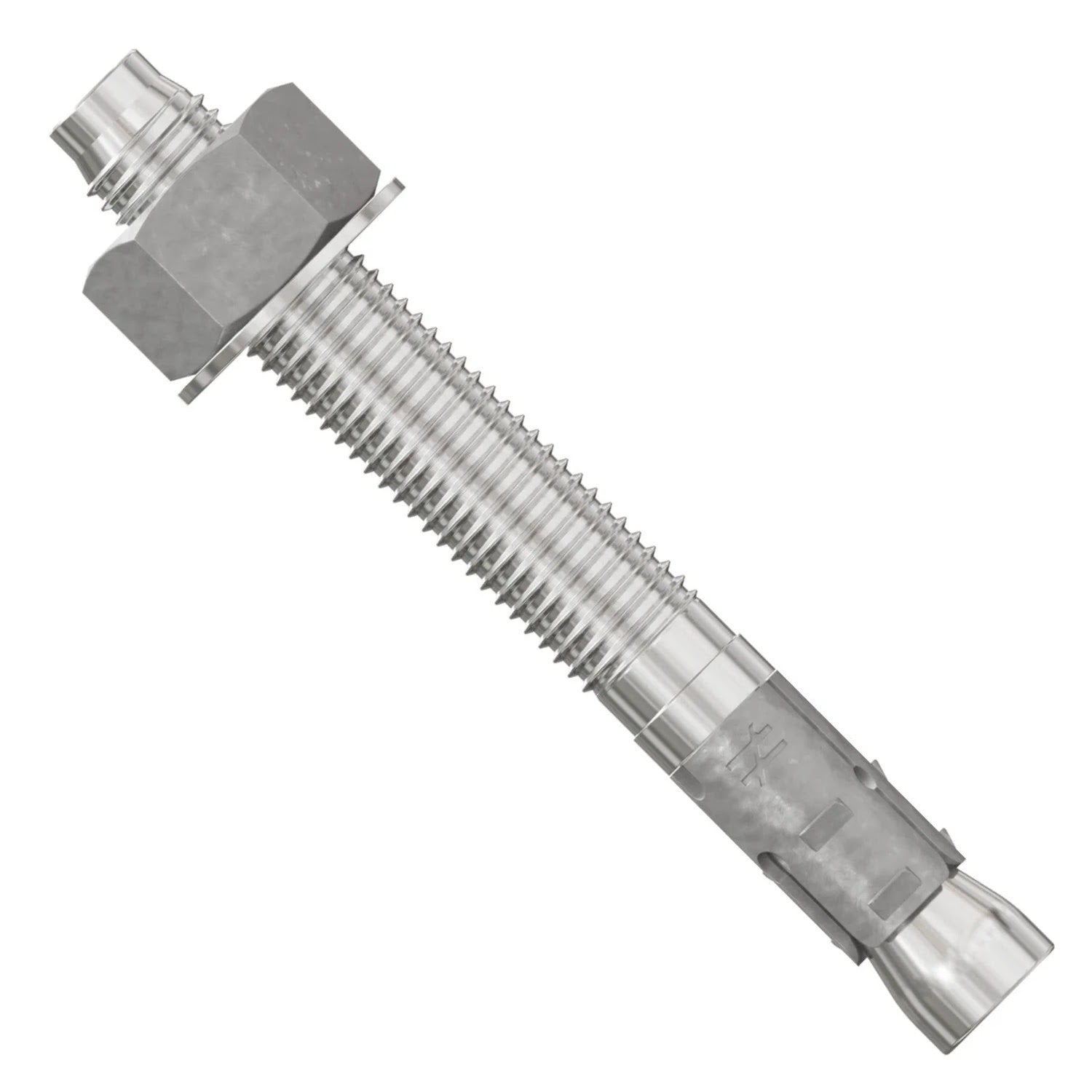

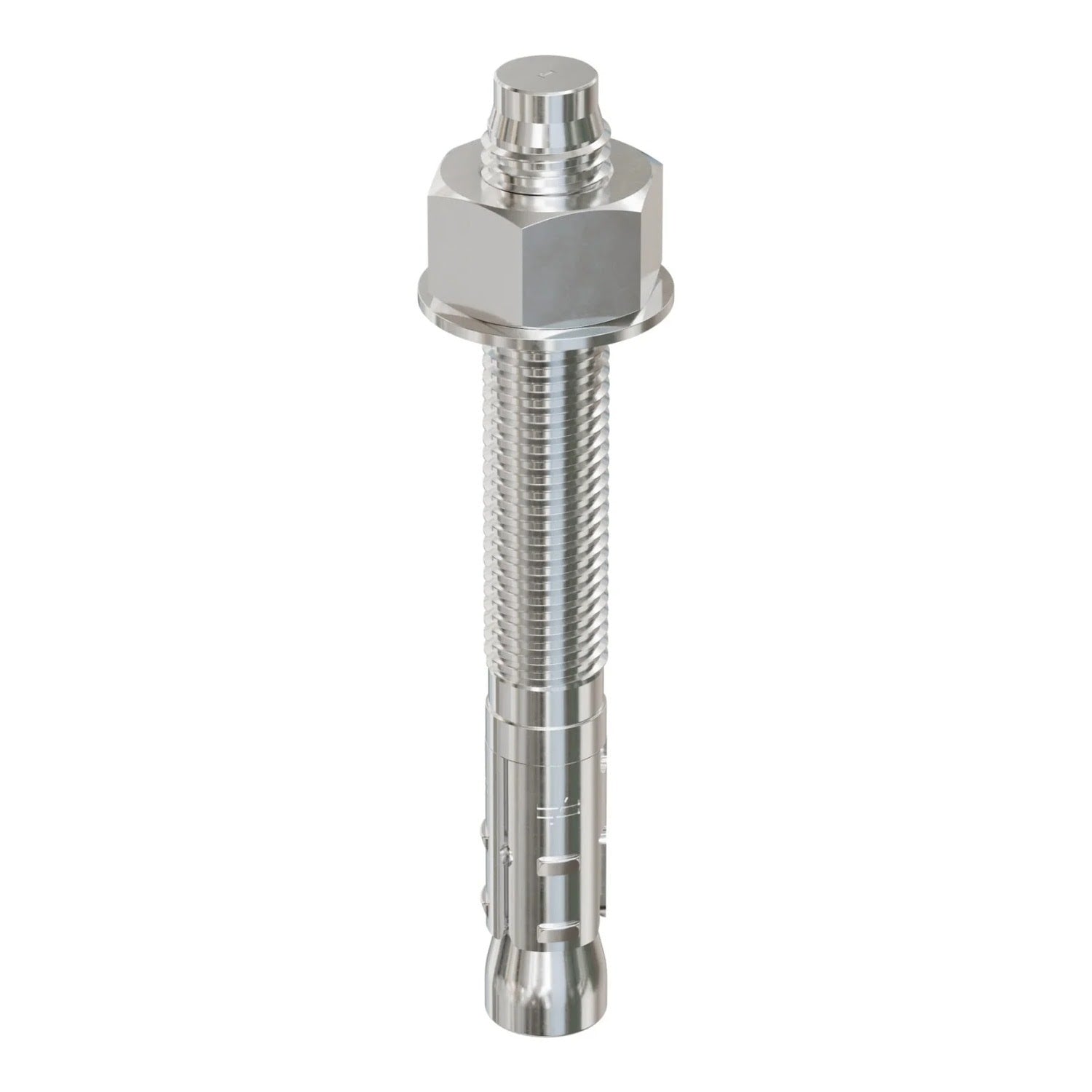

- (10) 3/4" x 6-1/4" Type 304 Stainless Steel Wedge Anchor
Simpson Strong-Tie STB2-75614S4F10 Features

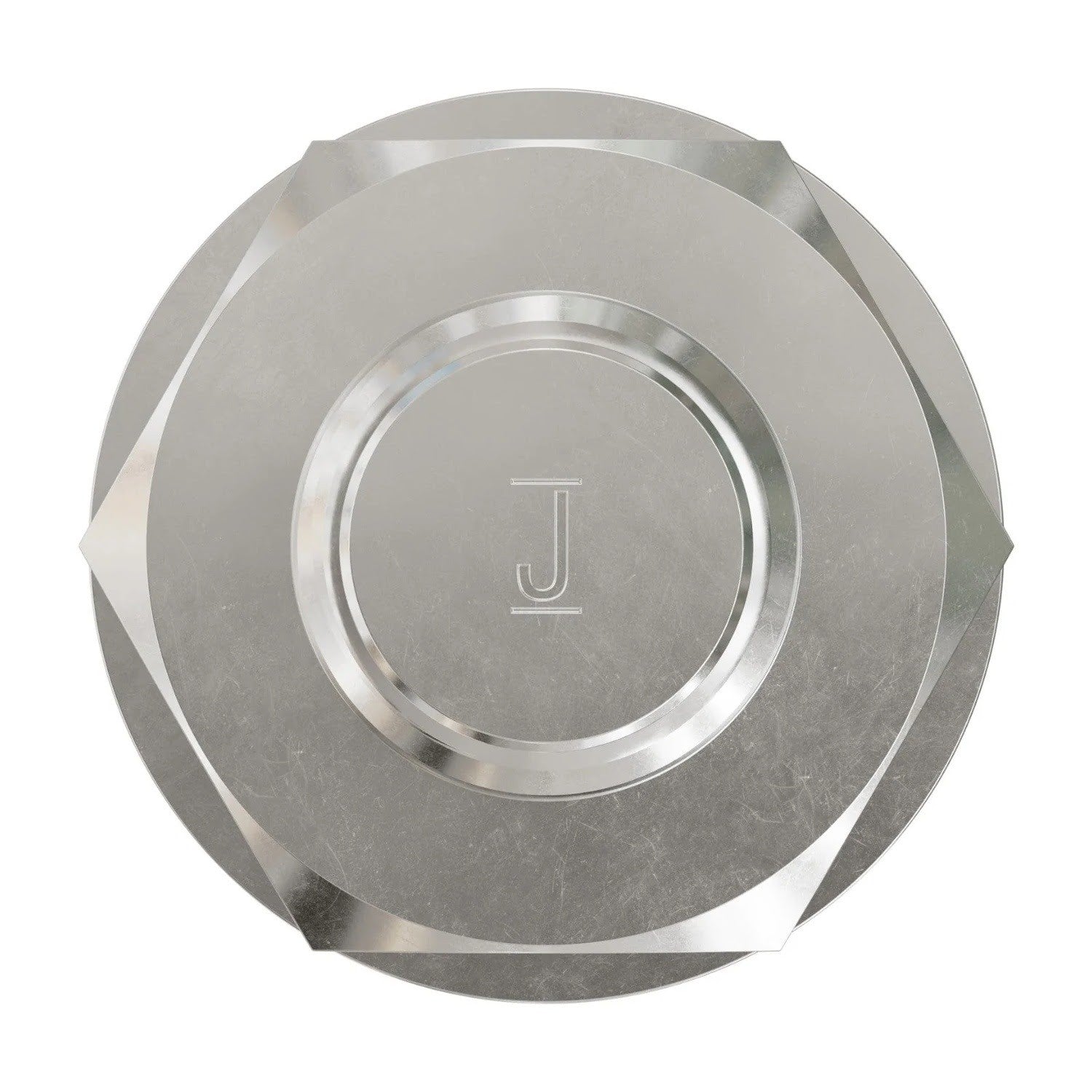

- Chamfered top designed to prevent mushrooming during installation

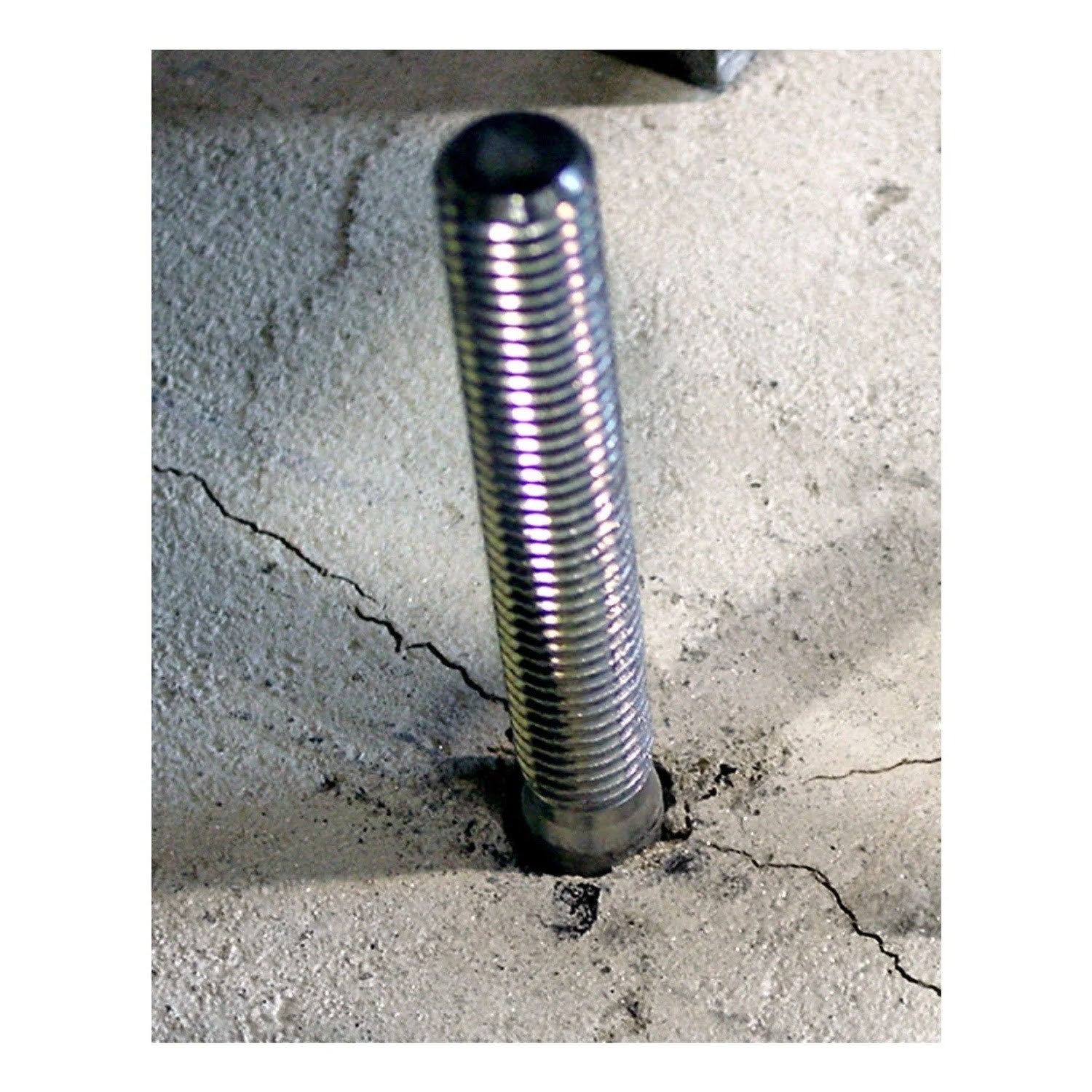

- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4"
- Standard fractional sizes for easy installation
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-75614S4F10 Applications
- Concrete anchoring for structural steel
- Securing machinery
- Racking systems
- Post bases
- Ledger attachments

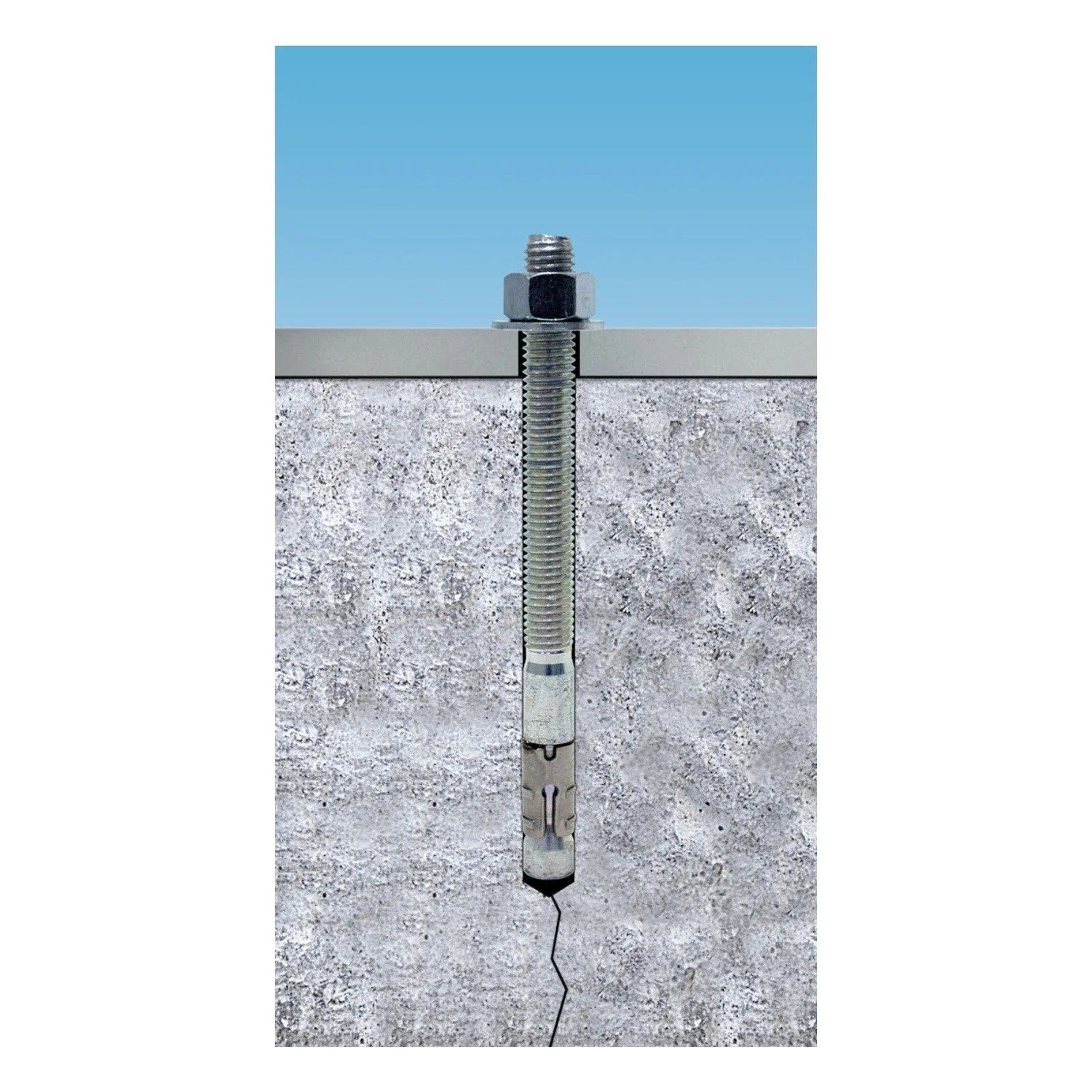

Simpson Strong-Tie STB2-75614S4F10 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer.

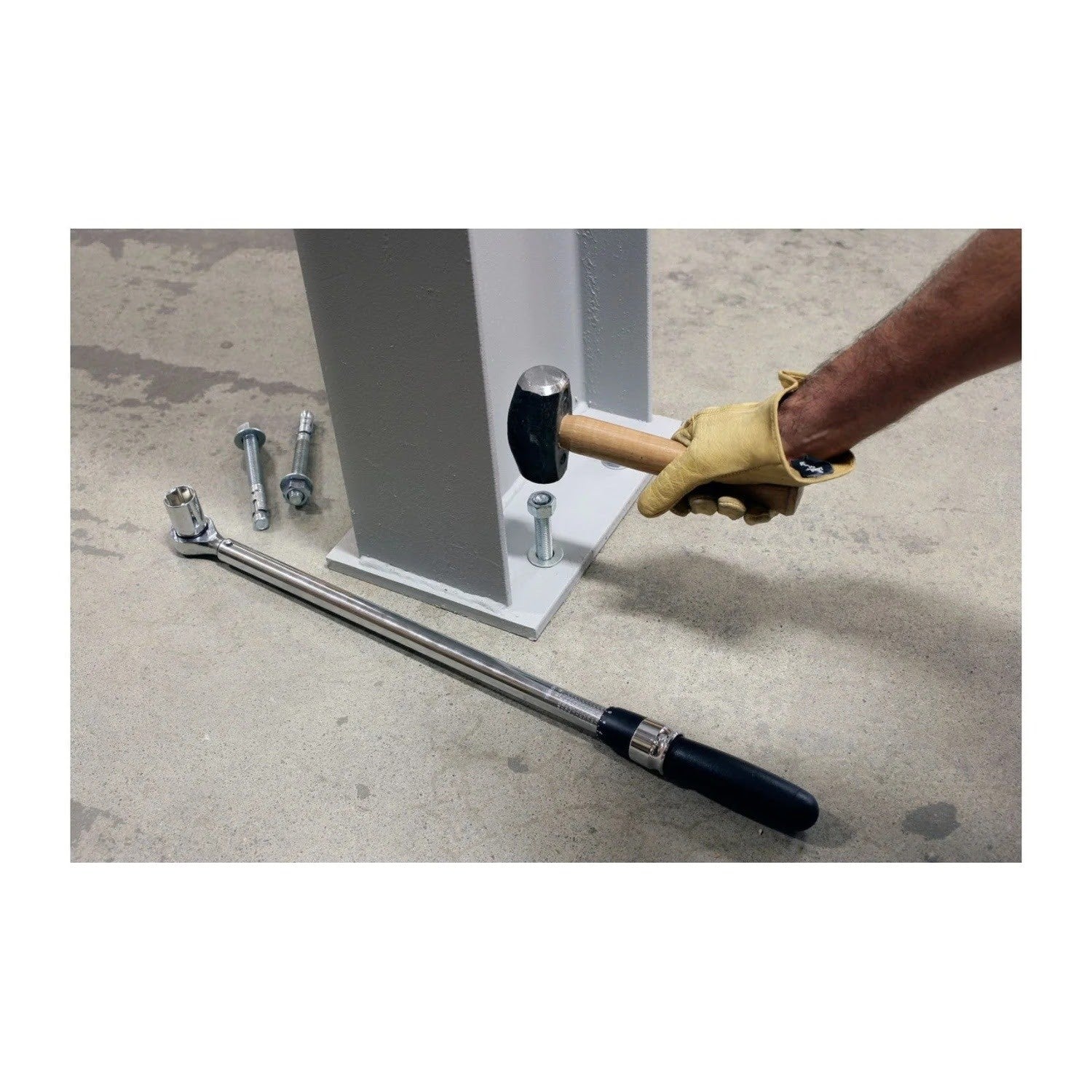

- Place the anchor in the fixture and drive it into the hole.

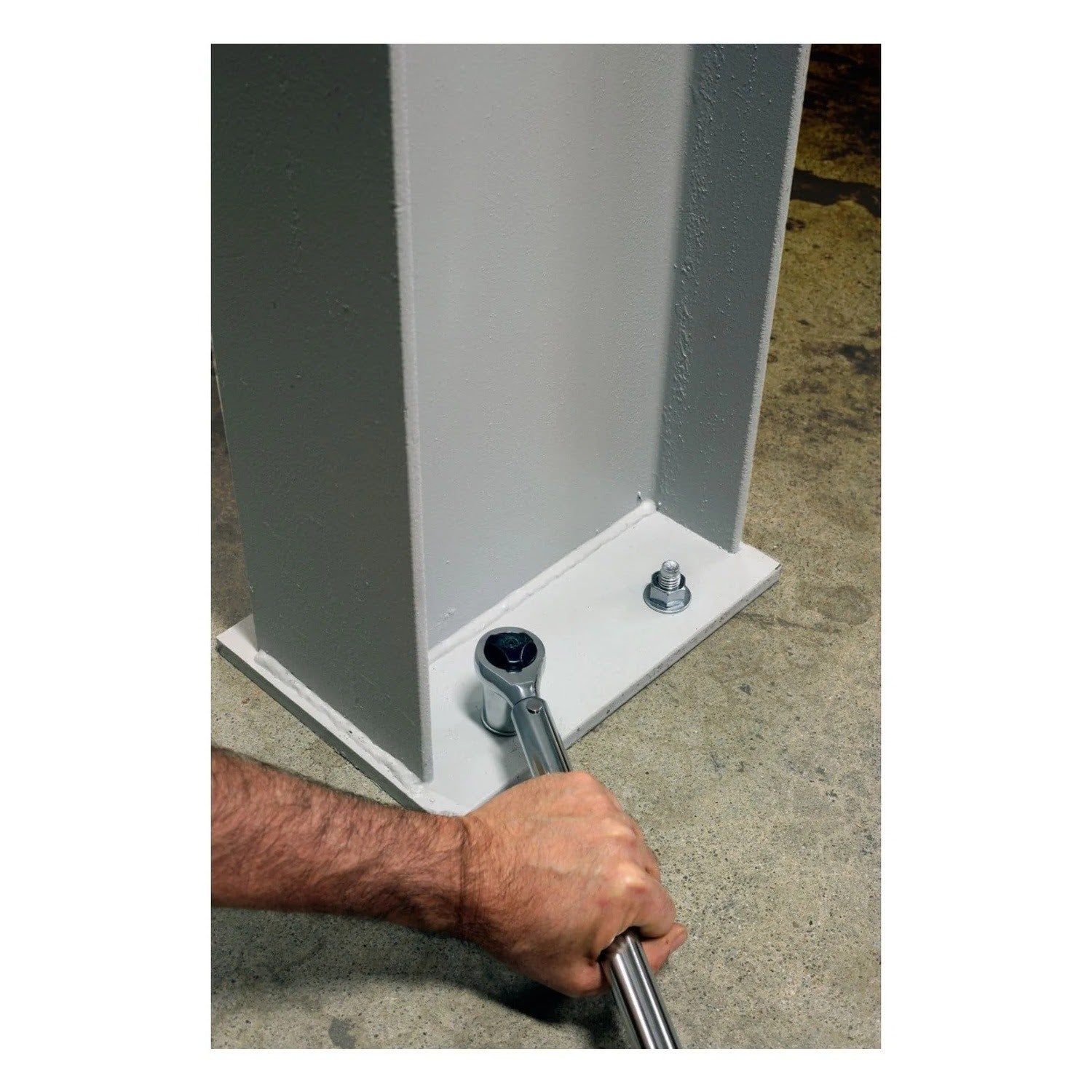

- Tighten to the required installation torque.
Simpson Strong-Tie STB2-75614S4F10 Specifications
| Diameter | 3/4" |
| Length | 6-1/4" |
| Material | 304 Stainless Steel |
| Drill bit size | 3/4" |
| Fixture hole size | 7/8" |
| Installation torque | 90 ft. lbf. |
| Thread length | 3-15/16" |
| Wrench size | 1-1/8" |
NOTE: Ensure the anchor is installed with the correct torque to achieve optimal performance.
