Simpson Anchors | SKU:
STB2-757004SS

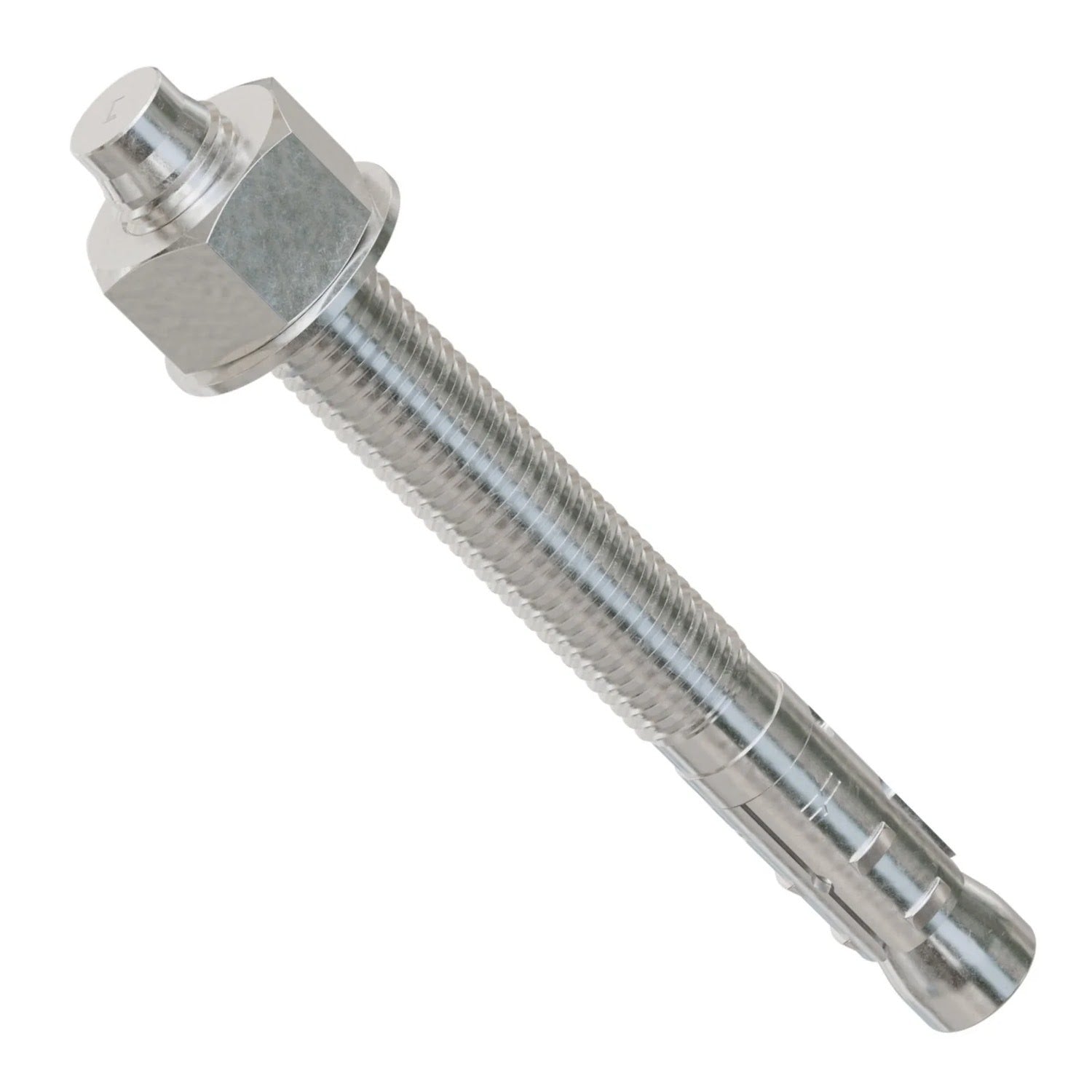

Simpson Strong-Tie STB2-757004SS Strong-Bolt 2 (3/4" x 7") Stainless Steel Wedge Anchor - Unassembled (10 Pack)
$141.44
Unit price
/
Unavailable
Description
Description
Simpson STB2-757004SS Description
The Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for use in cracked and uncracked concrete. Made from durable 304 stainless steel, it is suitable for static and seismic loading conditions.
Simpson STB2-757004SS Includes
- (10) Strong-Bolt 2 Wedge Anchor 304 Stainless Steel
Simpson STB2-757004SS Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Standard fractional sizes for compatibility with common tools
- Tested per ACI355.2 and AC193 standards
Simpson STB2-757004SS Applications
- Concrete anchoring in cracked and uncracked surfaces
- Seismic applications requiring reliable anchoring
- Horizontal, vertical, and overhead installations
Simpson STB2-757004SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Insert the anchor into the hole and tighten to specified torque
Simpson STB2-757004SS Specifications
| Diameter | 3/4" |
| Length | 7" |
| Material | 304 Stainless Steel |
| Drill Bit Size | 3/4" |
| Installation Torque | 150 ft. lbs |
| Thread Length | 4-11/16" |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
