Simpson Anchors | SKU:
STB2-75812

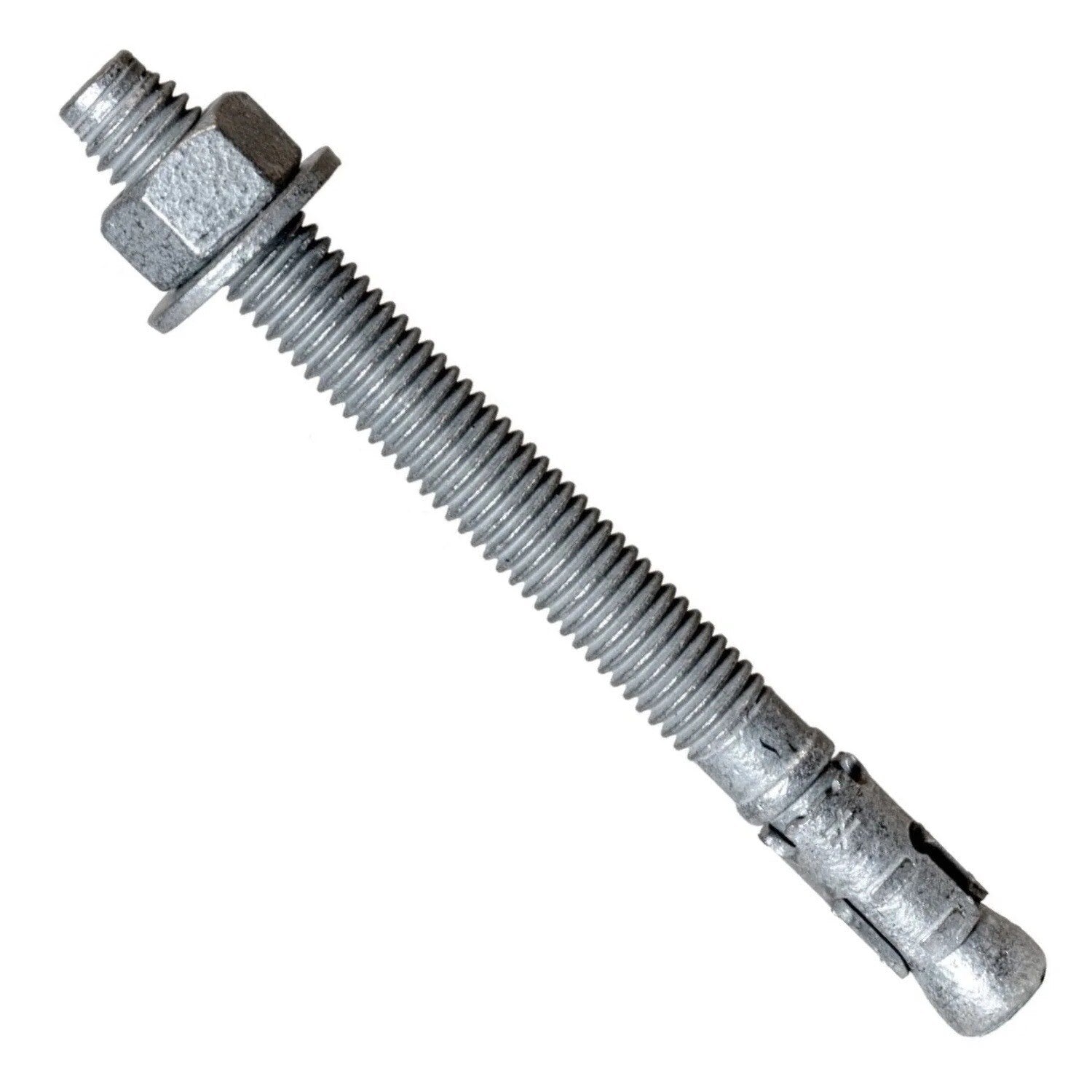

Simpson Strong-Tie STB2-75812 Strong-Bolt (3/4 in. x 8-1/2 in.) 2 Wedge Anchor - Fully Assembled (10 Pack)
$44.90
Unit price
/
Unavailable
Description
Description
Simpson STB2-75812 Description
The Strong-Bolt 2 Wedge Anchor is designed for reliable anchoring in cracked and uncracked concrete, suitable for static and seismic loading conditions.
Simpson STB2-75812 Includes
- (10) Strong-Bolt 2 Wedge Anchor
Simpson STB2-75812 Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Standard fractional sizes for compatibility with common tools
- Tested per ACI355.2 and AC193 standards
Simpson STB2-75812 Applications
- Concrete anchoring in construction projects

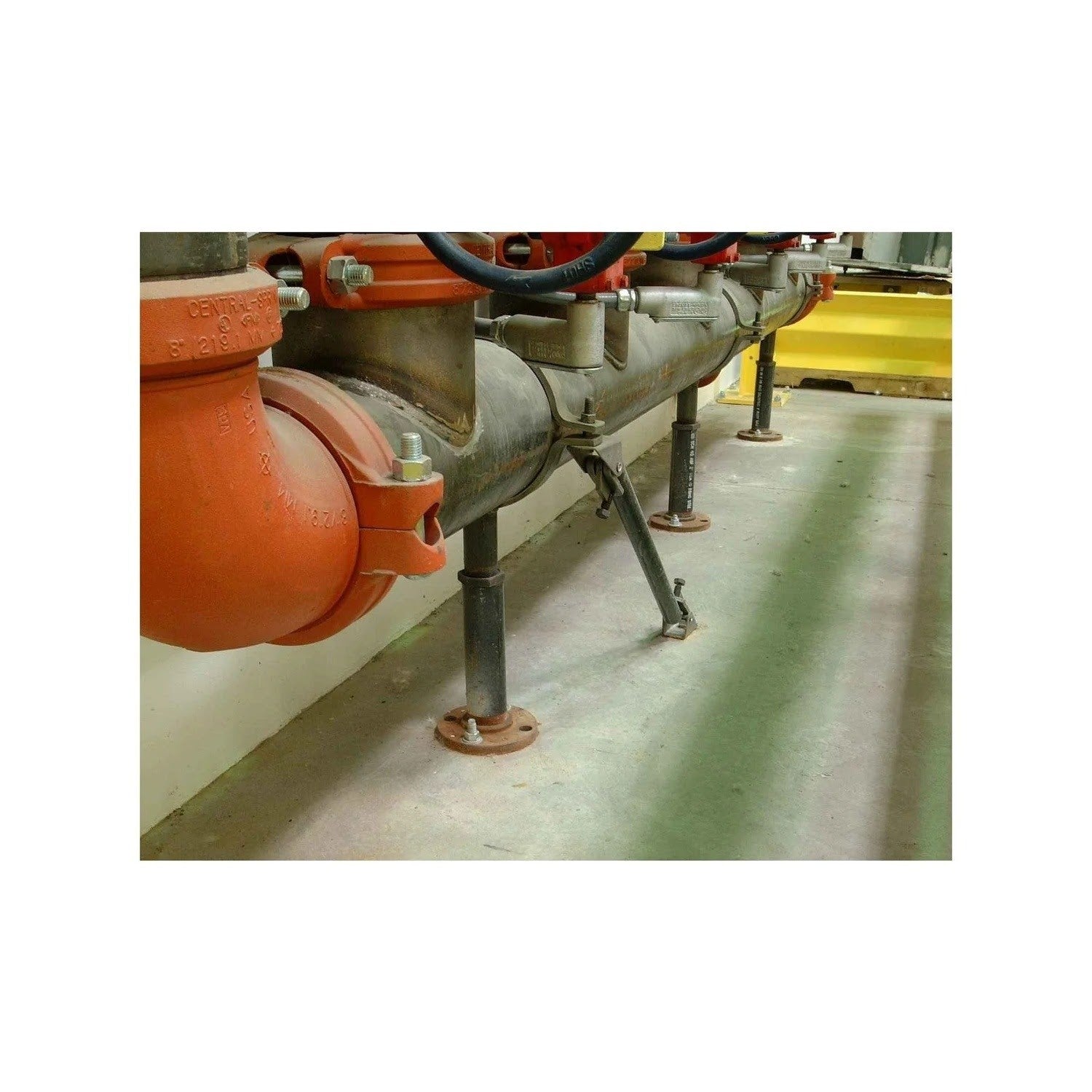

- Seismic-resistant installations
- Overhead and vertical anchoring applications

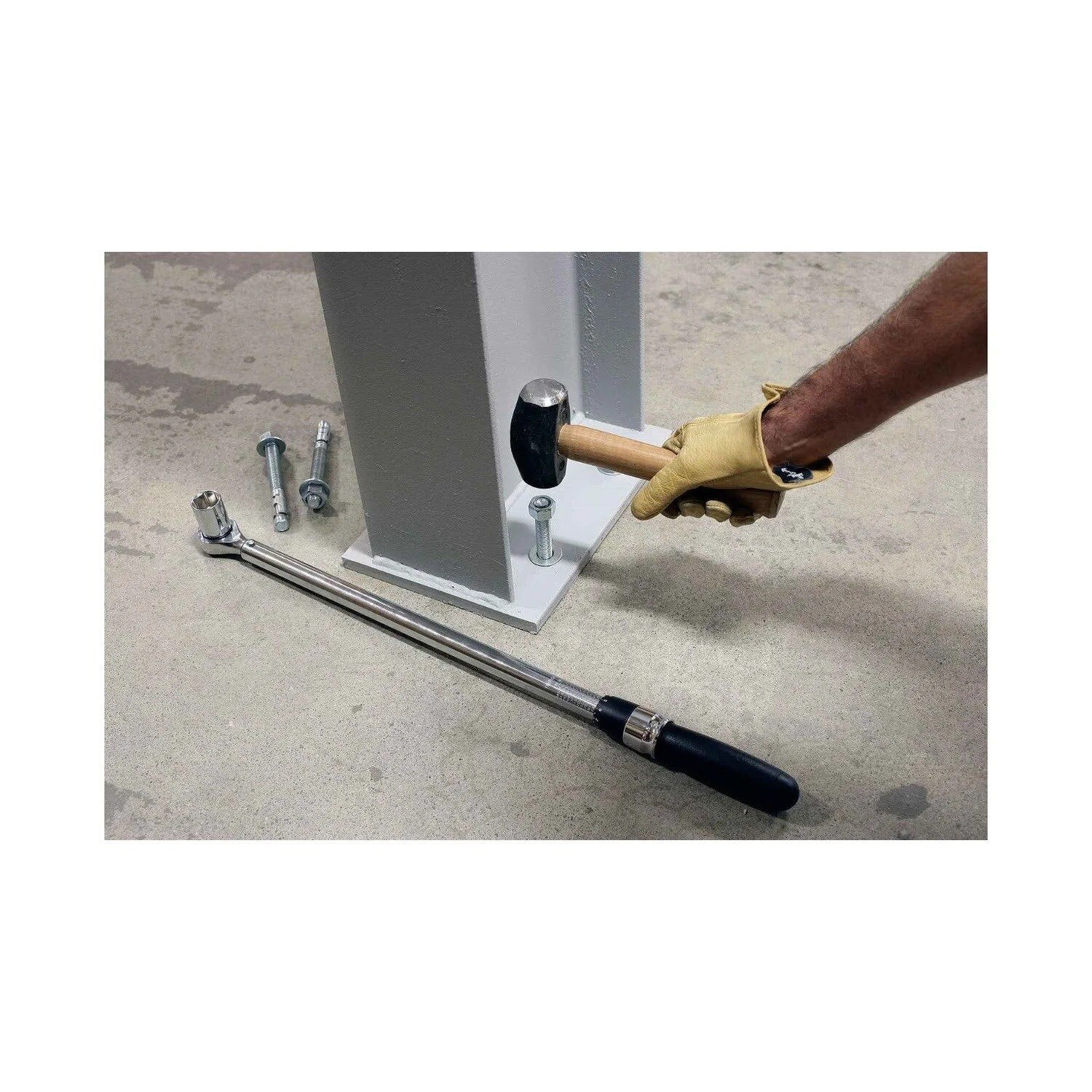

Simpson STB2-75812 Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole with compressed air

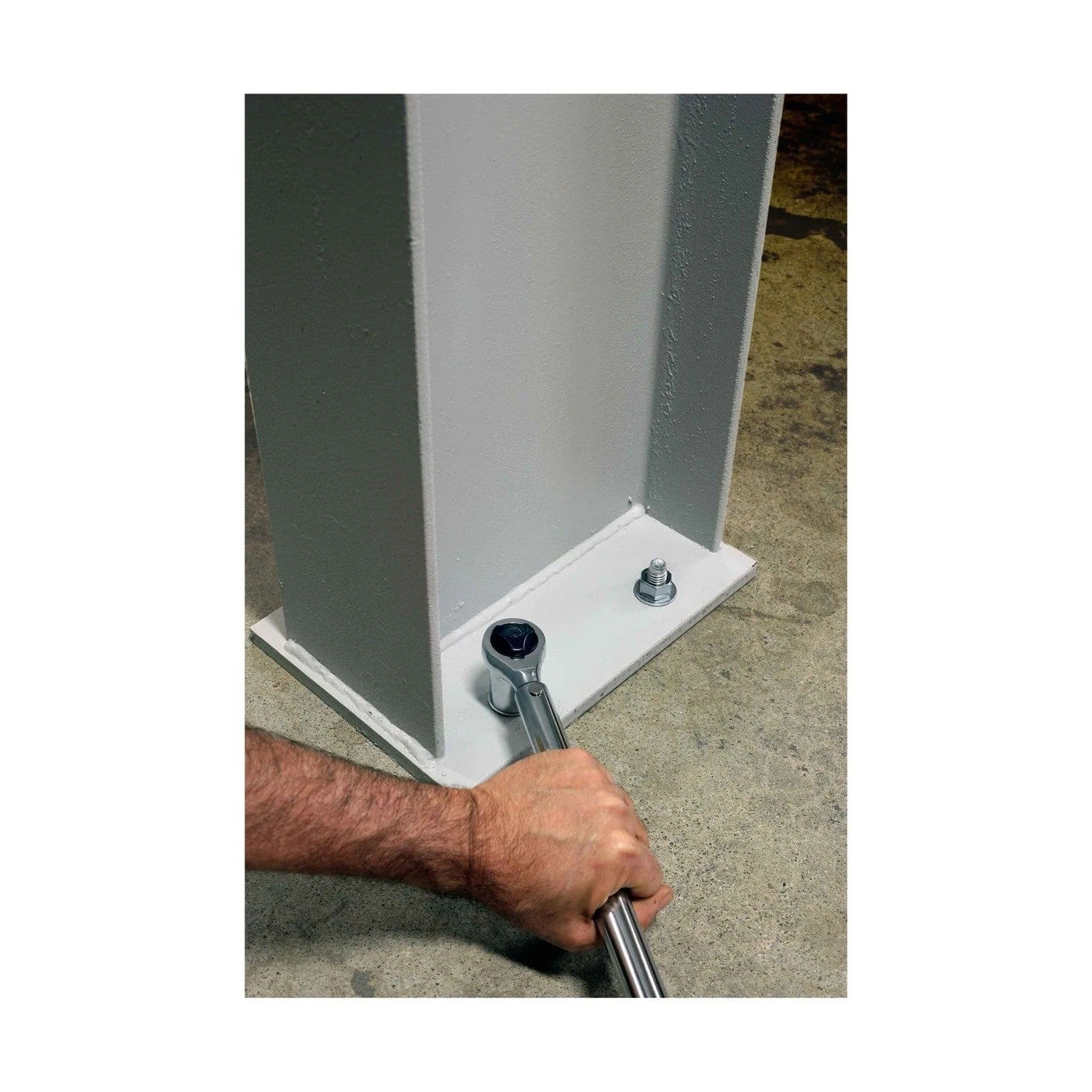

- Insert the anchor and tighten to the specified torque
Simpson STB2-75812 Specifications
| Material | Zinc-plated carbon steel |
| Diameter | 3/4" |
| Length | 8-1/2" |
| Installation Torque | 150 ft. lbs |
| Thread Length | 6" |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
