Simpson Anchors | SKU:
STB2-75812MGR10

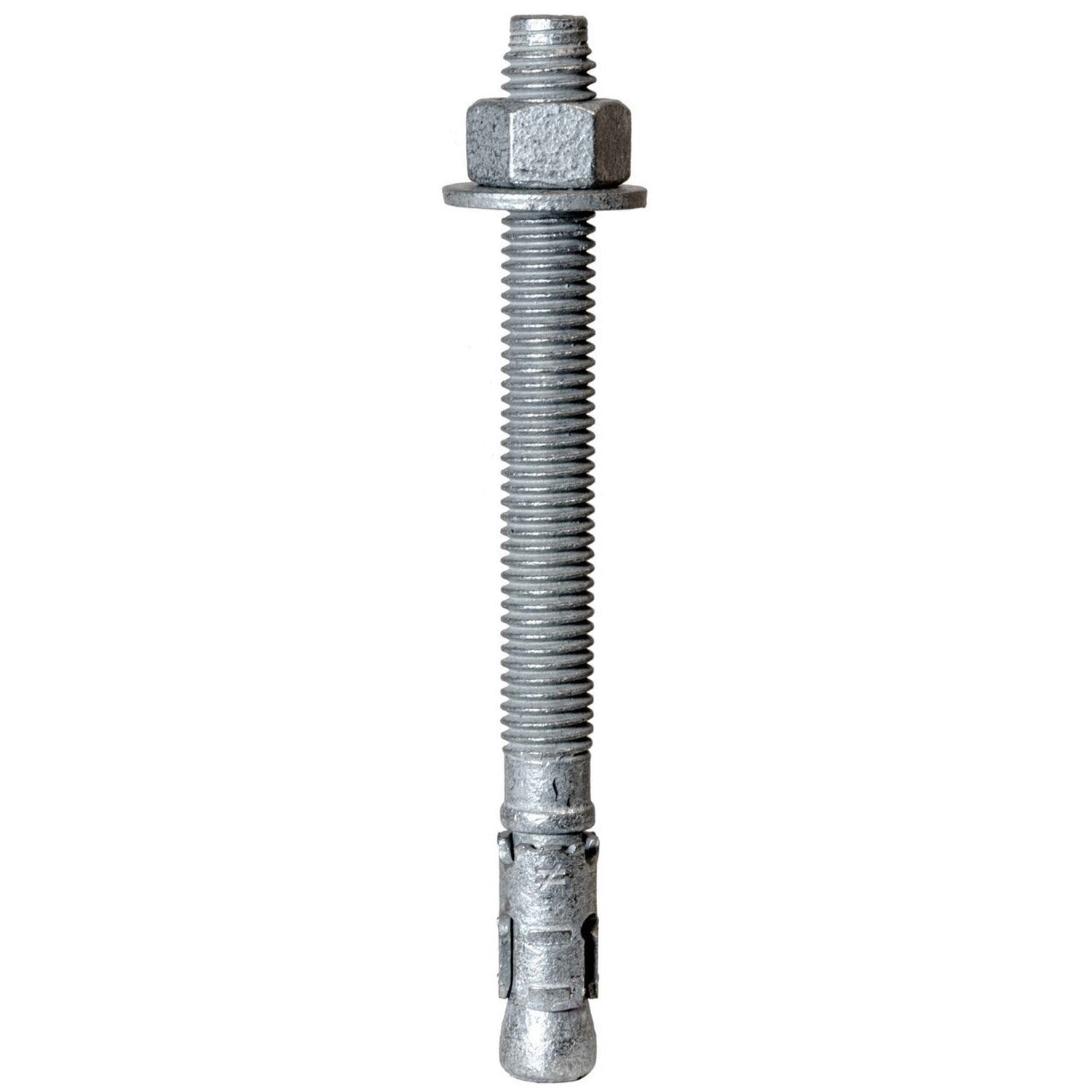

Simpson Strong-Tie STB2-75812MGR10 Strong-Bolt (3/4" x 8-1/2") 2 Mechanically Galvanized Wedge Anchor (10 Pack)
$78.09
Unit price
/
Unavailable
Description
Description
Simpson STB2-75812MGR10 Description
The Strong-Bolt 2 Wedge Anchor is a mechanically galvanized anchor designed for secure fastening in concrete applications.
Simpson STB2-75812MGR10 Includes
- (10) 3/4 in. x 8-1/2 in. Mechanically Galvanized Wedge Anchor
Simpson STB2-75812MGR10 Features
- Chamfered top prevents mushrooming during installation
- Suitable for horizontal, vertical, and overhead applications
- Tested for minimum concrete thickness of 3 1/4 inches
- Standard fractional sizes fit common drill bits and tools
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson STB2-75812MGR10 Applications
- Concrete fastening for structural support
- Securing fixtures in horizontal, vertical, and overhead positions
- General construction requiring reliable anchoring
Simpson STB2-75812MGR10 Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter.
- Clean the hole using compressed air or ensure it accommodates embedment depth.
- Assemble the anchor with nut and washer, flush with the top.
- Insert the anchor into the fixture and drive it into the hole.
- Tighten the anchor to the specified torque.
Simpson STB2-75812MGR10 Specifications
| Material | Carbon steel |
| Finish | Mechanically galvanized |
| Diameter | 3/4 in. |
| Length | 8-1/2 in. |
| Thread Length | 6 in. |
| Packaging Quantity | 10 |
NOTE: Ensure the anchor is installed using the correct torque and avoid oversized holes to maintain load capacity
