Simpson Anchors | SKU:
STHD10
Simpson Strong-Tie STHD10 (24-5/8") Strap-Tie Holdown Galvanized
$18.54
Unit price
/
Unavailable
Description
Description

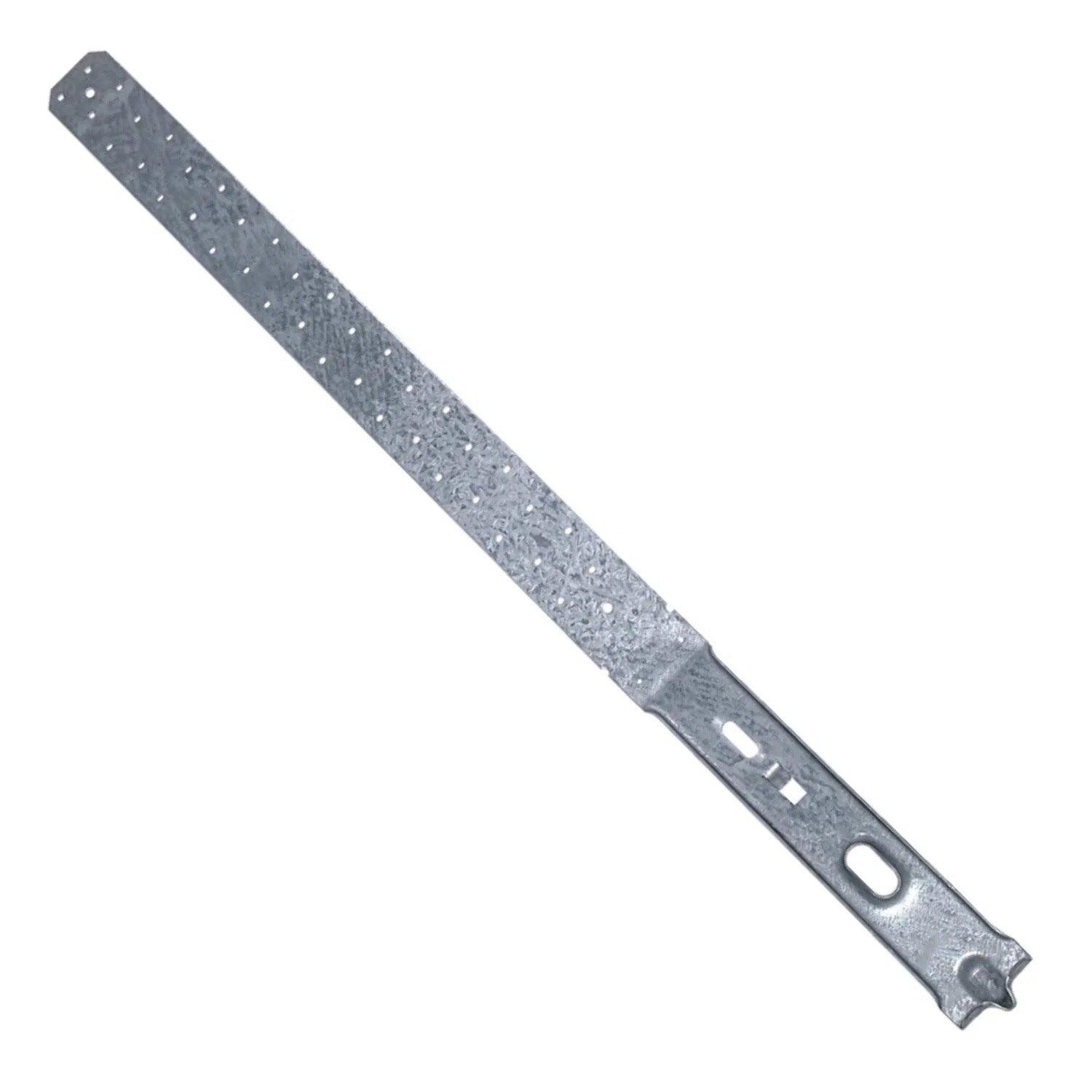

Simpson STHD10 Description
The STHD10 Strap-Tie Holdown is a galvanized steel component designed for high load applications, featuring a staggered nail pattern to minimize splitting and slots below the embedment line to enhance concrete bond.
Simpson STHD10 Includes
- (1) Strap-Tie Holdown
Simpson STHD10 Features
- High load capacity
- Staggered nail pattern minimizes splitting
- Slots below embedment line strengthen concrete bond
- Galvanized finish for corrosion resistance
- Designed for accurate positioning during installation
Simpson STHD10 Applications
- Securing structural components in concrete foundations
- Use in post-tension slab installations
- Ideal for shearwall applications

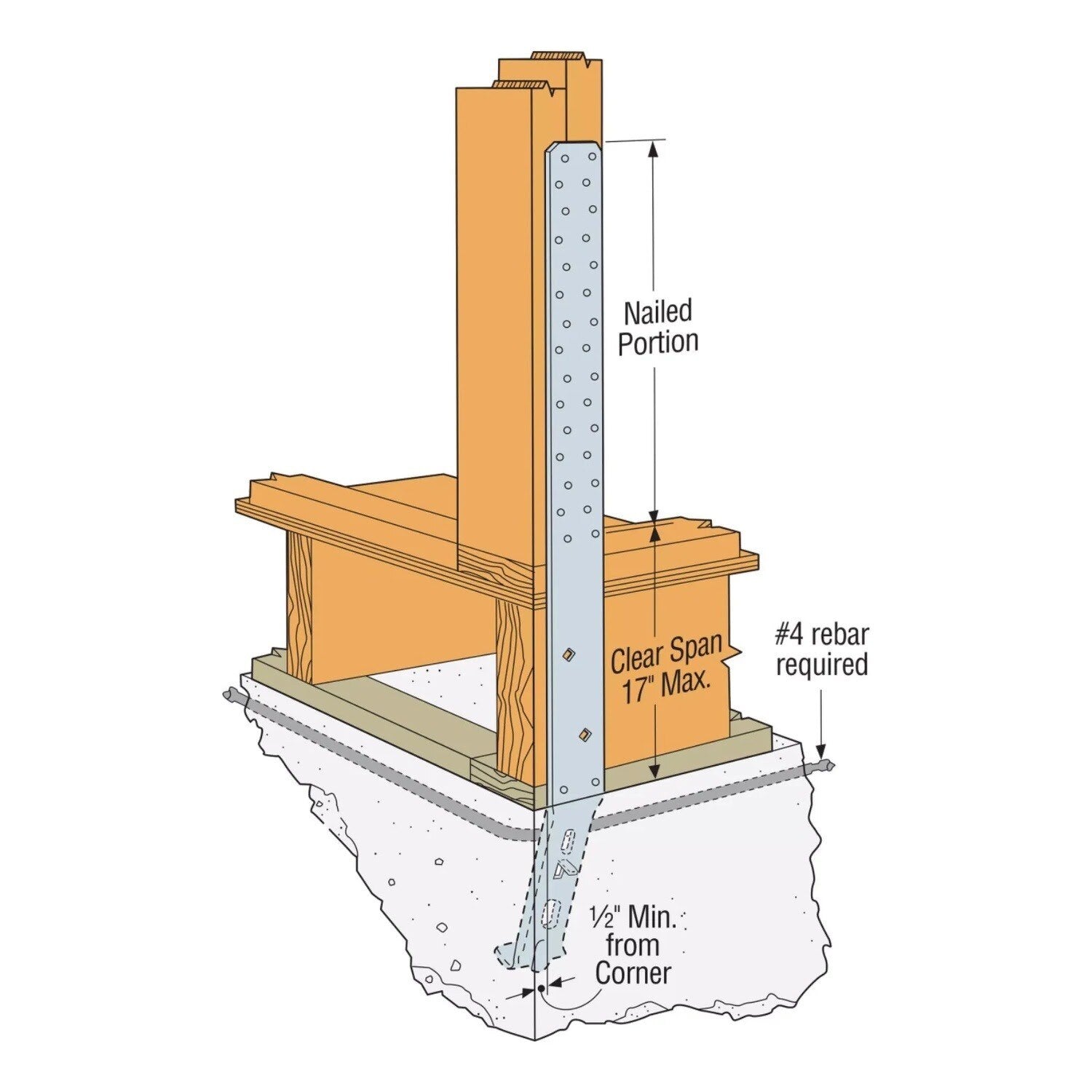

Simpson STHD10 Installation Overview

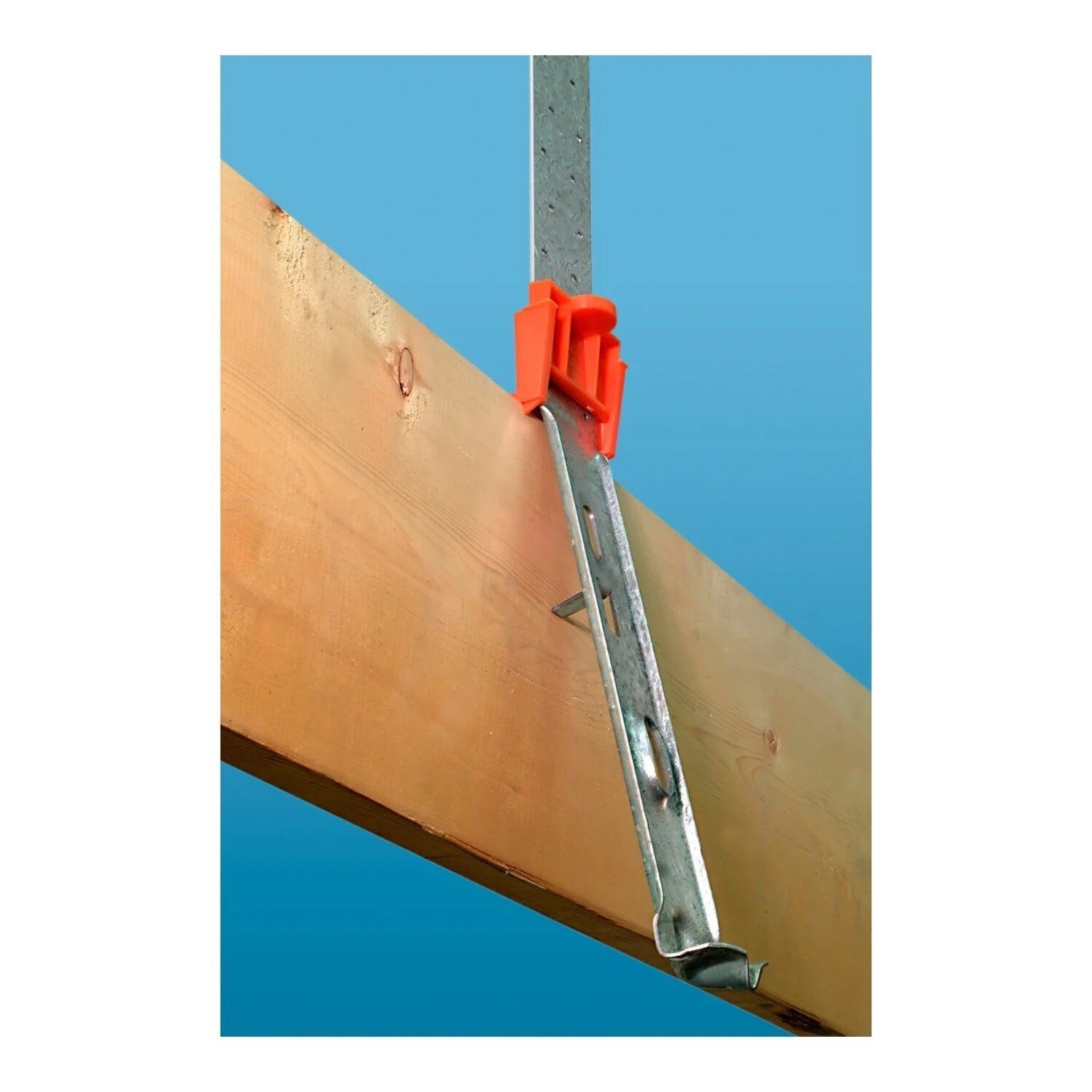

- Install before concrete pour using a StrapMate or similar device
- Nail strap from bottom up and ensure it is plumb
- Strap may be bent for wall placement, adhering to specified guidelines
- Protect exposed strap portions against corrosion
- Avoid installation where horizontal cold joints exist within embedment depth
Simpson STHD10 Specifications
| Length | 24-5/8" |
| Material | Carbon Steel |
| Width | 3" |
| For Treated Lumber | Yes |
NOTE: Ensure the strap is installed plumb and protected against corrosion if exposed.
