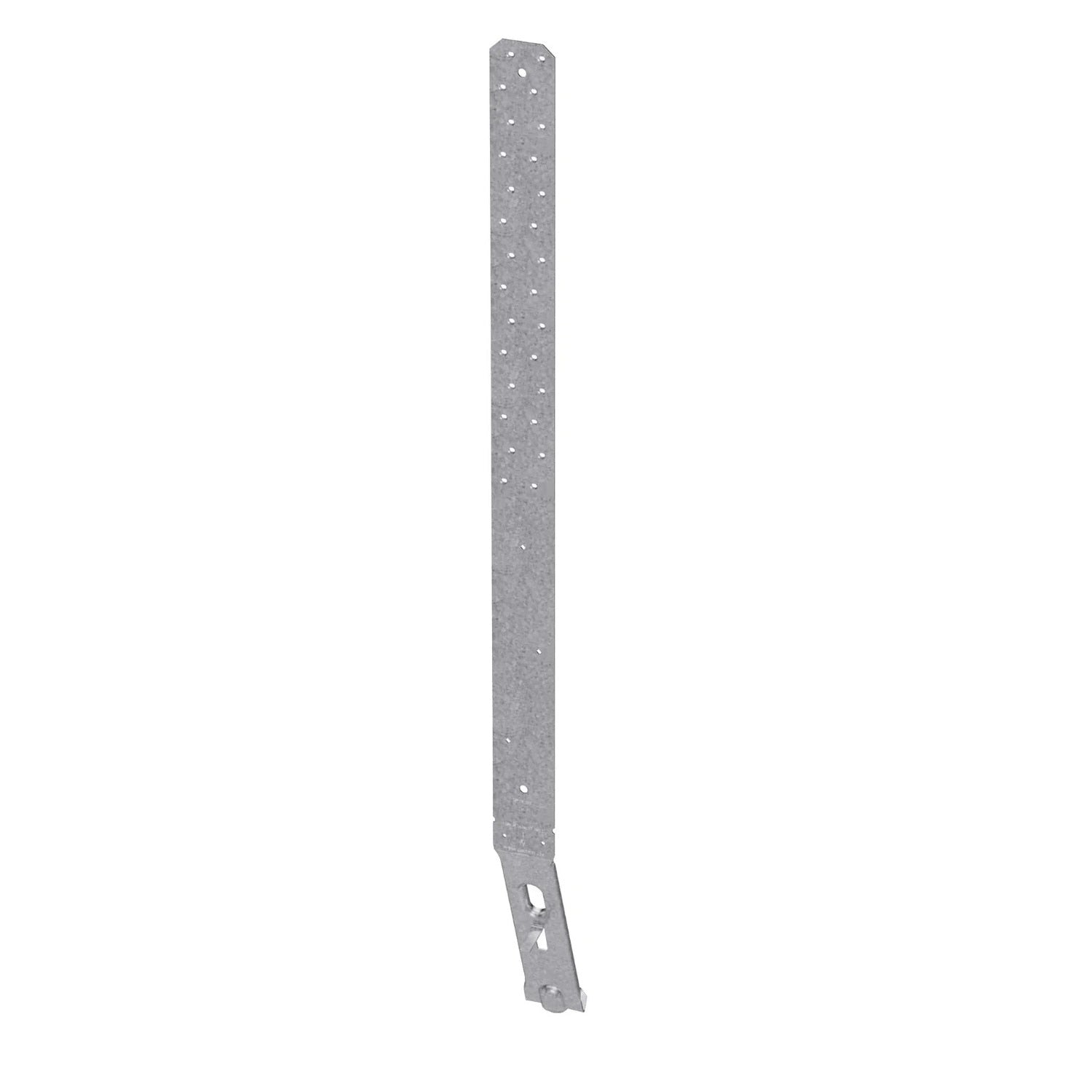

Simpson Strong-Tie STHD10RJ (38-1/8 in.) Rim-Joist Strap-Tie Holdown, Galvanized

Simpson STHD10RJ Features

• High load capacity
• Staggered nail pattern minimizes splitting
• Enhanced stability during concrete pours
• Slots below embedment line strengthen concrete bond
• Fits up to a 17" clear span without loss of strap nailing
• Galvanized finish for corrosion resistance

Simpson STHD10RJ Applications

• Securing rim joists in wood-framed construction
• Providing structural support in residential and commercial buildings
• Use in concrete and post-tension slab installations

Simpson STHD10RJ Installation Overview

1. Verify dimensions and alignment before installation.
2. Install before concrete pour using a StrapMate or similar device.
3. Nail strap from bottom up, ensuring it is plumb.
4. Strap may be bent for wall placement, with considerations for spalling.
5. Protect exposed strap portions against corrosion.
6. Avoid installation where horizontal cold joints exist within embedment depth.
7. Additional studs may be required for wall sheathing nailing.
8. Consider wood shrinkage effects post-installation.
9. Refer to General Corrosion Risks for severe environments.
