Simpson Anchors | SKU:
STHD14

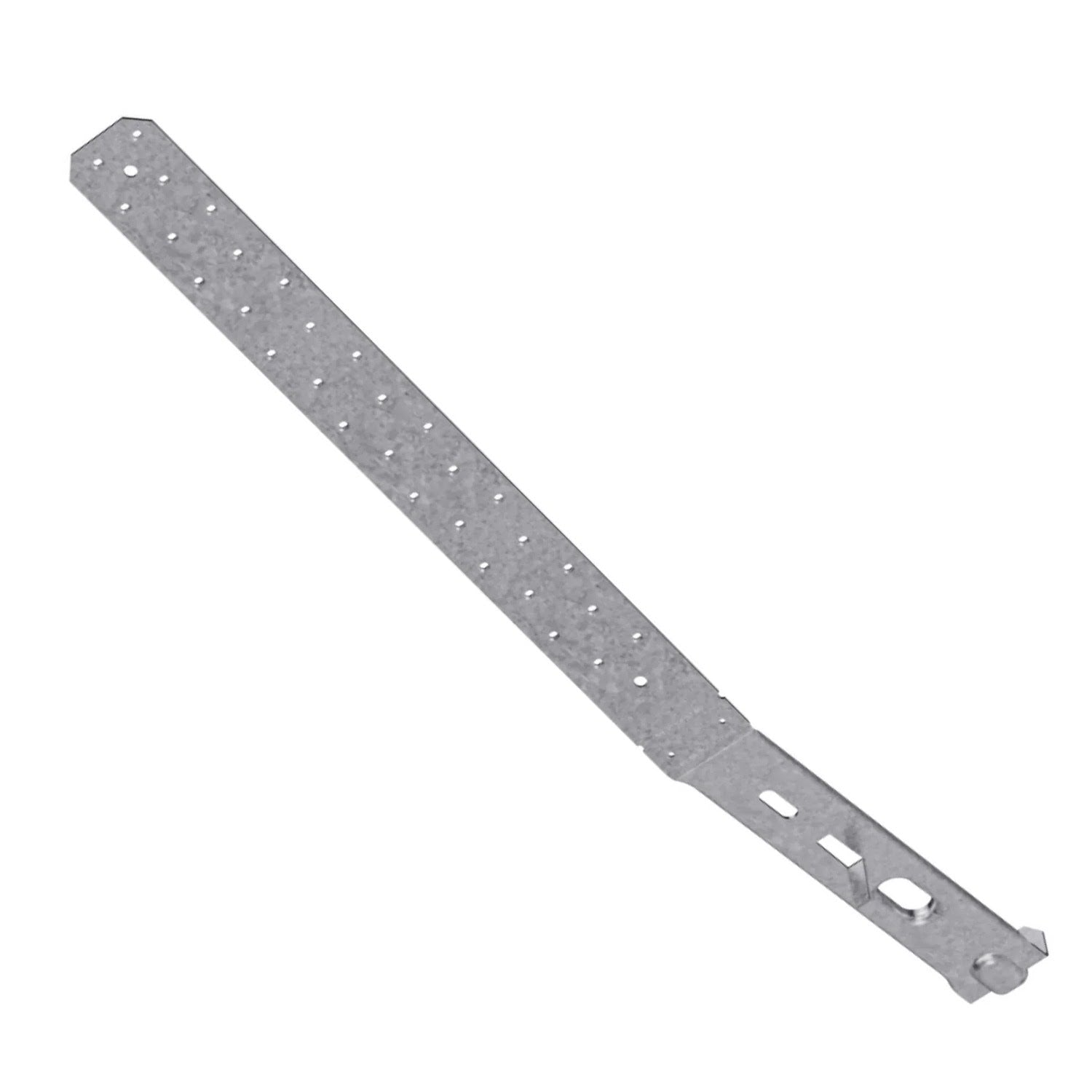

Simpson Strong-Tie STHD14 (26-1/8 in.) Strap-Tie Holdown, Galvanized
$21.97
Unit price
/
Unavailable
Description
Description
Simpson STHD14 Description
The STHD14 Strap-Tie Holdown is a high-load embedded connector designed for concrete applications, featuring a staggered nail pattern and galvanized finish for durability.
Simpson STHD14 Includes
- (1) Strap-Tie Holdown Galvanized 26-1/8 in.
Simpson STHD14 Features
- Staggered nailing pattern minimizes splitting and allows nailing to edges of double 2x members
- Countersunk strap nail slots provide a lower nail head profile
- Slots below embedment line enhance concrete bond and reduce spalling
- Galvanized finish for corrosion resistance
- Designed for use in concrete applications
Simpson STHD14 Applications
- Concrete installations requiring high-load holdowns
- Structural reinforcement in wood construction
- Securing shear walls to foundations

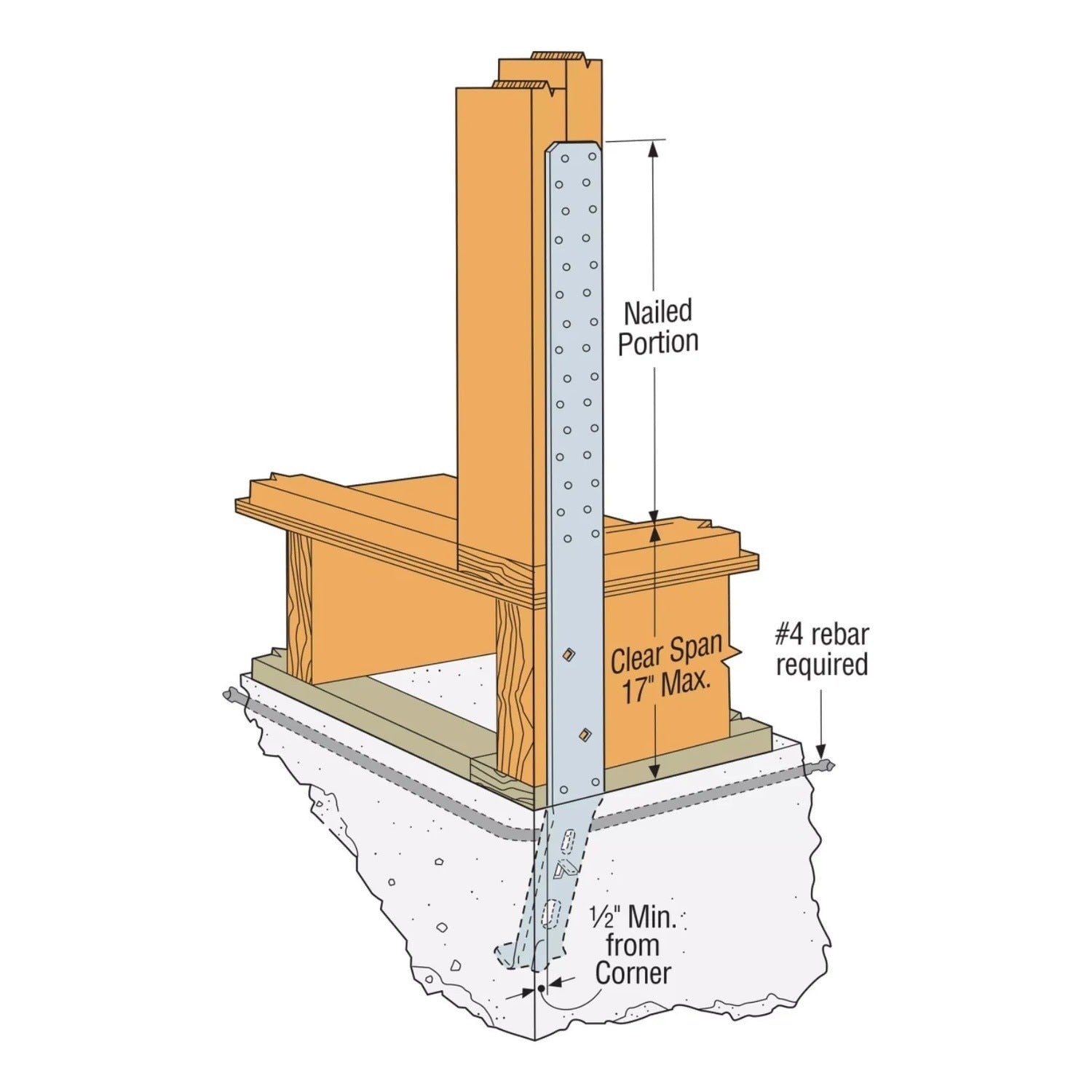

Simpson STHD14 Installation Overview

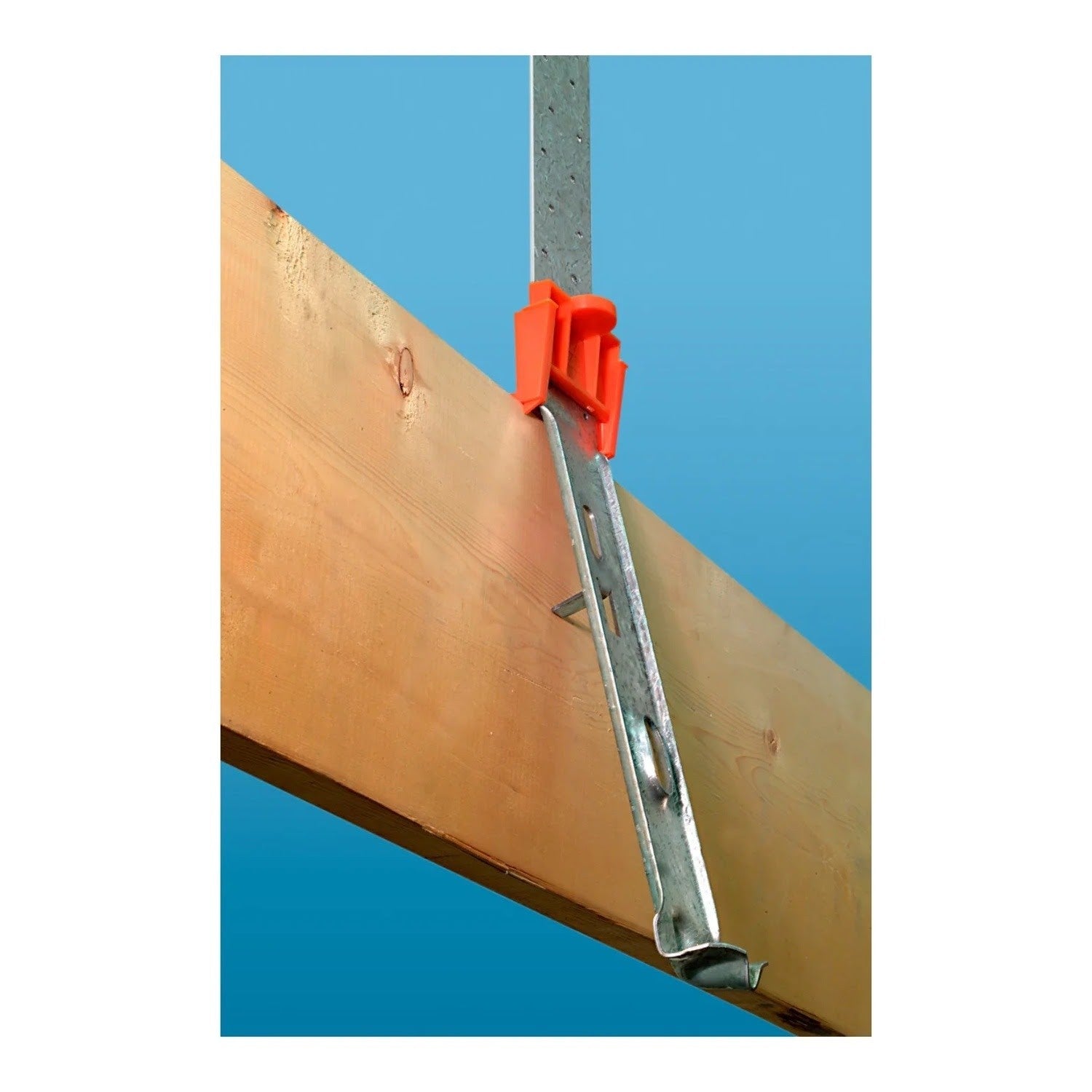

- Install before concrete pour using a StrapMate or similar holding device
- Nail strap from bottom up and ensure strap is plumb
- Strap may be bent one full cycle to aid wall placement
- Protect exposed strap portions against corrosion
- Avoid installation where horizontal cold joints exist within embedment depth
Simpson STHD14 Specifications
| Material | 12 Gauge Carbon Steel |
| Finish | Galvanized |
| Length | 26-1/8 in. |
| Width | 3 in. |
| Weight | 3.5 lb |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values
