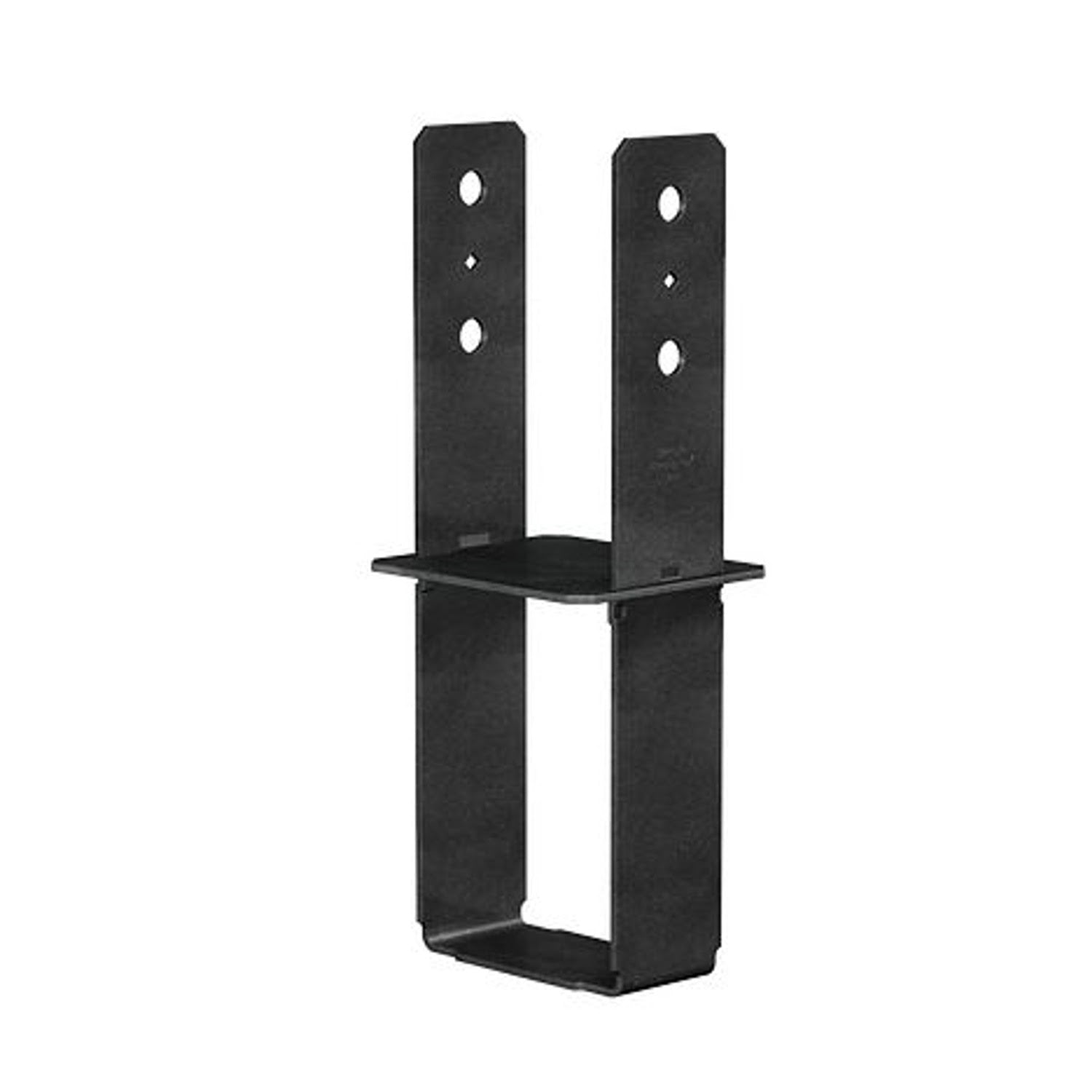

Simpson Strong-Tie CB48PC Description
The Simpson Strong-Tie CB48PC column base is designed for wood-to-concrete connections, featuring a durable black powder-coated finish.
Simpson Strong-Tie CB48PC Includes
- (1) CB48PC Column Base
Simpson Strong-Tie CB48PC Features
- Durable black powder-coated finish
- Designed for wood-to-concrete connections
- Helps prevent wood members from rotating
- Flush base plate design for concrete installation
Simpson Strong-Tie CB48PC Applications
- Wood-to-concrete connections in construction
- Suitable for glulam applications

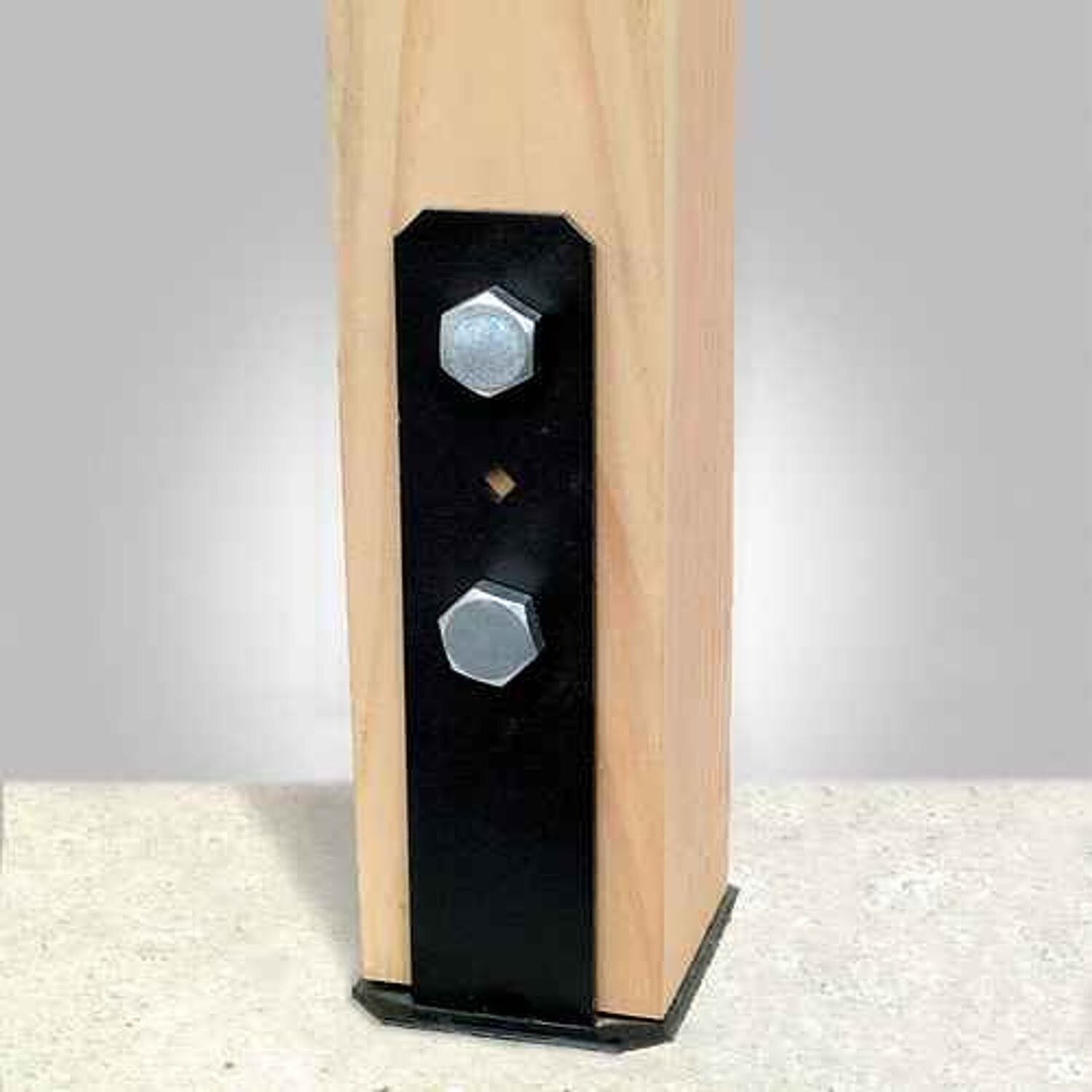

Simpson Strong-Tie CB48PC Installation Overview
- Use all specified fasteners
- Install with the bottom of the base plate flush with the concrete
- Ensure minimum side cover of 3 inches for full loads
- Not recommended for non top-supported installations

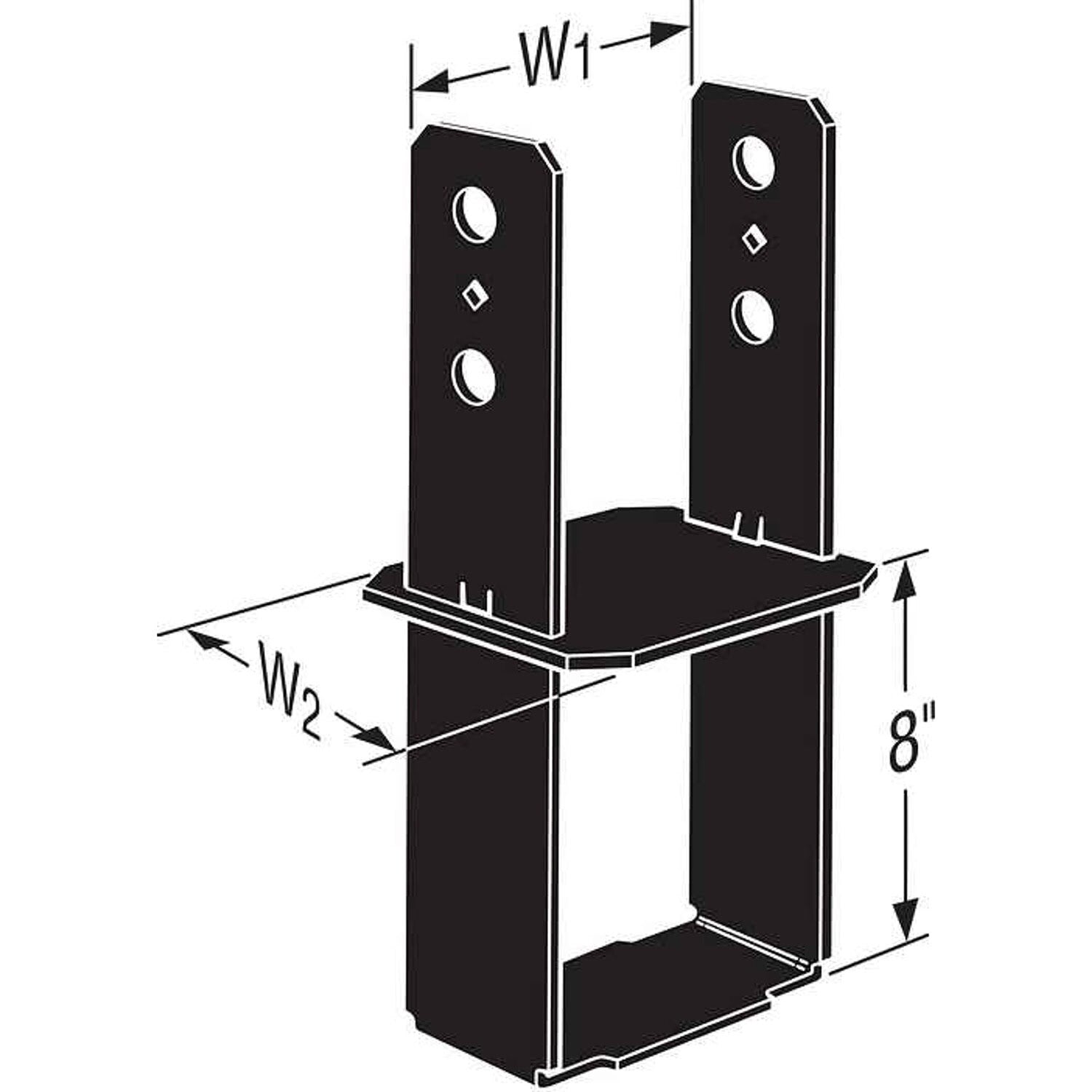

Simpson Strong-Tie CB48PC Specifications
| Finish | Black Powder Coated |
| Fasteners required | Bolts - (2) 5/8" |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
820263
