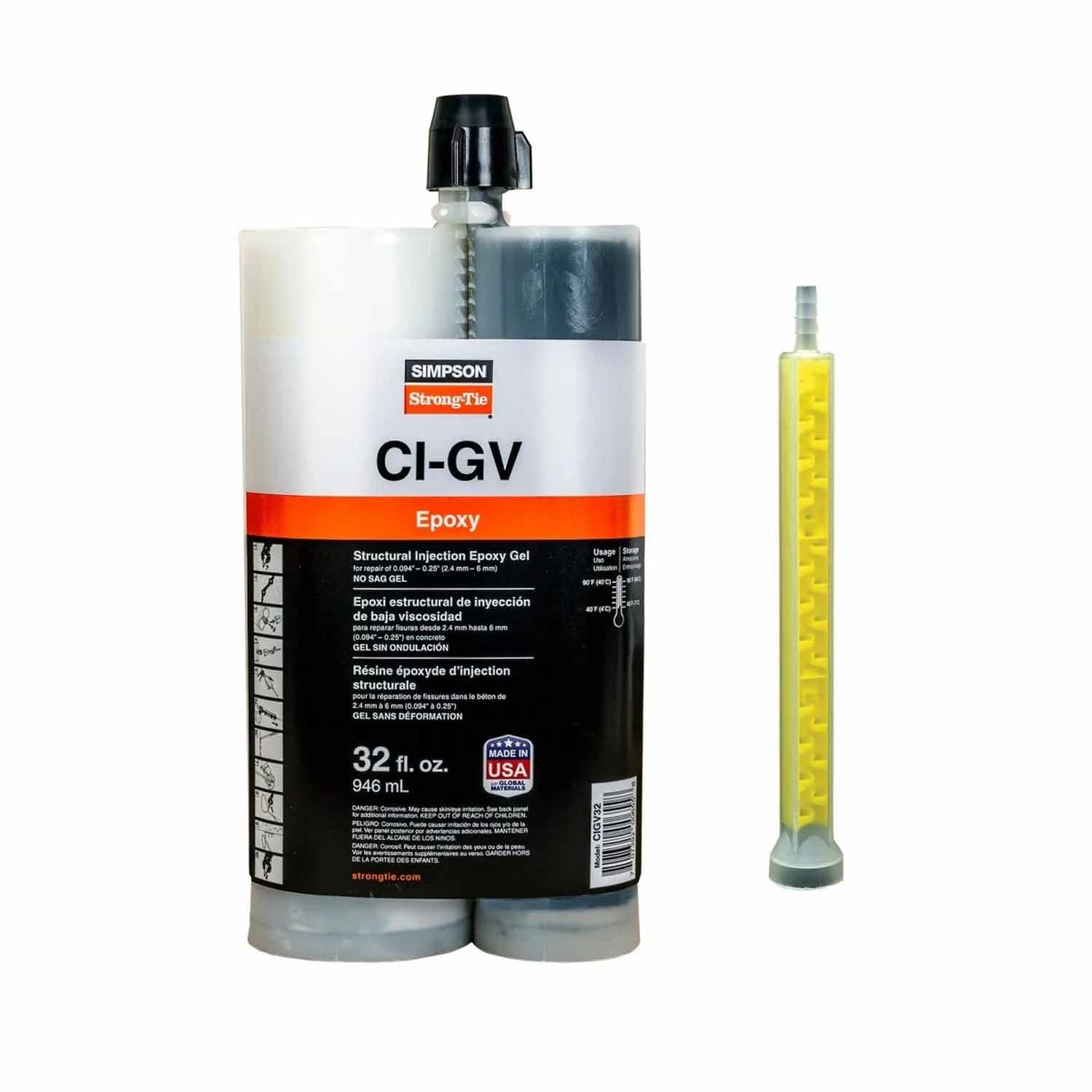

Simpson Strong-Tie CIGV32 Description
CI-GV Structural Injection Epoxy Gel is a two-component, high-modulus, high-solids, moisture-tolerant, thixotropic epoxy designed for pressure injection of concrete cracks. Ideal for both vertical and horizontal crack sealing and general concrete repair, it is dispensed through a static mixing nozzle for easy application.
Simpson Strong-Tie CIGV32 Includes
- (1) CI-GV Structural Injection Epoxy Gel (32 oz.)
- (1) EMNO22 mixing nozzle
Simpson Strong-Tie CIGV32 Features
- Meets ASTM C881 & AASHTO M235 requirements for multiple types and grades
- Chemically bonds with concrete for structural repair and moisture sealing
- Protects rebar from corrosion by sealing cracks
- Gel-viscosity is moisture-tolerant for use on dry or damp surfaces
- Decreases in viscosity under pressure for improved flowability
- Non-shrink formula
- Compatible with metered pressure-injection equipment
- Freeze-thaw resistant
- Convenient 32-oz. cartridge packaging
Simpson Strong-Tie CIGV32 Applications
- Pressure injection of concrete cracks in structural repairs
- Vertical and horizontal crack sealing in concrete
- General concrete repair in commercial and residential settings
- Moisture sealing to protect embedded rebar from corrosion
Simpson Strong-Tie CIGV32 Installation Overview
- Ensure substrate temperature is between 40°F (4°C) and 90°F (32°C)
- Prepare crack and surface as required
- Dispense epoxy using a static mixing nozzle with a manual or pneumatic tool
- Inject epoxy into crack until filled
- Allow to cure as per manufacturer guidelines
Simpson Strong-Tie CIGV32 Specifications
| Capacity | 32 oz. |
| Packaging Type | Cartridge |
| Country of Origin | US |
| Temperature Range | 40°F (4°C) to 90°F (32°C) |
| Product Class | Injection Epoxy |
| Hazardous Material Classification | 8 |
| UPC | 707392006558 |
NOTE: This item is not eligible for express shipping and must ship via ground only.
