Simpson Anchors | SKU:
CILV32

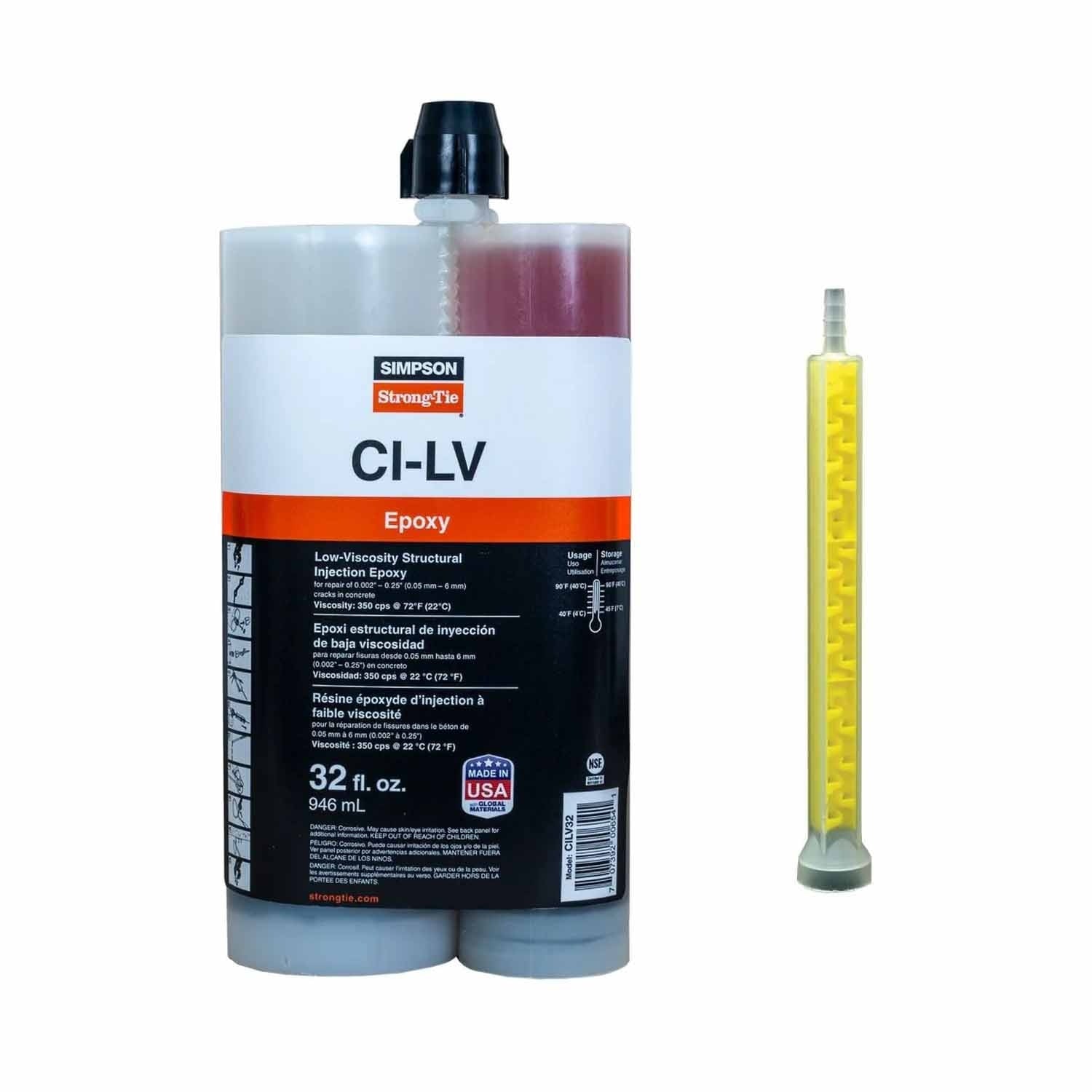

Simpson Strong-Tie CILV32 32oz Low Viscosity Epoxy
Black Friday Sale
$56.58
$70.89
Unit price
/
Unavailable
Description
Description
32oz Low Viscosity Epoxy CILV32 Description
CI-LV low-viscosity structural injection epoxy is a two-component, high-modulus, high-solids, moisture-tolerant epoxy specially designed for pressure injection, gravity feeding and flood coat filling of concrete cracks and for increasing the bond between freshly placed repair mortars or concrete mixes and existing concrete when substrate temperatures are between 40°F (4°C) to 90°F (32°C). Available in 3-gallon bulk kits or convenient side-by-side cartridges dispensed through a static mixing nozzle using either a manual or pneumatic dispensing tool.
32oz Low Viscosity Epoxy CILV32 Includes
- (1) Epoxy
- (1) Nozzle
32oz Low Viscosity Epoxy CILV32 Features
- Chemically bonds with the concrete to provide a structural repair. CI-LV seals the crack from moisture, protecting rebar in the concrete from corrosion.
- Approved under NSF/ANSI Standard 61 (719 in.2 /1,000 gal.)
- Moisture-tolerant, can be used on dry and damp surfaces
- Low surface tension allows the material to effectively penetrate narrow cracks
- Formulated for maximum penetration under pressure
- Non-shrink and resistant to oils, salts and mild chemicals
- Can be used with metered pressure-injection equipment
- Freeze-thaw resistant
32oz Low Viscosity Epoxy CILV32 Specifications
| Mix Ratio | 2 |
| Mixed Color | Dark Ember |
| Crack Width | 0.002" – 0.25" (0.05 mm – 6 mm) |
| Shelf Life | 24 Months |
| Storage Temperature | 45°F (7°C) – 90°F (32°C) |
| Base Material Temperature | 40°F (4°C) – 90°F (32°C) |
| Volatile Organic Compound (VOC) | 2 g/L Mixed |
| Yield | 231 in.3/US gal. (0.001 m3/L) |
| For Flood-Coat Application | 150 – 200 ft.2/US gal. (3.7 – 4.9 m2/L) depending on surface profile and porosity |
| Pot Life (1 Quart) | 10 Minutes at 90°F (32°C), 25 Minutes at 72°F (22°C), 100 Minutes at 50°F (10°C) |
| Set to Touch | 3 |
| Dry Through | 6 |
| Capacity | 32 oz. |
| Viscosity | 50°F (10°C) = 1,500 cP, 72°F (22°C) = 350 cP |
| Usage Temperature | 40°F (4°C)–90°F (32°C) |
