Simpson Hangers | SKU:
HUC210-3
Simpson Strong-Tie HUC210-3 (Triple 2" x 10") Galvanized Face-Mount Concealed-Flange Joist Hanger
$35.24
$49.86
Unit price
/
Unavailable
Description
Description
Simpson HUC210-3 Description

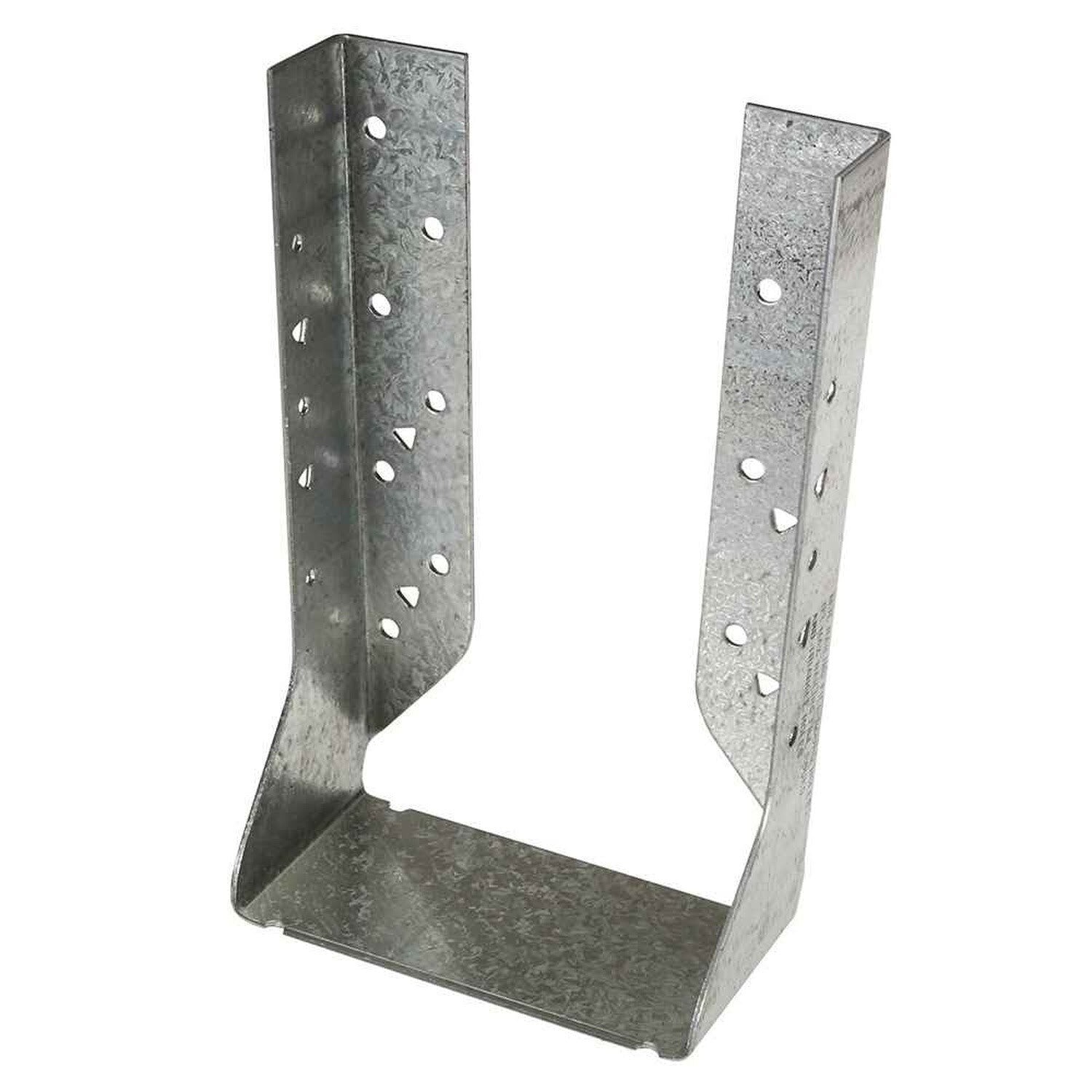

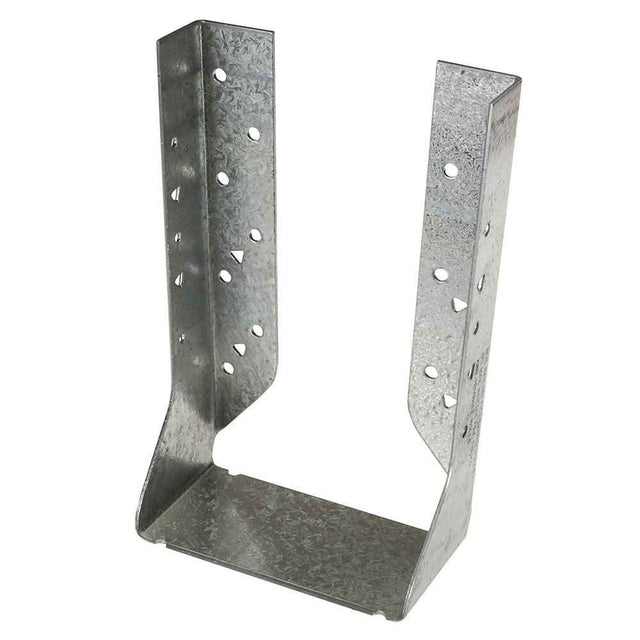

The Simpson HUC210-3 is a concealed flange joist hanger designed for triple 2x10 joists, featuring a galvanized finish for corrosion resistance and robust structural support.
Simpson HUC210-3 Includes
- (1) Galvanized Face-Mount Concealed-Flange Joist Hanger for Triple 2x10
Simpson HUC210-3 Features
- Concealed flange design for a clean appearance
- Galvanized finish for enhanced corrosion resistance
- Compatible with triple 2x10 joists
- Heavy-duty construction for structural integrity
- Designed for use in schools and other high-strength applications
Simpson HUC210-3 Applications
- Structural framing requiring concealed flange hangers
- School construction projects
- Heavy-duty framing applications

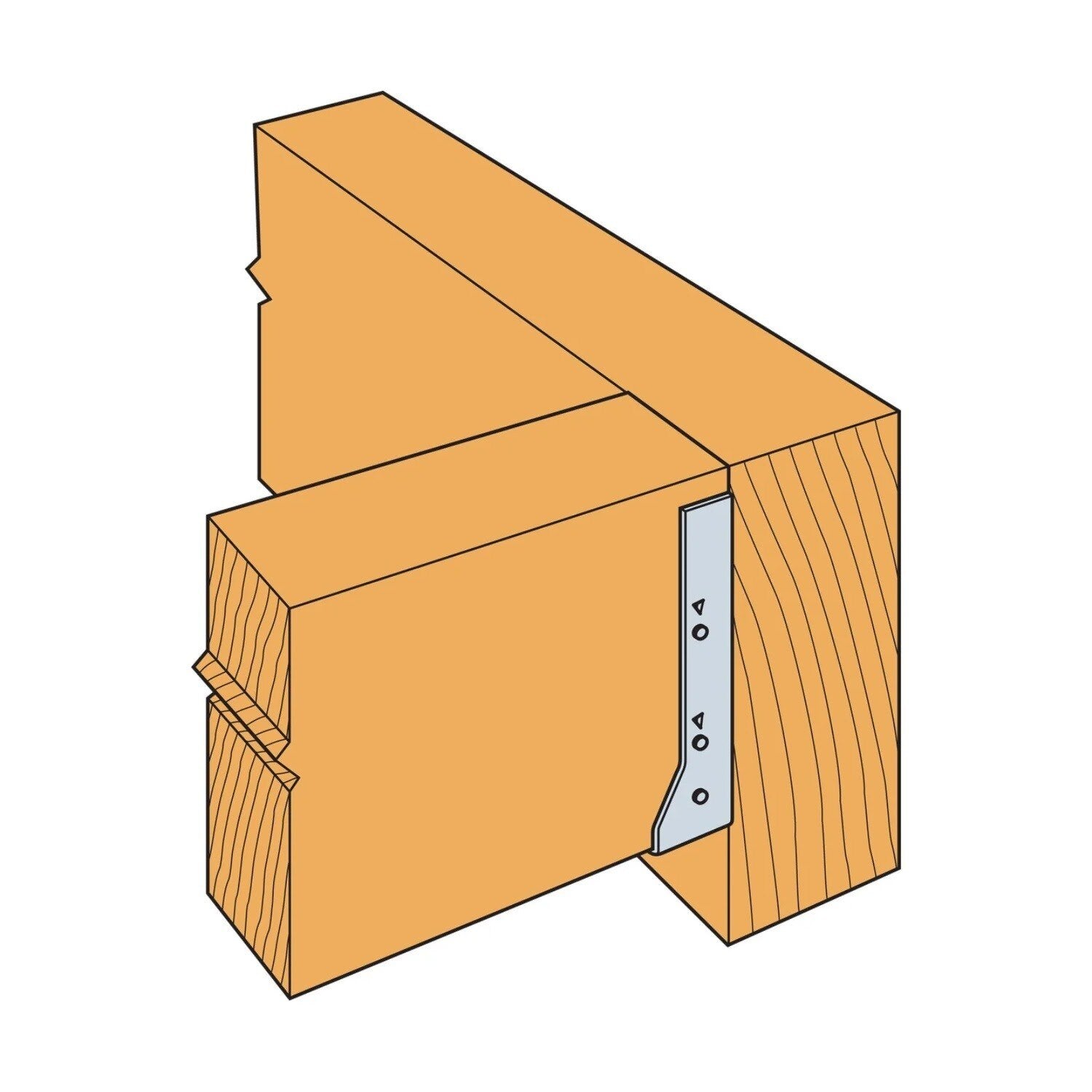

Simpson HUC210-3 Installation Overview
- Use all specified fasteners
- Install by filling round holes only or both round and triangle holes for maximum values
- Joists sloped up to 1/4:12 achieve load tables

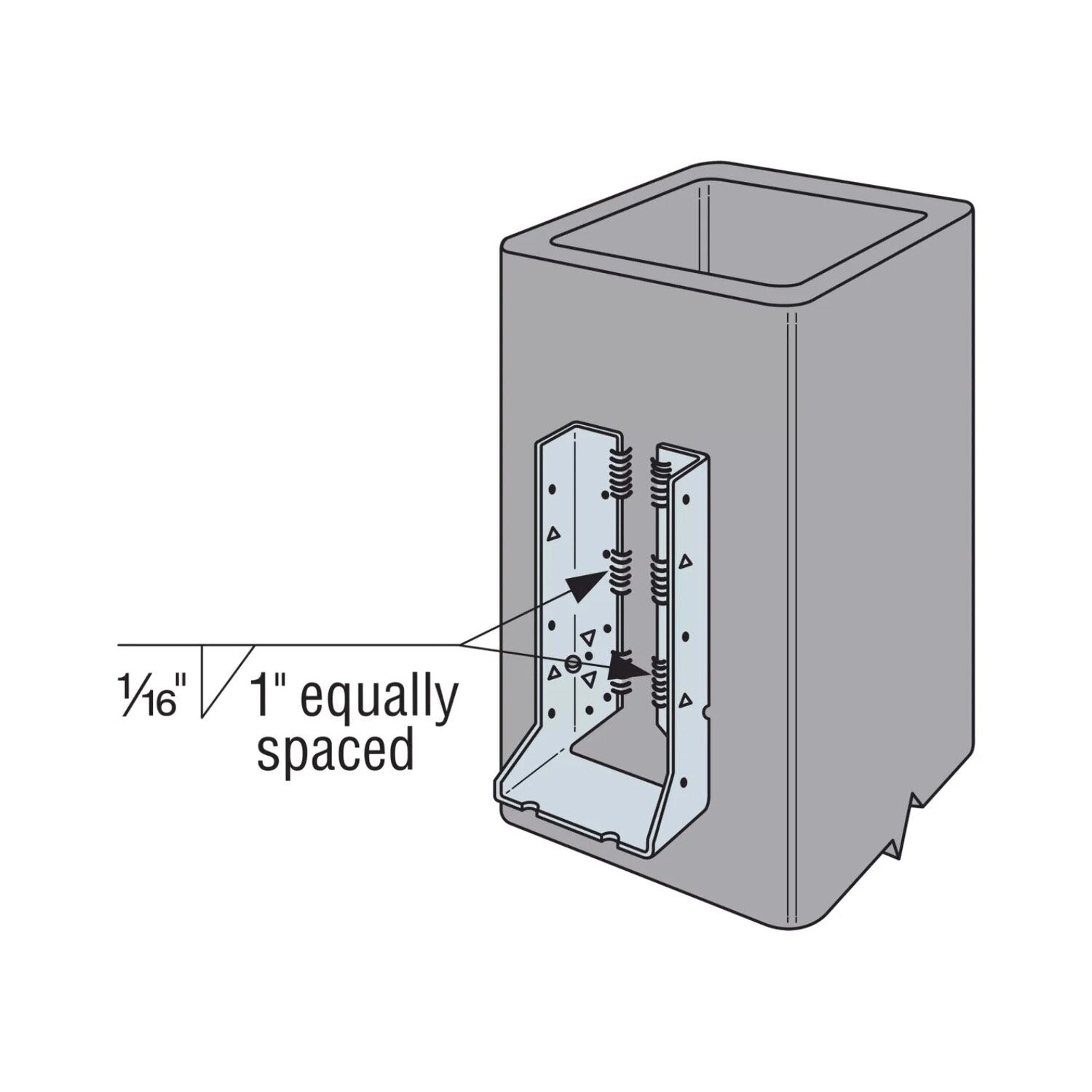

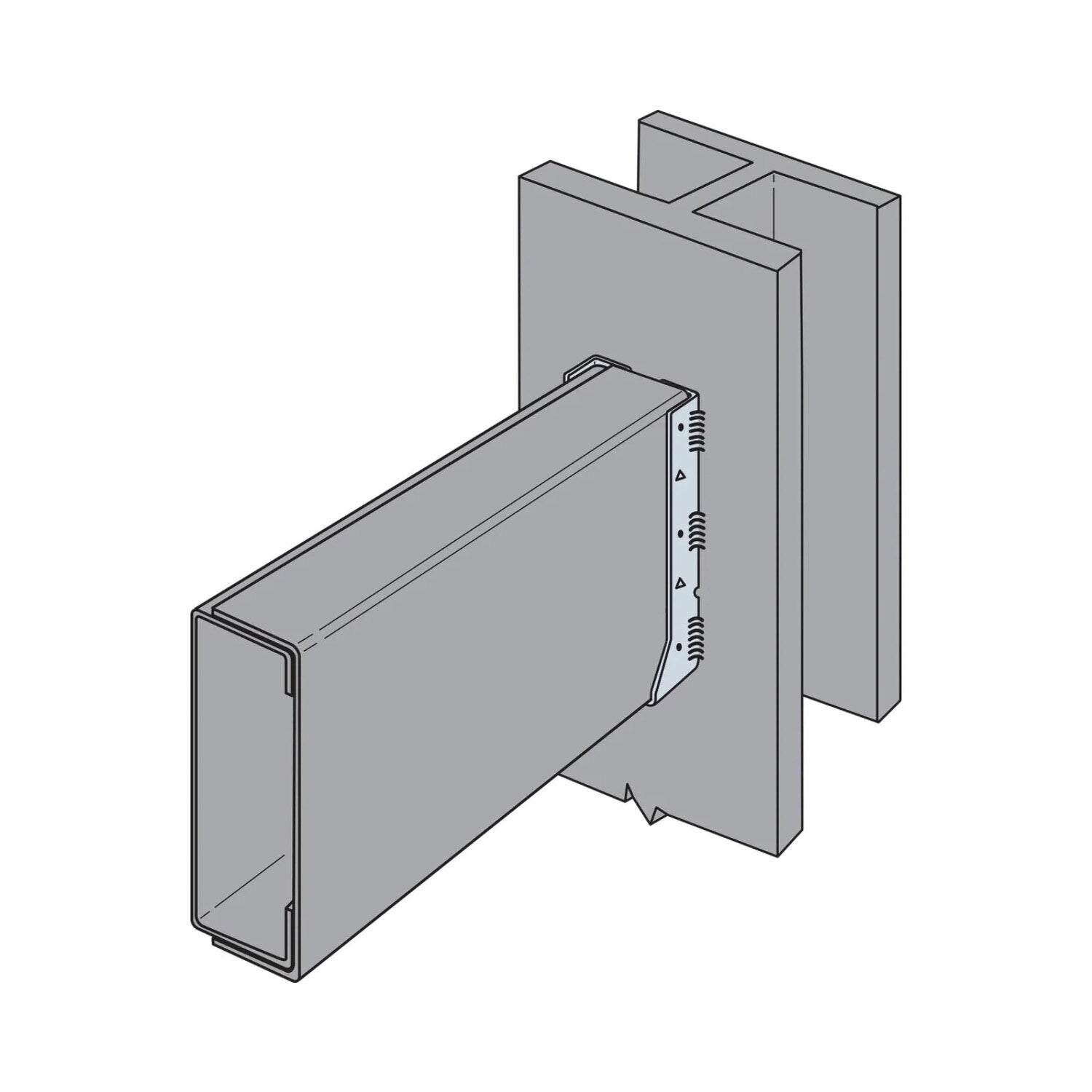

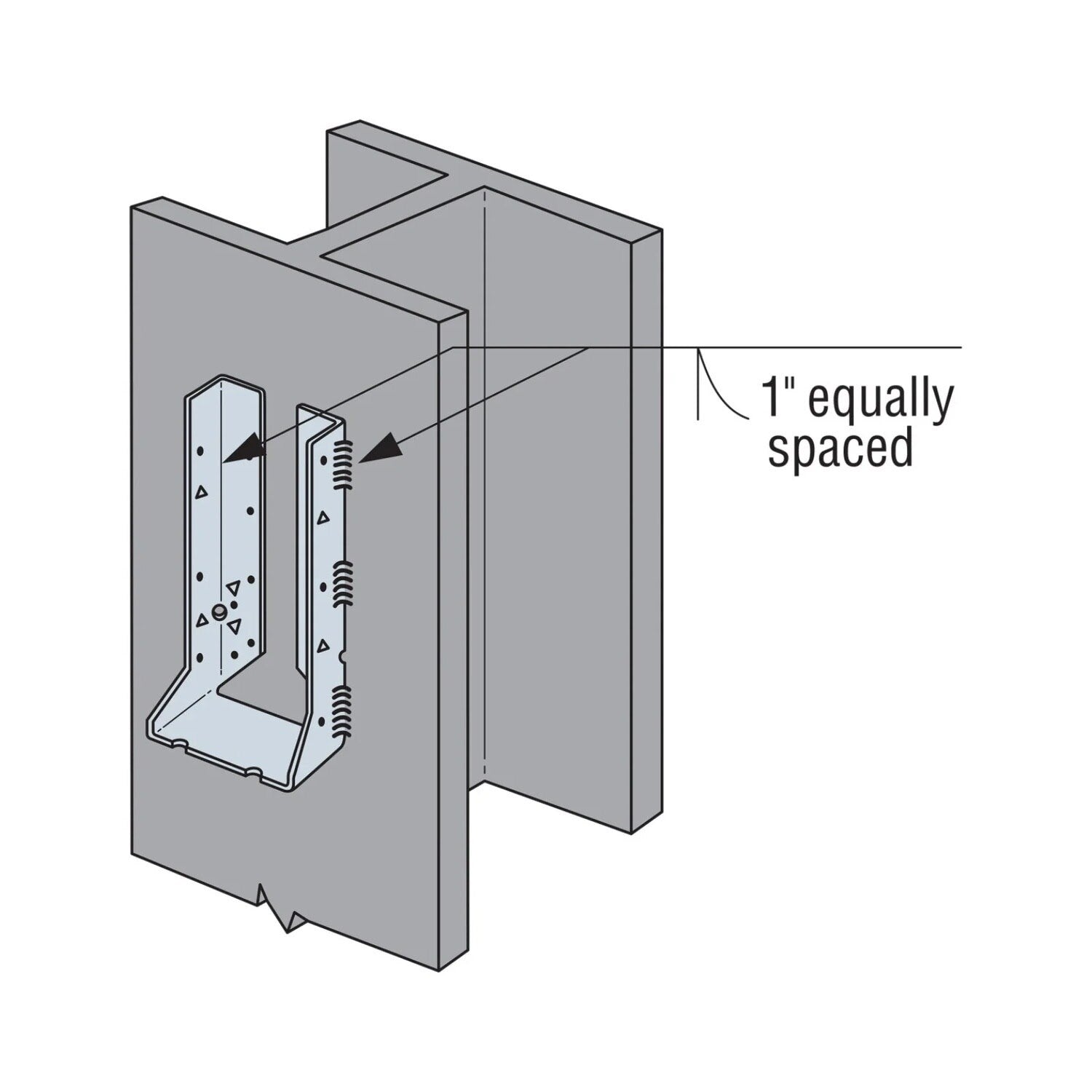

- Can be welded to steel members following technical guidelines
Simpson HUC210-3 Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails |
| For Treated Lumber | Yes |
| Height | 8-1/16" |
| Joist size | Triple 2" X 10" |
| Thickness | 14 Gauge |
| Width | 4-11/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
