Description
Description

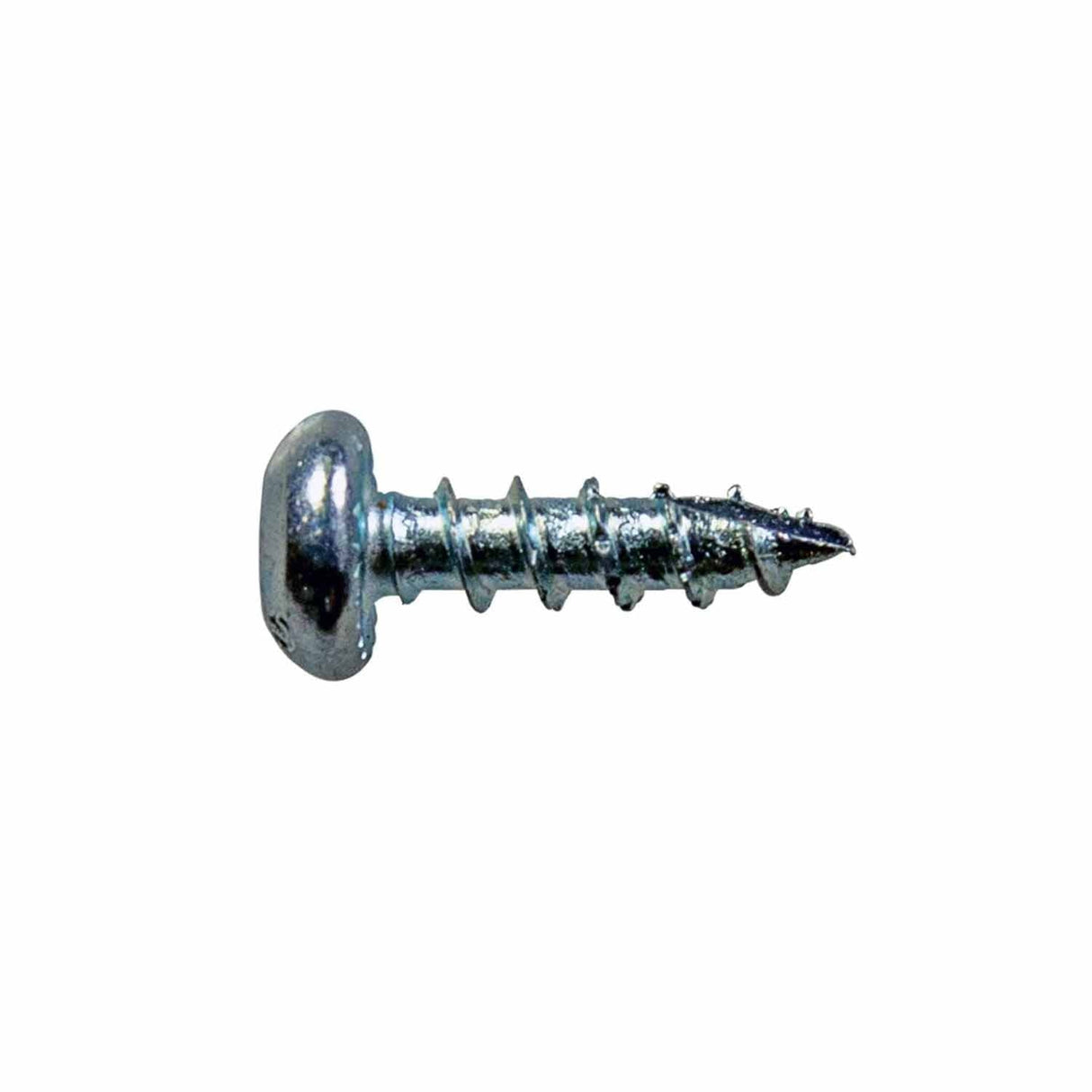

Simpson Strong-Tie PH612IR200 Description
The Multi-Material Pan Head Screw is engineered for installing Simpson Strong-Tie connectors, such as the A35 framing angle, to wood and engineered wood. This #6 x 1/2 in. screw features a fast-start Type-17 point and serrated threads for effortless driving.
Simpson Strong-Tie PH612IR200 Includes
- (200) Multi-Material Pan Head Screws #6 x 1/2 in.
Simpson Strong-Tie PH612IR200 Features
- T-15 6-lobe recess for secure driving
- Fully-threaded shank for strong holding power
- Type-17 point with serrated threads for fast starts
- Locking under-head serrations for improved grip
- Clear zinc coating applied per ASTM F1941 for corrosion resistance
- Pan head design for use with connectors
- Made from carbon steel
Simpson Strong-Tie PH612IR200 Applications
- Attaching Simpson Strong-Tie connectors to wood
- Securing framing angles such as A35 to wood and engineered wood
- General interior wood fastening where a pan head screw is required
Simpson Strong-Tie PH612IR200 Installation Overview
- Align the connector with the wood surface.
- Insert the screw into the designated hole in the connector.
- Drive the screw using a T-15 6-lobe bit until fully seated.
- Repeat for all required fastening points.
Simpson Strong-Tie PH612IR200 Specifications
| Diameter | #6 |
| Length | 1/2 in. |
| Head Type | Pan Head |
| Drive Type | T-15 6-Lobe |
| Thread Type | Serrated Threads |
| Finish | Clear Zinc |
| Material | Carbon Steel |
| Quantity | 200 |
| Head Diameter | 0.26 in. |
| Country of Origin | Taiwan |
| Packaging Type | Tub |
NOTE: Use the correct fasteners in the specified positions to achieve the published load values.
Toolup Part # :
657952
