Simpson Strong-Tie STB2-50512C25 Description

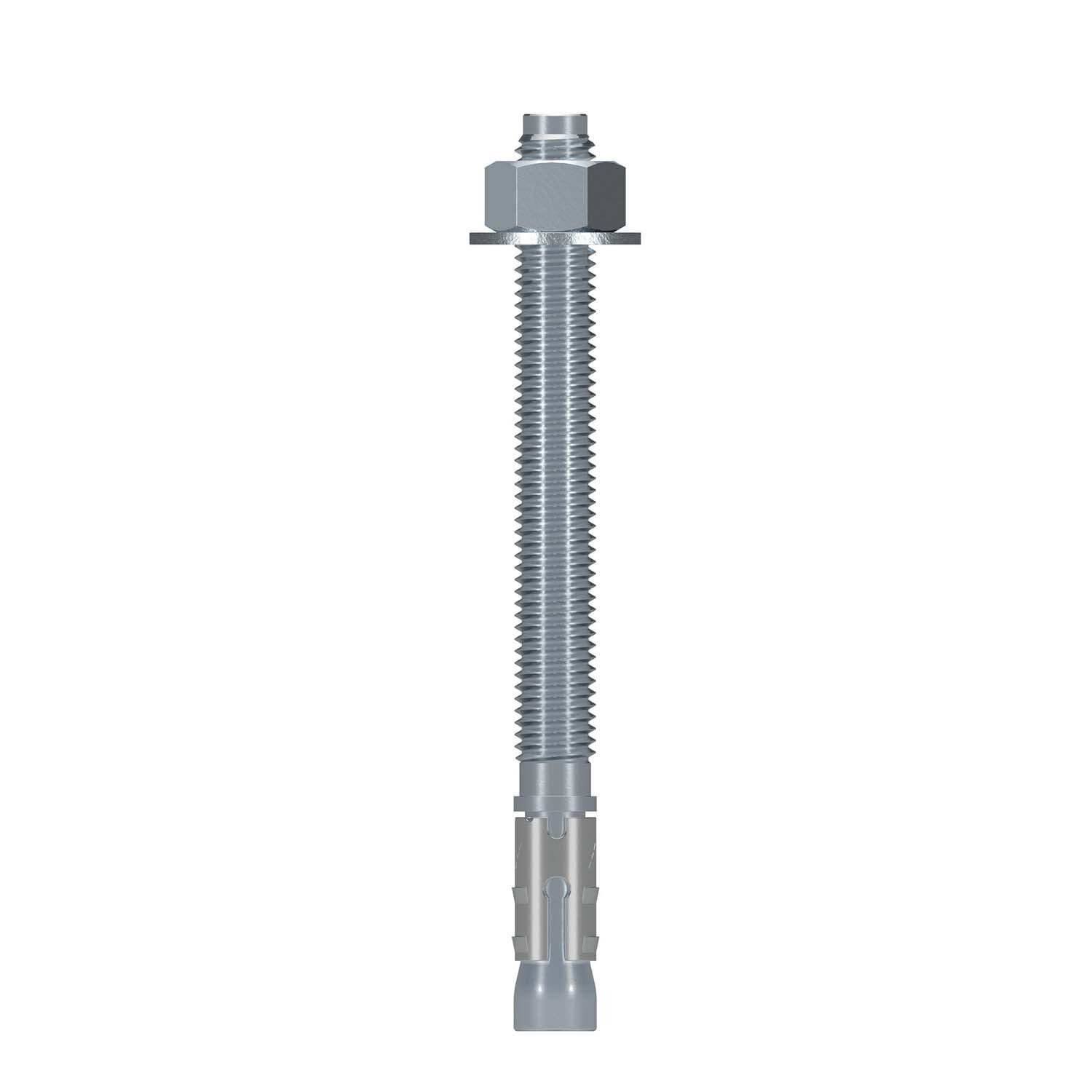

The Simpson Strong-Tie Strong-Bolt 2 wedge anchor is a high-performance mechanical anchor designed for cracked and uncracked concrete and masonry applications. It features a chamfered top to prevent mushrooming during installation and is suitable for static and seismic loading conditions.
Simpson Strong-Tie STB2-50512C25 Includes
- (25) Wedge Anchors
Simpson Strong-Tie STB2-50512C25 Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Tested per ACI355.2 and AC193
- Made from zinc-plated carbon steel
- Size: 1/2 in. x 5-1/2 in.
- Quantity: 25 per package
Simpson Strong-Tie STB2-50512C25 Applications
- Concrete anchoring for structural support
- Masonry anchoring for seismic and high-wind conditions
- Overhead installations requiring reliable anchoring
Simpson Strong-Tie STB2-50512C25 Installation Overview
- Drill a 1/2 in. hole to the required depth
- Insert the wedge anchor into the hole
- Tighten using a 3/4 in. wrench to secure
Simpson Strong-Tie STB2-50512C25 Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 1/2 in. |
| Length | 5-1/2 in. |
| Thread Length | 3-13/16 in. |
NOTE: Ensure proper installation with the correct drill bit and wrench size to achieve optimal performance
