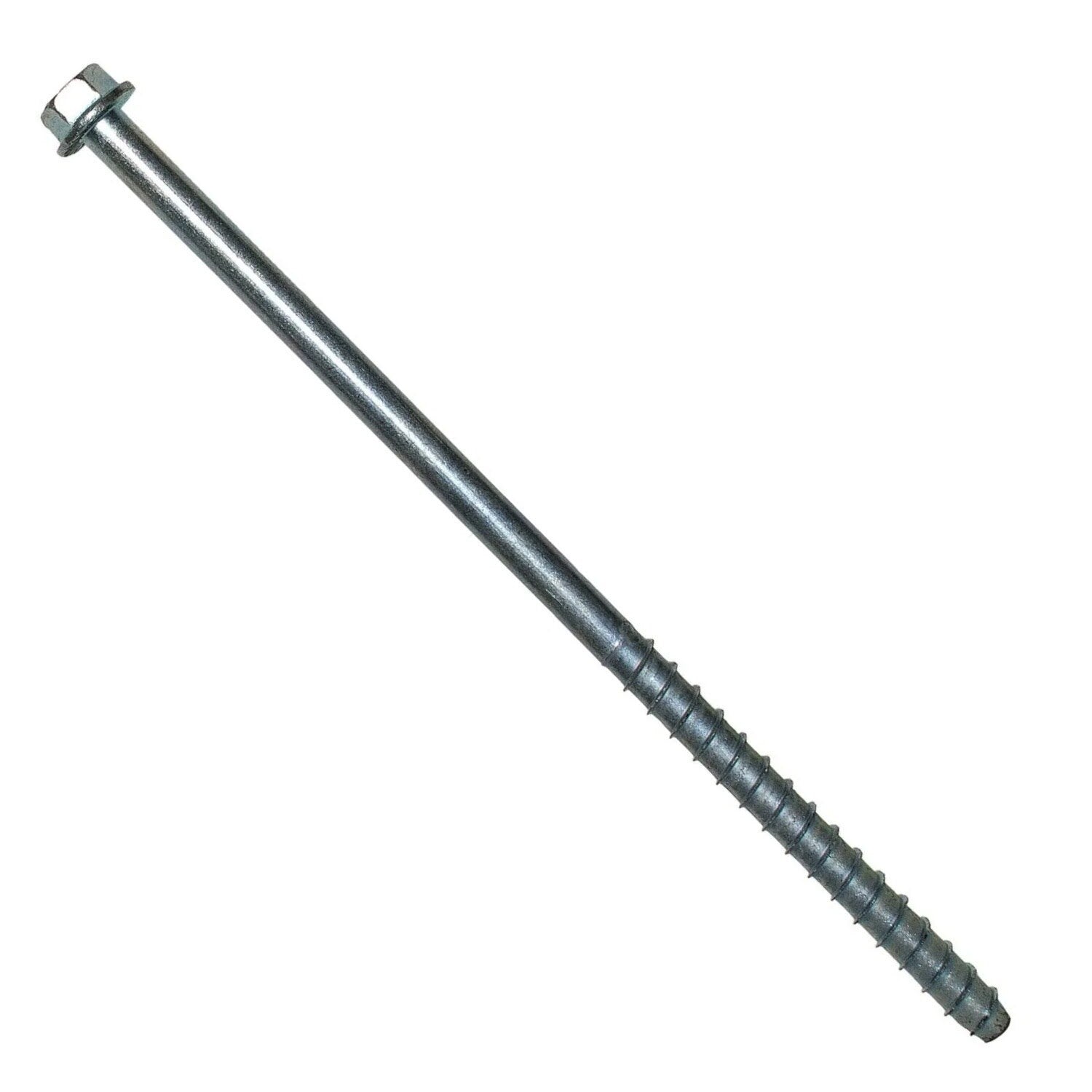

Simpson Strong-Tie THD501500H Description
The Titen HD Screw Anchor is a high-strength, zinc-plated anchor designed for quick installation in cracked and uncracked concrete. Ideal for dry, interior environments.
Simpson Strong-Tie THD501500H Includes
- (5) Titen HD Screw Anchor Zinc Plated 1/2 in. x 15 in.
Simpson Strong-Tie THD501500H Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions
- Thread design efficiently transfers load to base material
- Specialized heat-treating for enhanced tip hardness
- No special drill bit required for installation
- Hex-washer head provides a clean installed appearance
- Removable for temporary anchoring needs
- Designed for dry interior environments
Simpson Strong-Tie THD501500H Applications
- Concrete anchoring in cracked and uncracked conditions
- Temporary anchoring for formwork or bracing
- Mechanical, electrical, and plumbing applications
Simpson Strong-Tie THD501500H Installation Overview
- Drill a hole in the base material using a 1/2 in. drill bit to the specified depth.
- Clean the hole with compressed air to remove dust.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD501500H Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 1/2 in. |
| Length | 15 in. |
| Drill Bit Size | 1/2 in. |
| Drive Type | 3/4 in. Hex |
| Fixture Hole Size | 5/8 in. - 11/16 in. |
| Head Type | Hex Head |
| Quantity | 5 |
NOTE: Use Titen HD screw anchors only once to maintain load capacity. Ensure holes in metal fixtures match specified diameters.
Toolup Part # :
649387
