Simpson Anchors | SKU:
THD75100H

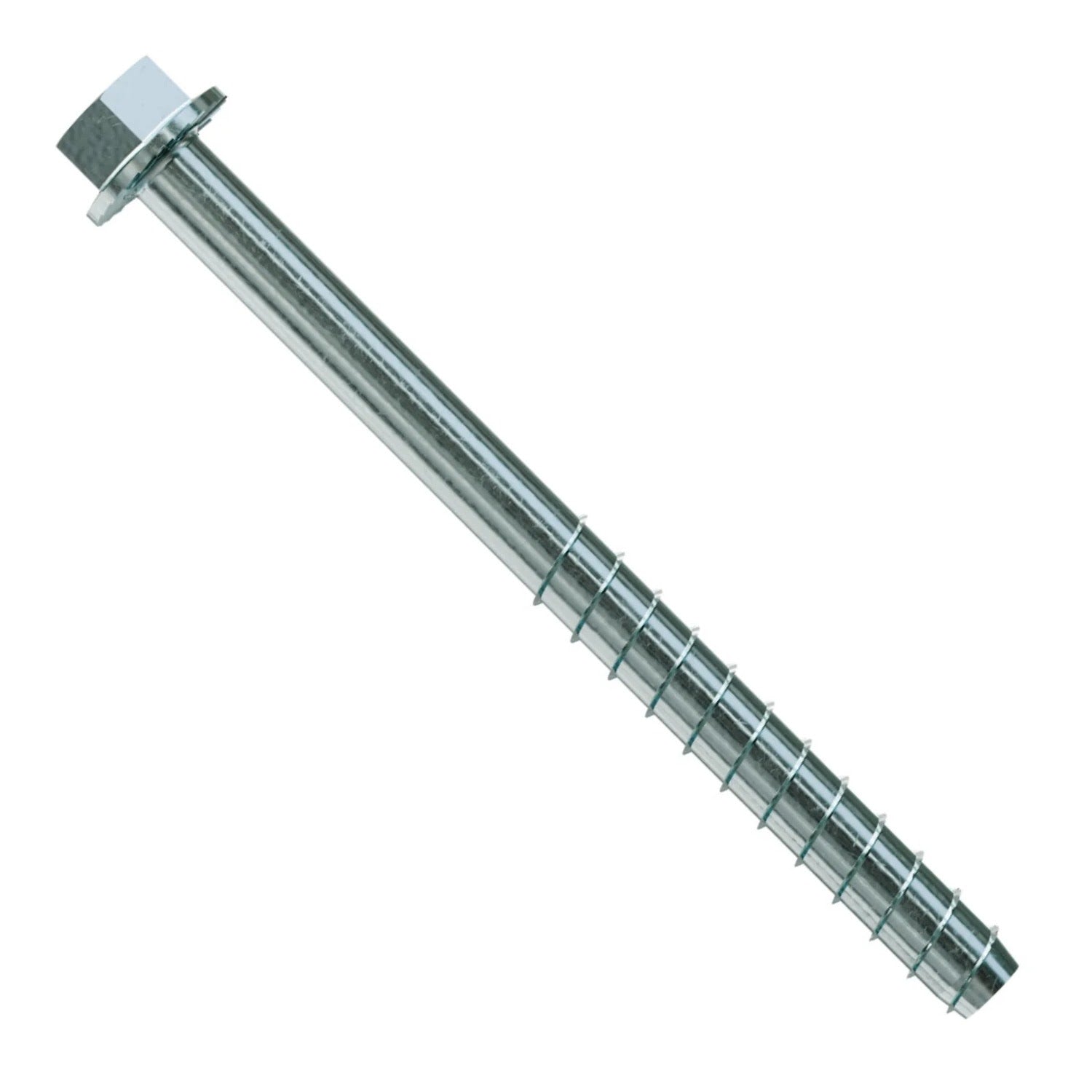

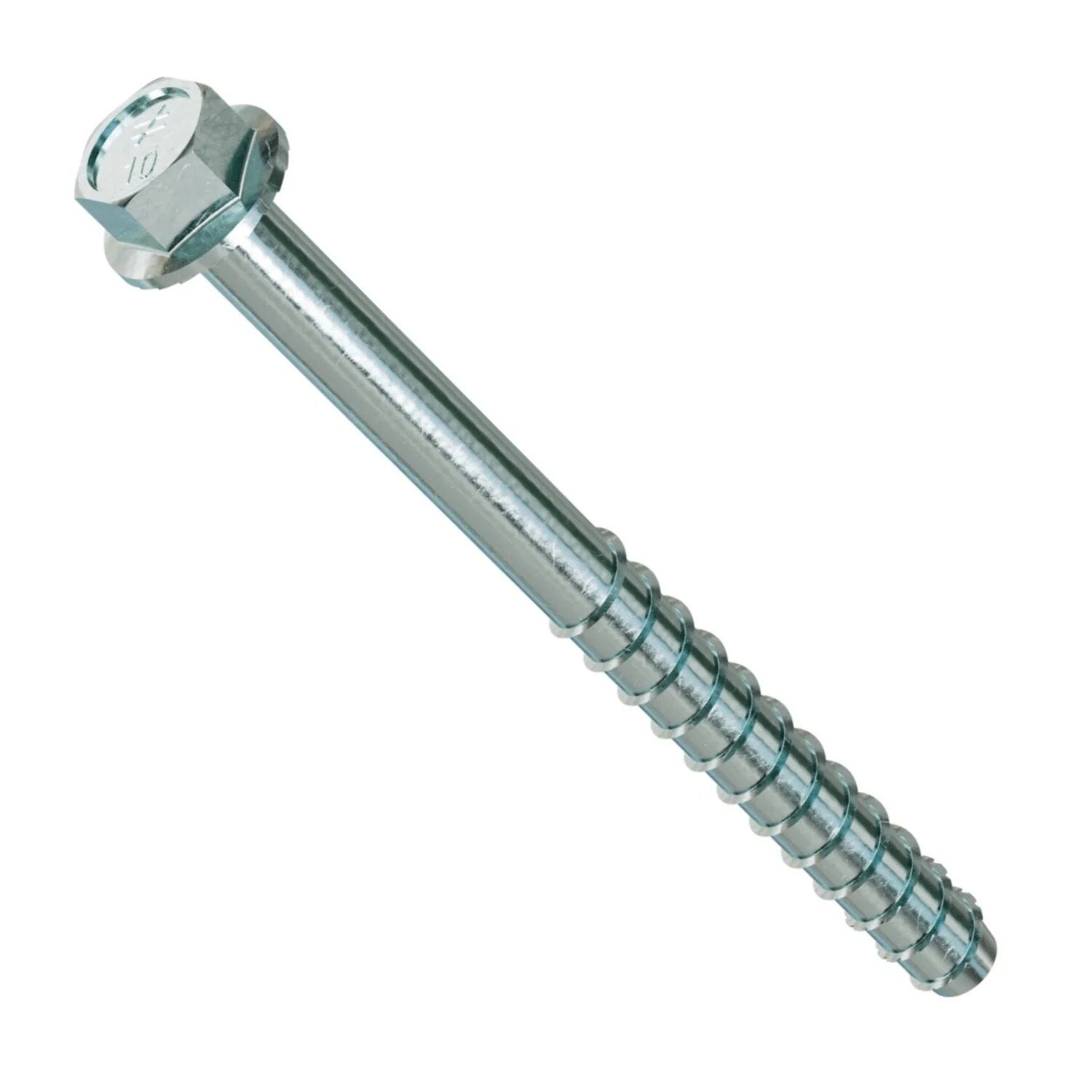

Simpson Strong-Tie THD75100H Titen HD (3/4" x 10") Heavy-Duty Screw Anchor - Zinc Plated (5 Pack)
$64.86
$104.96
Unit price
/
Unavailable
Description
Description
Simpson THD75100H Description
The Titen HD Screw Anchor Zinc Plated is a high-strength anchor designed for quick and easy installation in cracked and uncracked concrete applications. Ideal for dry, interior environments.
Simpson THD75100H Includes
- (5) Titen HD Screw Anchor Zinc Plated 3/4" x 10"
Simpson THD75100H Features
- Tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility

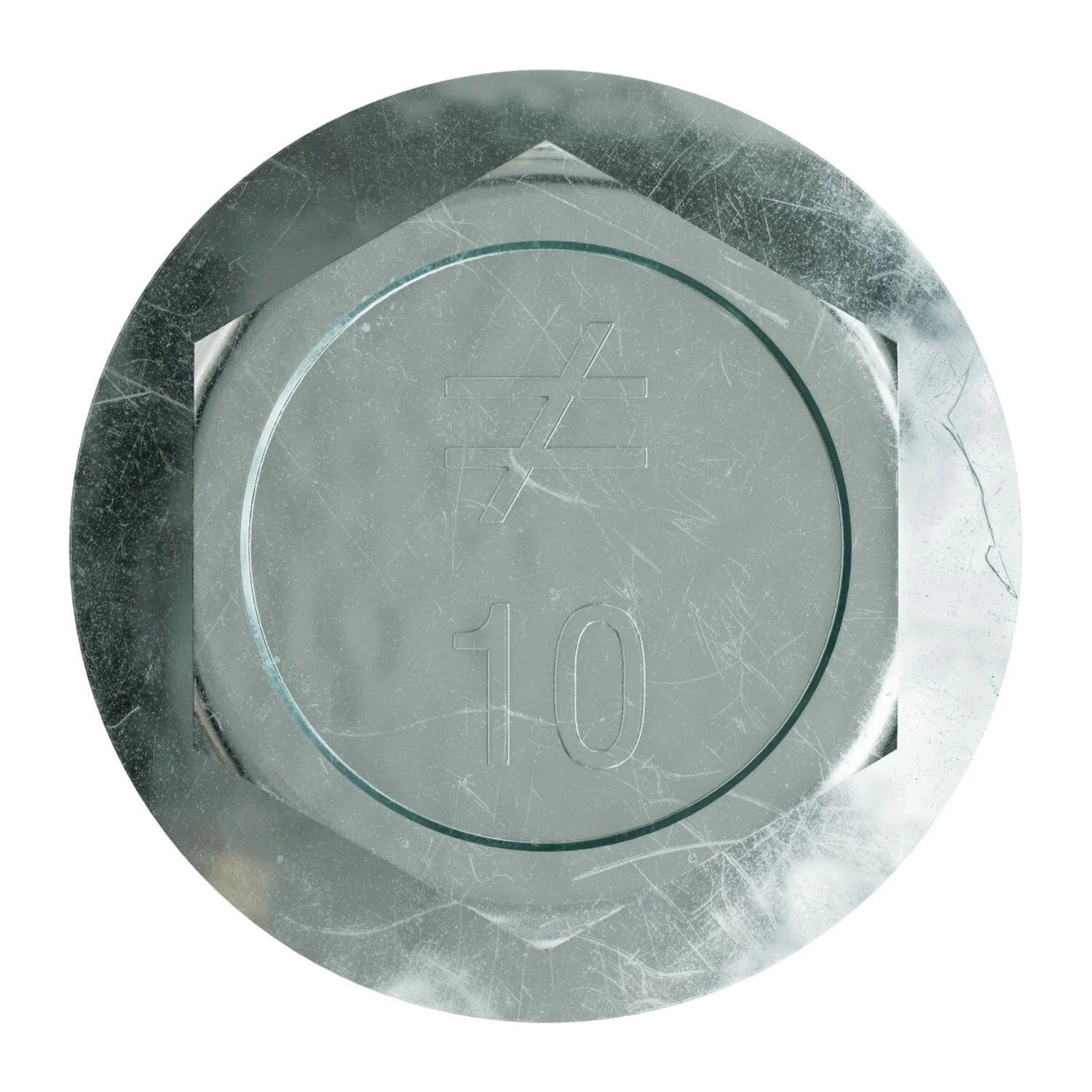

- Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
- Removable, ideal for temporary anchoring or applications where fixtures may need to be moved
Simpson THD75100H Applications
- Concrete anchoring in dry, interior environments
- Temporary anchoring for formwork and bracing
- Mechanical, electrical, and plumbing applications
Simpson THD75100H Installation Overview
- Drill a hole in the base material using a drill bit matching the anchor diameter.
- Clean the hole with compressed air.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THD75100H Specifications
| Diameter | 3/4" |
| Length | 10" |
| Finish | Zinc Plated |
| Material | Carbon Steel |
| Drill Bit Size | 3/4" |
| Drive Type | 1-1/8" Hex |
| Fixture Hole Size | 7/8"-15/16" |
| Head Type | Hex Head |
| Quantity | 5 |
NOTE: Use the correct drill bit size and follow installation guidelines to ensure optimal performance.
