Simpson Anchors | SKU:
THD75812H

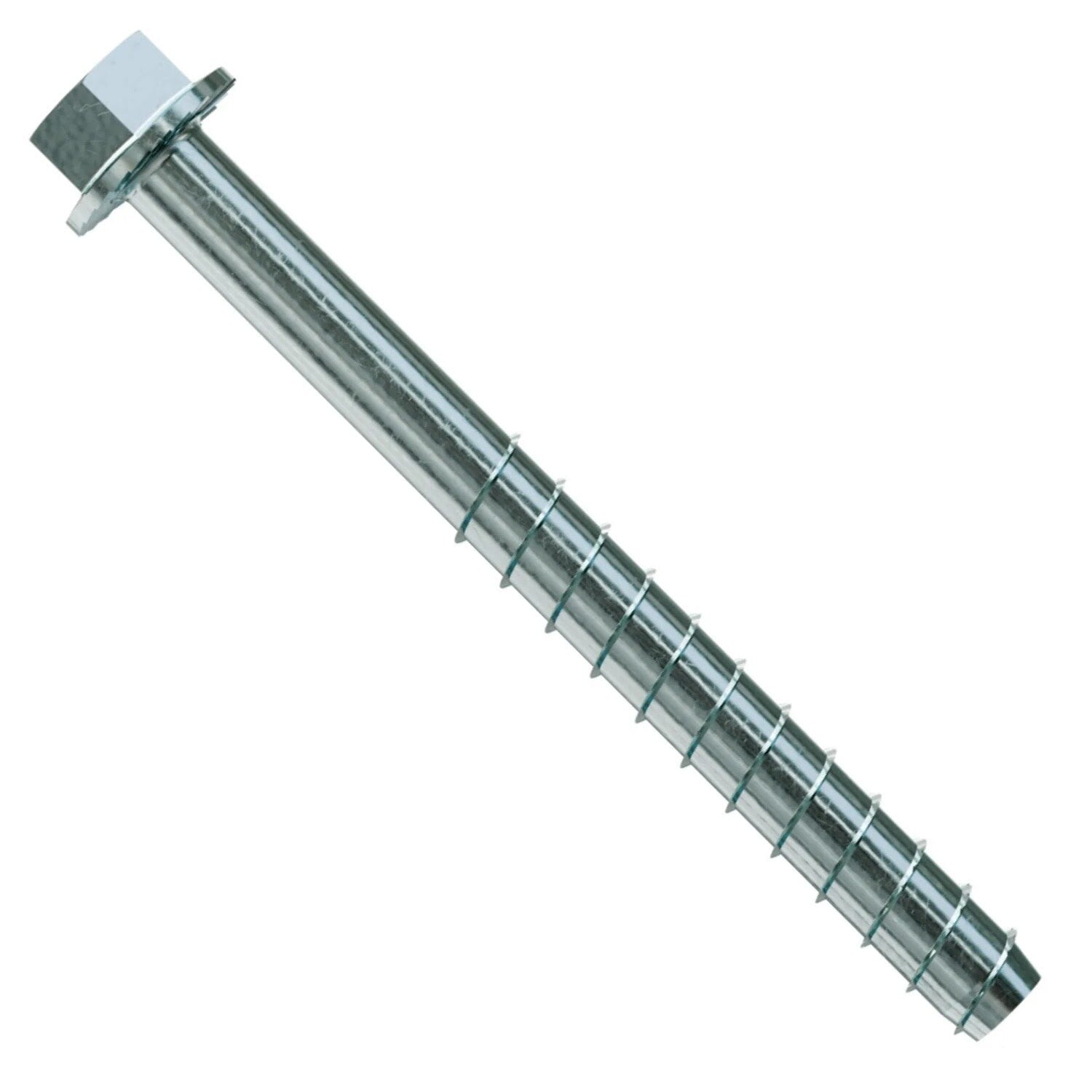

Simpson Strong-Tie THD75812H Titen HD (3/4" x 8-1/2") Heavy-Duty Screw Anchor - Zinc Plated (5 Pack)
$49.03
$79.99
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie THD75812H Description
The Titen HD Screw Anchor Zinc Plated is a high-strength anchor designed for quick and easy installation in cracked and uncracked concrete applications. Ideal for dry, interior environments.
Simpson Strong-Tie THD75812H Includes
- (5) Titen HD Screw Anchor Zinc Plated 3/4" x 8-1/2"
Simpson Strong-Tie THD75812H Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions
- Thread design efficiently transfers load to base material
- Specialized heat-treating process for better cutting

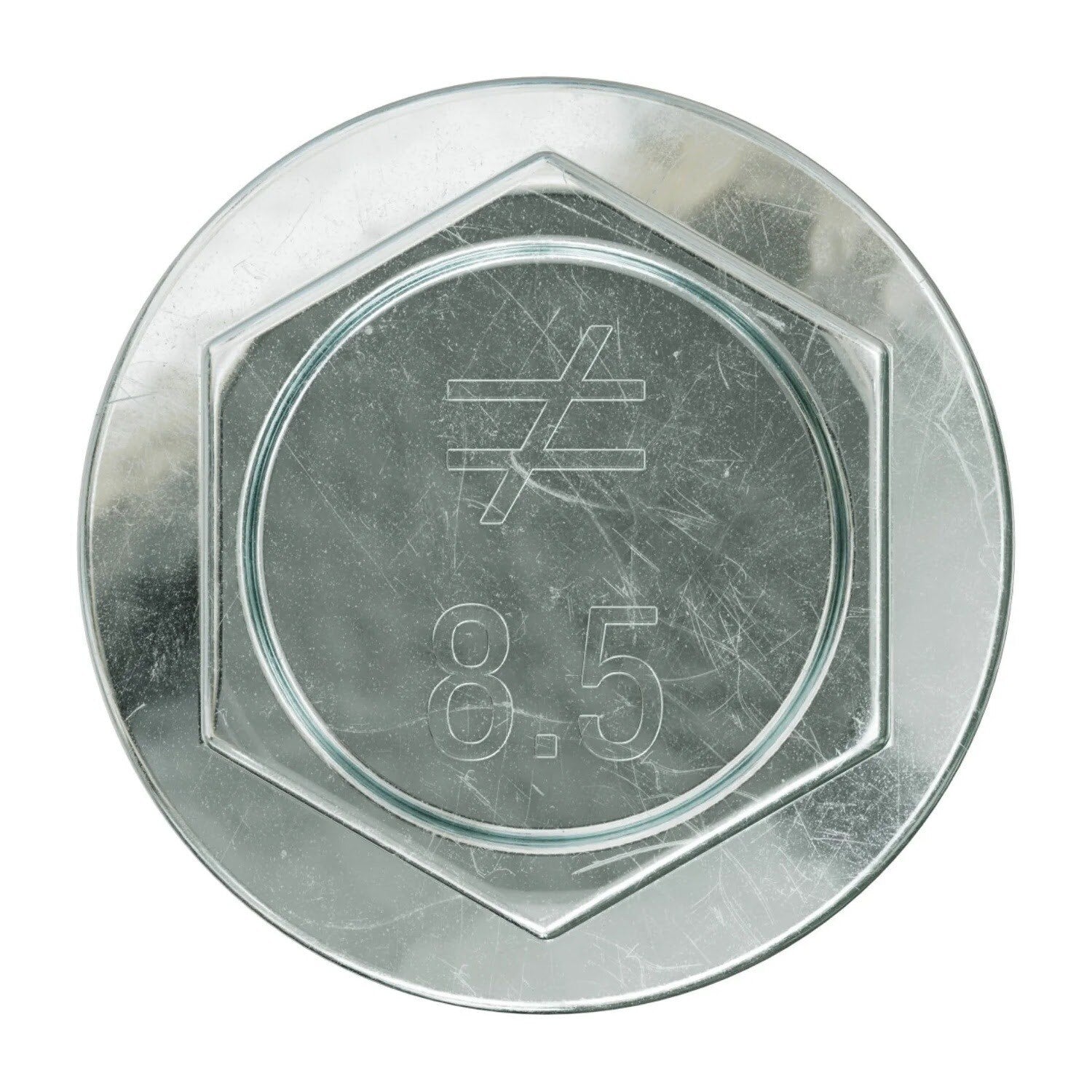

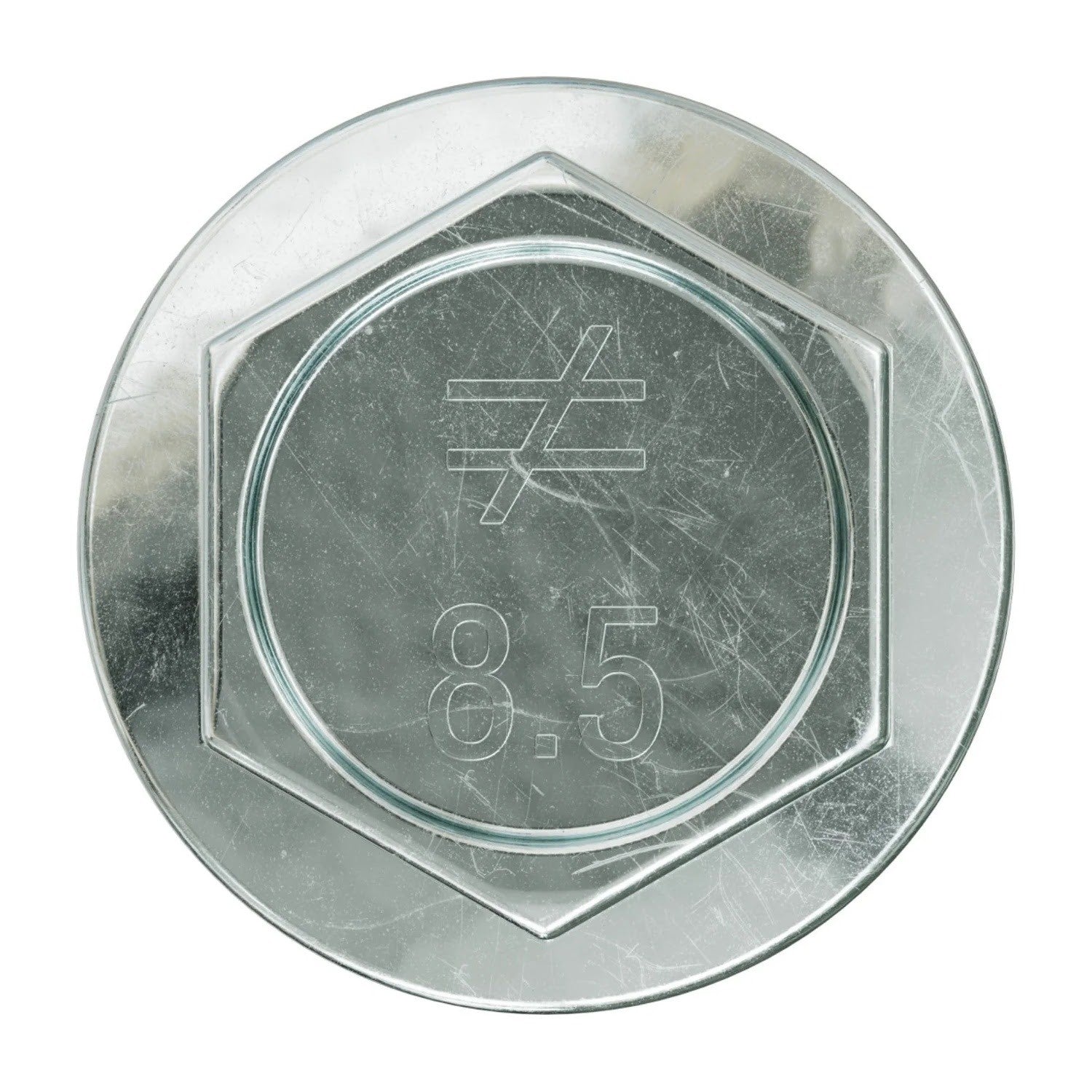

- Hex-washer head provides clean installed appearance
- Removable for temporary anchoring applications
- Designed for use in dry interior environments
Simpson Strong-Tie THD75812H Applications
- Concrete anchoring in mechanical, electrical, and plumbing installations
- Temporary anchoring for formwork and bracing
- Interior dry environments requiring secure anchoring
Simpson Strong-Tie THD75812H Installation Overview
- Drill a hole in the base material using a carbide drill bit matching the anchor diameter.
- Clean the hole using compressed air.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD75812H Specifications
| Diameter | 3/4" |
| Length | 8-1/2" |
| Finish | Zinc Plated |
| Material | Carbon Steel |
| Drill Bit Size | 3/4" |
| Drive Type | 1-1/8" Hex |
| Fixture Hole Size | 7/8"-15/16" |
| Head Type | Hex Head |
| Quantity | 5 |
NOTE: Use the correct fasteners in the specified positions to achieve the published load values
