Simpson Strong-Tie THDB25400HMG Description

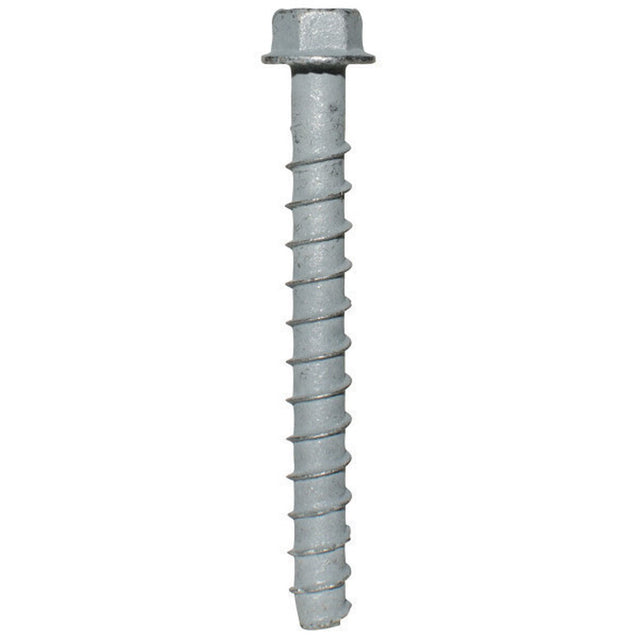

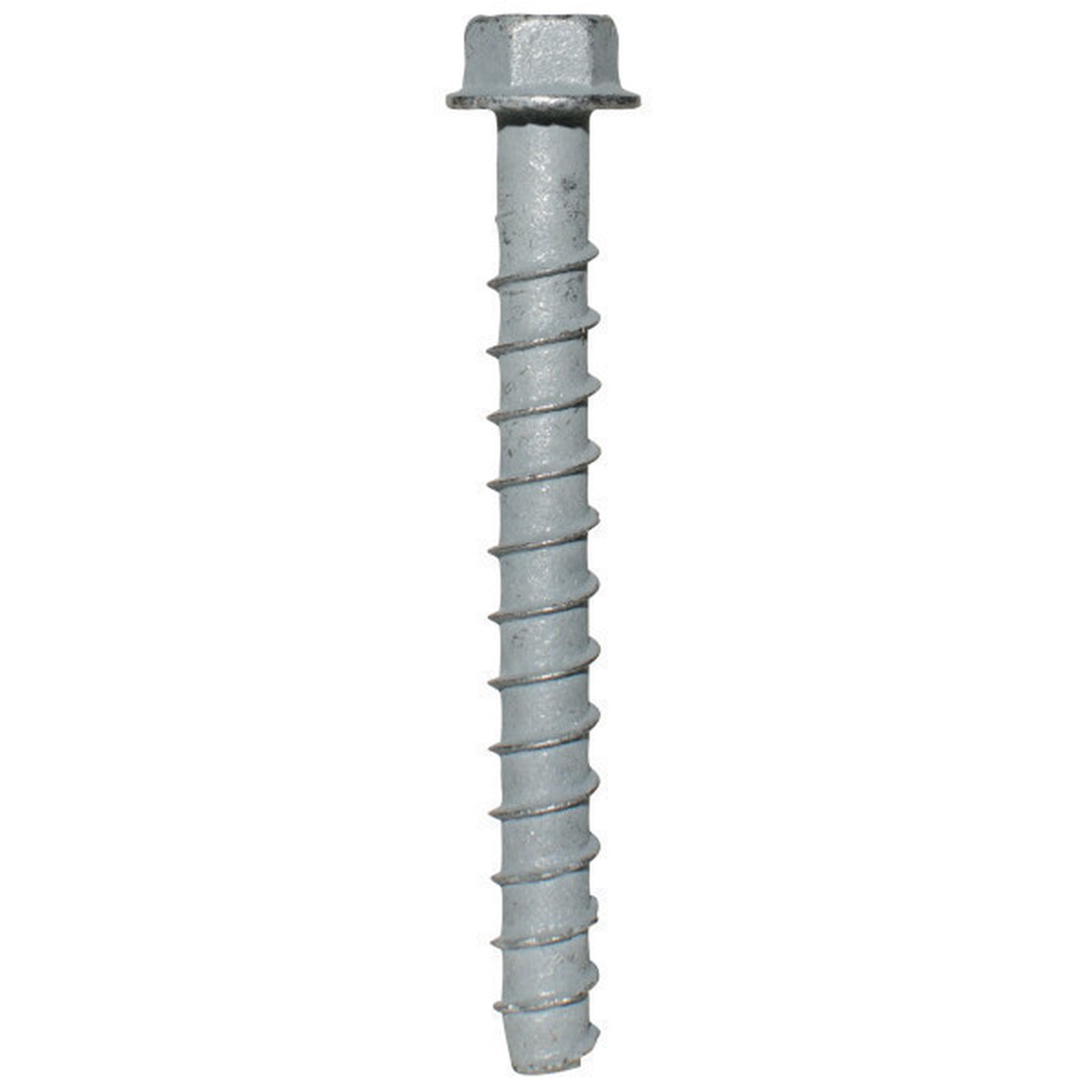

The Titen HD heavy-duty screw anchor is a mechanically galvanized carbon steel anchor designed for use in cracked and uncracked concrete as well as uncracked masonry. Its heat-treated removable design, serrated cutting tip, and hex washer head make it a dependable choice for interior and exterior anchoring applications such as sill plates, ledgers, post bases, seating, bracing, and formwork.
Simpson Strong-Tie THDB25400HMG Includes

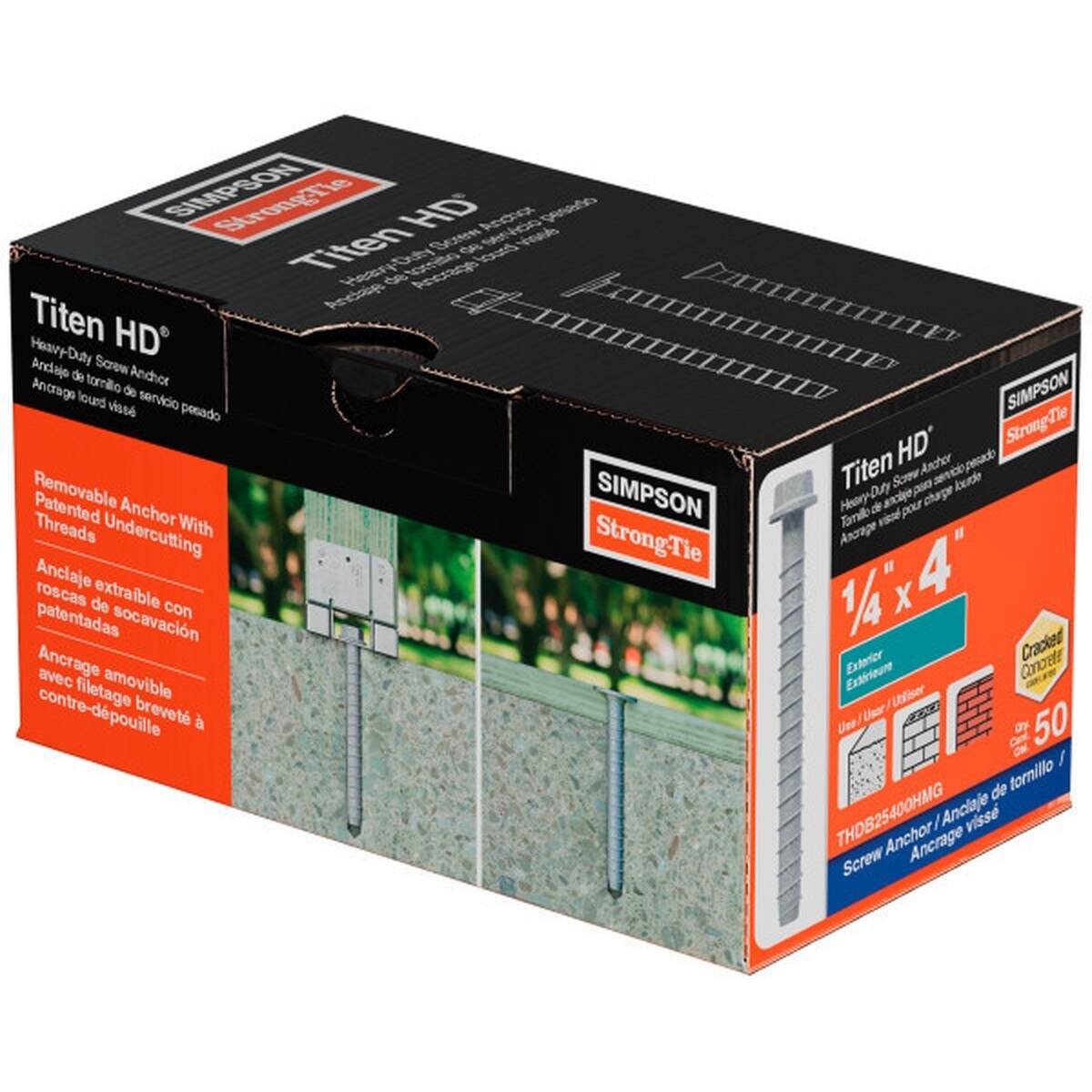

- (50) Titen HD Mechanically Galvanized Screw Anchors
Simpson Strong-Tie THDB25400HMG Features
- Head stamped for easy identification
- Serrated teeth on the tip help cut efficiently and reduce installation torque
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizing with hole size equal to anchor size
- Specialized heat-treating process improves tip hardness without compromising ductility
- Hex washer head requires no separate washer unless required by code
- Fully removable for temporary or relocatable applications
- Code listed for exterior applications
Simpson Strong-Tie THDB25400HMG Specifications
| Product Type | Heavy-duty screw anchor |
| Anchor Diameter | 1/4 in. |
| Anchor Length | 4 in. |
| Pack Quantity | 50 |
| Material | Carbon steel |
| Finish | Mechanically galvanized |
| Head Type | Hex washer head |
| Base Material | Cracked and uncracked concrete; uncracked masonry |
| Application | Interior and exterior anchoring |
| Coating | ASTM B695 Class 65 mechanically galvanized coating |
Toolup Part # :
896916
