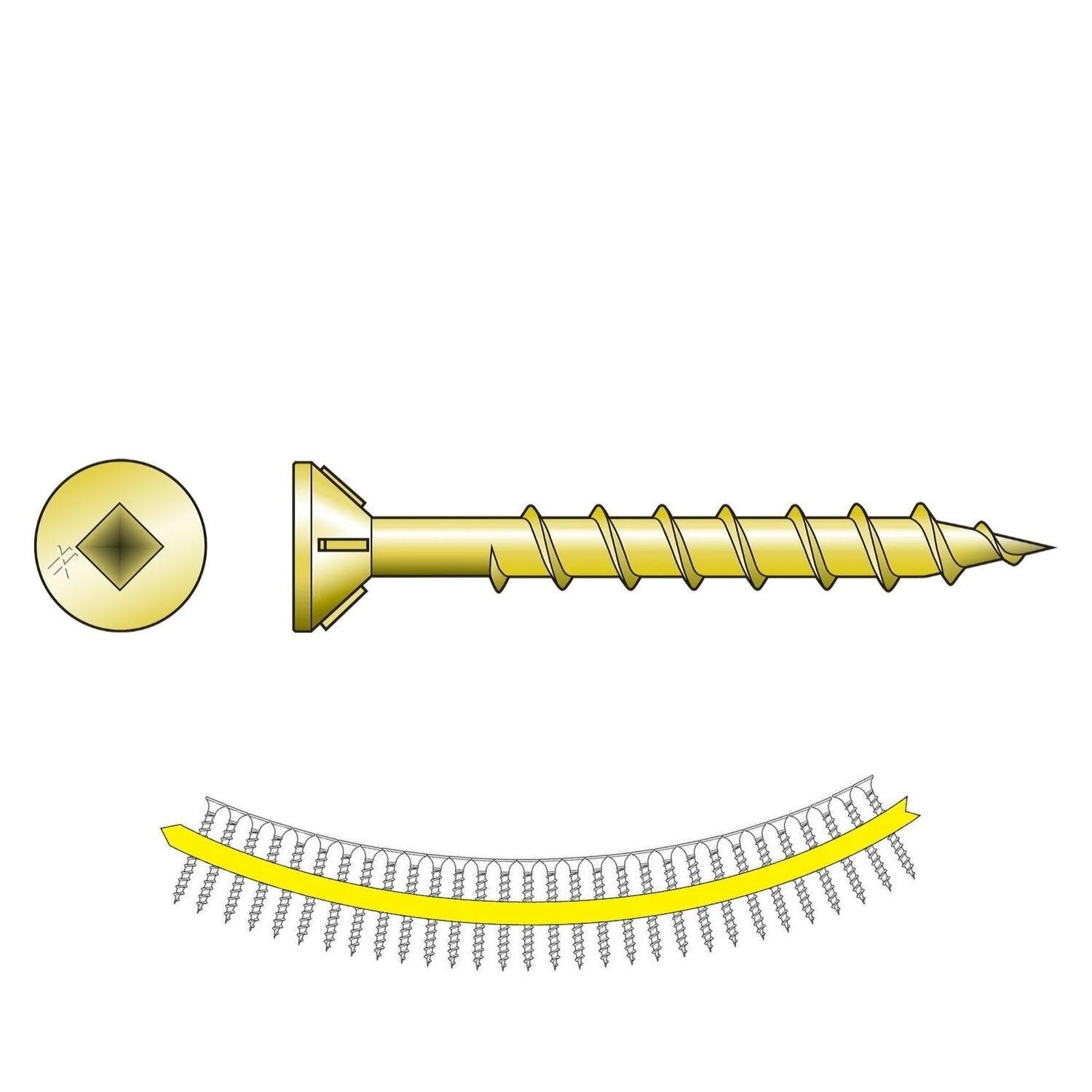

Simpson Strong-Tie WSC114S-17 Description
The WSC Wood Screw is engineered for use with the Simpson Strong-Tie Quik Drive auto-feed screw driving system, making it ideal for both exterior and interior wood-to-wood and wood-to-engineered-wood applications. Its patented curved collation ensures precise, efficient, and fast installation, while the yellow zinc coating provides added corrosion resistance.
Simpson Strong-Tie WSC114S-17 Includes
- (2500) Collated Wood Screws
- (1) Driver Bit
Simpson Strong-Tie WSC114S-17 Features
- Curved collation for efficient installation
- Flat head with nibs for easier countersinking
- #2 square drive for secure fastening
- Coarse threads for strong holding power
- Type-17 point for fast starts and reduced splitting
- Yellow zinc coating for corrosion resistance
- Driver bit included (replacement bit model BIT2S)
- Designed for use with Quik Drive PRO200SG2 system
- Length: 1-1/4 in.
- Screw size: #8
- Meets ASTM F1941 coating standards
Simpson Strong-Tie WSC114S-17 Applications
- Fastening subfloor to wood
- Fencing assembly
- Wood-to-wood fastening
- Wood-to-engineered wood fastening
- General exterior and interior wood construction

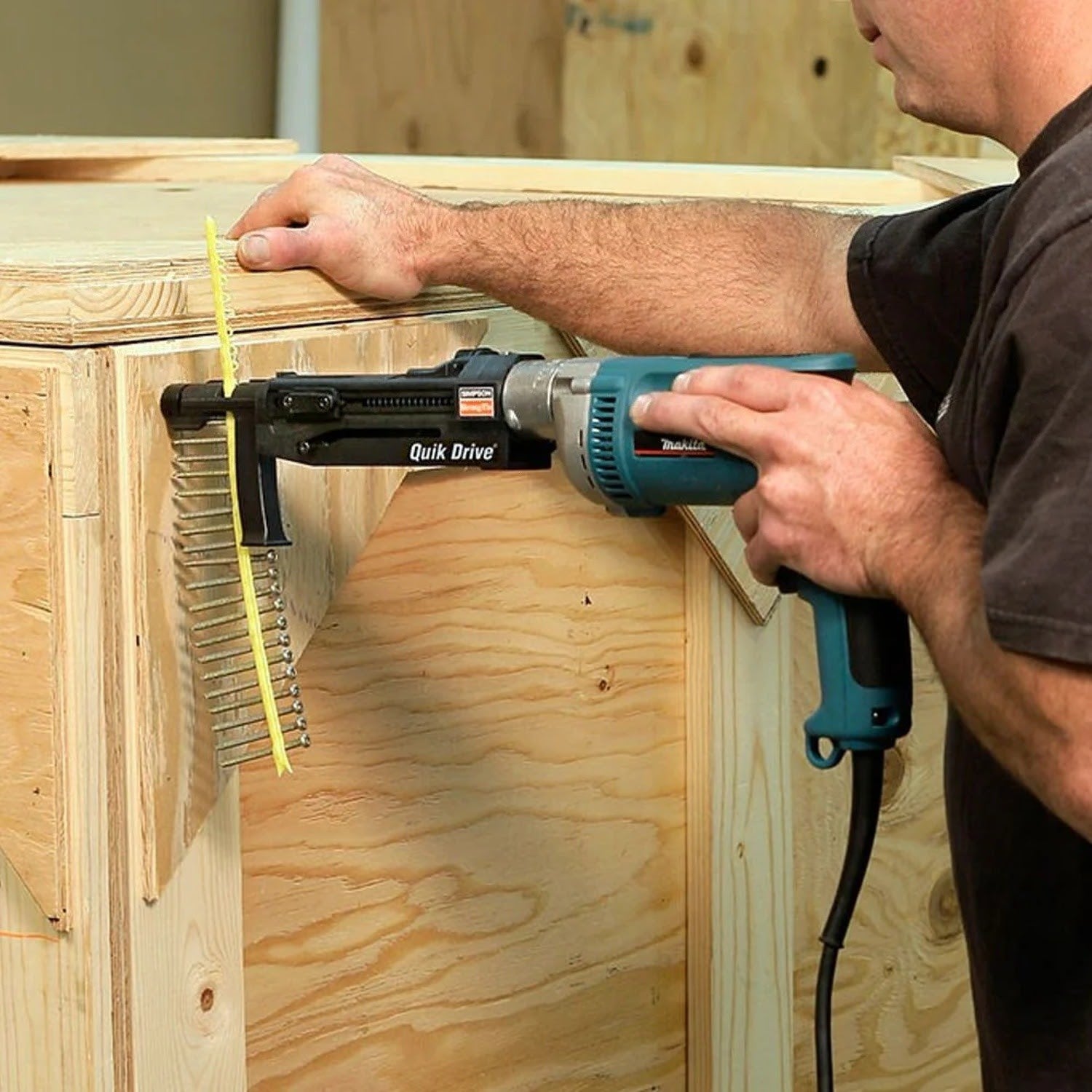

Simpson Strong-Tie WSC114S-17 Installation Overview
- Load the collated screws into the Quik Drive auto-feed system.
- Align the screw tip with the fastening point on the wood surface.
- Engage the tool and drive the screw until the head is flush with the surface.
- Repeat for each fastening point as required.
Simpson Strong-Tie WSC114S-17 Specifications
| Screw Size | #8 |
| Length | 1-1/4 in. |
| Drive Type | #2 Square |
| Head Type | Flat Head with Nibs |
| Point Type | Type-17 |
| Thread Type | Coarse |
| Finish | Yellow Zinc |
| Material | Carbon Steel |
| Collation Type | Curved |
| Packaging Quantity | 2500 |
| Head Diameter | 0.333 in. |
| Thread Length | 0.844 in. |
| Country of Origin | Taiwan |
Toolup Part # :
399335
