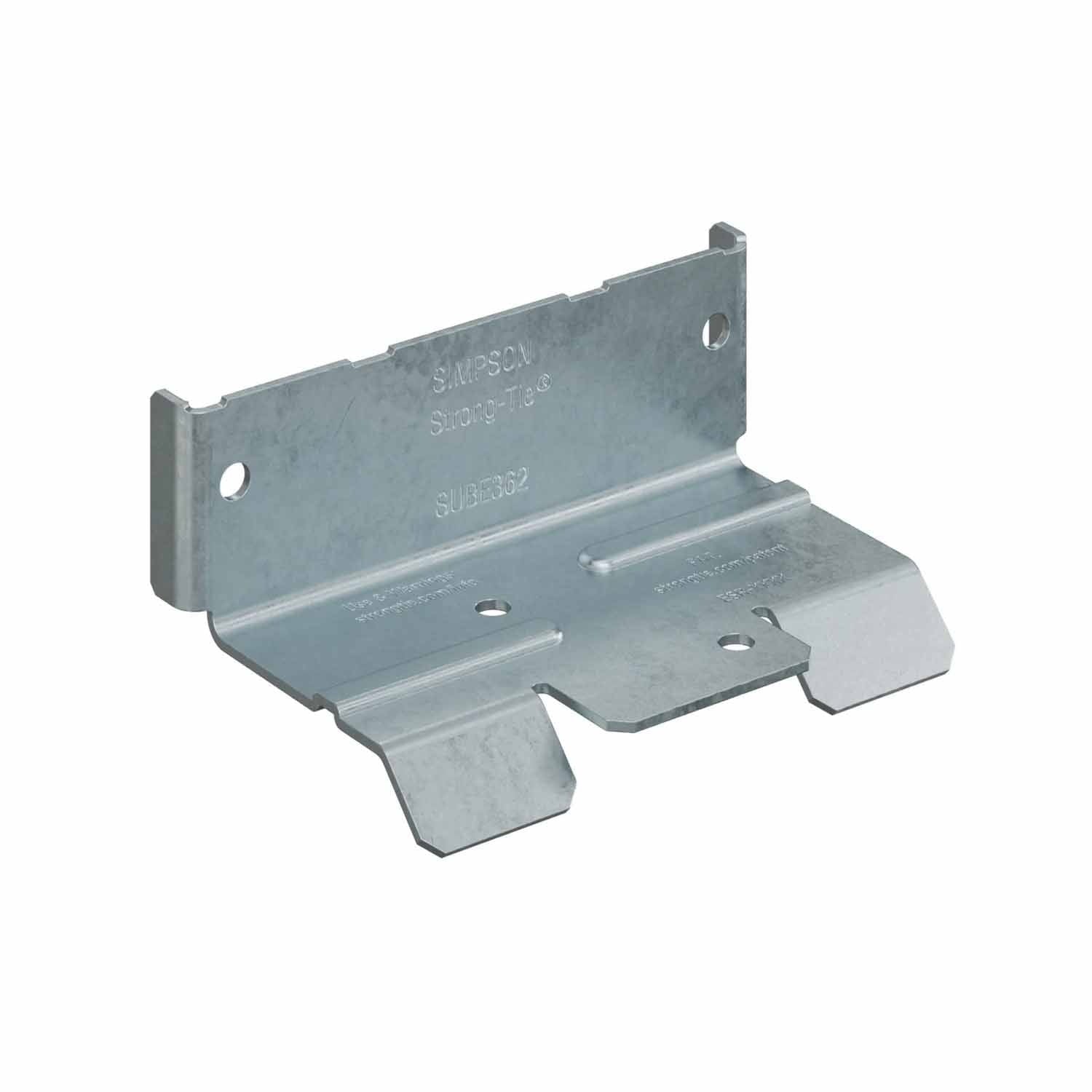

Simpson Strong-Tie SUBE362-R100 Description
The SUBE bridging connector is designed for cold-formed steel construction, providing a secure and efficient solution for connecting cold-rolled channels to studs.
Simpson Strong-Tie SUBE362-R100 Includes
- (100) SUBE Bridging Connector
Simpson Strong-Tie SUBE362-R100 Features
- Tested to include stud-web strength and stiffness in the tabulated design values
- Design values ensure compliance with AISI S100 Sections C2.2.1 and C2.3 for axially and laterally loaded studs
- Flexible design solutions for web thicknesses of 33 mil (20 ga.) through 97 mil (12 ga.) and stud sizes of 3 5/8" and 6"
- Improves onsite safety by eliminating sharp-point screw perforations through the web in traditional clip attachments to wall-end stud webs
- Eliminates drywall bulge with no screw attachment to flange of stud
Simpson Strong-Tie SUBE362-R100 Applications
- Cold-formed steel construction
- Connecting cold-rolled channels to studs
- End of wall, single-stud jamb, or panel walls

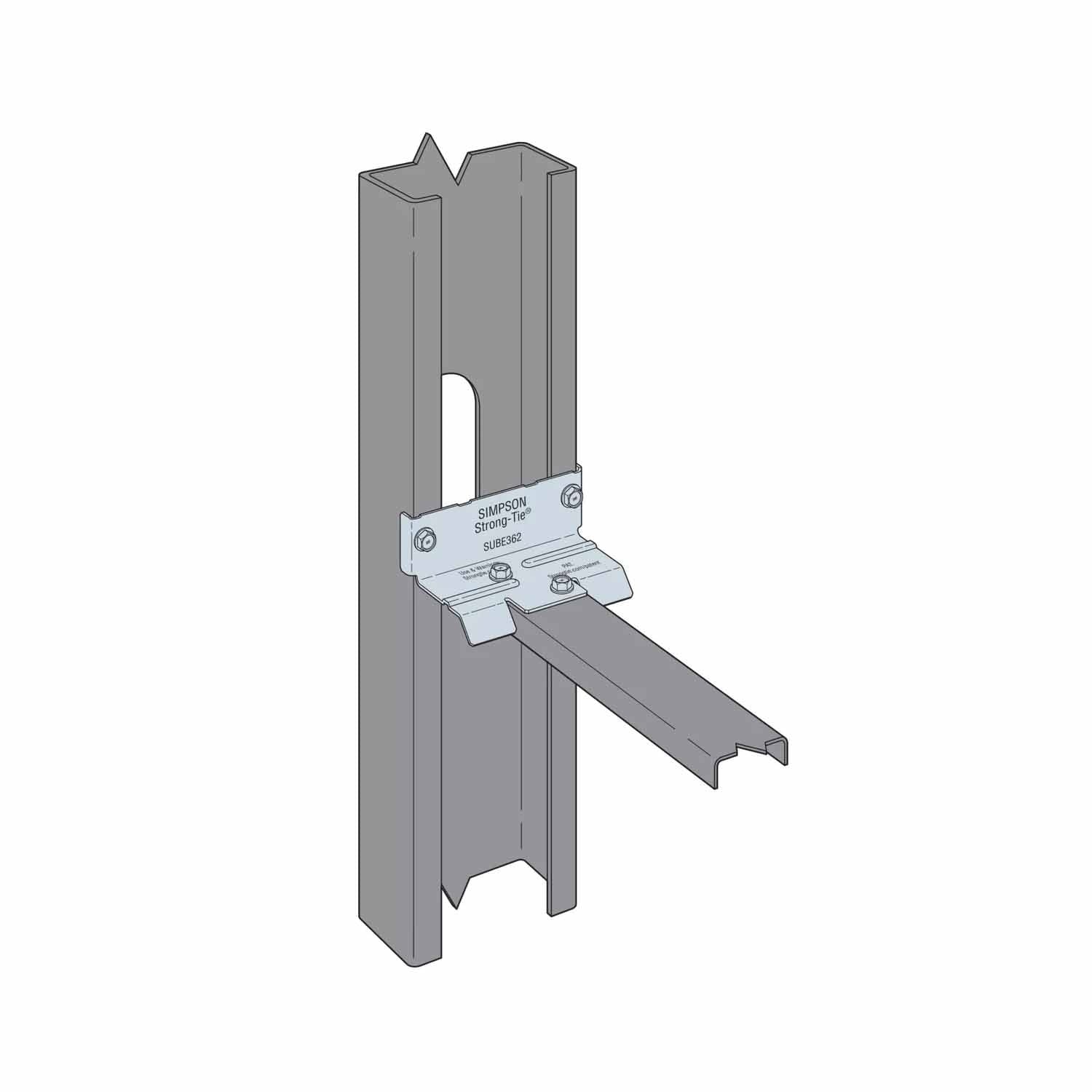

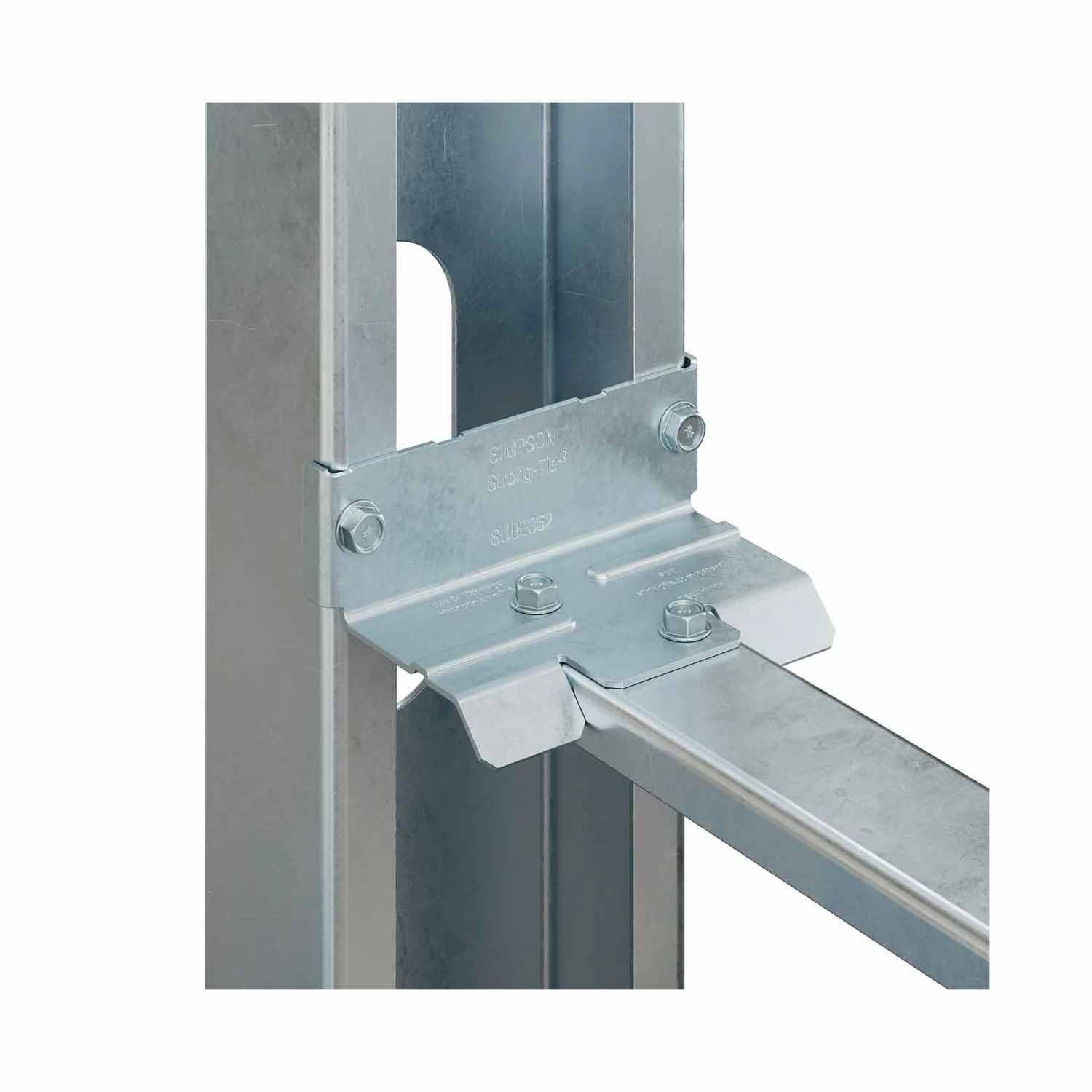

Simpson Strong-Tie SUBE362-R100 Installation Overview
- Attach the SUBE connector to the open face of the stud using (2) #10 screws.
- Fasten the u-channel to the clip with (2) #10 screws.

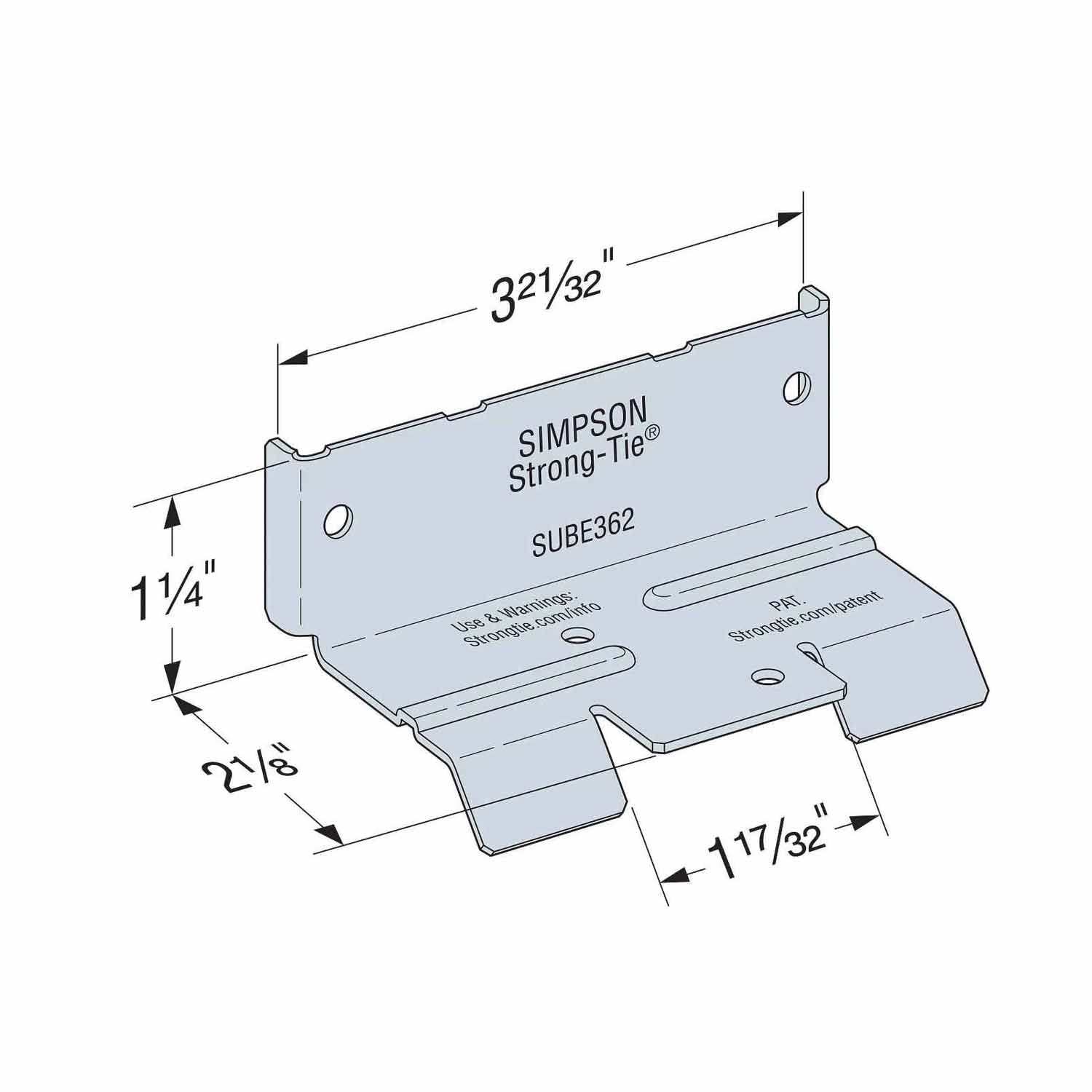

Simpson Strong-Tie SUBE362-R100 Specifications
| Material | 54 mil (16 ga.), 50 ksi Steel |
| Finish | Galvanized (G90) |
| Stud Depth | 3-5/8 in. |
| Fasteners Required | (4) #10 Screws |
| Thickness | 16 Gauge |
