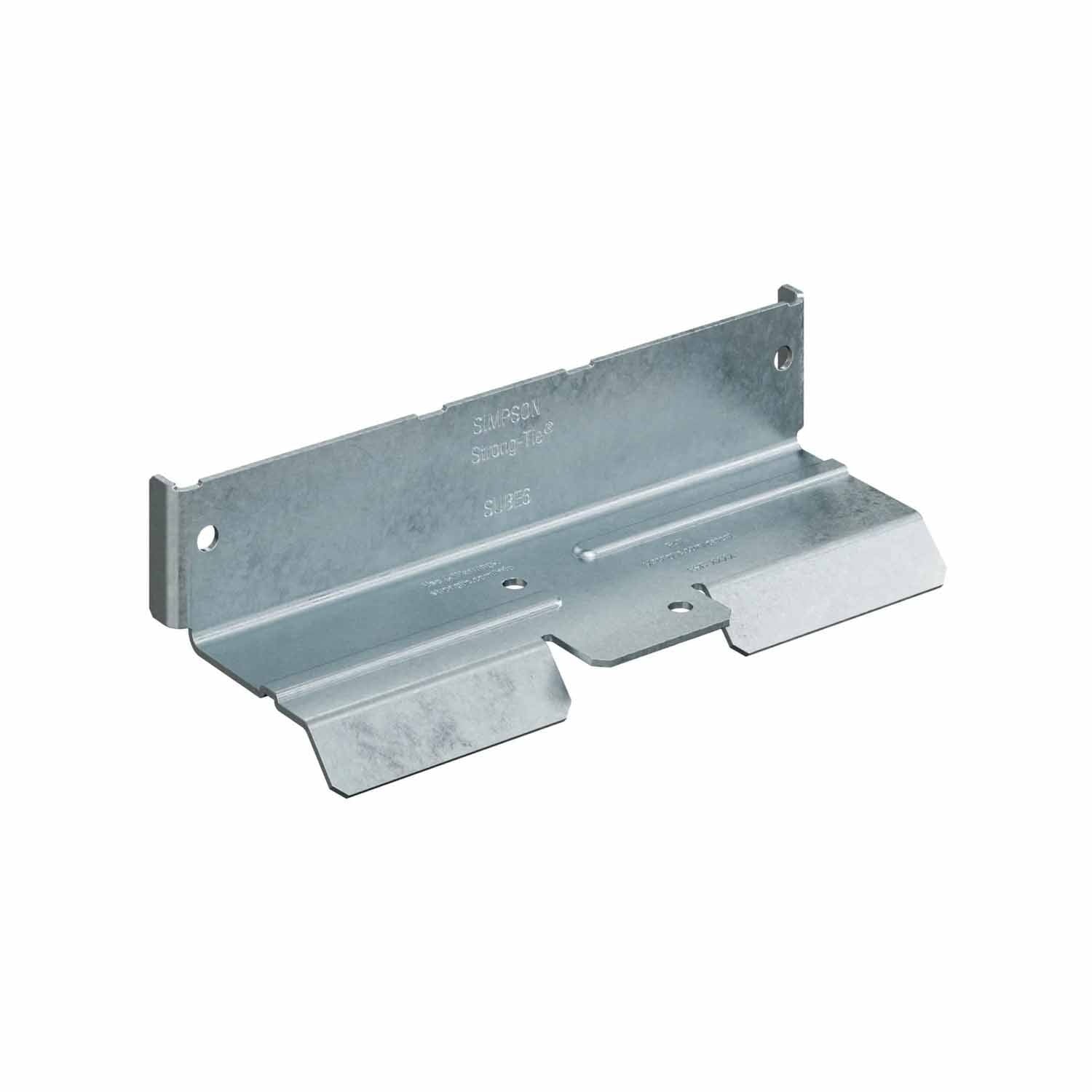

Simpson Strong-Tie SUBE6-R50 Description
The SUBE Bridging Connector is designed for cold-formed steel construction, providing secure connections for 6-inch studs with zinc galvanized finish.
Simpson Strong-Tie SUBE6-R50 Includes
- (50) Bridging Connector for 6-in. Stud
Simpson Strong-Tie SUBE6-R50 Features
- Tested to include stud-web strength and stiffness in the tabulated design values
- Design values ensure compliance with AISI S100 Sections C2.2.1 and C2.3 for axially and laterally loaded studs
- Flexible design solutions for web thicknesses of 33 mil (20 ga.) through 97 mil (12 ga.) and stud sizes of 3 5/8" and 6"
- Improves onsite safety by eliminating sharp-point screw perforations through the web in traditional clip attachments to wall-end stud webs
- Eliminates drywall bulge with no screw attachment to flange of stud
Simpson Strong-Tie SUBE6-R50 Applications
- Cold-formed steel construction
- Bridging and bracing for wall-end studs
- Panel walls, curtain walls, and load-bearing conditions

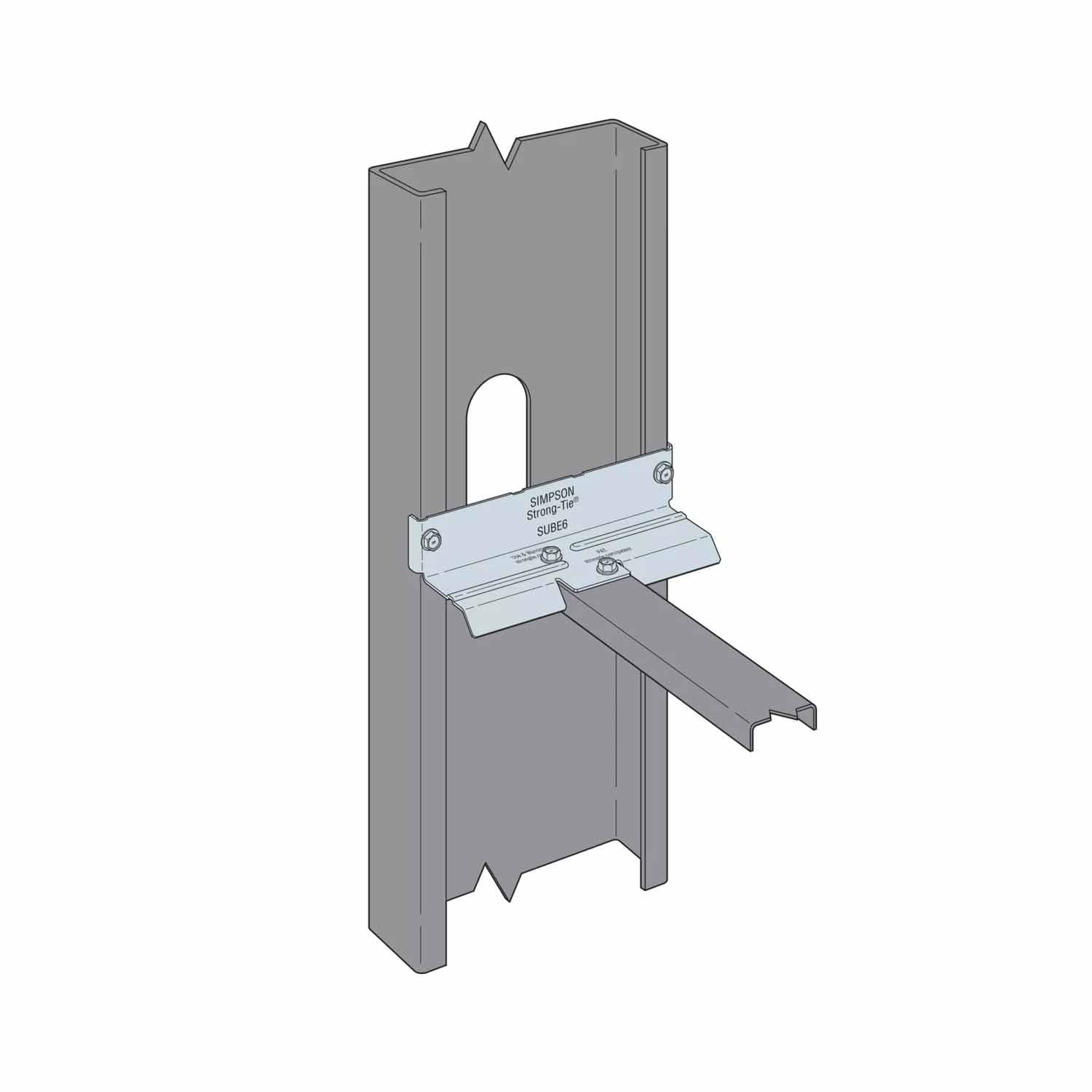

Simpson Strong-Tie SUBE6-R50 Installation Overview
- Attach the SUBE connector to the open face of the stud using (2) #10 screws.
- Fasten the u-channel to the clip with (2) #10 screws.

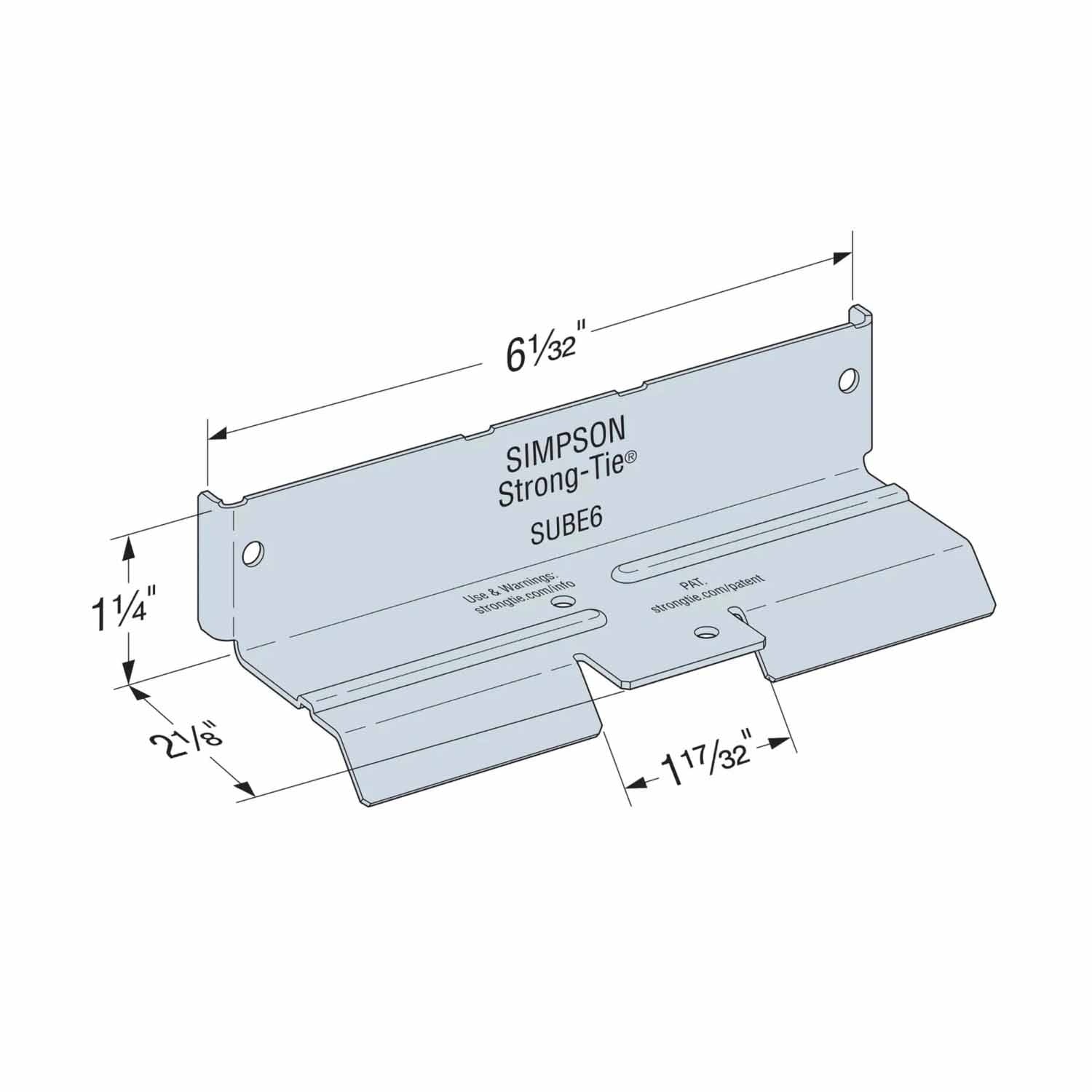

Simpson Strong-Tie SUBE6-R50 Specifications
| Material | 54 mil (16 ga.), 50 ksi Steel |
| Finish | Zinc Galvanized |
| Stud Depth | 6" |
| Fasteners Required | (4) #10 Screws |
| Quantity | 50 |
| Thickness | 16 Gauge |
NOTE: Ensure proper installation using the specified screws to achieve published load values.
