Simpson Hangers | SKU:
SUL1.81/14

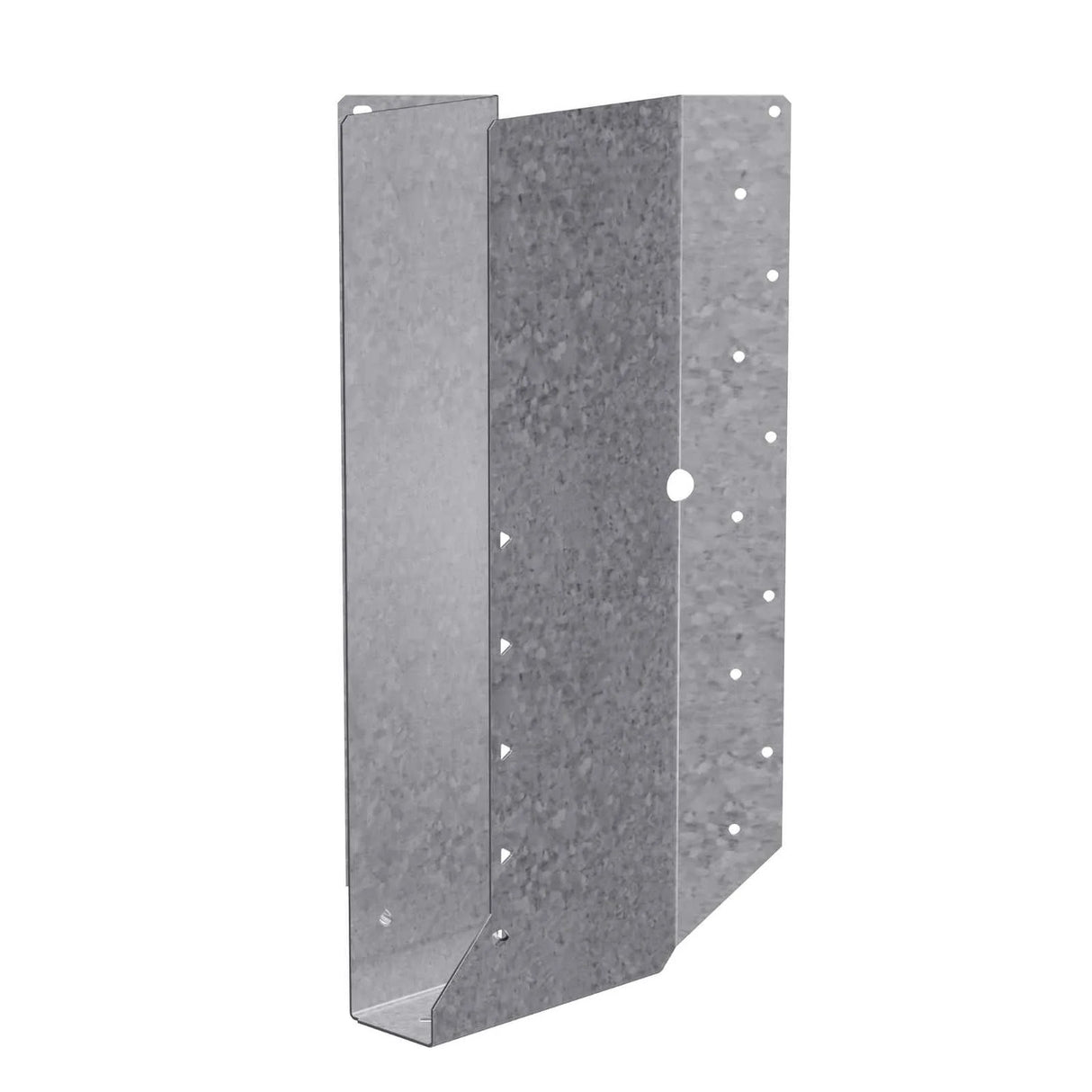

Simpson Strong-Tie SUL1.81/14 (1-3/4" x 14") Galvanized Left-Skewed U-Shaped Hanger
$28.47
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUL1.81/14 Description
The SUL Left Skewed U-Shaped Hanger is a durable and high-strength connector designed to support angled beam-to-joist connections in wood framing applications. Ideal for residential, commercial, and industrial projects, this hanger ensures a secure and precise fit for skewed applications, offering enhanced load-bearing capacity while maintaining structural integrity.
Simpson Strong-Tie SUL1.81/14 Includes
- (1) Left Skewed U-Shaped Joist Hanger
Simpson Strong-Tie SUL1.81/14 Features
- Left-Skewed Design: Engineered for angled beam-to-joist connections, ensuring a secure and efficient load transfer.
- G90 Galvanized Finish: Offers excellent corrosion resistance, making it ideal for general interior and exterior use.
- High-Strength U-Shaped Construction: Provides reinforced support for structural stability in wood framing applications.
- Versatile Applications: Commonly used in residential and commercial framing, including decks, roofs, and general wood construction.
- Precision Fit: Designed to accommodate standard lumber sizes while maintaining a snug, load-bearing connection.
Simpson Strong-Tie SUL1.81/14 Applications
- Residential framing: Securely connects angled beams to joists.
- Commercial construction: Provides reliable support for skewed wood framing.
- Deck building: Ensures structural integrity in angled deck connections.
- Roof framing: Facilitates precise and secure skewed beam installations.
- General wood construction: Enhances load-bearing capacity in various projects.

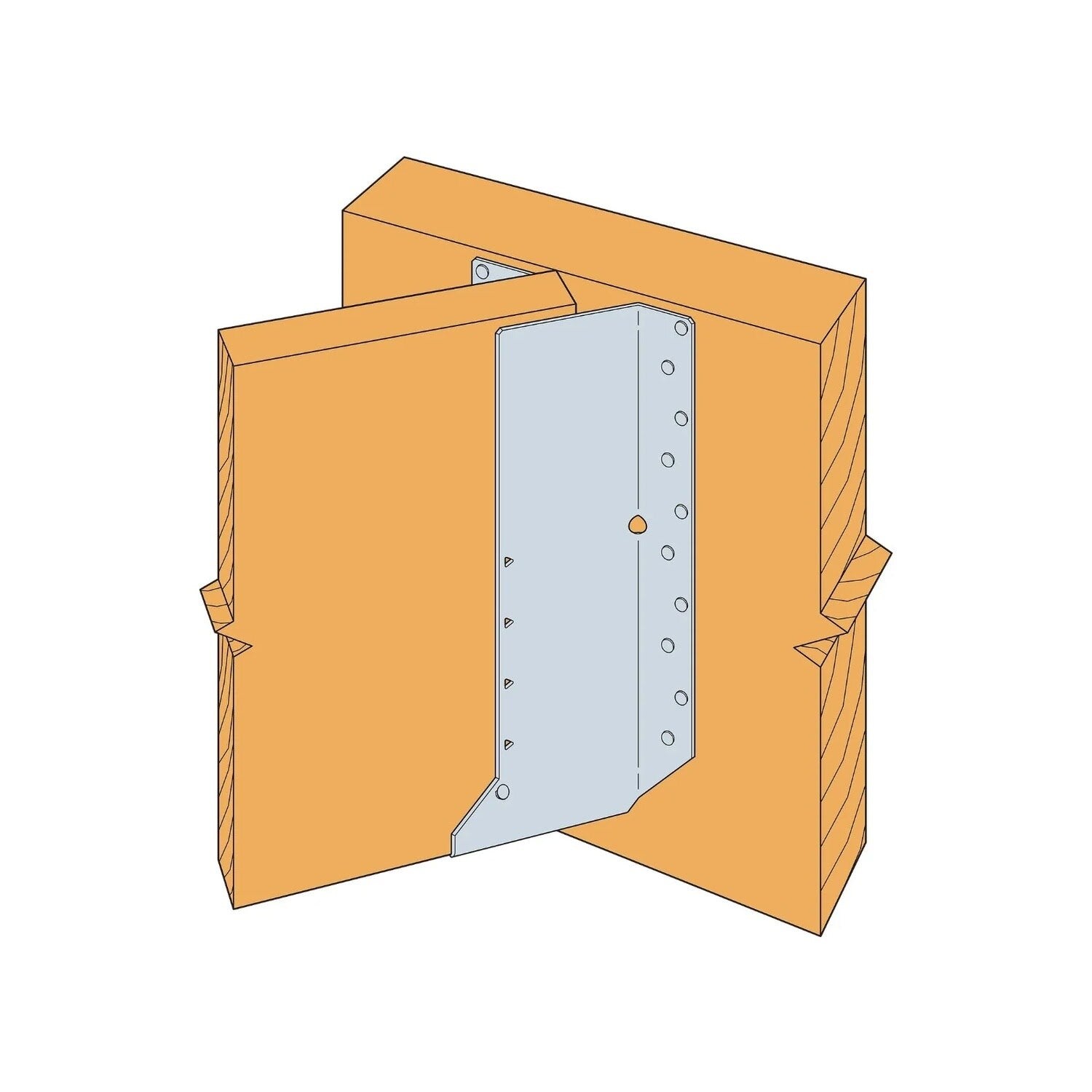

Simpson Strong-Tie SUL1.81/14 Installation Overview
- Position the hanger at the desired location on the beam.
- Secure the hanger to the beam using the specified fasteners.
- Align the joist with the hanger and insert it into the U-shaped pocket.
- Fasten the joist to the hanger using the recommended nails or screws.
- Verify all connections are secure and properly aligned.

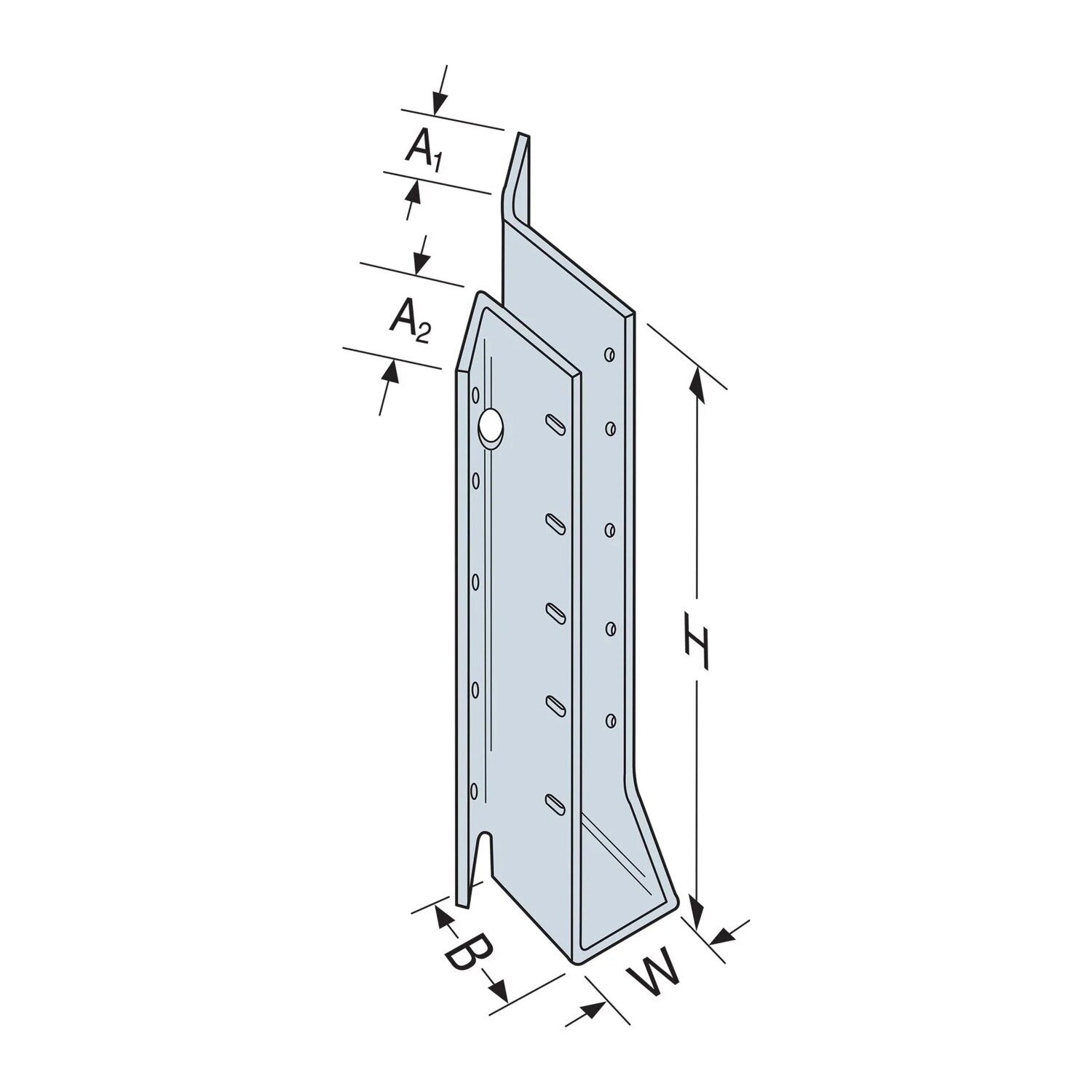

Simpson Strong-Tie SUL1.81/14 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (20) 0.162" x 3-1/2" Nails OR (20) SD9112 Screws, Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws |
| For Treated Lumber | No |
| Height | 13-3/4" |
| Joist size | 1-3/4" X 14" |
| Thickness | 16 Gauge |
| Type | Left Skewed |
| Width | 1-13/16" |
