Simpson Hangers | SKU:
SUL2.37/14

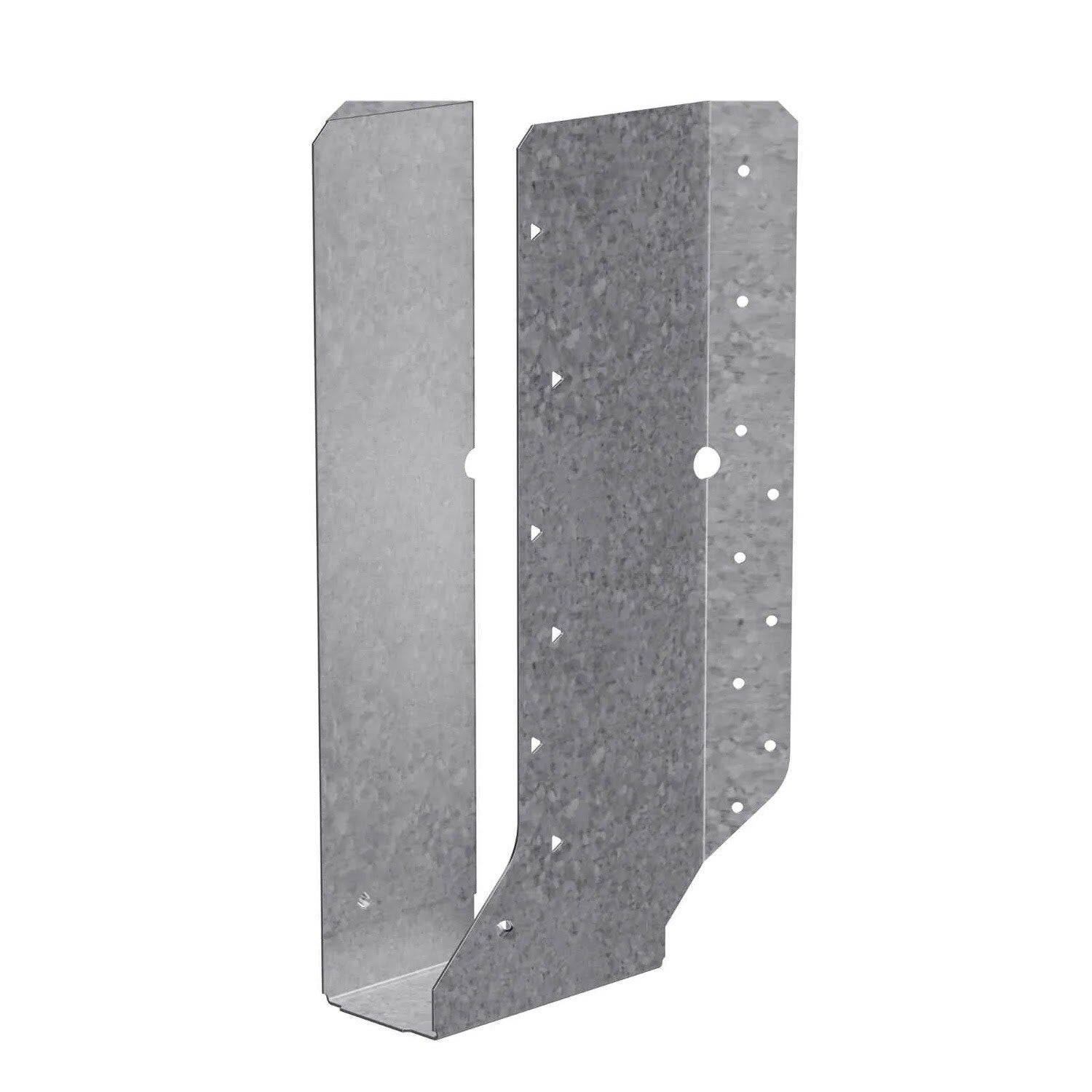

Simpson Strong-Tie SUL2.37/14 (2-1/4 to 2-5/16" x 14") Galvanized Left-Skewed U-Shaped Hanger
$34.54
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUL2.37/14 Description
The SUL Left Skewed U-Shaped Hanger is a durable and high-strength connector designed to support angled beam-to-joist connections in wood framing applications. Ideal for residential, commercial, and industrial projects, this hanger ensures a secure and precise fit for skewed applications, offering enhanced load-bearing capacity while maintaining structural integrity.
Simpson Strong-Tie SUL2.37/14 Includes
- (1) Left Skewed U-Shaped Joist Hanger
Simpson Strong-Tie SUL2.37/14 Features
- Left-Skewed Design: Engineered for angled beam-to-joist connections, ensuring a secure and efficient load transfer.
- G90 Galvanized Finish: Offers excellent corrosion resistance, making it ideal for general interior and exterior use.
- High-Strength U-Shaped Construction: Provides reinforced support for structural stability in wood framing applications.
- Versatile Applications: Commonly used in residential and commercial framing, including decks, roofs, and general wood construction.
- Precision Fit: Designed to accommodate standard lumber sizes while maintaining a snug, load-bearing connection.
Simpson Strong-Tie SUL2.37/14 Applications
- Residential framing: Ideal for angled beam-to-joist connections in homes.
- Commercial framing: Suitable for structural wood framing in commercial buildings.
- Deck construction: Provides secure connections for deck beams and joists.
- Roof framing: Ensures stability in angled roof beam connections.
- General wood construction: Versatile for various wood framing projects.

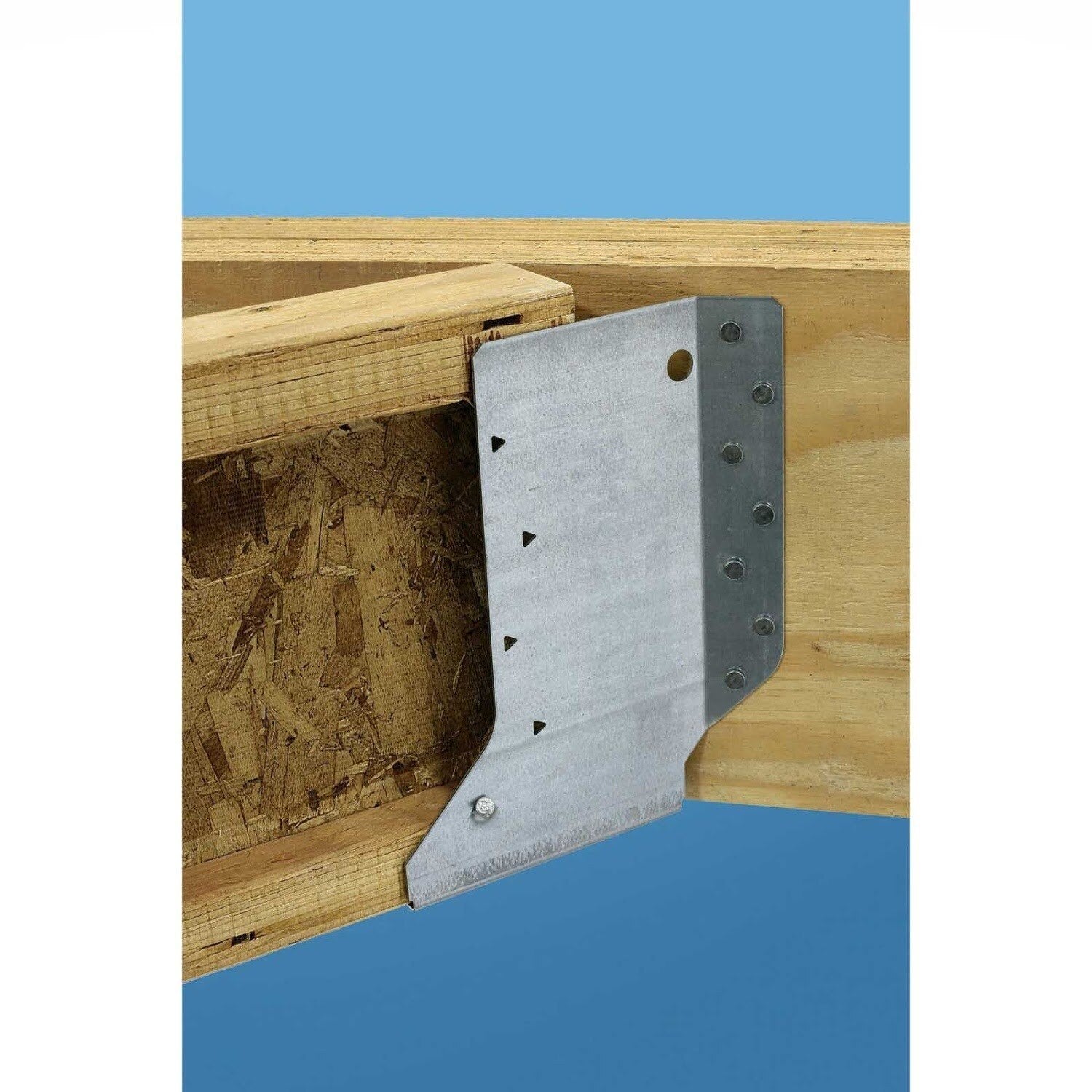

Simpson Strong-Tie SUL2.37/14 Installation Overview
- Align the hanger with the beam and joist as per the design.
- Secure the hanger to the beam using the specified fasteners.
- Insert the joist into the hanger and fasten it securely.
- Ensure all connections are tight and aligned properly.
Simpson Strong-Tie SUL2.37/14 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails OR (18) SD9112 Screws, Joist - (2) 0.148" x 1-1/2" Nails OR (2) SD9112 Screws |
| For Treated Lumber | No |
| Height | 13-7/16" |
| Joist size | 2-1/4" X 14" |
| Thickness | 16 Gauge |
| Type | Left Skewed |
| Width | 2-3/8" |
