Simpson Hangers | SKU:
SUL210-2
Simpson Strong-Tie SUL210-2 (Double 2" x 10") Galvanized Left-Skewed U-Shaped Hanger
$22.51
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SUL210-2 Description

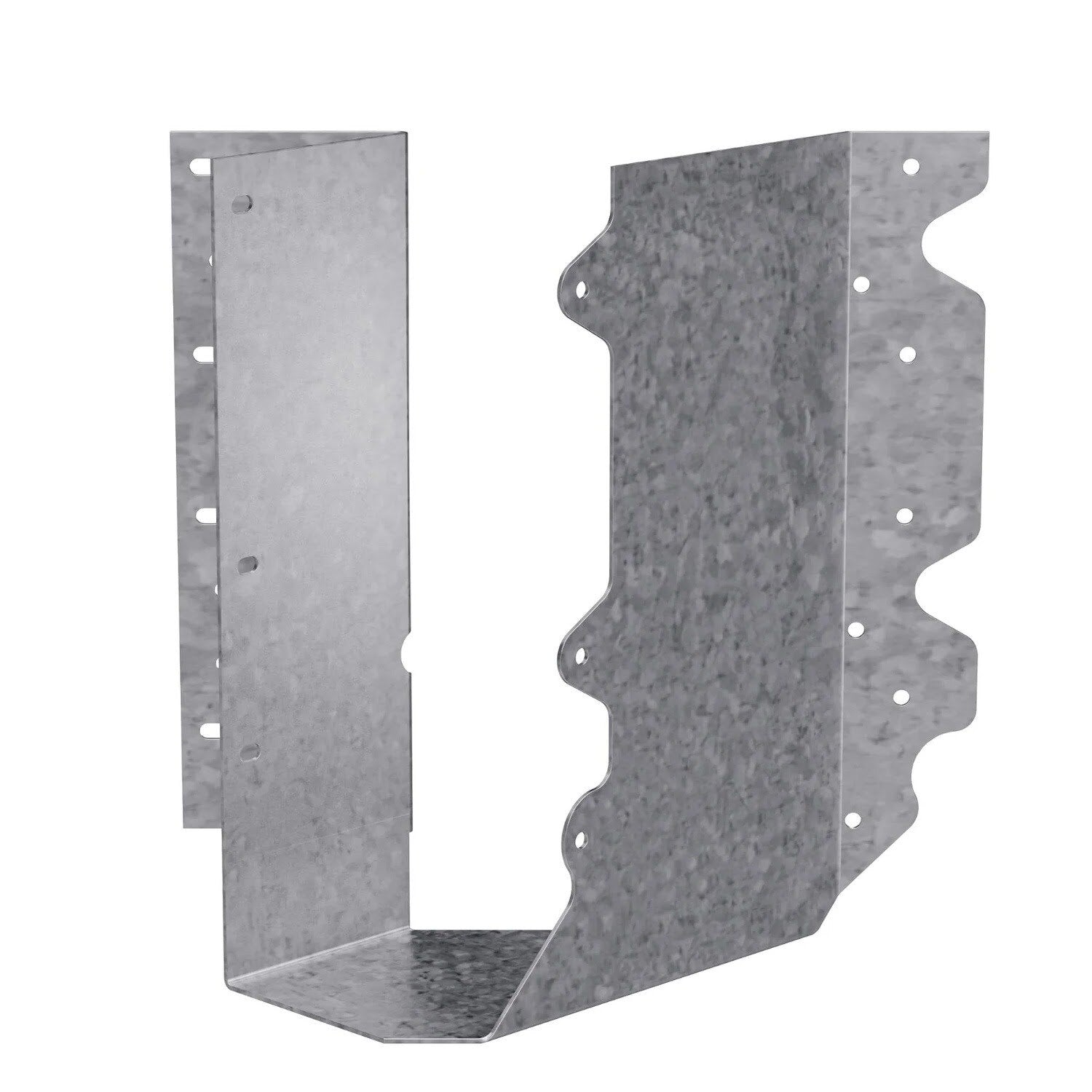

The SUL210-2 is a galvanized joist hanger designed for double 2x10 lumber, skewed left, providing secure and durable connections in wood framing applications.
Simpson Strong-Tie SUL210-2 Includes
- (1) SUL210-2 Joist Hanger
Simpson Strong-Tie SUL210-2 Features

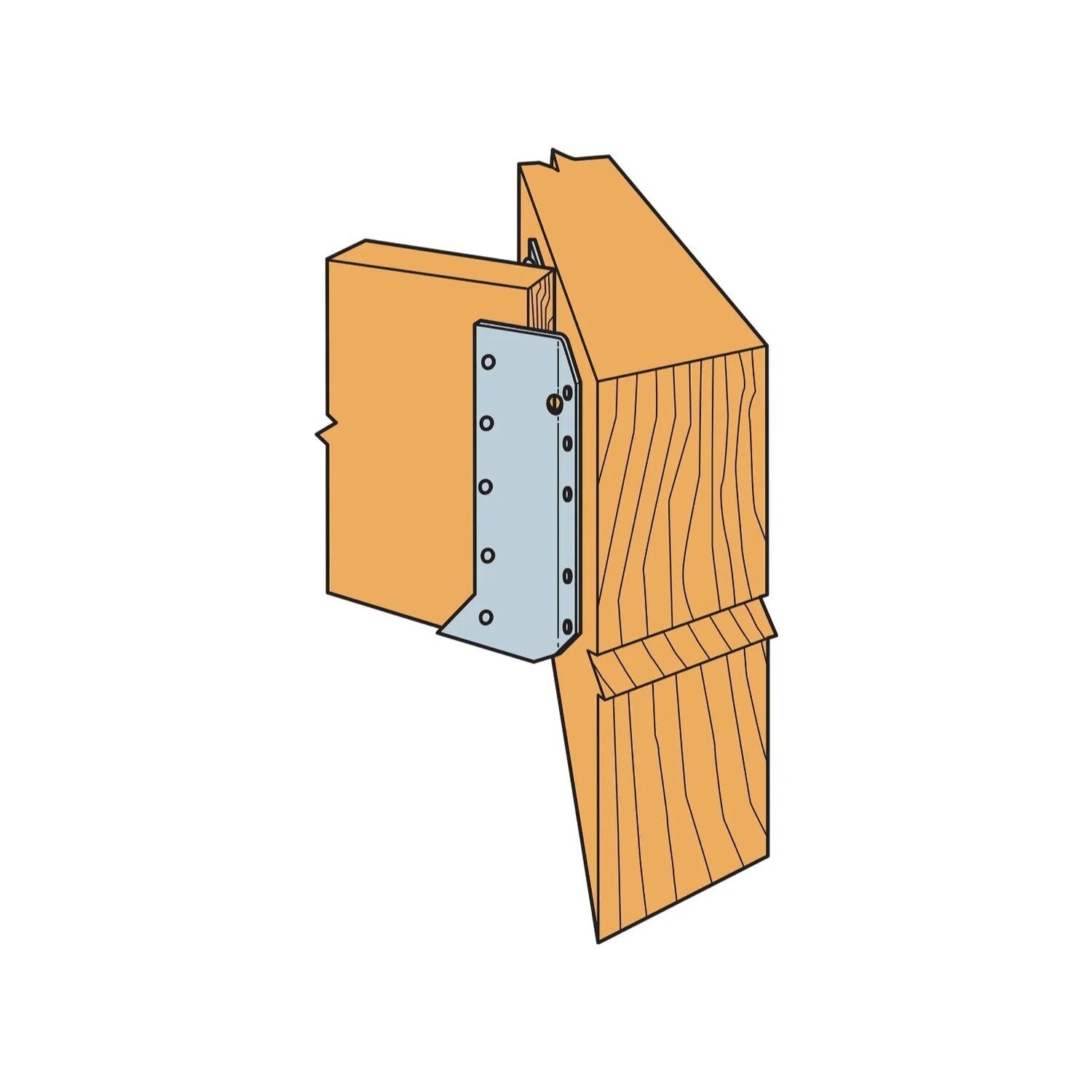

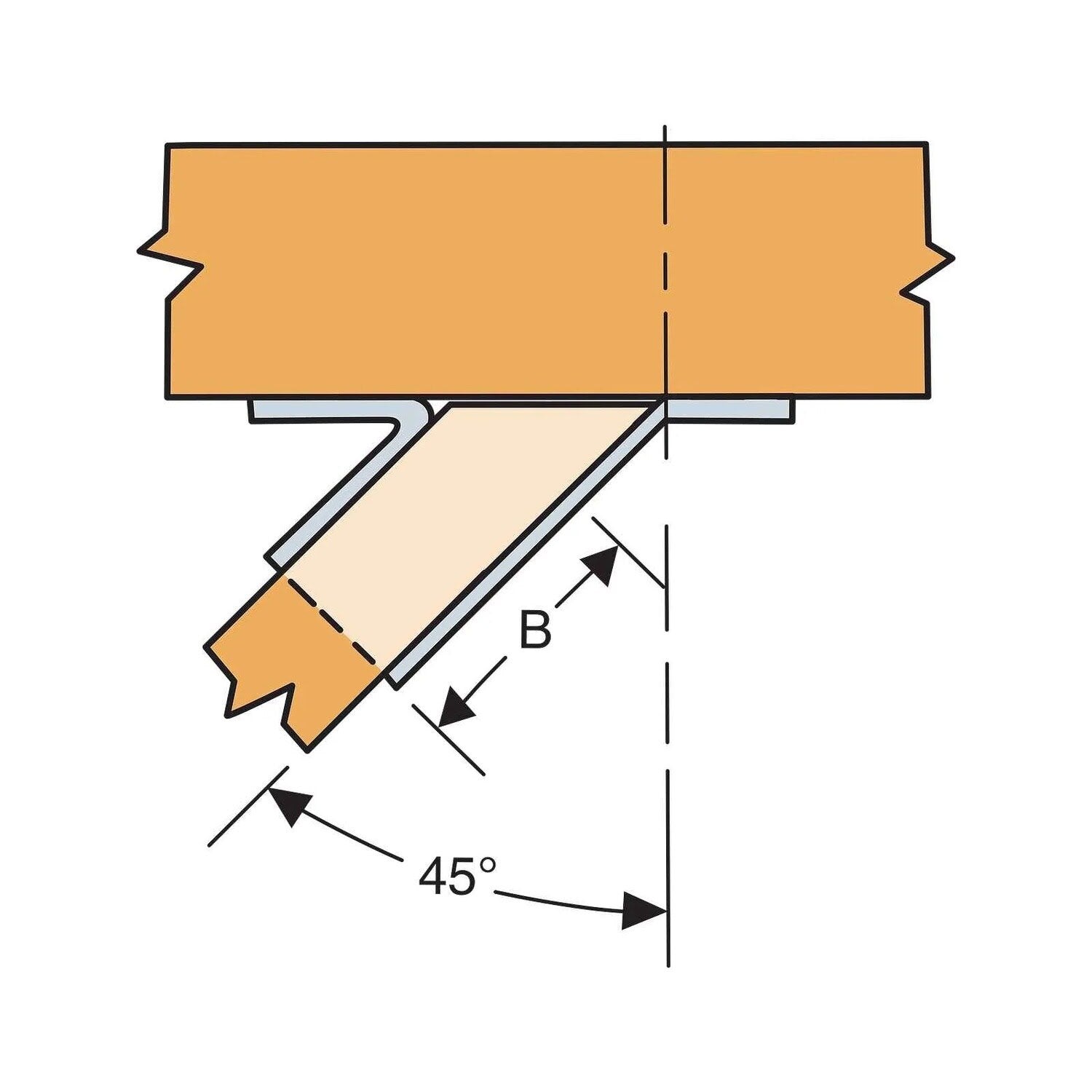

- Left-skewed design for angled beam-to-joist connections
- G90 galvanized finish for corrosion resistance
- High-strength U-shaped construction
- Precision fit for standard lumber sizes
- Suitable for interior and exterior applications
Simpson Strong-Tie SUL210-2 Applications
- Residential framing: Ideal for decks and roofs
- Commercial construction: Supports structural wood connections
- Industrial projects: Ensures secure and precise fits

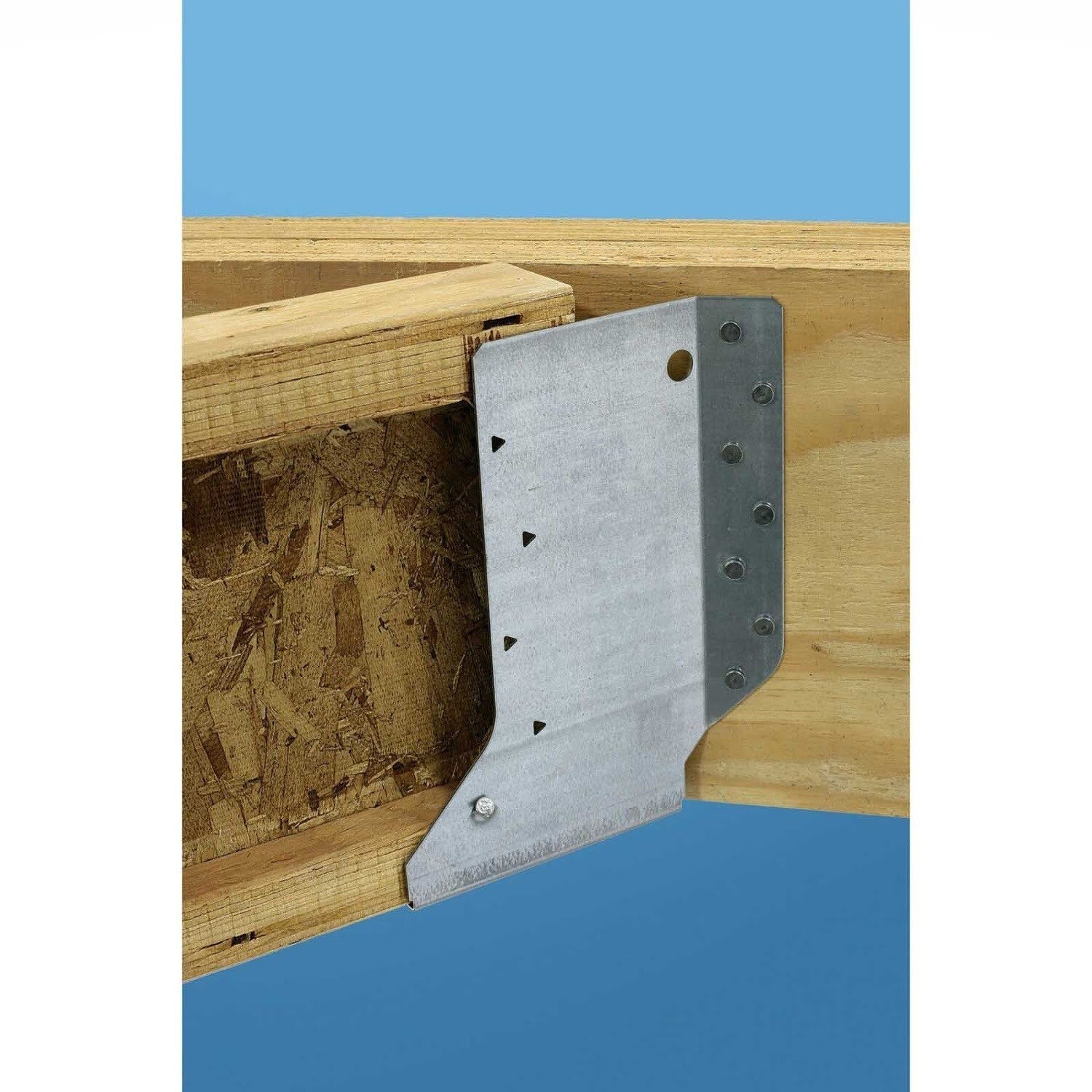

Simpson Strong-Tie SUL210-2 Installation Overview
- Verify dimensions and alignment of the joist and beam.
- Position the hanger on the beam as per the plans.
- Attach using specified nails or screws.
- Ensure all nail holes are filled to achieve table loads.
- Perform a final check to confirm secure installation.

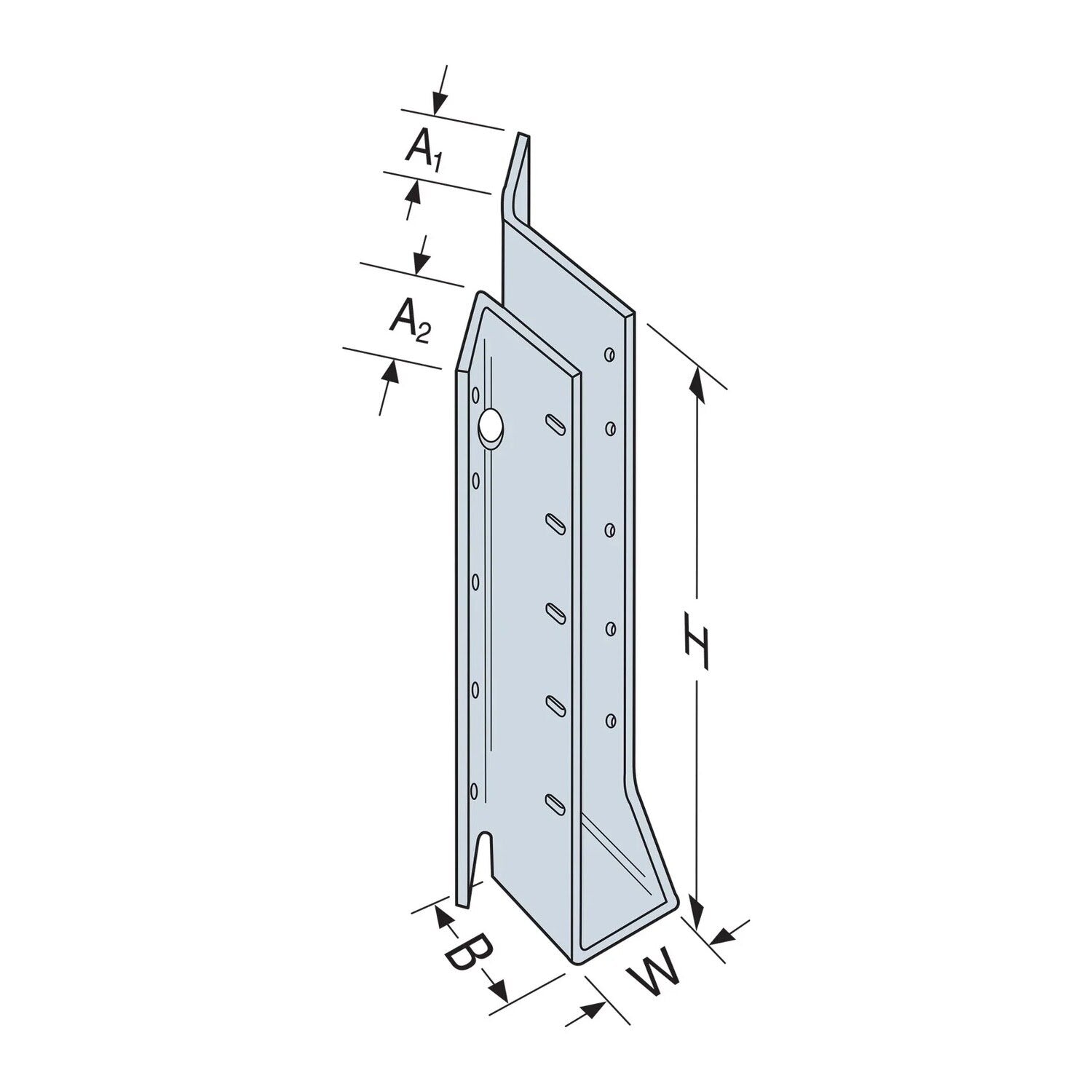

Simpson Strong-Tie SUL210-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails OR (14) SD9112 Screws, Joist - (6) 0.162" x 2-1/2" Nails OR (6) SD9112 Screws |
| For Treated Lumber | No |
| Height | 8-11/16" |
| Joist size | Double 2" X 10" |
| Thickness | 16 Gauge |
| Type | Left Skewed |
| Width | 3-1/8" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
