Simpson Hangers | SKU:
SUL210-2Z
Simpson Strong-Tie SUL210-2Z (Double 2" x 10") ZMAX Left-Skewed U-Shaped Hanger
$37.65
Unit price
/
Unavailable
Description
Description

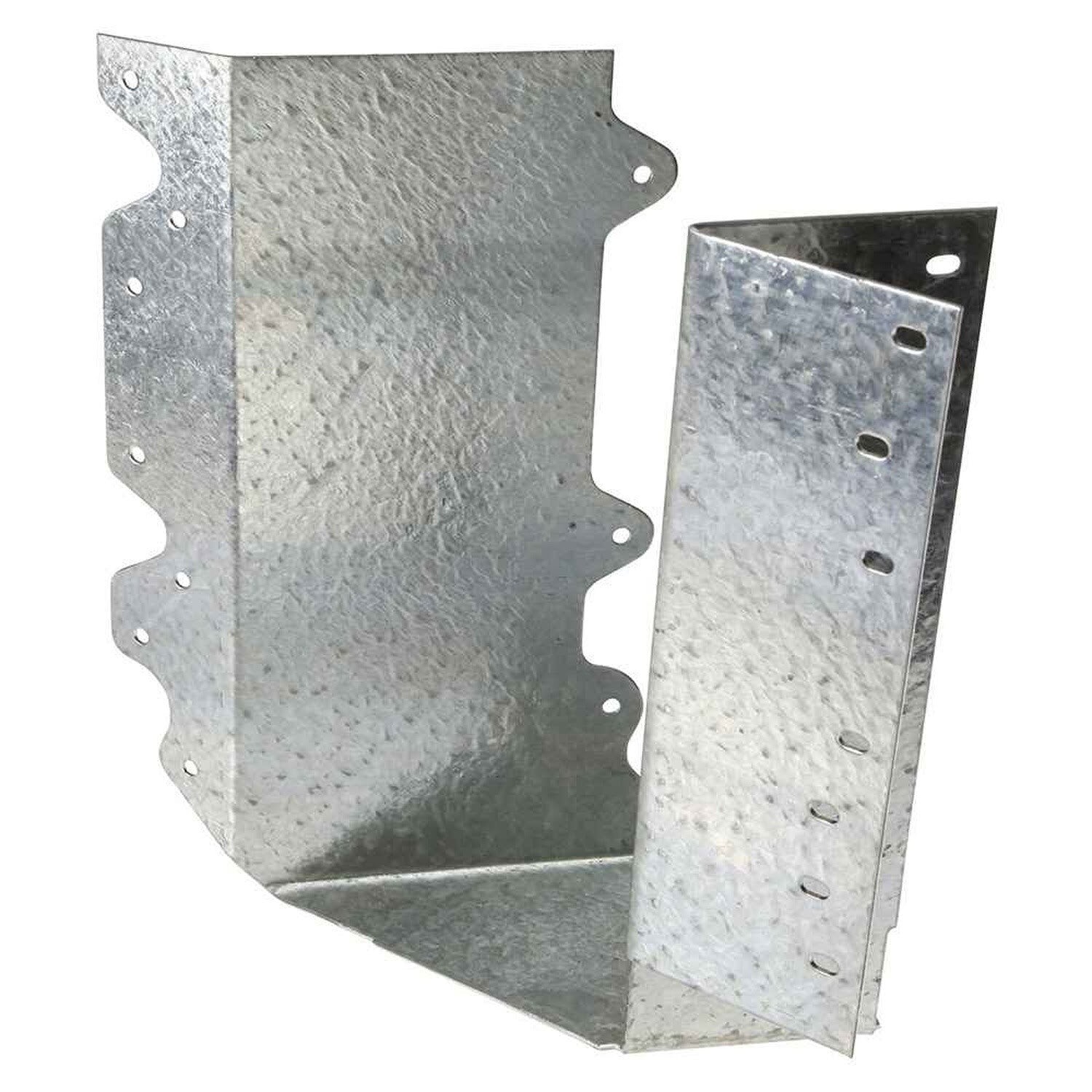

Simpson Strong-Tie SUL210-2Z Description
The SUL210-2Z Joist Hanger is designed for double 2x10 joists with a left-skewed angle, featuring a durable ZMAX coating for enhanced corrosion resistance.
Simpson Strong-Tie SUL210-2Z Includes
- (1) SUL210-2Z Joist Hanger
Simpson Strong-Tie SUL210-2Z Features
- Left-skewed design for angled joist connections
- Durable ZMAX coating for corrosion resistance
- Compatible with solid sawn lumber and engineered wood
- Engineered for structural integrity and reliability
Simpson Strong-Tie SUL210-2Z Applications
- Decks and outdoor structures requiring skewed joist connections
- Roof framing for hip and valley rafter installations
- Floor framing in residential and commercial systems
- Timber and engineered wood framing
Simpson Strong-Tie SUL210-2Z Installation Overview
- Position the hanger at the desired skewed angle and attach securely to the supporting structure.
- Use specified fasteners to fill all pre-drilled holes.
- Verify local building codes and load requirements for compliance.
Simpson Strong-Tie SUL210-2Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails OR (14) SD9112 Screws; Joist - (6) 0.162" x 2-1/2" Nails OR (6) SD9112 Screws |
| For Treated Lumber | Yes |

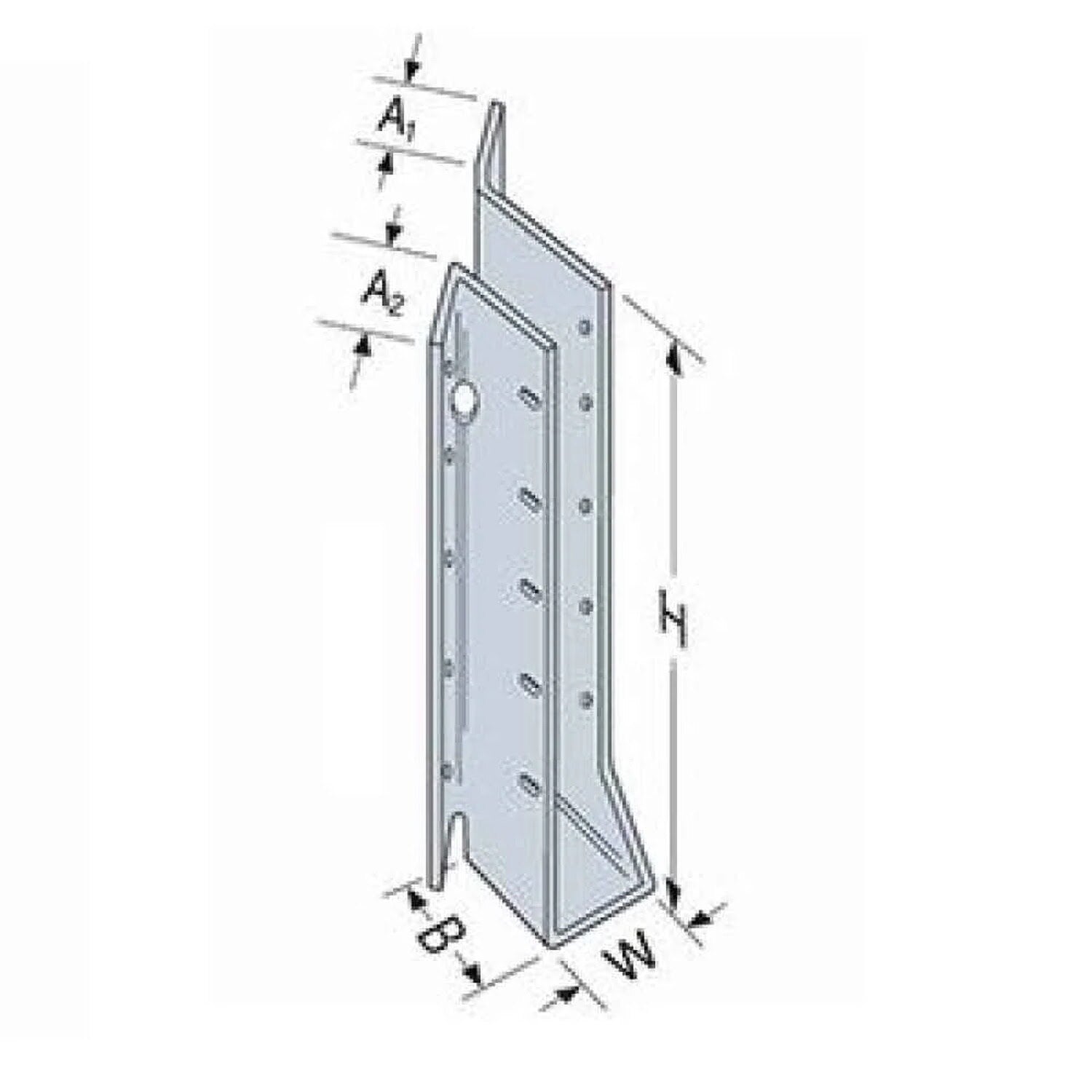

| Height | 8-11/16" |
| Joist size | Double 2" X 10" |
| Thickness | 16 Gauge |

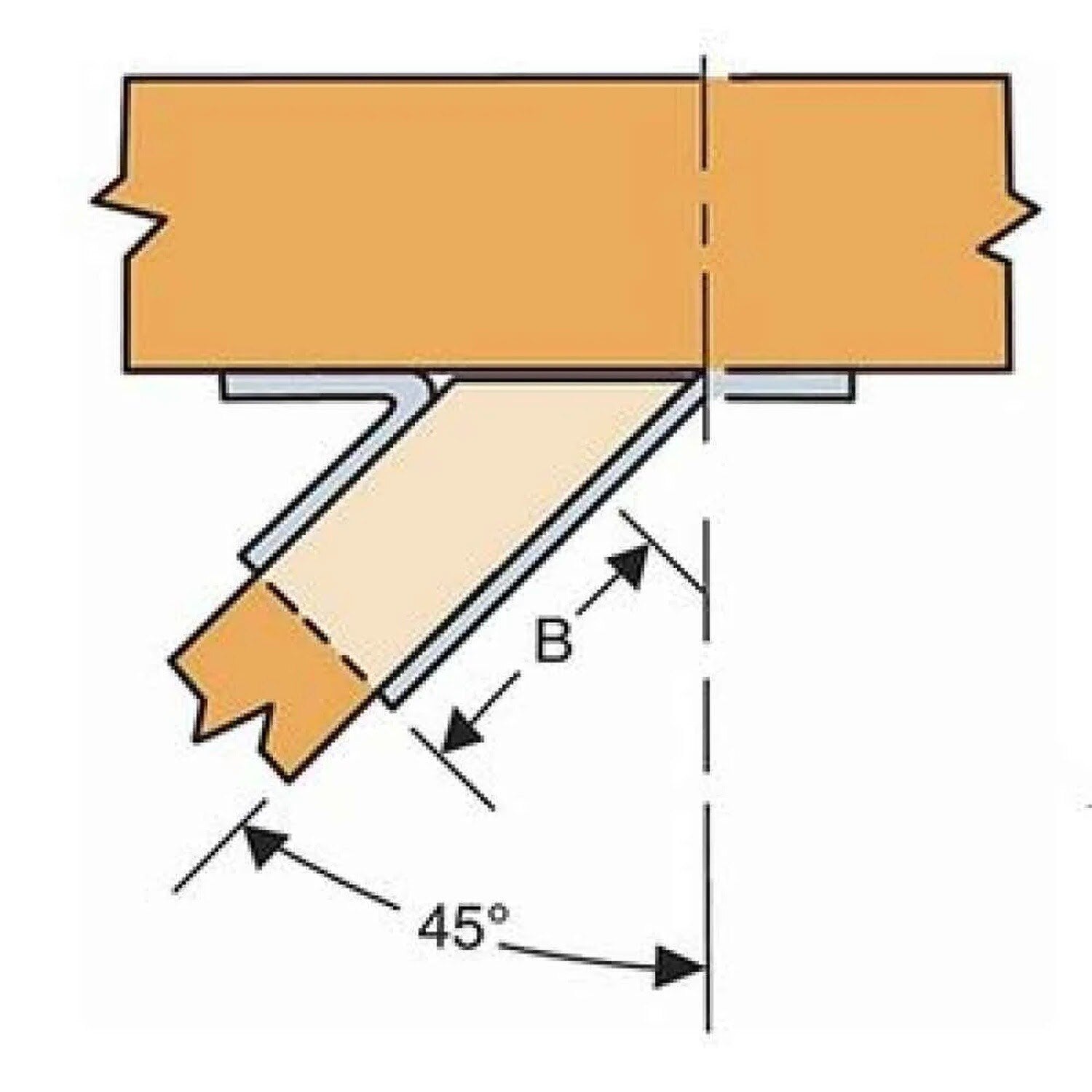

| Type | Left Skewed |
| Width | 3-1/8" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
