Simpson Hangers | SKU:
SUL210Z
Simpson SUL210Z Strong-Tie 2x10 Joist Hanger Skewed Left ZMAX Finish
$18.60
Unit price
/
Unavailable
Description
Description
Simpson SUL210Z Description

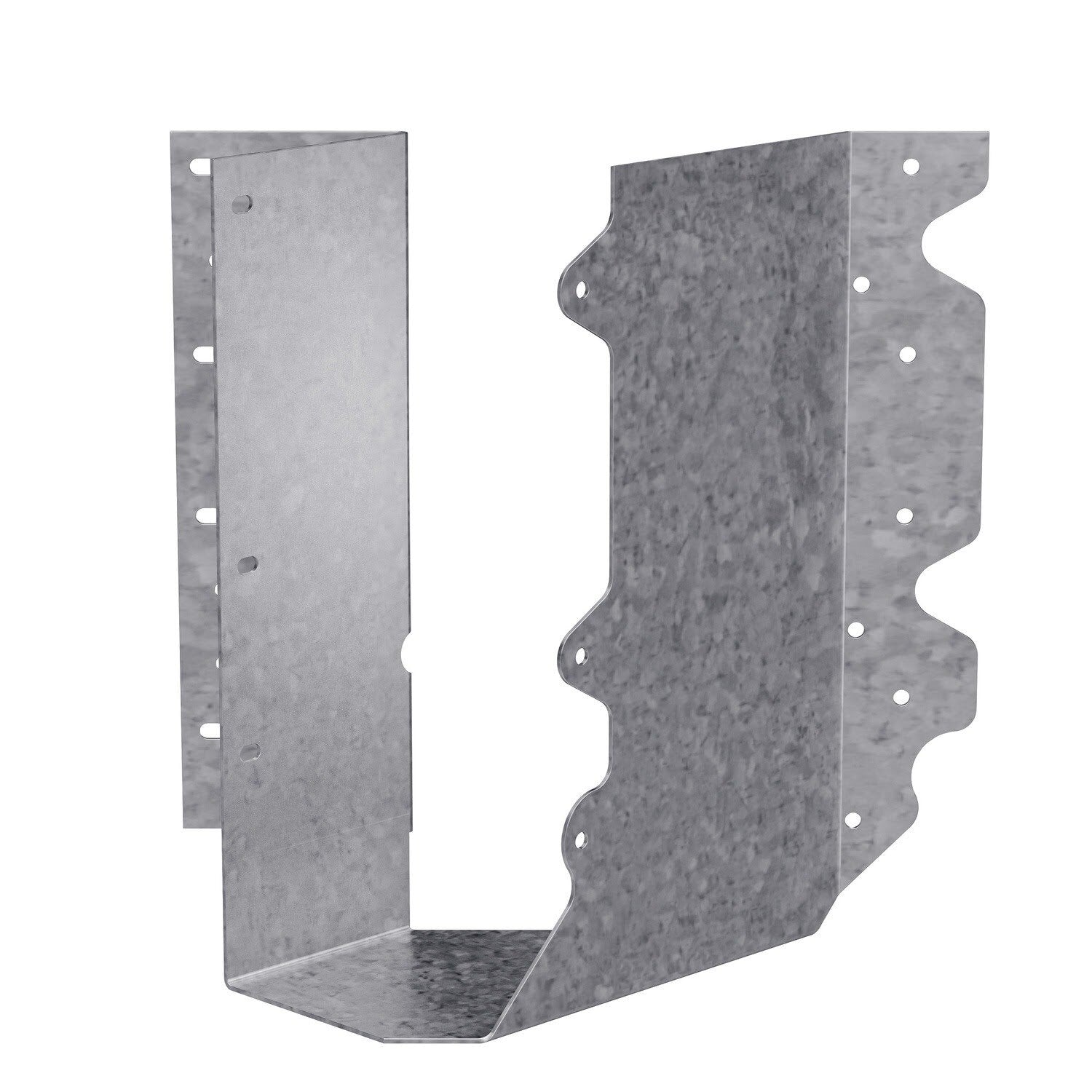

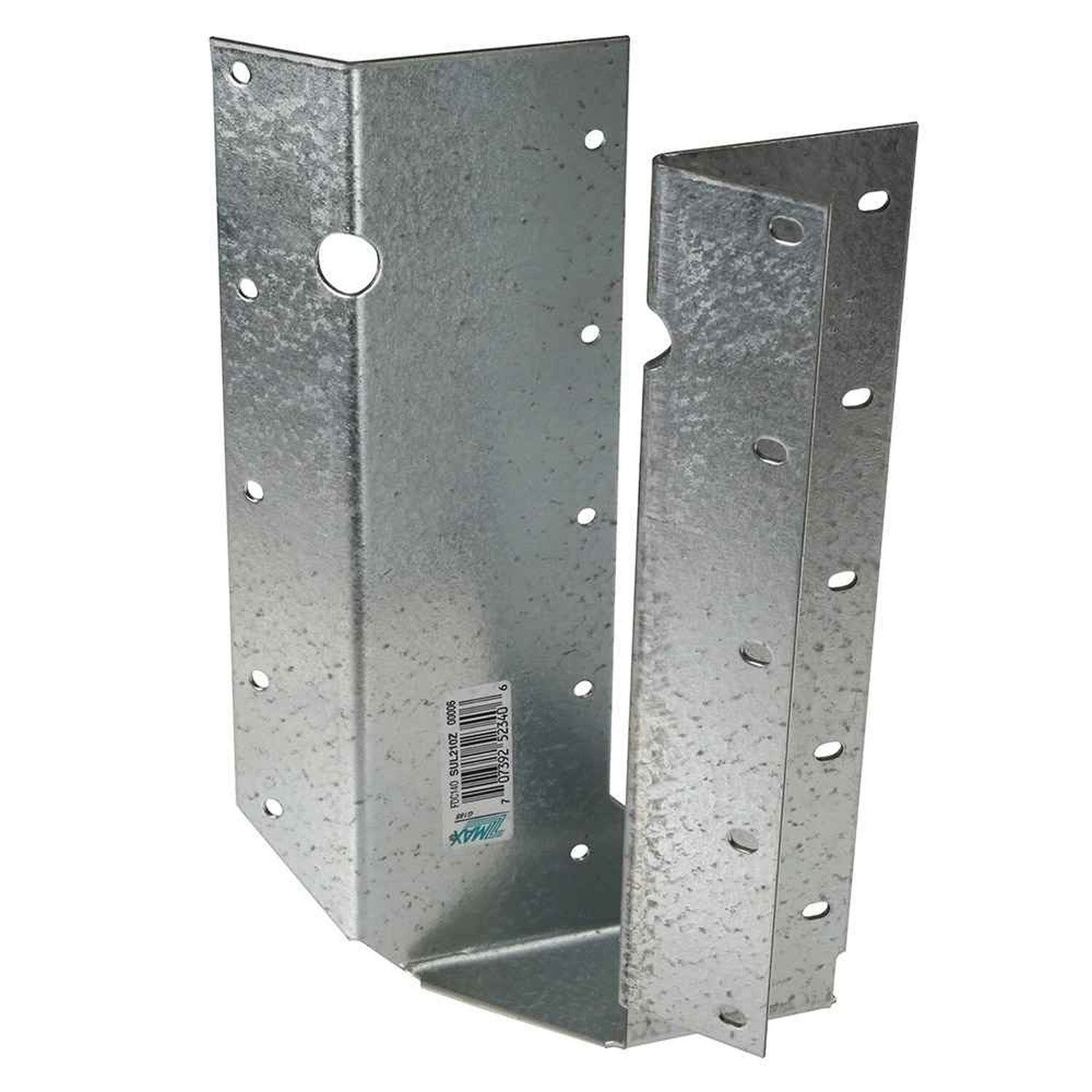

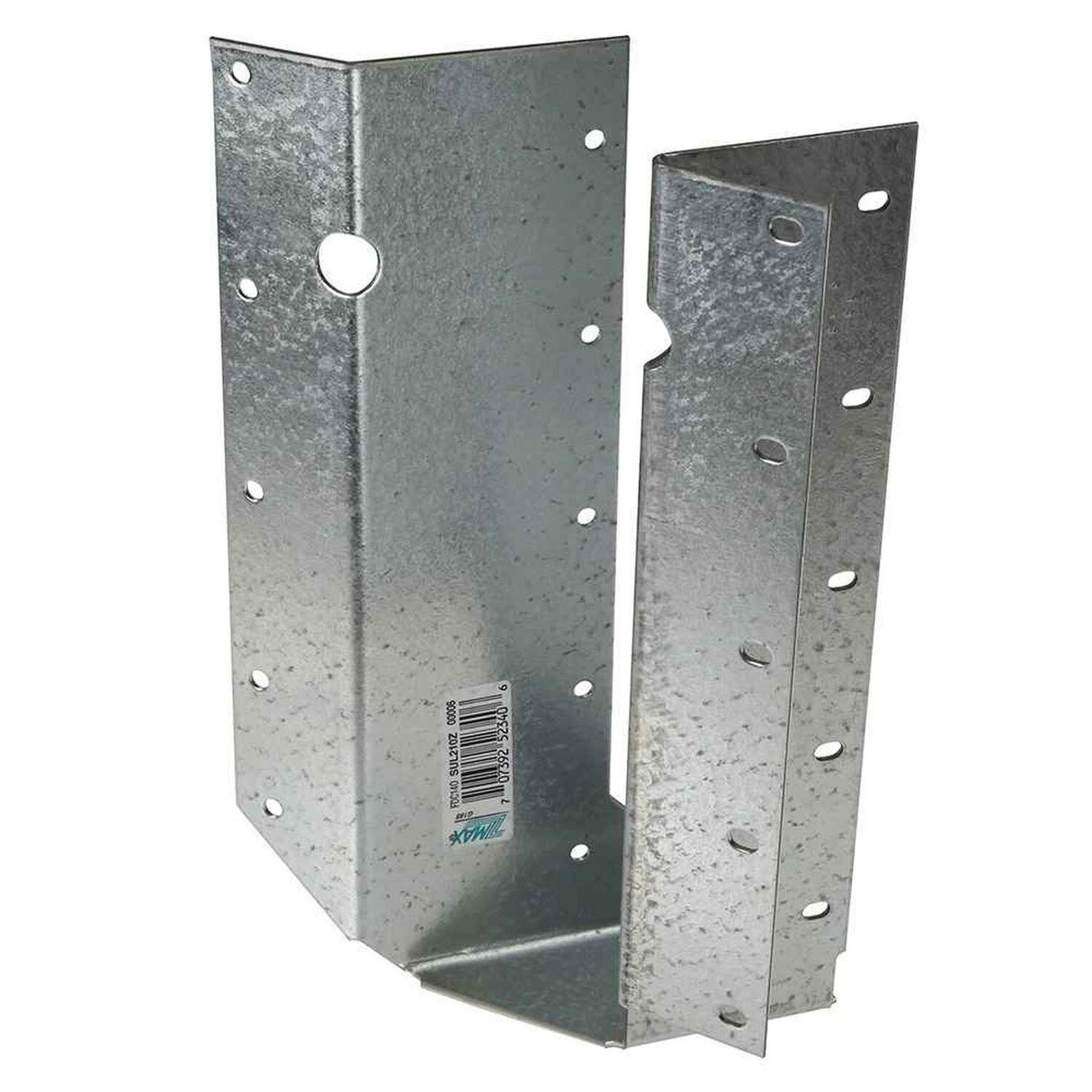

The SUL210Z Joist Hanger is designed for angled joist connections, featuring a left-skewed design and ZMAX coating for enhanced corrosion resistance.
Simpson SUL210Z Includes
- (1) 2x10 Joist Hanger Skewed Left ZMAX Finish
Simpson SUL210Z Features
- Left-Skewed Design for angled joist connections
- ZMAX Coating for superior corrosion resistance
- Compatible with solid sawn lumber and engineered wood
- Engineered for structural integrity and reliability
Simpson SUL210Z Applications
- Decks & Outdoor Structures: Provides secure skewed joist connections for decks, pergolas, and patios.
- Roof Framing: Ideal for hip and valley rafter installations requiring left-skewed connections.
- Floor Framing: Supports angled joist-to-beam connections in residential and commercial flooring systems.
- Timber & Engineered Wood Framing: Compatible with LVL, PSL, and other engineered wood products.

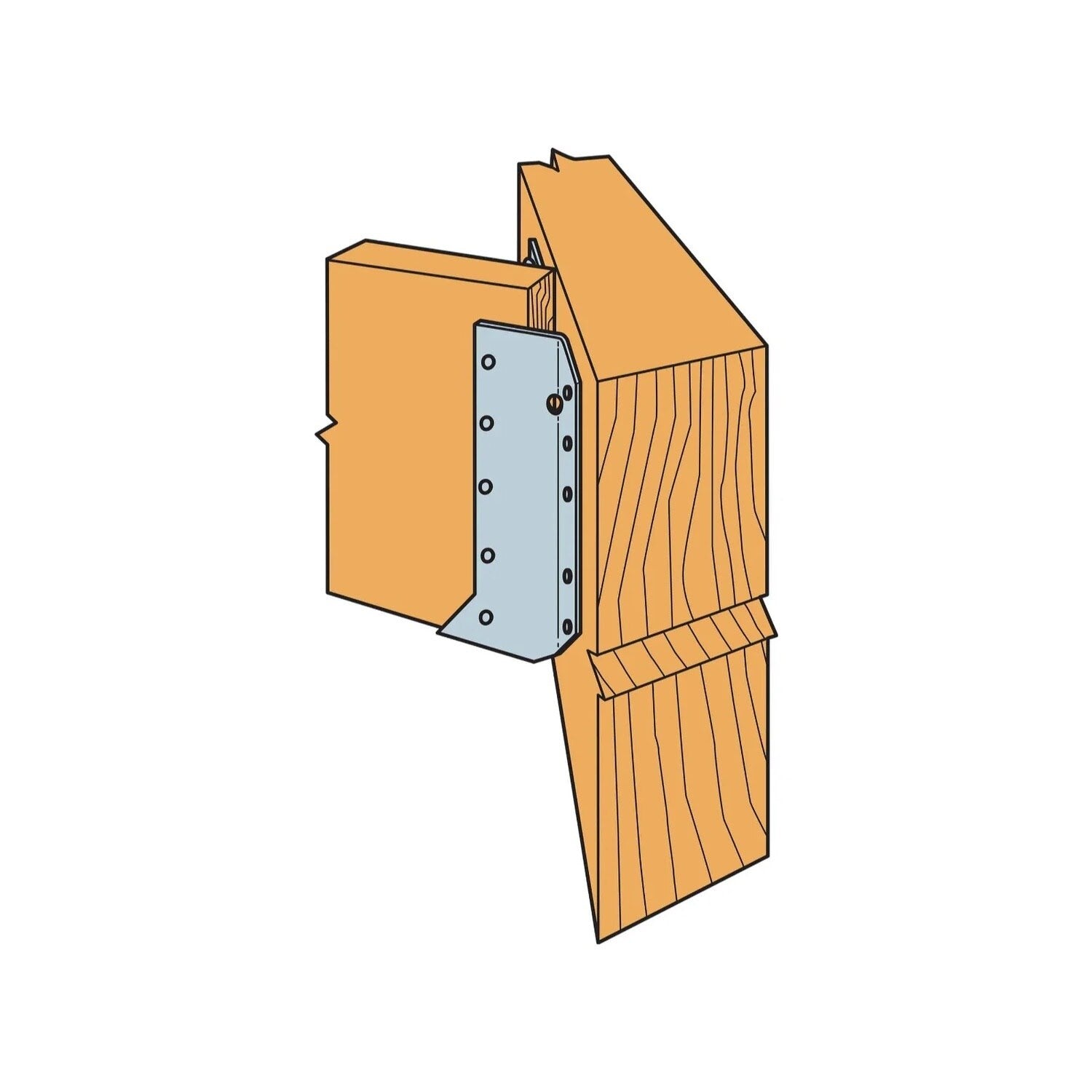

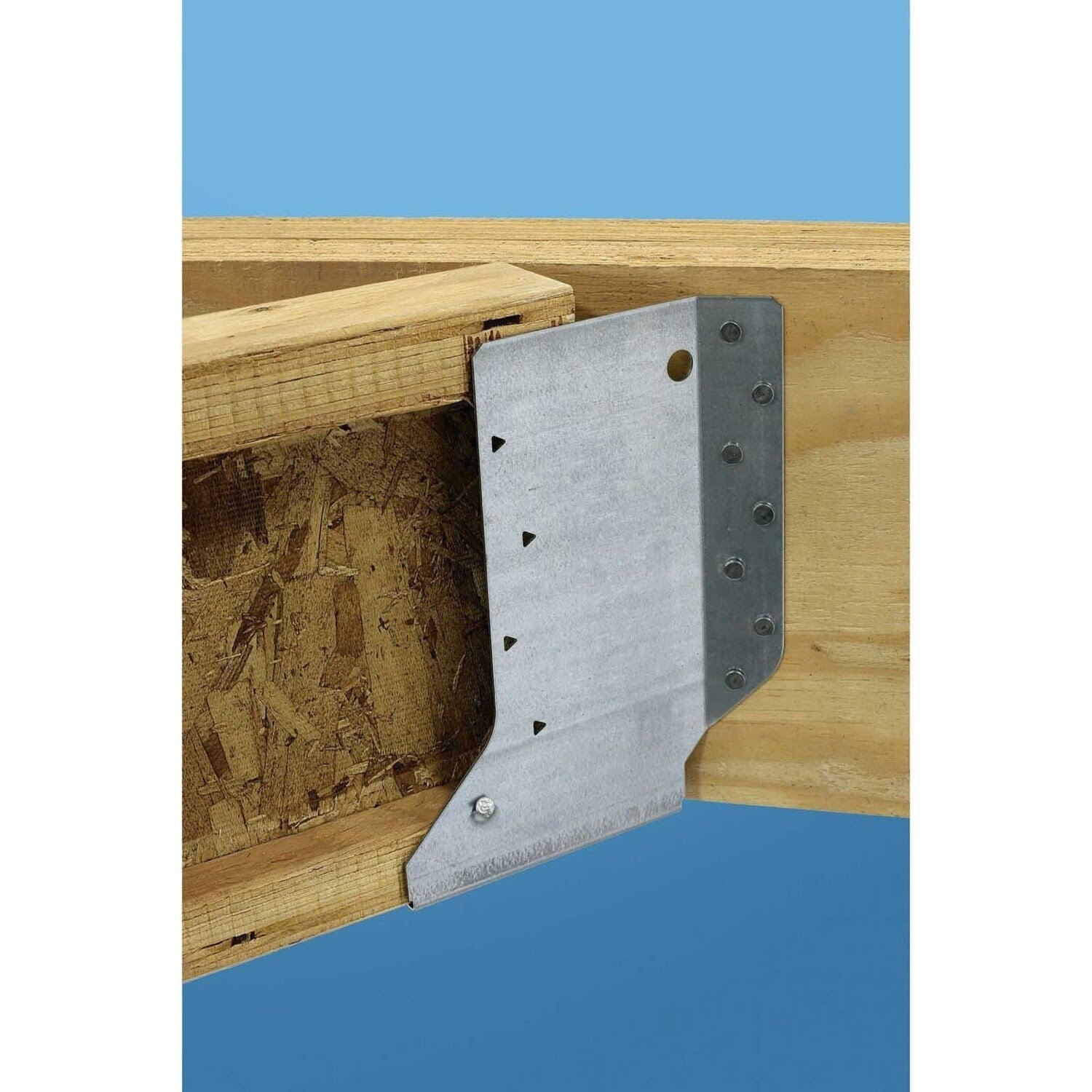

Simpson SUL210Z Installation Overview
- Use joist hanger nails or Strong-Drive SD screws for face-mount installation.
- Position the hanger at the desired skewed angle and attach it securely to the supporting structure.
- Ensure all pre-drilled holes in the hanger are filled with the appropriate fasteners.
- Verify local building codes and load requirements to ensure proper installation.

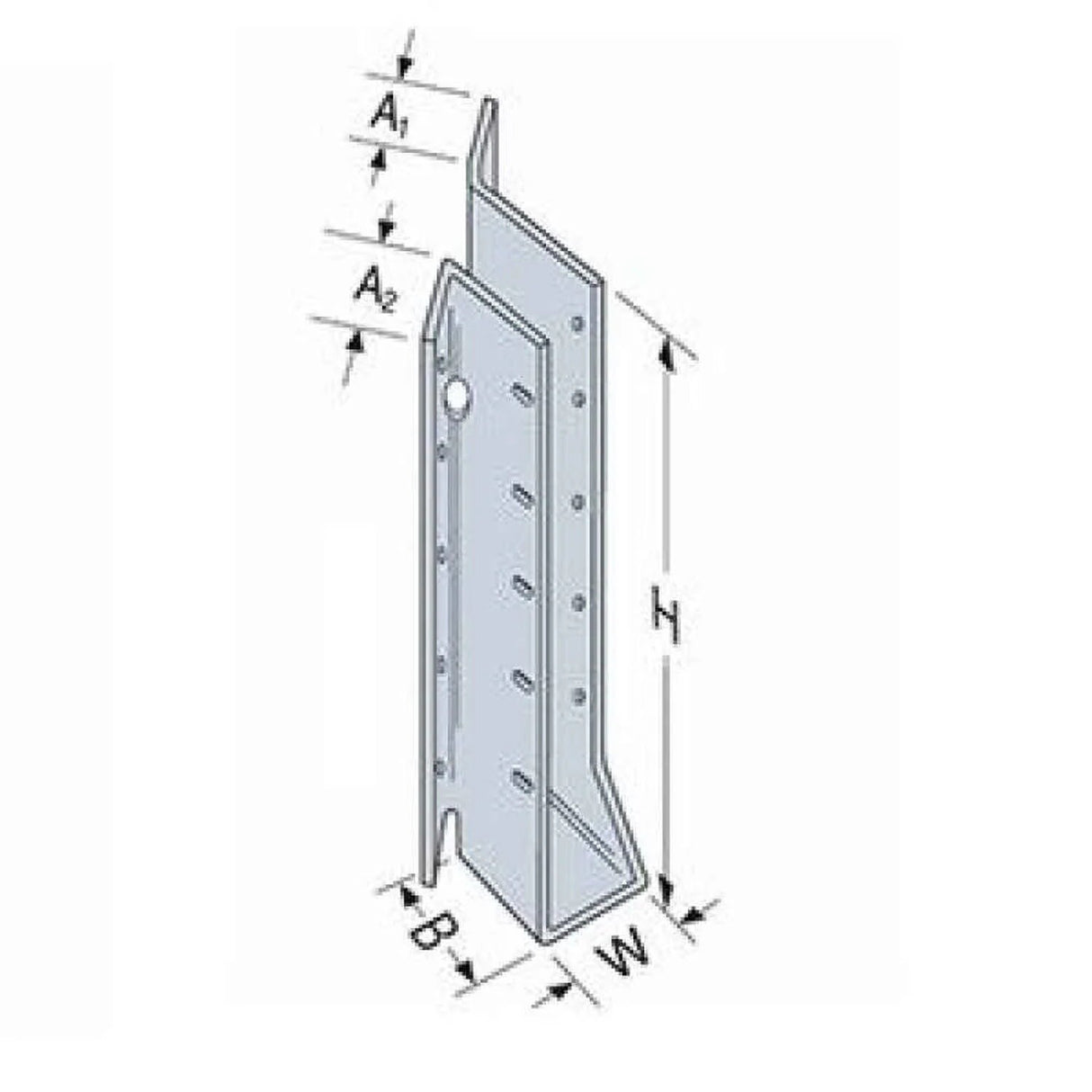

Simpson SUL210Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (10) 0.162" x 3-1/2" Nails OR (10) SD9112 Screws, Joist - (10) 0.148" x 1-1/2" Nails OR (10) SD9112 Screws |
| For Treated Lumber | Yes |
| Height | 8-1/8" |
| Joist size | 2" X 10" |
| Thickness | 16 Gauge |
| Type | Left Skewed |
| Width | 1-9/16" |
NOTE: Ensure all pre-drilled holes in the hanger are filled with the appropriate fasteners to maintain structural integrity.
