Simpson Hangers | SKU:
SUL26Z
Simpson Strong-Tie SUL26Z (2" x 6") Left-Skewed U-Shaped Hanger - ZMAX Finish
$12.55
Unit price
/
Unavailable
Description
Description
Simpson SUL26Z Description

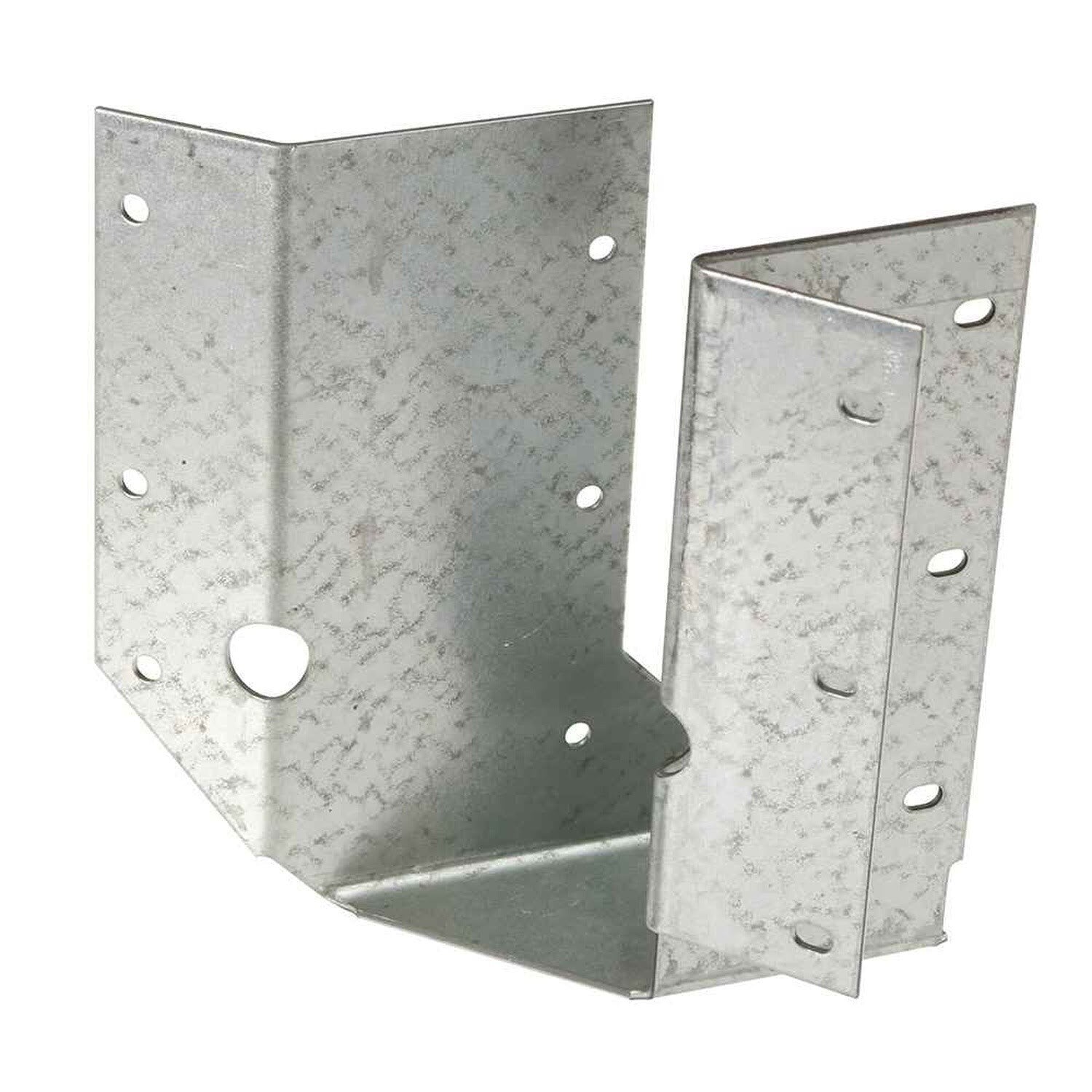

The SUL26Z Joist Hanger is designed for angled joist connections, featuring a left-skewed design and ZMAX coating for corrosion resistance.
Simpson SUL26Z Includes
- (1) Joist Hanger Skewed Left ZMAX Finish
Simpson SUL26Z Features
- Left-Skewed Design for angled joist connections
- ZMAX Coating for enhanced corrosion resistance
- Compatible with solid sawn lumber and engineered wood
- Engineered for structural integrity and reliability
Simpson SUL26Z Applications
- Decks and outdoor structures requiring skewed joist connections
- Roof framing for hip and valley rafter installations
- Floor framing for angled joist-to-beam connections
- Timber and engineered wood framing including LVL and PSL

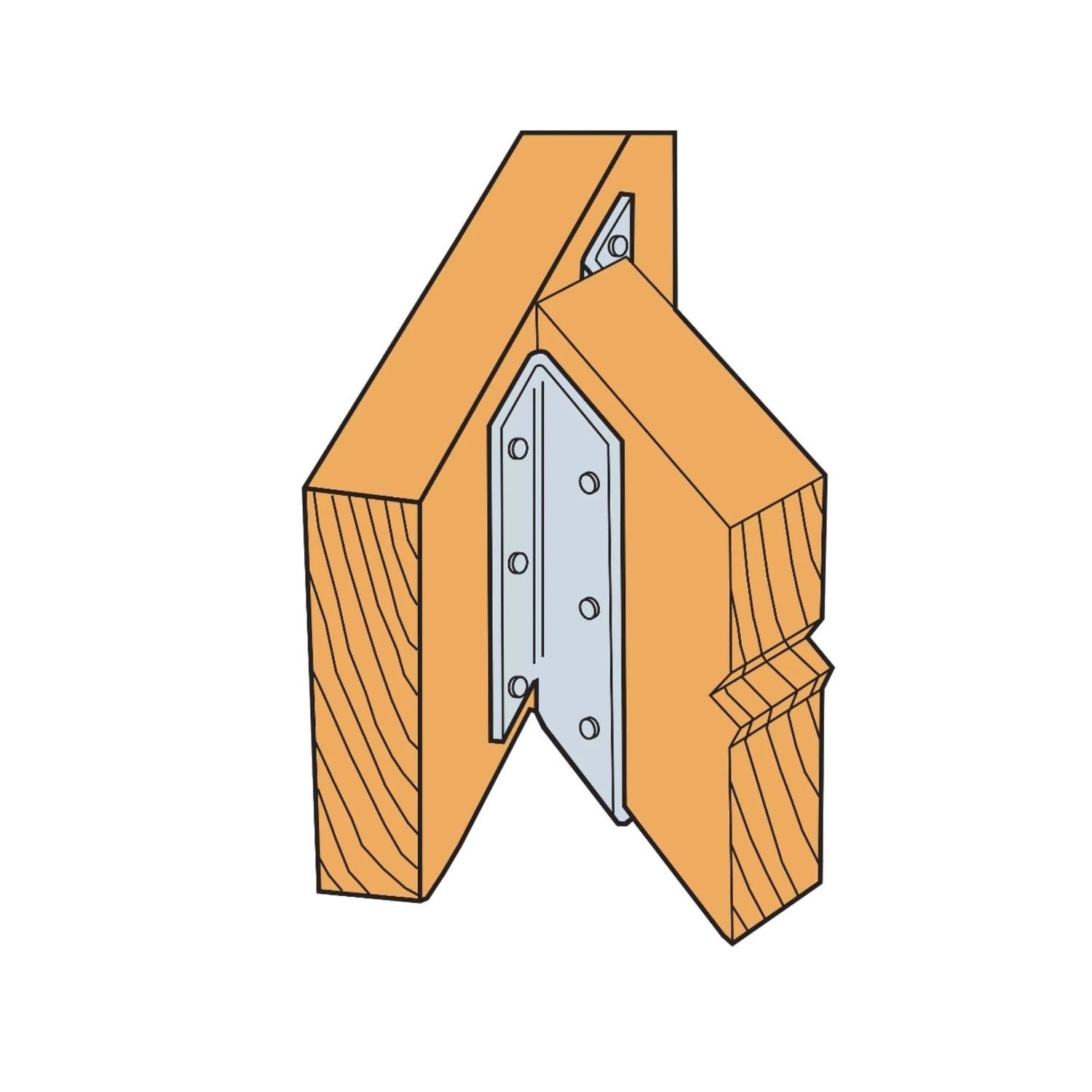

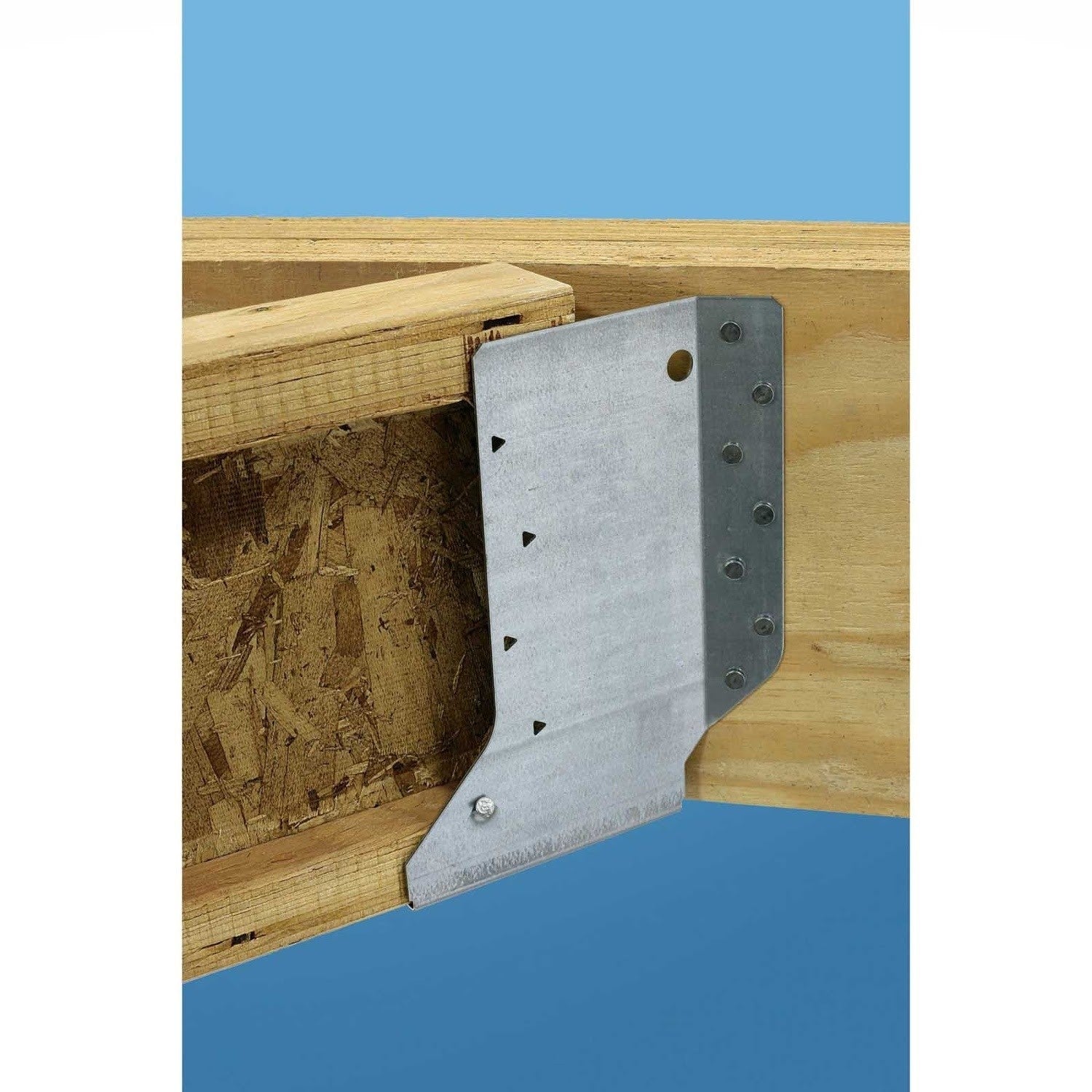

Simpson SUL26Z Installation Overview
- Use joist hanger nails or Strong-Drive SD screws for face-mount installation
- Position the hanger at the desired skewed angle and attach securely
- Fill all pre-drilled holes with appropriate fasteners
- Verify local building codes and load requirements

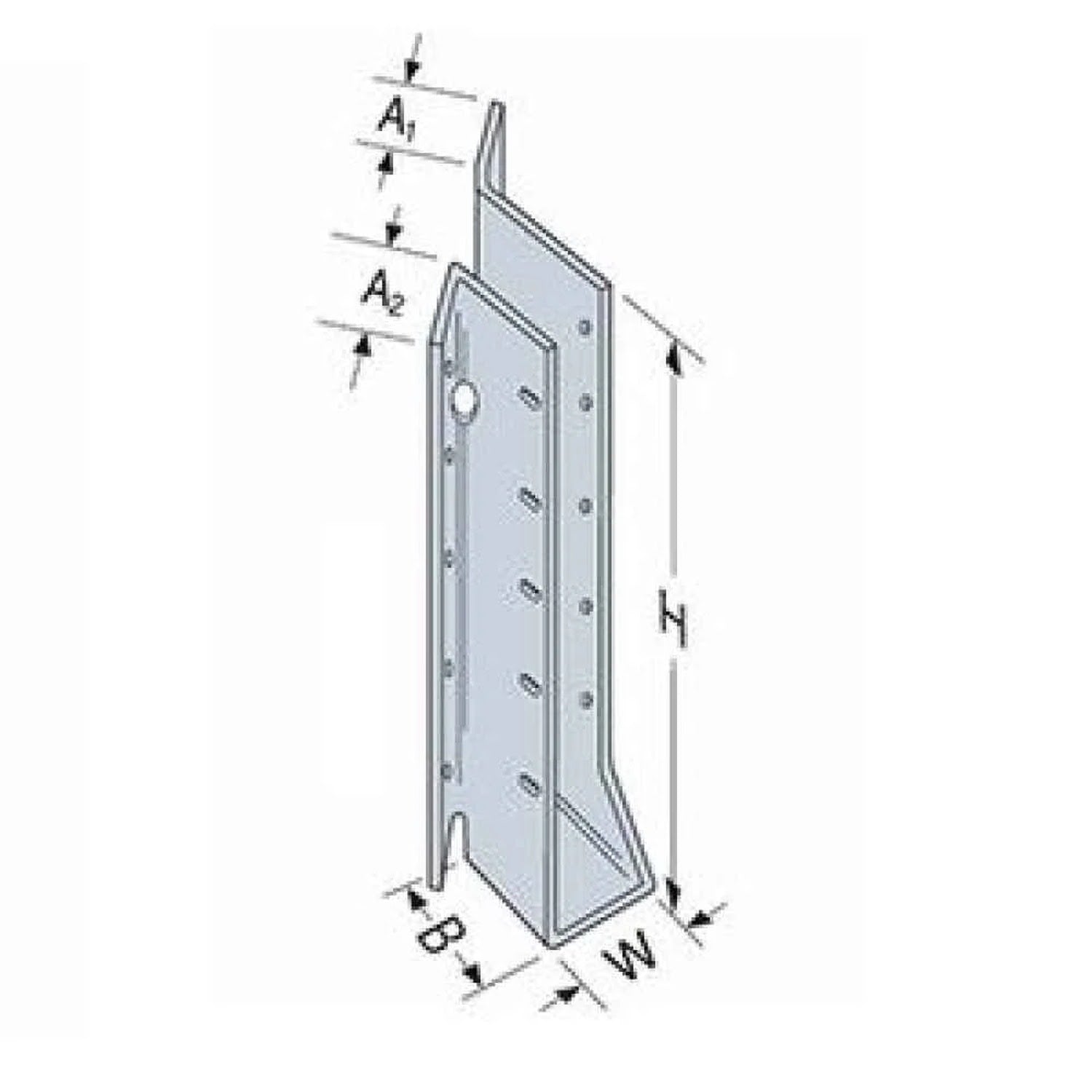

Simpson SUL26Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (6) SD9112 Screws, Joist - (6) SD9112 Screws |
| For Treated Lumber | Yes |
| Height | 5" |
| Joist size | 2" X 6" |
| Thickness | 16 Gauge |
| Type | Left Skewed |
| Width | 1-9/16" |
NOTE: Ensure all pre-drilled holes in the hanger are filled with the appropriate fasteners to maintain structural integrity.
