Simpson Hangers | SKU:
SUL410
Simpson SUL410 Strong-Tie Galvanized Joist Hanger for 4x10, Skewed Left
$26.02
Unit price
/
Unavailable
Description
Description

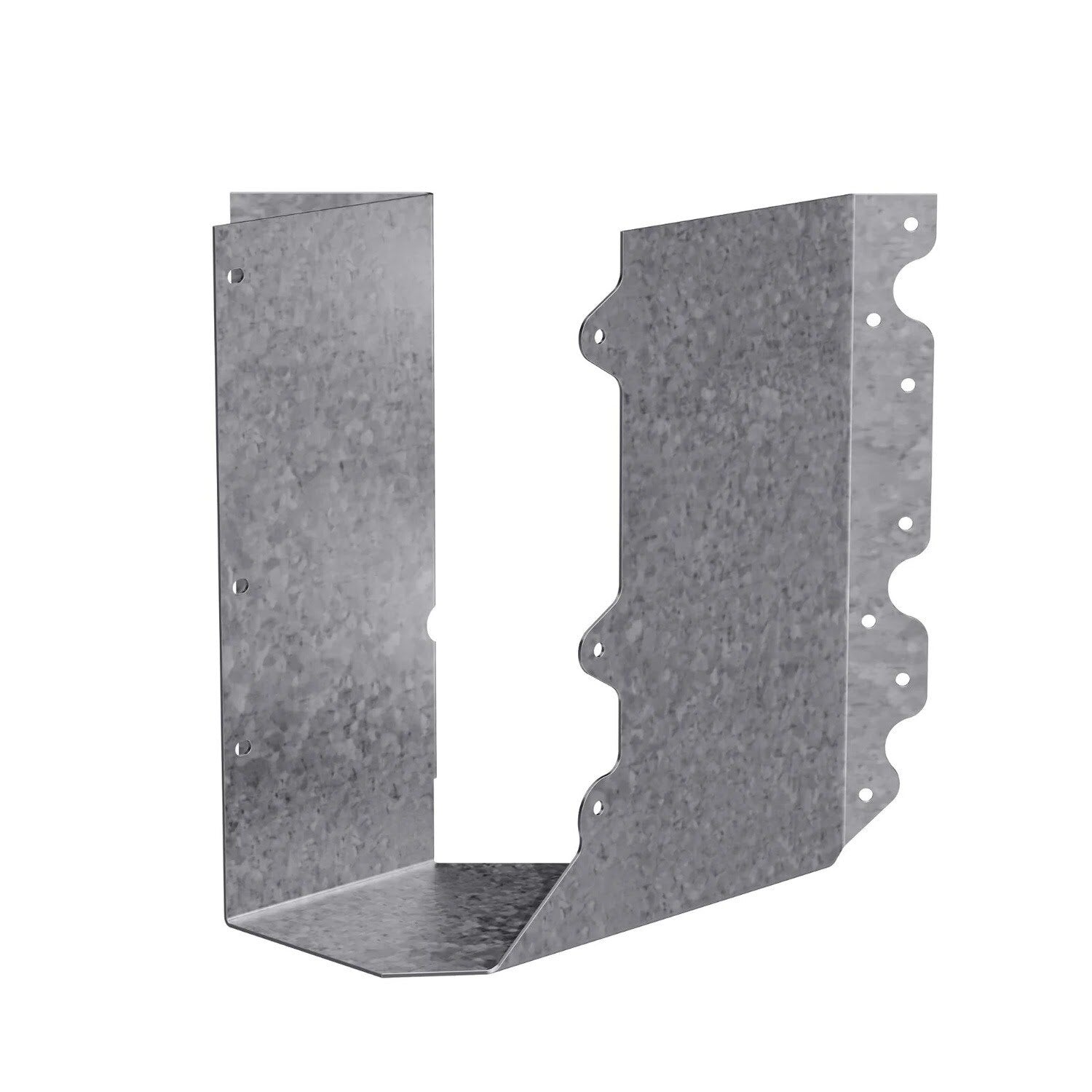

Simpson Strong-Tie SUL410 Description

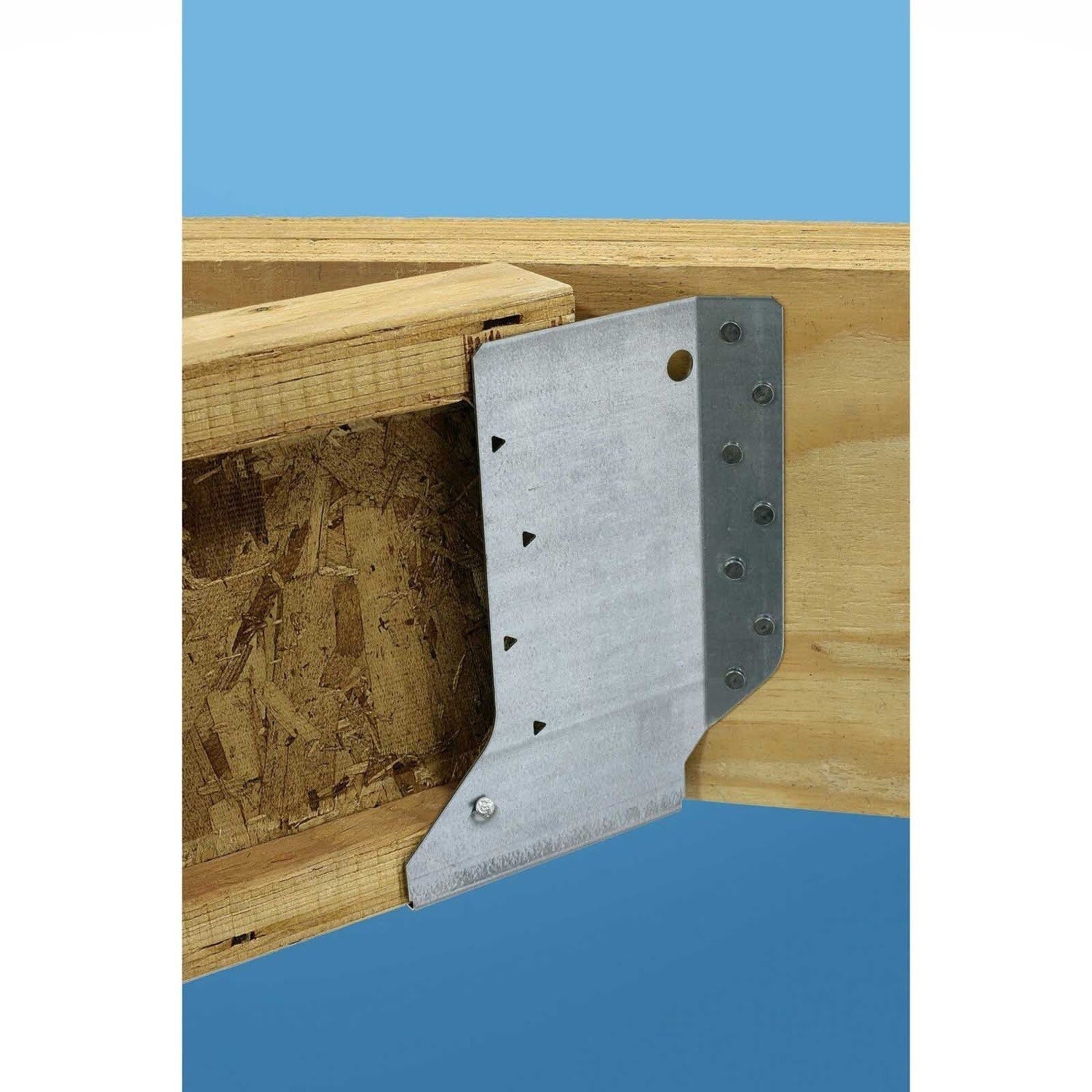

The SUL410 Left Skewed Joist Hanger is a durable and high-strength connector designed for angled beam-to-joist connections in wood framing applications.
Simpson Strong-Tie SUL410 Includes
- (1) SUL410 Joist Hanger
Simpson Strong-Tie SUL410 Features
- Left-Skewed Design for angled beam-to-joist connections
- G90 Galvanized Finish for corrosion resistance
- High-Strength U-Shaped Construction for structural stability
- Precision Fit for standard lumber sizes
- Versatile Applications for residential and commercial framing
Simpson Strong-Tie SUL410 Applications
- Residential framing: Securely connects beams and joists in home construction
- Commercial framing: Provides reliable support for structural wood connections
- Deck construction: Ensures stability and load-bearing capacity for outdoor decks
- Roof framing: Facilitates angled connections in roof structures
- General wood construction: Suitable for various wood framing projects
Simpson Strong-Tie SUL410 Installation Overview
- Verify dimensions and alignment of the joist and beam

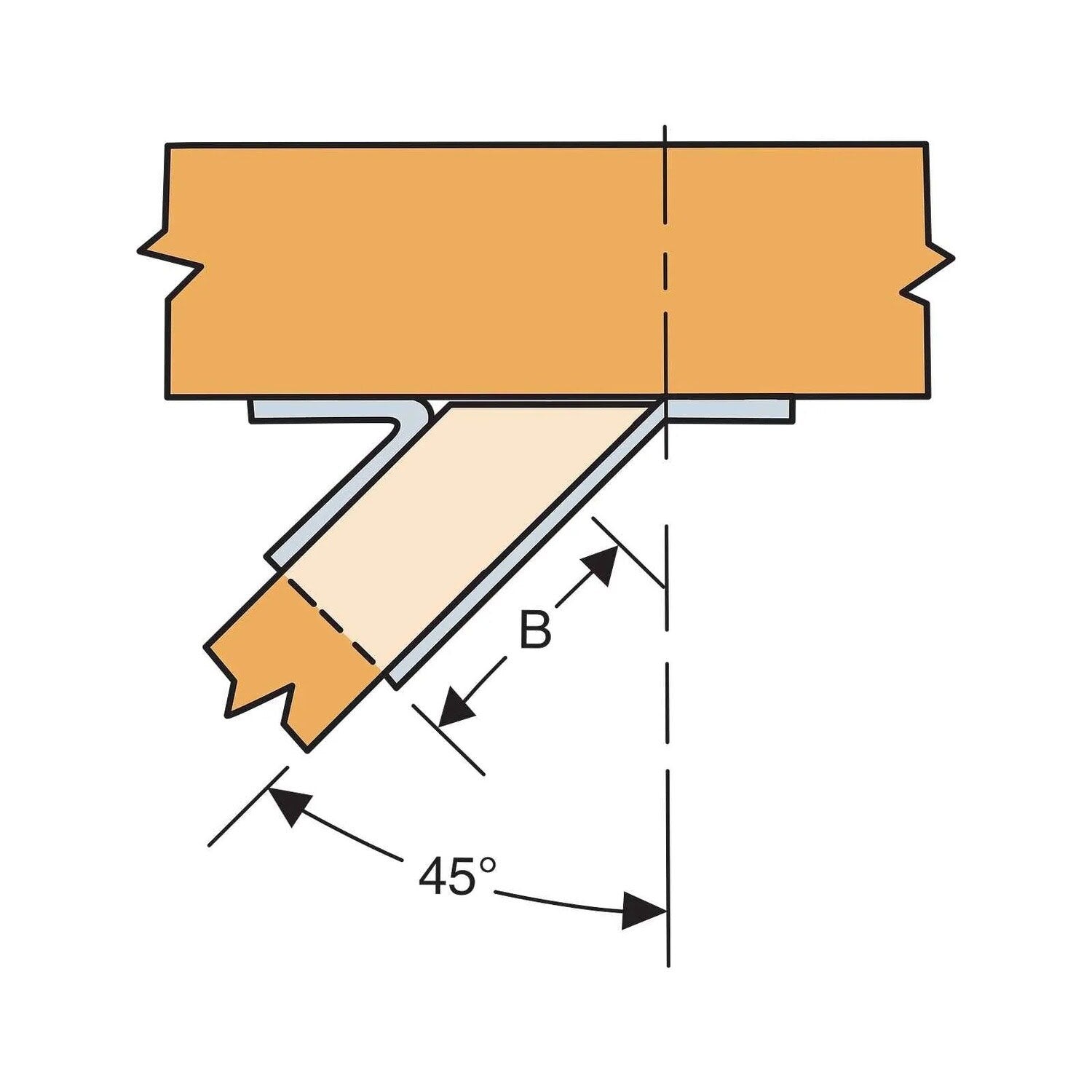

- Position the hanger to align with the skewed angle
- Attach using specified nails or screws
- Ensure all nail holes are filled for maximum load capacity
- Perform a final check to confirm secure installation

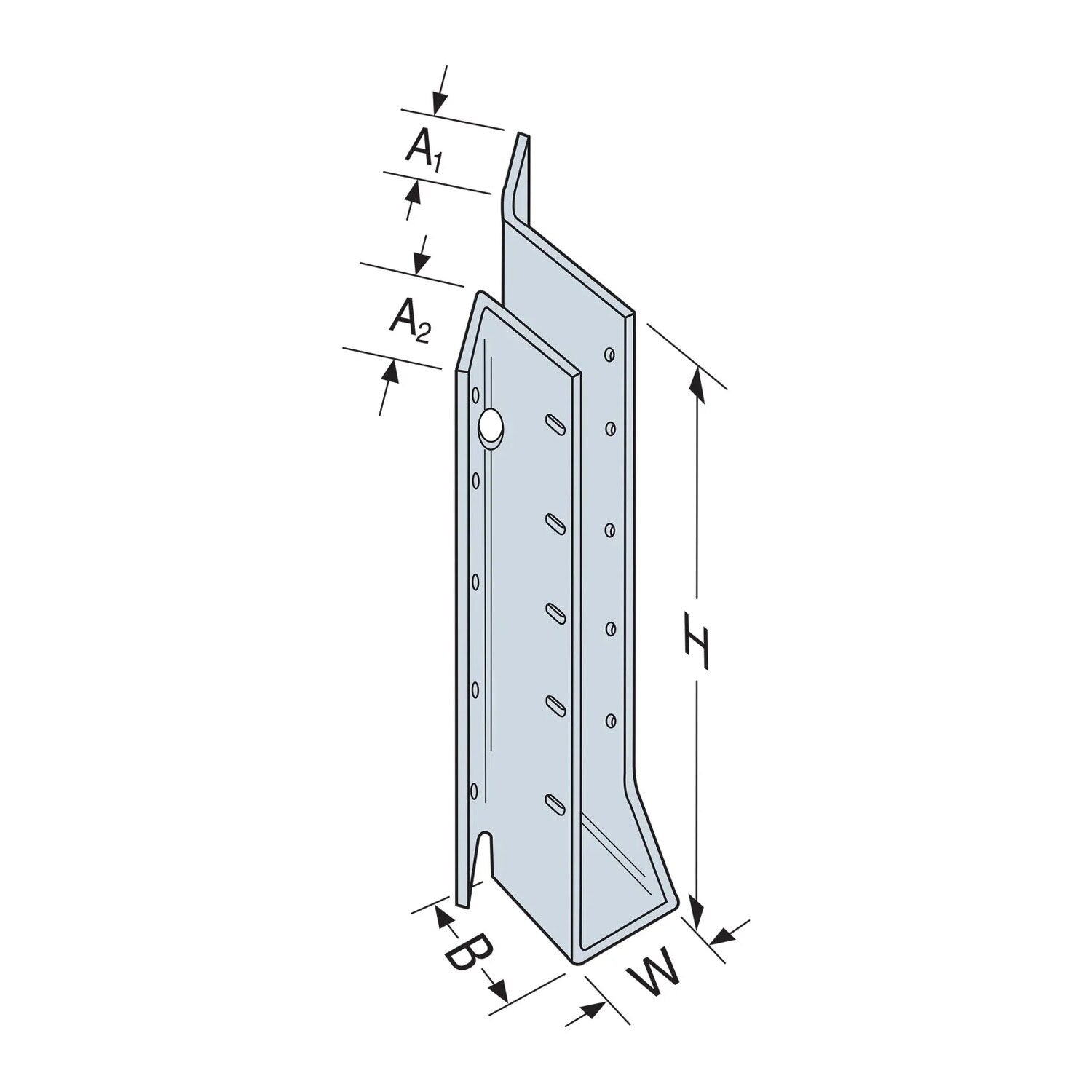

Simpson Strong-Tie SUL410 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails OR (14) SD9112 Screws, Joist - (6) 0.162" x 3-1/2" Nails OR (6) SD9112 Screws |
| For Treated Lumber | No |
| Height | 8-1/2" |
| Joist size | 4" X 10" |
| Thickness | 16 Gauge |
| Type | Left Skewed |
| Width | 3-9/16" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
